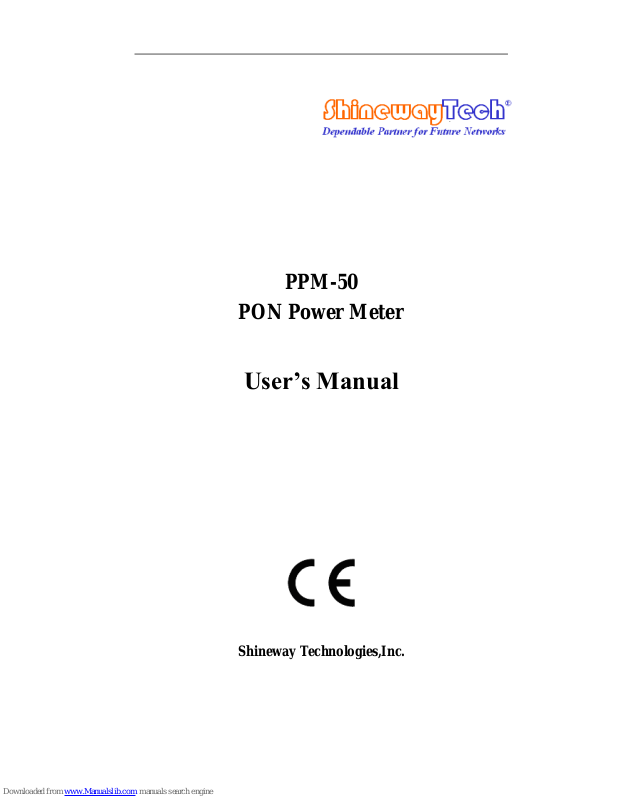

ShinewayTech PPM-50 User Manual

PPM-50

PON Power Meter

User’s Manual

Shineway Technologies,Inc.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - ii -

Safety Instructions

Safety Terms Used in This Manual

The WARNING sign denotes a hazard. It calls attention to a
procedure which could result in personnel injury.

The CAUTION sign denotes a hazard. It calls attention to an
operating procedure if not correctly performed or adhered to, could

result in damage to or destruction of part or the entire product.

The NOTE sign information that may be beneficial during the use
and maintenance of the instrument.

PON Power Meter is a laser device, user should always avoid direct
eye exposure to the laser output. Using microscope or magnifier to
observe the laser output should also be avoided: laser beam may
converge on the retina and cause permanent eye injury.

Battery: PPM-50 battery type is lithium battery.
Battery Power Supply: Do not expose battery to fire or intense heat.

Do not open or mutilate battery. Avoid touching the electrolyte in the
battery, which is corrosive and may cause injuries to eyes, skin or
damage to clothes.
External Power Supply: PPM-50 support external power supply:
5V DC/750mA. External power supply is optional.
Laser Radiation: To avoid serious eye injury, never look directly
into the optical outputs of fiber optic network equipment, test
equipment,

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - iii -

 Always avoid looking directly into the optical output port,

when the instrument is working

 Always replace protective dust cap on the detector port when

the instrument is not in use.

 Always avoid looking directly at unconnected end of optic

fiber in testing and make the unconnected end pointing at a
non-reflective object.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - iv -

Contents

SAFETY INSTRUCTIONS ............................................................................... II

SAFETY TERMS USED IN THIS MANUAL ................................................. II

1. GENERAL INFORMATION ......................................................................... 1

1.1 SCOPE OF THIS MANUAL ................................................................................................ 1

1.2 UNPACKING AND INSPECTION ........................................................................................ 1

1.3 INTRODUCTION AND FEATURES ...................................................................................... 2

2. BASIC OPERATION ...................................................................................... 3

2.1 FOREWORD ..................................................................................................................... 3

2.2 INSTRUMENT INTERFACE AND KEY INSTRUCTION .......................................................... 3

2.2.1 Instrument Interface ............................................................................................... 4

2.2.2 Keypad Operation .................................................................................................. 4

2.2.3 Indicator ................................................................................................................. 5

2.3 USE OF BATTERY ............................................................................................................ 5

2.4 CONNECTOR CLEANING ................................................................................................. 5

3. OPERATION ................................................................................................... 7

3.1 POWER ON ..................................................................................................................... 7

3.2 FUNCTIONAL SETTING INTERFACE ................................................................................. 7

3.2.1 Unit Switch ............................................................................................................. 8

3.2.2 Threshold Switch .................................................................................................... 8

3.2.3 Threshold Select...................................................................................................... 9

3.2.4 Current Threshold Setting....................................................................................... 9

3.2.5 Zero ....................................................................................................................... 10

3.2.6 System Setting ....................................................................................................... 11

3.2.7 USB Config ........................................................................................................... 11

3.2.8 Device Info ........................................................................................................... 12

3.3 REFERENCE SETTING ................................................................................................... 12

3.4 MEASUREMENT AND SAVE ........................................................................................... 13

3.5 SAVING OPTION ............................................................................................................ 14

3.6 RECALL ........................................................................................................................ 14

4. MAINTENANCE AND CALIBRATION .................................................... 15

4.1 CLEANING OF THE CONNECTORS .................................................................................. 15

4.2 CALIBRATION REQUIREMENT ....................................................................................... 15

5. WARRANTY INFORMATION ................................................................... 16

5.1 TERMS OF WARRANTY ................................................................................................. 16

5.2 EXCLUSIONS ................................................................................................................. 16

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - v -

5.3 WARRANTY REGISTRATION .......................................................................................... 16

5.4 RETURNING INSTRUMENTS .......................................................................................... 16

5.5 CONTACT CUSTOMER SERVICE .................................................................................... 17

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - vi -

Figure Contents

FIG 3.1 ..................................................................................................................................... 7

FIG 3.2 ..................................................................................................................................... 7

FIG 3.3 ..................................................................................................................................... 8

FIG 3.5 ..................................................................................................................................... 9

FIG 3.6 ..................................................................................................................................... 9

FIG 3.7 ..................................................................................................................................... 9

FIG 3.8 ................................................................................................................................... 10

FIG 3.9 ................................................................................................................................... 10

FIG 3.10 ................................................................................................................................. 11

FIG 3.11.................................................................................................................................. 11

FIG 3.12 ................................................................................................................................. 12

FIG 3.13 ................................................................................................................................. 12

FIG 3.14 ................................................................................................................................. 13

FIG 3.15 ................................................................................................................................. 13

FIG 3.16 ................................................................................................................................. 14

FIG 3.17 ................................................................................................................................. 14

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 1 -

1. General Information

1.1 Scope of this Manual

Thank you for purchasing ShinewayTech instrument. Please read this manual carefully
before using ShinewayTech fiber optic instrument. Always be aware of the Warning and

Caution sign appearing throughout this manual.
This manual contains the information necessary for proper operation and maintenance of

ShinewayTech



instrument, troubleshooting instructions as well as information regarding

maintenance services.

All ShinewayTech instruments are carefully assembled and undergo rigorous mechanical,
electrical, and optical inspection prior to shipment. Beside the instrument, the package also

includes a lithium battery pack, a charging/data transfer cable, a power adapter, a FC/PC
flange and this user's manual. For detailed information, please refer to the packing list.

Upon receiving the instrument, please check for any obvious signs of physical damage that
may have occurred during shipment. Report any damage to the shipping agent or the
representative of Shineway Technologies Inc. immediately. Retain the original packing
materials in case reshipment is necessary.

1.2 Unpacking and Inspection

This instrument has been carefully packed in accordance with standard shipping procedures.
Examine the instrument for damage that may have occurred during shipment. If you find
any damage or the instrument is not working, or if any of the following items are not
included, please contact your representative of Shineway Technologies, Inc.

If necessary, you may contact Shineway Technologies, Inc via this email:
[e-mail].

To return the instrument in the case of repair, calibration or other
maintenance, please note the following:

 Be sure to pack the instrument with soft cushion like Polyethylene, so as to protect

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 2 -

the shell of the instrument.

 Please use the original hard packing box. If use other packing material, please

ensure at least 3 cm soft material around the instrument.

 Be sure to correctly fill out and return the warranty registration card, which should

include the following information: company name, postal address, contact, phone
number, email address and problem description.

 Be sure to seal the packing box with exclusive tape.
 Be sure to ship to your representative or the agent of the Company in a reliable

way.

1.3 Introduction and Features

ShinewayTech



PPM-30 is specially designed for FTTx/PON test of next-generation

optical network which features handheld, intelligent and high performance.

Features

 The first PON Power Meter with TFT color screen
 Easy operation: Connect and get result
 Simultaneous Triple-play PON signals measurement:

1310/1490/1550nm (Voice/Data/Video)

 Pass-through test: Applicable anywhere on PON
 Burst mode 1310nm upstream signal detection

 Pass/Warning/Fail assessment
 No PC software, User-defined Threshold Sets

 Internal Clock
 Fiber S/N Editable, easy to scan and save result

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 3 -

2. Basic Operation

2.1 Foreword

This part introduces the basic operations of the ShinewayTech series hand-held PON Power
Meter. Specific operations of each type are elaborated in “Specific Functions and

Operations”, chapter 3 of this manual. Please read this manual carefully for optimal

operation. Should you encounter any problems during operation, you are welcome to contact
the technical staff of our company or agents.

2.2 Instrument Interface and Key Instruction

1 2

3

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 4 -

2.2.1 Instrument Interface

1. OLT PON Power Meter Port

PPM-50 is available with FC/PC connector (Interchangeable SC/ST))

2. ONU PON Power Meter Port
PPM-50 is available with FC/PC connector (Interchangeable SC/ST)

3. USB Power Port

PPM-50 can work with external power adaptor: (5V DC@750mA)

2.2.2 Keypad Operation

Power on/off

Toggle between output wavelengths

Toggle setting modes: Adjust reference value in [Setting] interface

Toggle setting modes: Adjust reference value in [Setting] interface

Toggle between functional interfaces

Toggle between functional setting interfaces; Long press to auto power-off

setting interface

Enter setting interface; Operate or select setting; Enter; Save test record in [Meas

& Save] interface

Adjust backlight brightness

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 5 -

2.2.3 Indicator

Charging indicator

Test record indicator. Only when “Threshold On/Off” is

on

2.3 Use of Battery

PPM-50 works on lithium battery. Please make sure battery is mounted properly before use.
When battery is low, low battery indicator will appear on LCD. You can still use PPM-50 as
long as its display on LCD is identifiable. When LCD display becomes dim, laser source
output will become unstable and power meter measurement will be inaccurate. Please
charge as soon as possible when battery is low to ensure accurate measurement.

Please take out the battery if PPM-50 is not in use for a long time.

2.4 Connector Cleaning

Please follow the instructions below when cleaning:

 Turn off the instrument before cleaning.
 Non-compliant operation may result in hazardous radiation exposure.
 Turn off laser source before cleaning optical interface.
 Always avoid looking directly into the optical output port when the instrument is

working, laser is invisible and can cause serious eye damage.

 Disconnect instrument from power supply before cleaning to prevent electric

shock.

 Do not install unauthorized parts or make unauthorized adjustments on instrument.
 Please consult qualified professional about maintenance and repair services.

Always clean optical connector before using PPM-50 to ensure accurate
measurement. Clean the optical connector gently with cleaning swab.

Inappropriate maintenance may result in low performance or error:

 Distance error increases;
 Linearity error;

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 6 -

 Extra optical power attenuation;
 Received optical power is beyond normal range.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 7 -

3. Operation

3.1 Power On

Press and loading screen appears, see Figure 3.1.

2011-09-15 17:41

5

ShinewayTech

®

PPM-50

Fig 3.1
Then it enters [Meas&Save] interface (The default interface when power on), see
Figure 3.2

Reference Meas&Save Save Option

1310nm

-20. 00

1490nm

-13. 00

1550nm

-8. 00

dBm

FAIL

dBm

WRNG

dBm

PASS

ONU

OLT

VIDEO

OLT_name_XXXXXX ONT_name_XXXXXX

2011-09-15 17:41

5

><

Fig 3.2

Press and to toggle between the following sub-interface.

Reference

Meas&Save

Save Option Recall

3.2 Functional Setting Interface

After power on, under [Reference], [Meas&Save], [Save Option], [Recall] interface,

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 8 -

press to toggle between the functional setting interfaces. See Figure 3.3

Threshold Select

Unit Select dBm

Thres_name1

Curr.Thres.Setting

Threshold ON-OFF

Zero

ON

System Setting

2011-09-15 17:41

5

Fig 3.3

3.2.1 Unit Switch

Under functional setting interface, press and to toggle to [Unit Select],
see Figure 3.3

Press to select unit, press to exit functional setting interface.

3.2.2 Threshold Switch

Under functional setting interface, press and to toggle to [Threshold
On-Off], see Figure 3.4

Threshold Select Thres_name1

Curr.Thres.Setting

阈值开关

Zero

打开

System Setting

2011-09-15 17:41

5

Unit Select dBm

Threshold On-Off OFF

Fig 3.4

Press to turn on/off threshold switch, press to exit functional setting
interface.

Note: If [Threshold On-Off] is “On”, under [Meas&Save] interface, the threshold

results will based on and compared with current threshold. The compared
threshold results will shows “FALL”, “WRNG”, “PASS”, meanwhile the
Test Record Indicator will be on.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 9 -

3.2.3 Threshold Select

Under functional setting interface, press and to toggle to [Threshold
Select], see Figure 3.5

选择当前阈值

Thres_name1

Curr.Thres.Setting

Threshold On-Off

Zero

ON

System Setting

2011-09-15 17:41

5

Unit Select dBm

Threshold Select Thres_name1

Fig 3.5

In Figure 3.5, press , then press and to select item, see Figure3.6

选择当前阈值

Thres_name1

Curr.Thres.Setting

Threshold On-Off

Zero

打开

System Setting

2011-09-15 17:41

5

Unit Select dBm

Threshold Select Thres_name1

Threshold Select

Thres_name1

Thres_name2

Thres_name3

Fig 3.6

In Figure 3.6, press to confirm selection.

3.2.4 Current Threshold Setting

Under functional setting interface, press and to toggle to [Curr. Thres.
Setting], see Figure 3.7

Threshold Select Thres_name1

当前阈值修改

Threshold On-Off

Zero

ON

System Setting

2011-09-15 17:41

5

Unit Select dBm

Thres_name1

Curr.Thres.Setting

Fig 3.7

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 10 -

In Figure 3.7, after press , enter in [Curr. Thres. Setting] interface,
see Figure 3.8

1310nm 1490nm 1550nm

FAIL

FAIL

PASS

WRNG

2.0

-4.0

-5.5

-6.0

-23.5

-26.5

12.8

-4.7

-7.7

Thres Name：

Thres_name_1

Save

2011-09-15 17:41

5

Fig 3.8

In Figure 3.8, press , , , to shift the digit position to be

adjusted, press to adjust, then select “OK”, press to confirm; select

“Cancel”, press to cancel; press to cancel and exit; select “Save” to
save the adjustment.

The same method can be used to rename and edit the Threshold Name.

3.2.5 Zero

Under functional setting interface, press and to toggle to [Zero], see
Figure 3.9

Threshold Select Thres_name1

Curr.Thres.Setting

Threshold On-Off校零ON

System Setting

2011-09-15 17:41

5

Unit Select dBm

Thres_name1

Zero

Fig 3.9

When perform zeroing, put dust cap on OPM port well. Press , the instrument will
start auto zeroing. If zero is successful, “OK” will be shown. If zeroing fails, please check
whether the dust cap is tightly fastened on connectors and redo zeroing. If zeroing still fails,
please contact your regional contact or ShinewayTech.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 11 -

3.2.6 System Setting

Under functional setting interface, press and to toggle to [System
Setting], see Figure 3.10

Threshold Select Thres_name1

Curr.Thres.Setting

Threshold On-Off

Zero

ON

系统设置

2011-09-15 17:41

5

Unit Select dBm

Thres_name1

System Setting

Fig 3.10

In Figure 3.10, press to enter system setting, see Figure 3.11

Time Setting

Brightness

Auto Off

语言&Lang.

15:19

50%

关

English

Date Setting 2011-09-16

2011-09-15 17:41

5

Fig 3.11

In Figure 3.11, press and to select [Date Setting], [Time Setting],

[Brightness], [Auto Off], [Language], press and to adjust the value; press

to confirm; press to cancel and exit.

3.2.7 USB Config

Under functional setting interface, press and to toggle to [USB

Config], see Figure 3.12

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 12 -

Curr.Thres.Setting

Threshold On-Off

Zero

ON

System Setting

2011-09-15 17:41

5

Threshold Select Thres_name1

USB Config

Fig 3.12

In Figure 3.12, press to enter in USB setting interface.
If the device is setting as USB storage device, the PPM-50 will be recognized as USB
device when the device is connected to the PC. The PC can directly get data results
through the USB device.

3.2.8 Device Info

Under functional setting interface, press and to toggle to [Device
Info], see Figure 3.13

Curr.Thres.Setting

Zero

System Setting

2011-09-15 17:41

5

Threshold Select Thres_name1

USB Config

Device Info

Fig 3.13

In Figure 3.13, press to enter in device information interface and view version

and storage information.

3.3 Reference Setting

Press and to [Reference] sub-interface, see Figure 3.14

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 13 -

Get from input power

Set Reference

Set 1310nm: -10.00 dBm

Set 1490nm: -10.00 dBm

Set 1550nm: -10.00 dBm

Meas&SaveReference Save Option

2011-09-15 17:41

5

Reference ON-OFF

OFF

>

Fig 3.14

In Figure 3.14, press and to select item: “Reference On-Off” and “Set
Reference”.

[Reference On-Off]: press to select ON or OF. If reference is On, then the
power value result will be the different value with the showed reference value.

[Set Reference]: Enable select result value as reference value; or press ,

, , to select reference value.

3.4 Measurement and Save

Press and to [Meas&Save] interface, see Figure3.15

Reference Meas&Save Save Option

1310nm

-20. 00

1490nm

-13. 00

1550nm

-8. 00

dBm

FAIL

dBm

WRNG

dBm

PASS

ONU

OLT

VIDEO

OLT_name_XXXXXX ONT_name_XXXXXX

2011-09-15 17:41

5

><

Fig 3.15
In Figure 3.15, PPM-50 will shows the tested power value by corresponding working
wavelength; meanwhile, if threshold function is ON, PPM-50 will shows the compared
value with threshold value, the “test record indicator” will be On.

Under [Meas&Save] interface, press to save current record.

Note: After set the file name in [Save Option] interface, the saved file name will be
auto-sequence when saving record.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 14 -

3.5 Saving Option

Press and to [Save Option], see Figure 3.16

Meas&Save Save Option Recall

OLT_name_XXXXXX

ONT_name_XXX128

Record Conversion

2011-09-15 17:41

5

Rename

Converted to CSV file format

><

Fig 3.16

In Figure 3.16, press and to select “Rename” and “Record
Conversion”.

“Rename”: press to change the file name.
“Record Conversion”: enable to choose whether convert file format to CSV file format.

If select converted to CSV file format, the file can read by EXCEL.

3.6 Recall

Press and to select [Recall] interface, see Figure 3.17

Meas&Save Save Option Recall

Goto(No.)

Prev.

Next

Del all

OLT_XXXXXX_001OLT 2011-09-07Date

ONT_XXXXXX_001ONU 17:04:03Time

13101490 1550

Power -10.00

Unit

-10.00-10.00

No.:12/12

Del current

Check Thres

Ref.

Thres

dBm dBmdBm

-10.00 -10.00-10.00

on onon

2011-09-15 17:41

5

< >

Fig 3.17
In Figure 3.17, enable to delete file, review saved record, review threshold information

of current saving record.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 15 -

4. Maintenance and Calibration

4.1 Cleaning of the connectors

Keep the cleanness of connectors and dust caps. The detector needs to be cleaned timely.

4.2 Calibration Requirement

Calibration of PPM-50 is recommended every three years. Please contact Shineway
Technologies Inc. or our agent for proper calibration.

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 16 -

5. Warranty Information

5.1 Terms of Warranty

PPM-50 is warranted against defective material and workmanship for a period of one (1)
year from the date of shipment to the original customer. Any product found to be defective
within the warranty period would be repaired or replaced by the Provider free of charge.

In no case will the Provider’s liabilities exceed the original purchase price of the product.
The warranty doesn’t include the accessories and optional parts.

5.2 Exclusions

The warranty on your equipment shall not apply to defects resulting from the following:

 Unauthorized repair or modification
 Misuse, negligence, or accident

The Provider reserves the right to make changes to any of its products at any time without
having to replace or change previously purchased units.

5.3 Warranty Registration

A warranty registration card is included with the original shipment of equipment. Please

take a few moments to fill out the card and mail or fax it to ShinewayTech’s local Customer

Service Center to ensure proper initiation of your warranty term and scope of your warranty.

5.4 Returning Instruments

To return instrument for reasons of yearly calibration or other, please contact the local
Customer Service Center of ShinewayTech to obtain additional information and a RMA#
(Return Materials Authorization number). And describe briefly reasons for the return of the
equipment, to allow us offer you more efficient service.

To return the instrument in the case of repair, calibration or other
maintenance, please note the following:

PPM-50 PON Power Meter User’s Manual

Shineway Technologies, Inc. - 17 -

 Be sure to pack the instrument with soft cushion like Polyethylene, so as to protect

the shell of the instrument.

 Please use the original hard packing box. If use other packing material, please

ensure at least 3 cm soft material around the instrument.

5.5 Contact Customer Service

Please check our web site (www.shinewaytech.com) for updates to this manual and
additional application information. If you need technical or sales support, please contact
local Shineway Technologies Customer Service.

Shineway Technologies (China), Inc.:

Address: Floor 5, Huanxing Plaza, No.14 Huayuan North Rd.

Haidian District, Beijing, P.R.China
Postal code: 100191
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.shinewaytech.com

THANK YOU FOR CHOOSING
SHINEWAY TECHNOLOGIES!

DOC.P/N：MAN-PPM-CH. V300. 12/10
