ShinewayTech OLT-55 User Manual

OLT-55

Intelligent Optical Loss Tester

User’s Manual

Shineway Technologies, Inc.

All rights reserved.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 2 -

Safety Instructions

Safety Terms Used in This Manual

The WARNING sign denotes a hazard. It calls attention to a
procedure which could result in personnel injury.

The CAUTION sign denotes a hazard. It calls attention to an
operating procedure if not correctly performed or adhered to, could

result in damage to or destruction of part or the entire product.

The NOTE sign information that may be beneficial during the use
and maintenance of the instrument.

OLT-55 series Optical Loss Tester is a laser device, user should
always avoid direct eye exposure to the laser output. Using
microscope or magnifier to observe the laser output should also be
avoided: laser beam may converge on the retina and cause permanent
eye injury.

Battery: OLT-55 battery type is lithium battery.
Battery Power Supply: Do not expose battery to fire or intense heat.

Do not open or mutilate battery. Avoid touching the electrolyte in the
battery, which is corrosive and may cause injuries to eyes, skin or
damage to clothes.
External Power Supply: OLT-55 support external power supply: 5V
DC/750mA. External power supply is optional.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 3 -

Laser Radiation: To avoid serious eye injury, never look directly
into the optical outputs of fiber optic network equipment, test
equipment,
 Always avoid looking directly into the optical output port,

when the instrument is working

 Always replace protective dust cap on the detector port when

the instrument is not in use.

 Always avoid looking directly at unconnected end of optic

fiber in testing and make the unconnected end pointing at a
non-reflective object.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 1 -

Contents

SAFETY INSTRUCTIONS ................................................................................ 2

SAFETY TERMS USED IN THIS MANUAL .................................................. 2

1. GENERAL INFORMATION ......................................................................... 3

1.1 SCOPE OF THIS MANUAL ................................................................................................ 3

1.2 UNPACKING AND INSPECTION ........................................................................................ 3

1.3 INTRODUCTION .............................................................................................................. 4

2. BASIC OPERATION ...................................................................................... 6

2.1 FOREWORD ..................................................................................................................... 6

2.2 INSTRUMENT DETAILS .................................................................................................... 6

2.2.1 External Interfaces ................................................................................................. 6

2.2.2 Keypad Operation .................................................................................................. 7

2.2.3 Indicator ................................................................................................................. 7

2.3 USE OF BATTERY ............................................................................................................ 8

2.4 CONNECTOR CLEANING ................................................................................................. 8

3. OPERATION ................................................................................................... 9

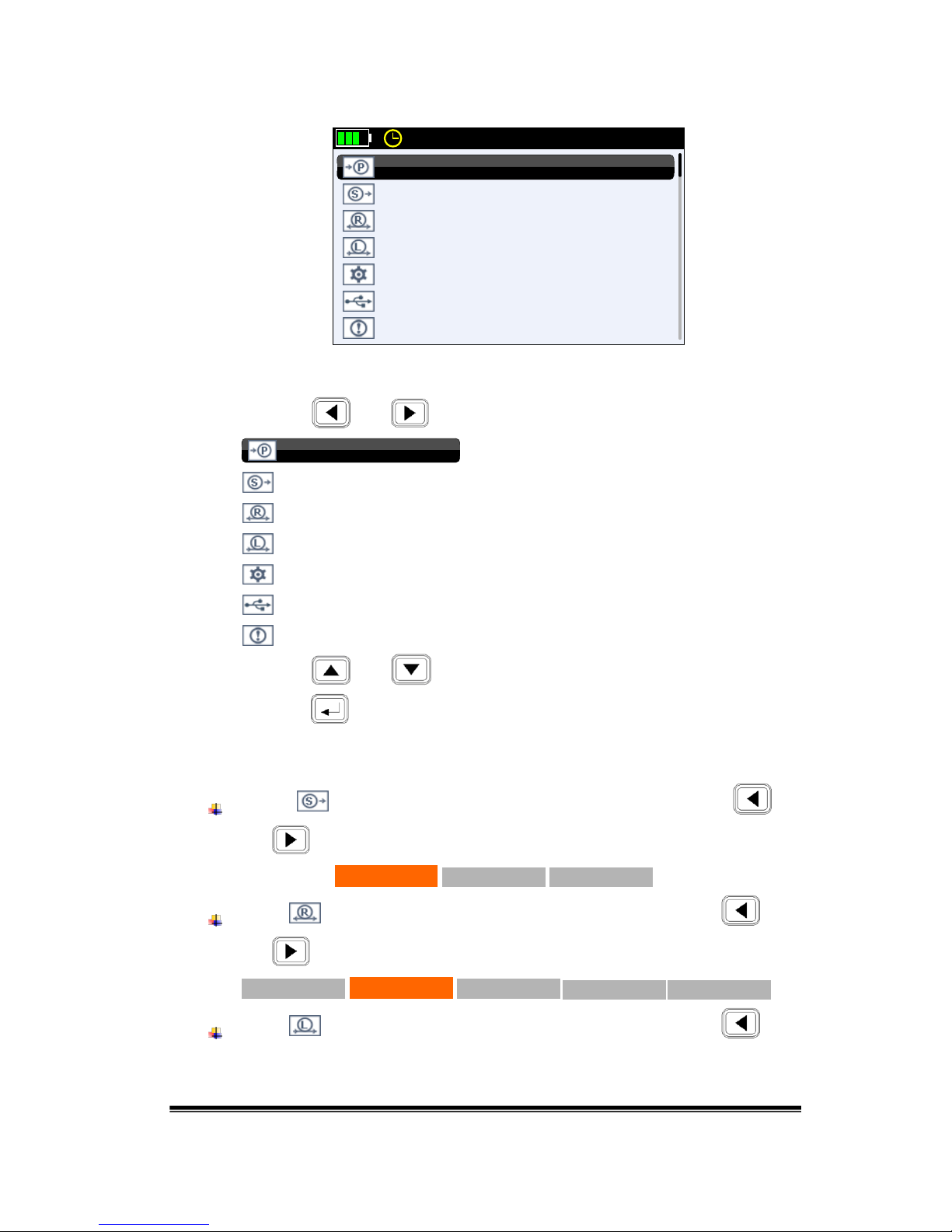

3.1 POWER ON ..................................................................................................................... 9

3.2 STABILIZED LASER SOURCE (SLS) ............................................................................... 11

3.2.1 SLS-Laser On/Off ................................................................................................. 12

3.2.2 SLS-Reference Setting ........................................................................................... 12

3.2.3 SLS-Setup .............................................................................................................. 13

3.3 OPTICAL POWER METER (OPM) .................................................................................. 14

3.3.1 OPM-Reference Setting ................................................................................. 14

3.3.2 OPM-Save Record ................................................................................................ 15

3.3.3 OPM-Recall .......................................................................................................... 15

3.3.3 OPM-Trace ........................................................................................................... 16

3.3.4 OPM-Setup ........................................................................................................... 16

3.4 OPTICAL LOSS TEST (OLT) .......................................................................................... 17

3.4.1 OLT-Reference Setting .......................................................................................... 18

3.4.2 OLT-Bi-directional Test ........................................................................................ 19

3.4.3 OLT-Save Record .................................................................................................. 19

3.4.4 OLT-Recall............................................................................................................ 20

3.4.5 OLT-Threshold Setting .......................................................................................... 20

3.4.6 OLT-Setup ............................................................................................................. 21

3.5 OPTICAL RETURN LOSS TEST (ORL)-OPTION .............................................................. 23

3.5.1 ORL-ORL Test ...................................................................................................... 23

3.5.2 ORL-Save Record ................................................................................................. 24

3.5.3 ORL-Recall ........................................................................................................... 24

OLT-55 User’s Manual

Shineway Technologies, Inc. - 2 -

3.5.4 ORL-Setup ............................................................................................................ 25

4. MAINTENANCE AND CALIBRATION .................................................... 25

4.1 CLEANING OF THE CONNECTORS .................................................................................. 25

4.2 CALIBRATION REQUIREMENT ....................................................................................... 26

5. WARRANTY INFORMATION ................................................................... 27

5.1 TERMS OF WARRANTY ................................................................................................. 27

5.2 EXCLUSIONS ................................................................................................................. 27

5.3 WARRANTY REGISTRATION .......................................................................................... 27

5.4 RETURNING INSTRUMENTS .......................................................................................... 27

5.5 CONTACT CUSTOMER SERVICE .................................................................................... 28

OLT-55 User’s Manual

Shineway Technologies, Inc. - 3 -

1. General Information

1.1 Scope of this Manual

Thank you for purchasing ShinewayTech instrument. Please read this manual carefully
before using ShinewayTech fiber optic instrument. Always be aware of the Warning and
Caution sign appearing throughout this manual.

This manual contains the information necessary for proper operation and maintenance of
ShinewayTech instrument, troubleshooting instructions as well as information regarding
maintenance services.

All ShinewayTech instruments are carefully assembled and undergo rigorous mechanical,
electrical, and optical inspection prior to shipment. Beside the instrument, the package also
includes a lithium battery pack, a charging/data transfer cable, a power adapter, a FC/PC
flange and this user's manual. For detailed information, please refer to the packing list.

Upon receiving the instrument, please check for any obvious signs of physical damage that
may have occurred during shipment. Report any damage to the shipping agent or the
representative of Shineway Technologies Inc. immediately. Retain the original packing
materials in case reshipment is necessary.

1.2 Unpacking and Inspection

This instrument has been carefully packed in accordance with standard shipping procedures.
Examine the instrument for damage that may have occurred during shipment. If you find
any damage or the instrument is not working, or if any of the following items are not
included, please contact your representative of Shineway Technologies, Inc.

If necessary, you may contact Shineway Technologies, Inc via this email:
[email protected].

To return the instrument in the case of repair, calibration or other
maintenance, please note the following:

 Be sure to pack the instrument with soft cushion like Polyethylene, so as to protect

the shell of the instrument.

 Please use the original hard packing box. If use other packing material, please

OLT-55 User’s Manual

Shineway Technologies, Inc. - 4 -

ensure at least 3 cm soft material around the instrument.

 Be sure to correctly fill out and return the warranty registration card, which should

include the following information: company name, postal address, contact, phone
number, email address and problem description.

 Be sure to seal the packing box with exclusive tape.
 Be sure to ship to your representative or the agent of the Company in a reliable

way.

 way.

1.3 Introduction

ShinewayTechOLT-55 Intelligent Optical Loss Tester combines stabilized laser source and
optical power meter which can perform automatic bidirectional loss test on single fiber with
Pass/Fail assessment to offer user-friendly operation and avoid potential operational mistake.
The rugged and easy-to-use OLT-55 is the ideal optical loss tester for FTTx, LAN and
CATV application.

Features:

All-in-one: SLS + OPM + OLT + ORL + Length test
Optical power monitoring (Auto power trace)
Bidirectional loss test on single fiber
ORL test
Pass/Fail assessment
Automatic wavelength identification/switch (AutoID)
Remote reference value setting
Internal clock & fiber S/N editable
1000 test records (CSV) storage & management
Data transfer to PC via USB (Driver-free)
Auto test records save in local unit/remote unit/both units
USB power charging
Over 35 hours continuous operation
Multilanguage support
No warm-up, quick start
High resolution color LCD
Pocketsize, lightweight and easy-to-use

OLT-55 User’s Manual

Shineway Technologies, Inc. - 5 -

Automatic Wavelength Identification

Compatible with the digital encryption protocols of its laser source module and
Shineway SLS-50 Series Stabilized Laser Source, OLT-55 can automatically identify
the wavelength of the input optical signal and switch to the corresponding test mode,
which greatly reduces the workload at both ends and avoids potential error.

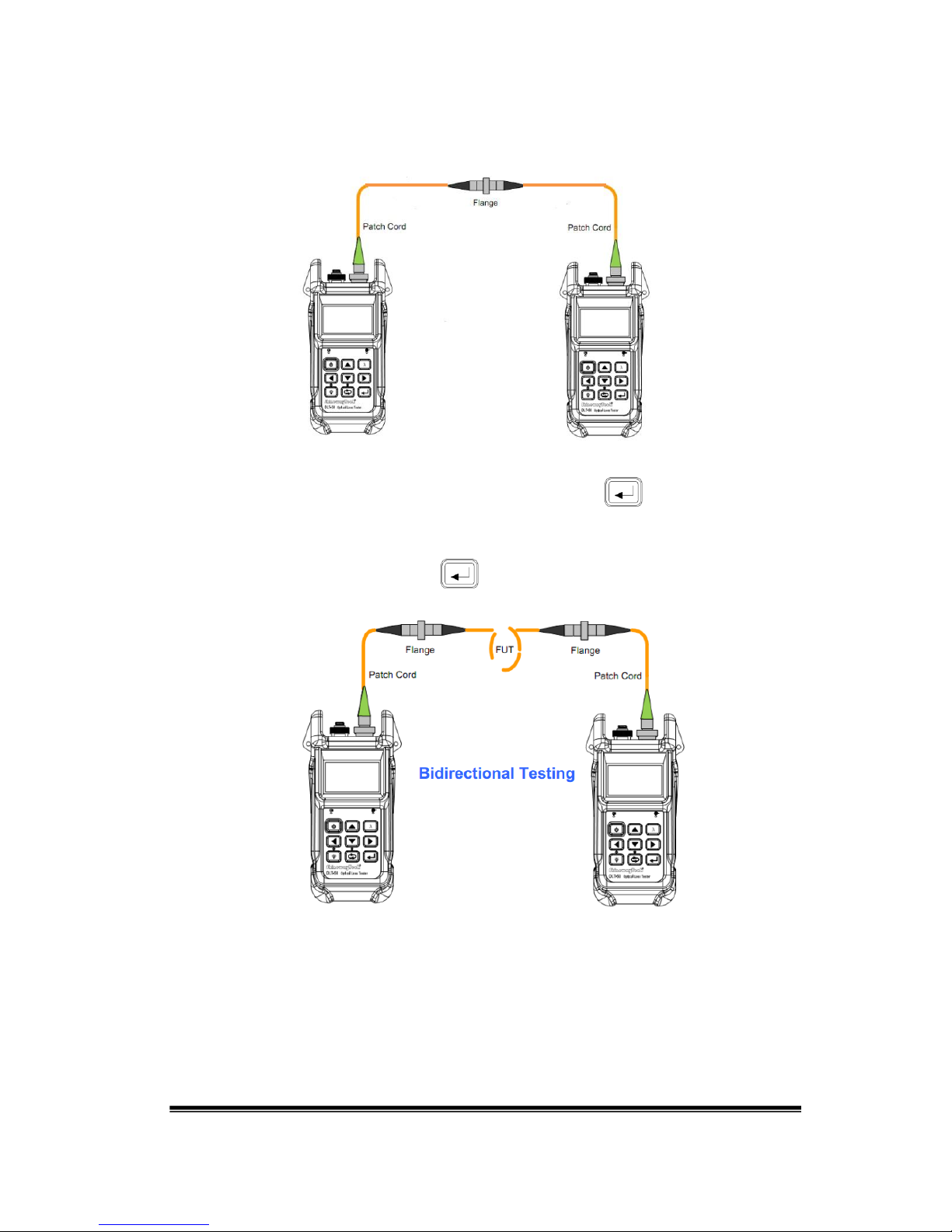

Automatic Bidirectional Loss Test on Single Fiber

Two OLT-55 at both ends of a single optical fiber can perform bidirectional loss test by
just pressing one and can automatically measure and display the entire fiber
attenuation to help users acquire complete and accurate optical fiber loss information.

Applicable to FTTx/PON testing

OLT-55 can be applied to measure Triple-play signals (1310nm, 1490nm and 1550nm)
on Passive Optical Network (PON)

OLT-55 User’s Manual

Shineway Technologies, Inc. - 6 -

2. Basic Operation

2.1 Foreword

This part introduces the basic operation on OLT-55. Specific operations are elaborated in Chapter 3 of this
manual. Please read this manual carefully for optimal operation. If you encounter any problems during
operation, you are welcome to contact the technical staff of our company or representatives.

2.2 Instrument Details

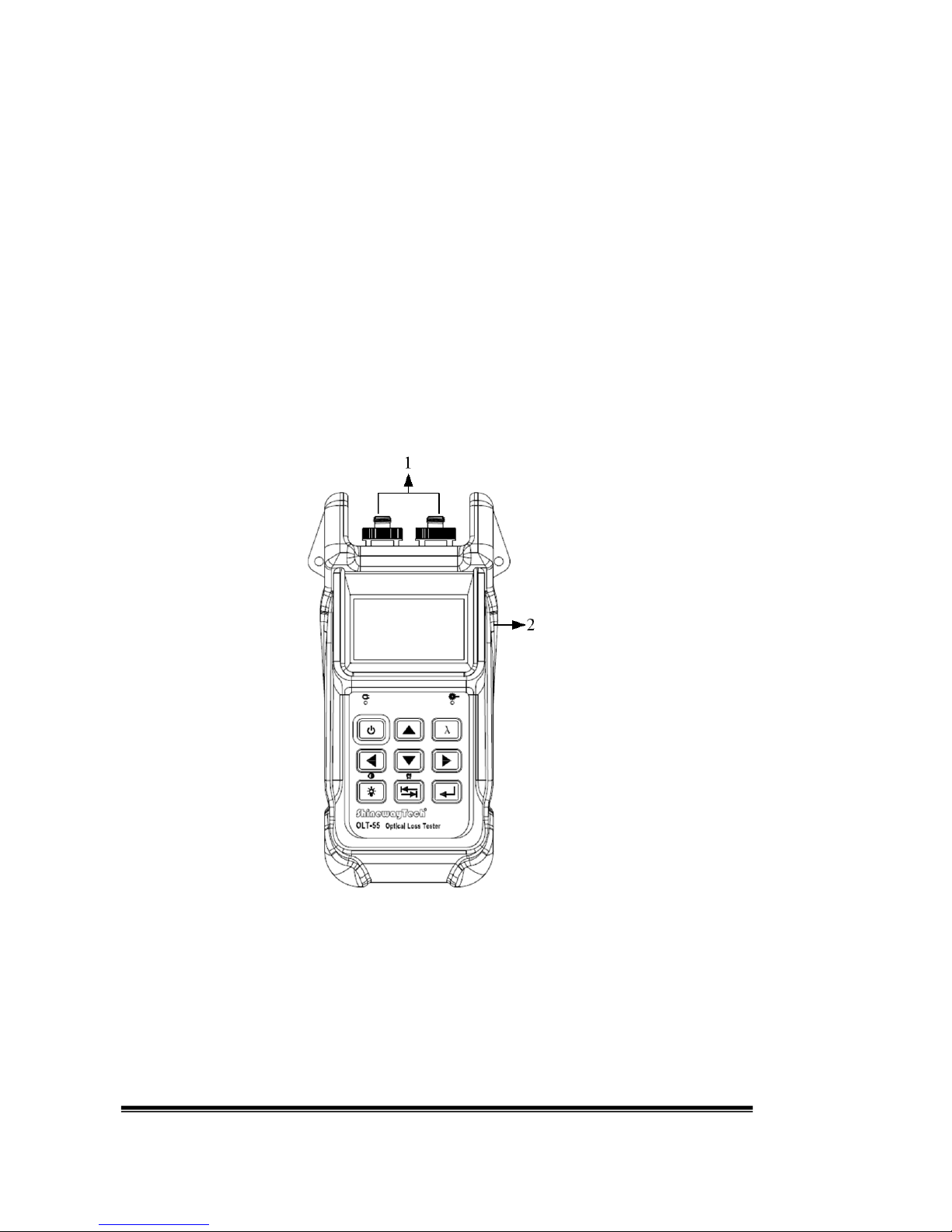

2.2.1 External Interfaces

1. Optical Input & Output

OLT-55 is available with FC connector (Interchangeable SC/ST).
Note: Output port is marked with “LS”; Input port is marked with “PM”.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 7 -

2. USB Power /Data Port
OLT-55 can be charged by external power adapter (5V DC, 750mA).

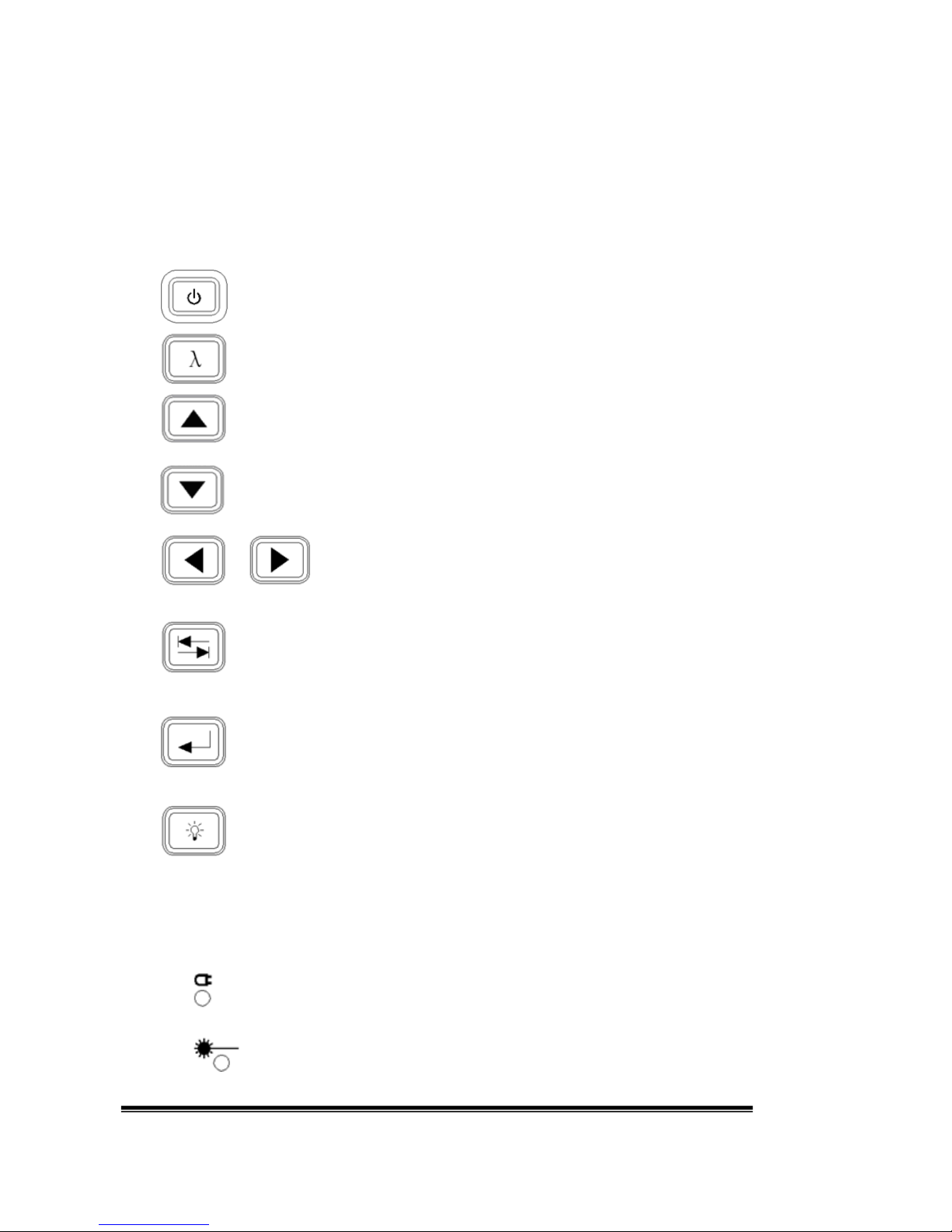

2.2.2 Keypad Operation

Power on/off.

Toggle between wavelengths.

Toggle between setup items;

Adjust value in setup mode.

Toggle between sub-interfaces in working mode;
Shift digit positions in setup mode.

Toggle between working modes: SLS, OPM, OLT & ORL;
Long press to enable/disable Auto Power Off.

Enter setup mode;
Execute or toggle between setup values;
Confirm.

Short press to turn backlight on/off;
Long press to set contrast.

2.2.3 Indicator

Charging indicator.

Laser Indicator (Illuminate when laser emits).

OLT-55 User’s Manual

Shineway Technologies, Inc. - 8 -

2.3 Use of Battery

OLT-55 works on lithium battery. Please make sure battery is mounted properly before use. When battery is
low, low battery indicator will appear on LCD. You can still use OLT-55 as long as its display on LCD is
identifiable. When LCD display becomes dim, laser source output will become unstable and power meter
measurement will be inaccurate. Please charge as soon as possible when battery is low to ensure accurate
measurement.

Please take out the battery if OLT-55 is not in use for a long time.

2.4 Connector Cleaning

Please follow the instructions below when cleaning:

 Turn off the instrument before cleaning.
 Non-compliant operation may result in hazardous radiation exposure.
 Turn off laser source before cleaning optical interface.
 Always avoid looking directly into the optical output port when the instrument is working, laser is

invisible and can cause serious eye damage.

 Disconnect instrument from power supply before cleaning to prevent electric shock.
 Do not install unauthorized parts or make unauthorized adjustments on instrument.
 Please consult qualified professional about maintenance and repair services.

Always clean optical connector before using OLT-55 to ensure accurate measurement.
Clean the optical connector gently with cleaning swab.

Inappropriate maintenance may result in low performance or error:

 Distance error increases;
 Linearity error;
 Extra optical power attenuation;
 Received optical power is beyond normal range.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 9 -

3. Operation

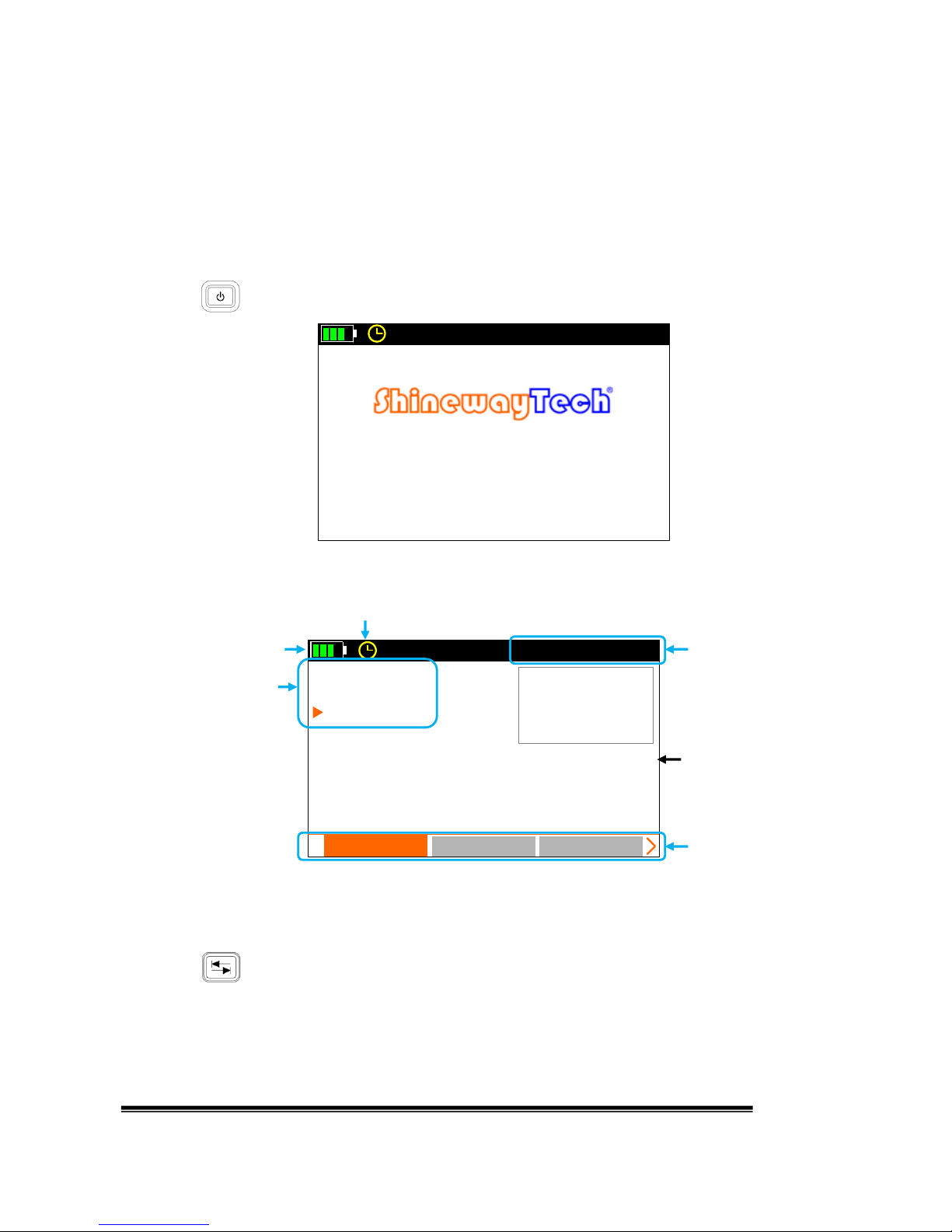

3.1 Power On

Press and loading screen appears, see Figure 3.1.

2011-09-15 17:41

5

OLT-55ACR

Figure 3.1

Then it enters functional interface (The last interface before last shutdown), see Figure 3.2.

Figure 3.2

The toggle between functional interfaces:

Press to toggle [Main menu] interface, see Figure 3.3.

Setup

LaserOnOff

Reference

Unit:dBm

1310nm

Laser Source

LaserOff

MOD: 270Hz

Status:OFF

CW 1310nm

dBm

-55. 73

2011-09-15 17:41

5

Time and Date

Function interface

Option interface

Option

Battery Display

Auto Power-off

OLT-55 User’s Manual

Shineway Technologies, Inc. - 10 -

Stabilized Laser Source

Optical Return Loss

Optical Loss Tester

System Setting

USB config

Version info

Optical Power Meter

2011-09-15 17:41

5

Figure 3.3

11..

Press and to toggle the following function interface:

Optical Power Meter

Stabilized Laser Source

Optical Return Loss

Optical Loss Tester

System Setting

USB config

Version info

22..

Press and to toggle the corresponding function interface;

33..

Press to enter the corresponding function interface.

The toggle between different setting interfaces:

Under [

Stabilized Laser Source

] function interface, press

and to toggle the following interfaces:

Setup

LaserOnOff

Reference

Under [

Optical Power Meter

]function interface, press

and to toggle the following interfaces:

Reference

Save

Recall

Trace Setup

Under [

Optical Loss Tester

]function interface, press

OLT-55 User’s Manual

Shineway Technologies, Inc. - 11 -

and to toggle the following interfaces:

Set ref.

BiDirTest Save

Recall Threshold Setup

Under [

Optical Return Loss

]function interface, press

and to toggle the following interfaces:

Test

Save Recall

Setup

The system setup

Press to enter [

System Setting

] function interface:

Press , and to enter and edit the Date, Time, Brightness, Auto Off
and Language.

USB config

Press to enter [

USB config

] function interface:

Press and to select :
Mass storage: PC recognition it for a USB flash drive;
Communication: the equipment directly transfer the data to the PC software, mainly used in

the optical power meter "Draw Trance" function, the power fluctuations will be shown in the
PC software.

Device information

After press , it will display the version of software and hardware.

3.2 Stabilized Laser Source (SLS)

Press and to the following interface, see Figure 3.4.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 12 -

Setup

LaserOnOff

Reference

Unit:dBm

1310nm

Laser Source

LaserOff

MOD: 270Hz

Status:OFF

CW 1310nm

dBm

-55. 73

2011-09-15 17:41

5

Figure 3.4

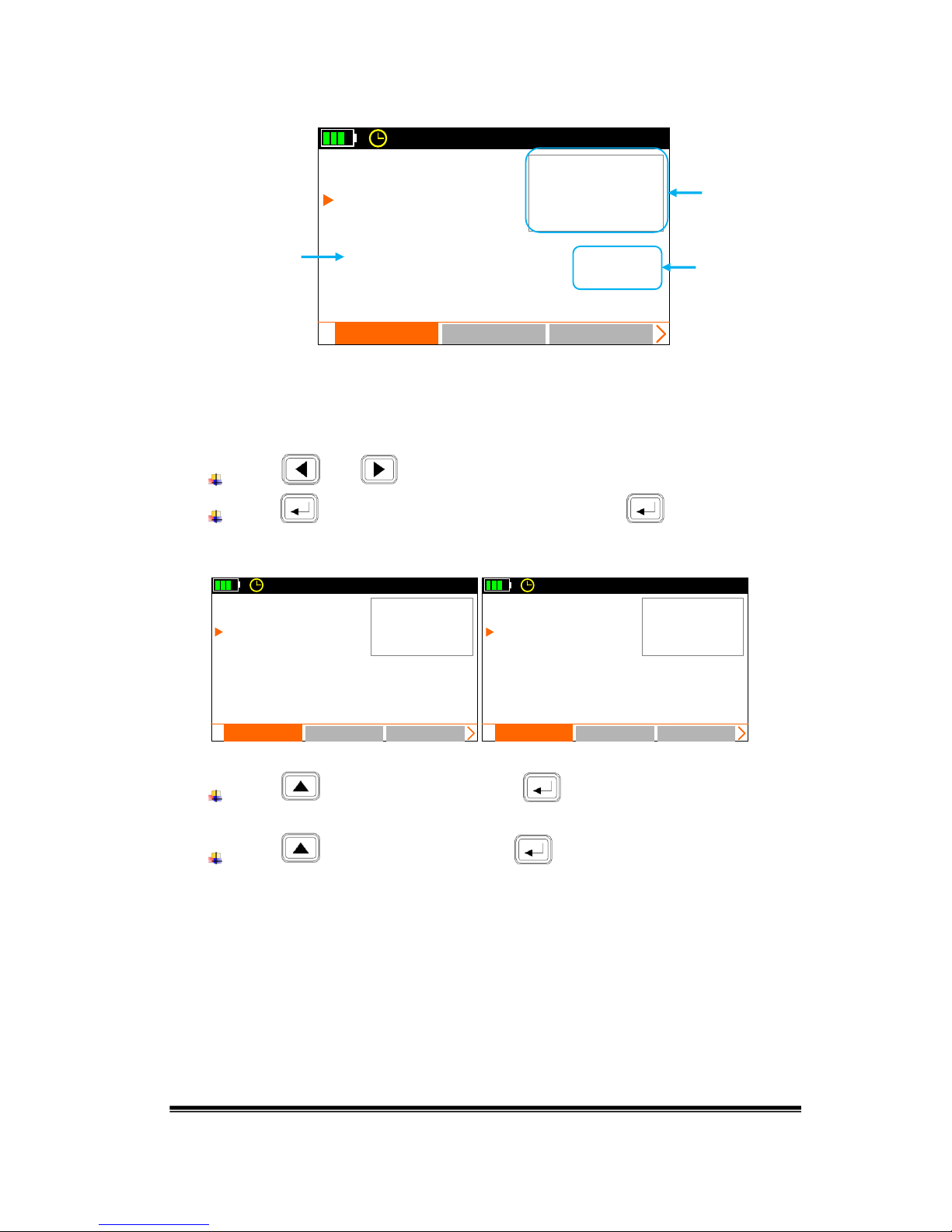

3.2.1 SLS-Laser On/Off

Press and to [LaserOnOff] sub-interface, see Figure 3.4;
Press to turn on laser source, see Figure 3.5; press again to turn off

laser, see Figure 3.5;

Setup

LaserOnOff

Reference

Unit:dBm

1310nm

Laser Source

- 2.50 dBm

MOD: 270Hz

Status: ON

CW 1310nm

dBm

-55. 73

2011-09-15 17:41

5

Setup

LaserOnOff

Reference

Unit:dBm

1310nm

Laser Source

LaserOff

MOD: 270Hz

Status:OFF

CW 1310nm

dBm

-55. 73

2011-09-15 17:41

5

Figure 3.5

Press to select “MOD” option, press the output mode toggles between

CW, 270Hz, 1KHz, 2KHz and AutoID;

Press to select “Unit” option, press the output power unit and value

toggle between dBm and mW.

3.2.2 SLS-Reference Setting

Note: This function is only for AutoID mode applicable, "Ref: XXX. XXdBm" parameters

will set up to the opposite side which has the corresponding models test instrument, this
is only for the test reference.

Display the laser source

Display the OPM

Display the wavelength

OLT-55 User’s Manual

Shineway Technologies, Inc. - 13 -

Press and to [Reference] sub-interface, see Figure 3.6;

LaserOnOff

Reference

Setup

Set reference

1310nm

Laser Source

LaserOff

Get from OPM

CW 1310nm

dBm

-55. 73

Ref.Power:-10.00dBm

2011-09-15 17:41

5

Figure 3.6

Press and to select “ Set reference ” and “ Get from OPM ” :

“ Set reference “ : press to enter and edit power value, select “OK” and press

to confirm. At this time on the right-bottom of the screen it will display
“Ref.Power:-10.00dBm”, means -10dBm is the value you just set, and this value will
send to the opposite side.

“ Get from OPM ”: press to set the current power value which gets from OPM as
the reference.

Press to toggle between the different wavelength.

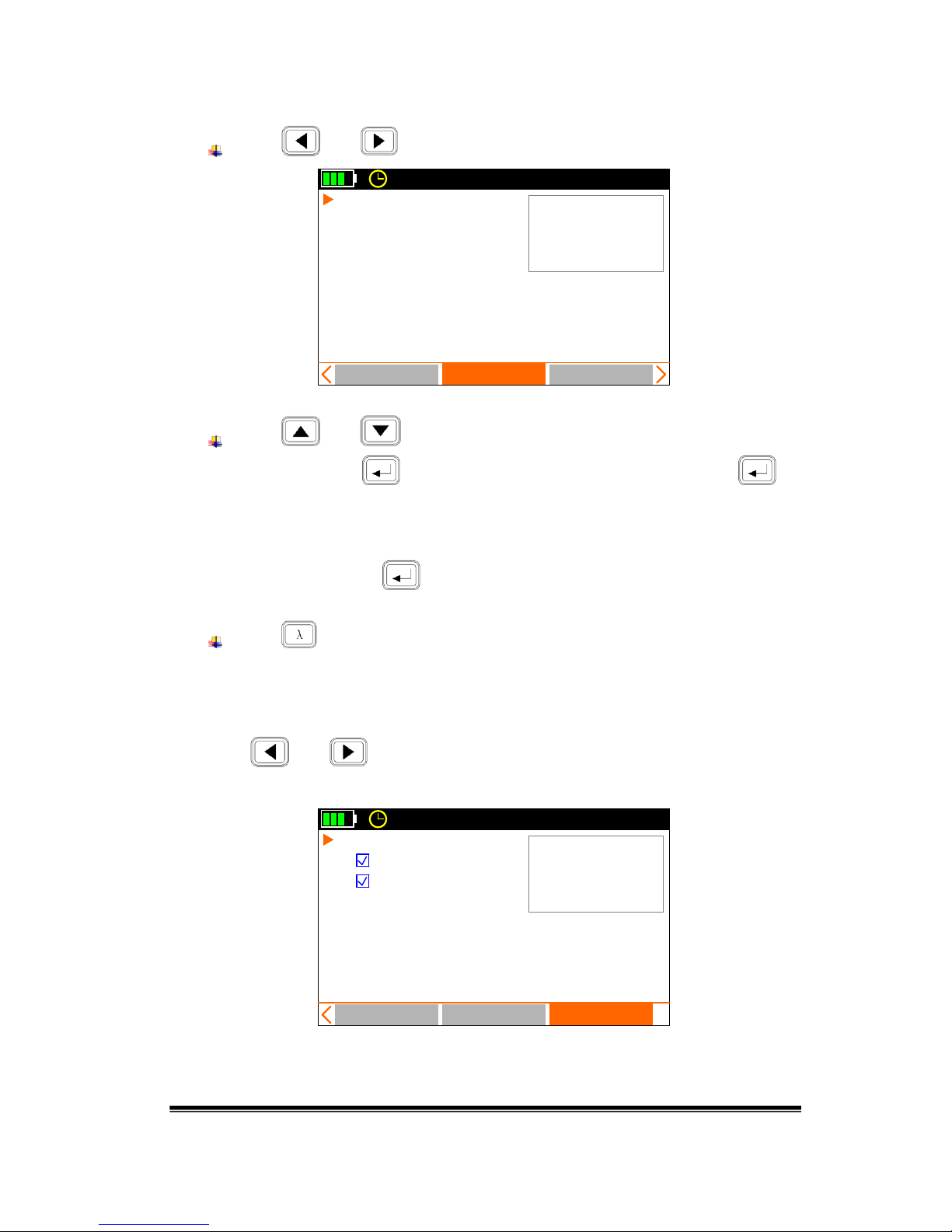

3.2.3 SLS-Setup

Press and to [Setup] interface, see Figure 3.7.

Note: This function is only for Auto ID mode applicable.

Reference

Setup

LaserOnOff

AutoID:Automatic

Laser Source

1310nm

1550nm

CW 1310nm

dBm

-55. 73

2011-09-15 17:41

5

Figure 3.7

OLT-55 User’s Manual

Shineway Technologies, Inc. - 14 -

While the cursor on “Auto ID “, press to select Manual or Automatic. Under

Automatic mode, press and to move to the certain wavelength (1310nm,

1550nm), press to select it or not.

3.3 Optical Power Meter (OPM)

Press and to [Power Meter ] interface, see Figure 3.8.

Reference

Save

Get from input

Set reference

1310nm

CW

Power Meter

-0. 28

dB

Ref.Power:-10.00dBm

Recall

2011-09-15 17:41

5

Figure 3.8

3.3.1 OPM-Reference Setting

Press and to [Reference] sub-interface, see Figure 3.8.

Press and to select item: Set reference and Get from input power,

press to enable adjustment, press to adjust the value,

and press to confirm.

Set reference refers to manual reference value setup; if the laser source (ShinewayTech

laser source with AutoID function) on the other side of the tested fiber enables AutoID,
the OPM will automatically set the reference value sent from the laser source as
reference (“AutoID” will appear in this interface).

Get from input power sets the current measured power value as reference value.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 15 -

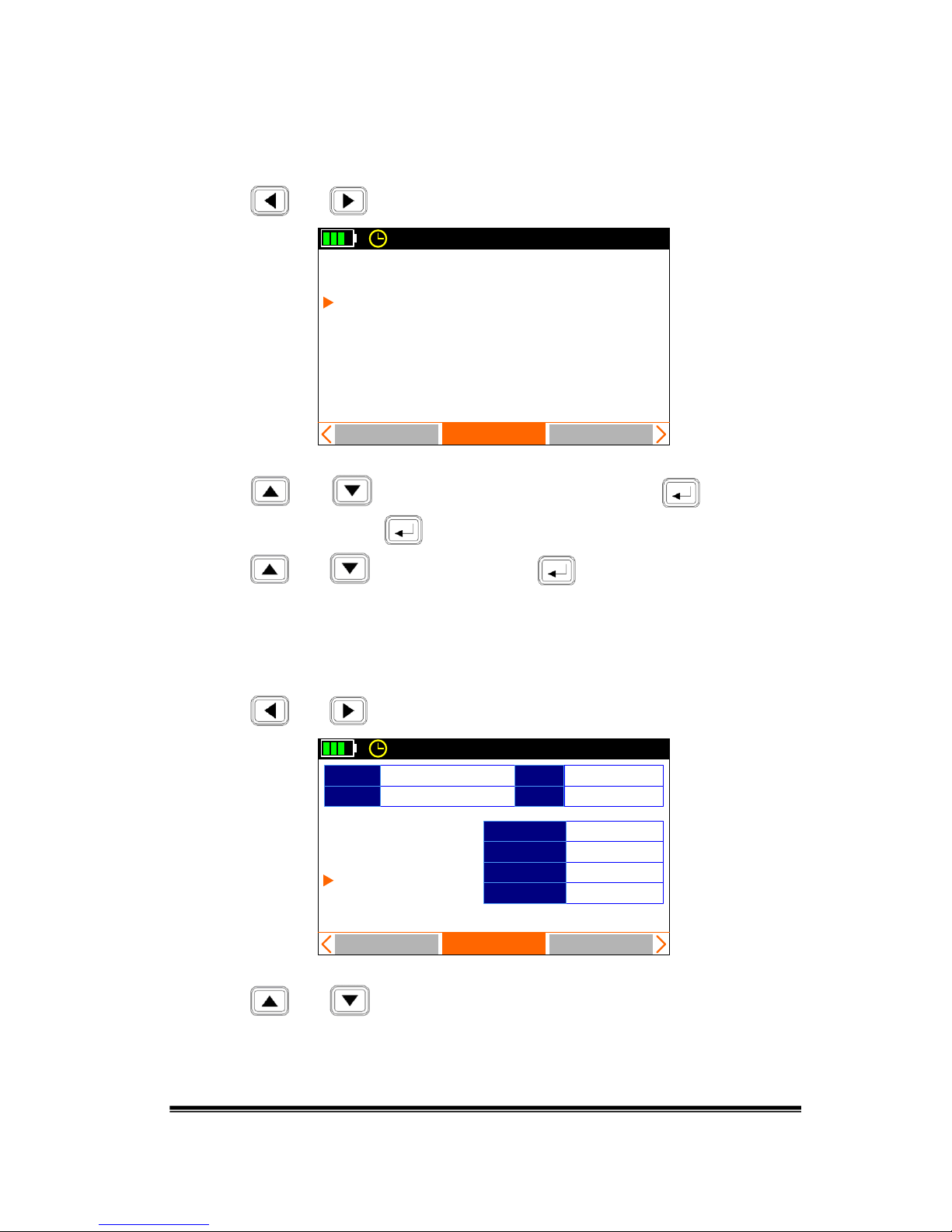

3.3.2 OPM-Save Record

Press and to [Save] sub-interface, see Figure 3.9.

Reference

Save

Recall

Cable:CABLE001

Fiber:FIBER001

1310nm

CW

Power Meter

-57. 43

dBm

Save

2011-09-15 17:41

5

Figure 3.9

Press and to select item: Cable: and Fiber:, press to edit the

information, and then press to confirm.

Press and to select Save, and press to save current record.

3.3.3 OPM-Recall

Press and to [Recall] sub-interface, see Figure 3.10.

Goto(Index)

Prev

Next

Del all

CABLE001Cable 2011-09-07Date

3/3

Index/sum

1310 nm

Wavelen.

-57.43dBm

Power

-10.00dBm

Ref.

Save Trace

Power Meter

FIBER003Fiber 17:04:03Time

Recall

Del current

2011-09-15 17:41

5

Figure 3.10

Press and to select item: Del all, Del current, Goto ( Index ), Prev and
Next.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 16 -

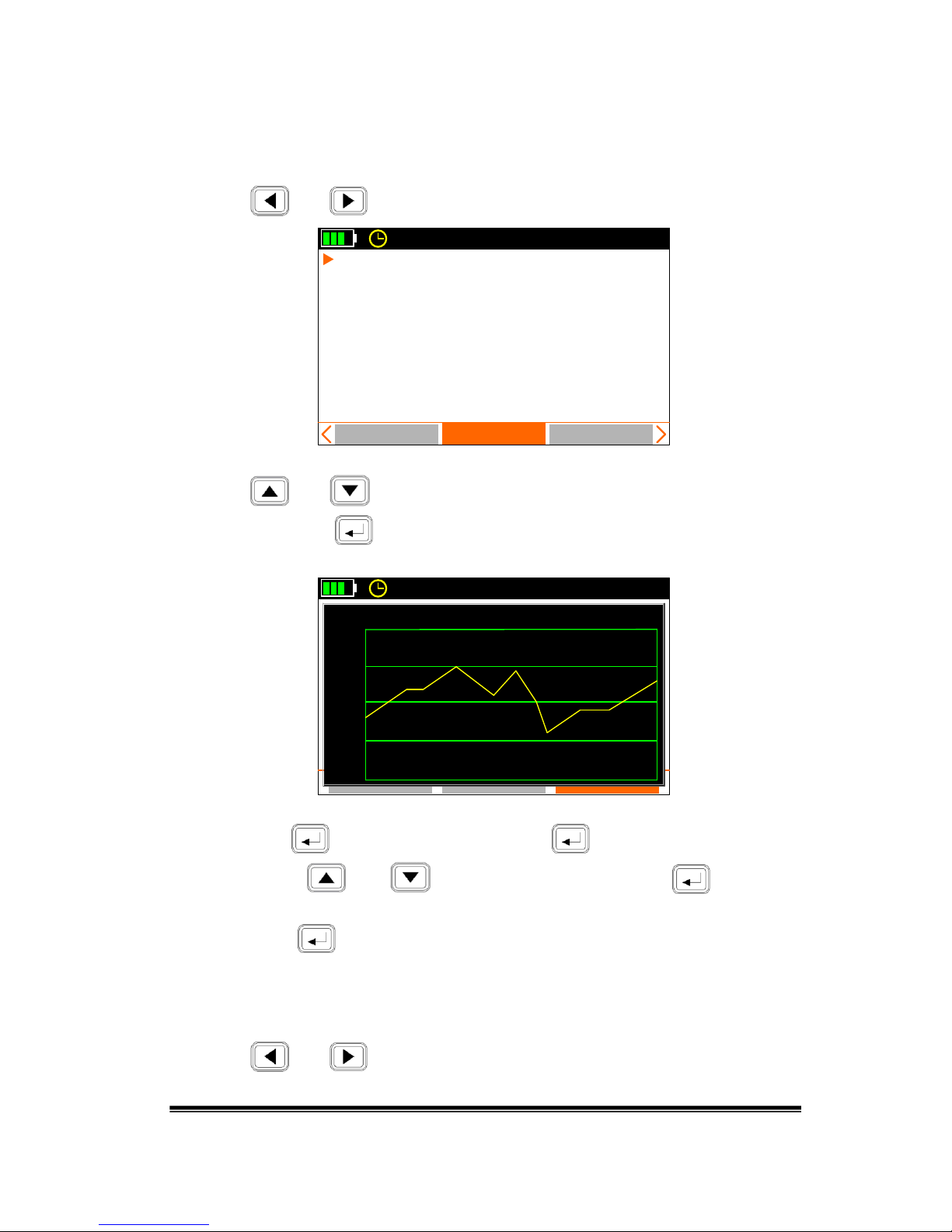

3.3.3 OPM-Trace

Press and to [Trace] sub-interface, see Figure 3.11.

Recall

Trace

Setup

Draw Trace

Scale: 2.0dB

1310nm

CW

Power Meter

-57. 43

dBm

Timer: 15min

Status:Stop

2011-09-15 17:41

5

Figure 3.11

Press and to select item: Draw Trace, Scale, Timer and Status.

Draw Trace: press , it will display the trace as Figure 3.12;

测量和保存 存储选项 查看记录

1490nm Ref:-19.72dBm Timer:0:00:15

+2.0

-2.0

ref

2011-09-15 17:41

5

Figure 3.12

Scale: press to select the suitable scale, press to confirm;

Timer: press and to select test time 15min, press to toggle
between 15min, 60min and 8hour;

Status: press to running/stop trace.

3.3.4 OPM-Setup

Press and to [Setup] sub-interface, see Figure 3.13.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 17 -

Trace

Setup

Zero

Unit:dBm

1310nm

CW

Power Meter

-57. 43

dBm

Recall

2011-09-15 17:41

5

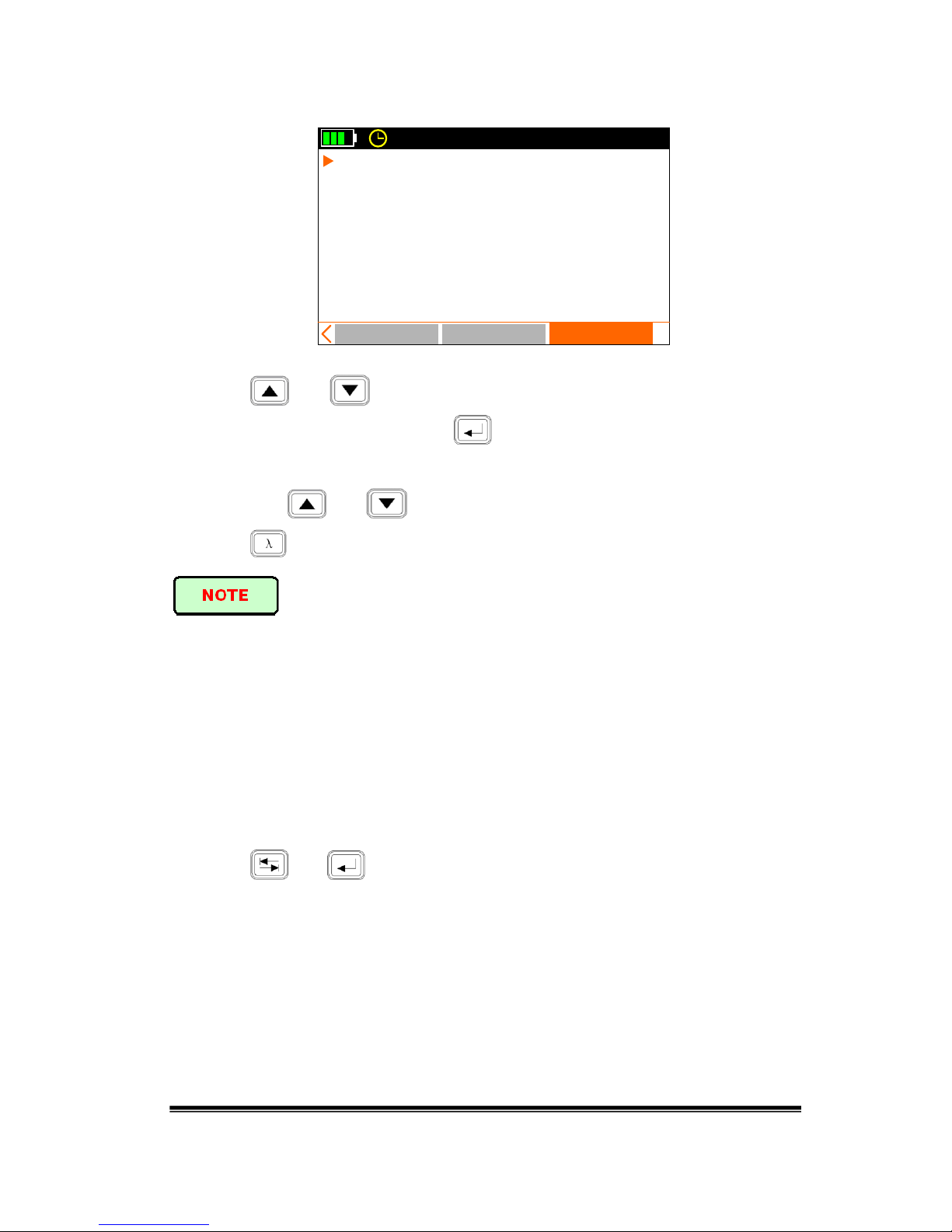

Figure 3.13

Press and to select item: Zero and Unit.

Zero: Screw on the dust cap, press the twice, the instrument will be automatically
calibrate zero;

Note: this operation should do first in the use of optical power meter.

Unit: press and to select dBm, dB, mW.

Press to toggle between the different wavelength.

Operation Procedure:

11..

Zero

22..

Reference Setting

33..

Input laser source

44..

Read the power value

55..

Save

66..

Toggle the wavelength, and then repeat step 3, 4 and 5.

3.4 Optical Loss Test (OLT)

Press and to [Optical Loss Test] interface, see Figure 3.14.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 18 -

Ref.Type:twin

Save

Start

15501310

-3.02

Ref.(dBm)

-2.96

Set ref.

BiDirTest

Loss Meter

Save

2011-09-15 17:41

5

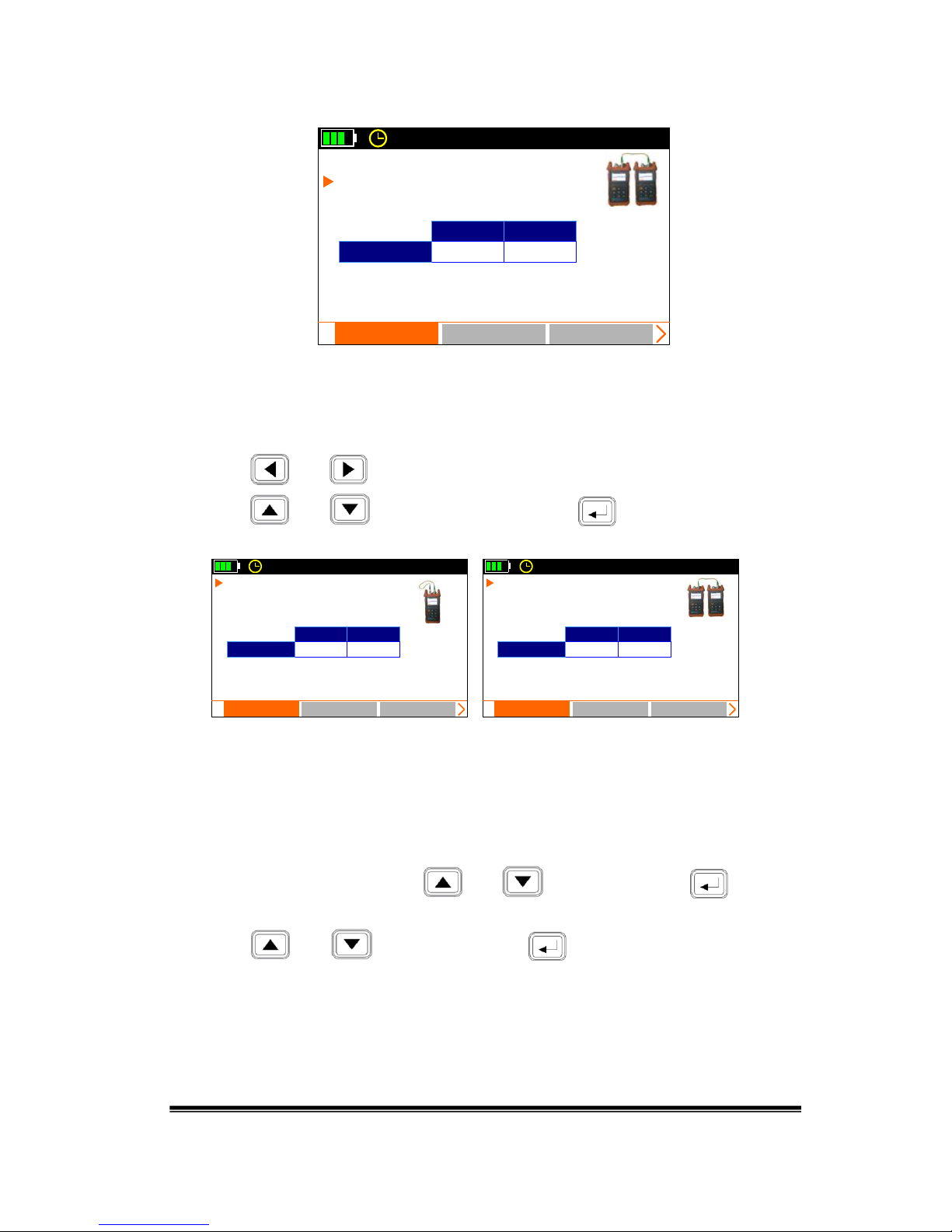

Figure 3.14

3.4.1 OLT-Reference Setting

Press and to [Set ref.] sub-interface, as shown in Figure 3.14.

Press and to select Ref. Type, and press to toggle between single
and twin, see Figure 3.15.

Figure 3.15

In single: the laser source port and power meter port connect to each other on the same unit,
the power value measured by the power meter is the reference value;
In twin: the optical loss test ports of two different units connect to each other by patch cord
and the power value measured in twin is more reasonable which is recommended.

After connecting the ports, press and to select Start, press to start
the test.

Press and to select Save, press to save the measured value as
reference value.

Save

Start

15501310

-3.02

Ref.(dBm)

-2.96

Set ref.

BiDirTest

Loss Meter

Save

2011-09-15 17:41

5

Ref.Type:single

Ref.Type:twin

Save

Start

15501310

-3.02

Ref.(dBm)

-2.96

Set ref.

BiDirTest

Loss Meter

Save

2011-09-15 17:41

5

OLT-55 User’s Manual

Shineway Technologies, Inc. - 19 -

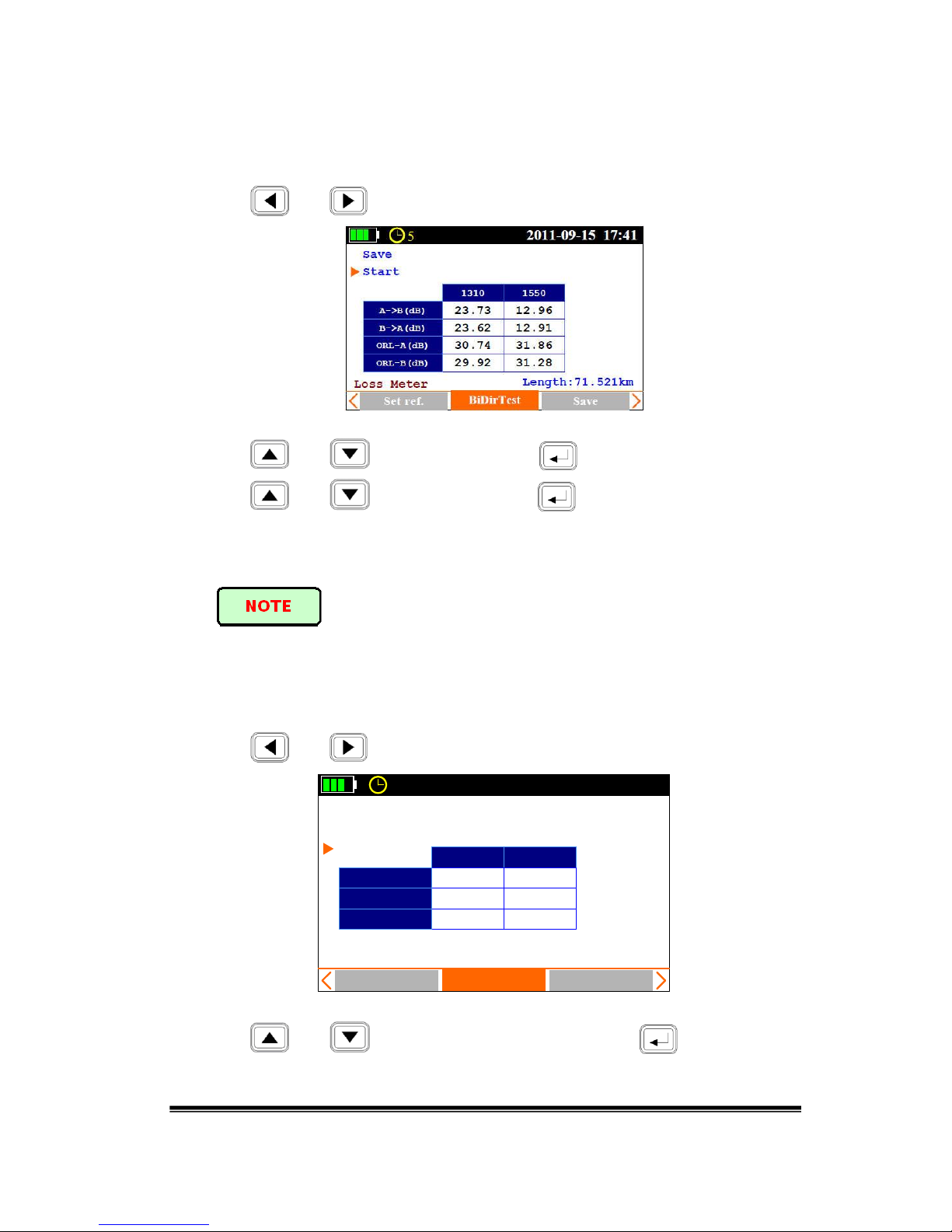

3.4.2 OLT-Bi-directional Test

Press and to [BiDirTest] sub-interface, as shown in Figure 3.16.

Figure 3.16

Press and to select Start, and press to start the test.

Press and to select Save, and press to save the result.

Please also refer to 3.4.3 to save the result.

Please complete Threshold setting and Reference setting before
bi-directional test or it will affect test result.

3.4.3 OLT-Save Record

Press and to [Save] sub-interface, as shown in Figure 3.17.

15501310

23.73

A->B(dB)

12.96

BiDirTest

Save

Recall

Loss Meter

23.62

B->A(dB)

12.91

71.74

Len(km)

71.86

Cable:CABLE001

Fiber:FIBER001

Save

2011-09-15 17:41

5

Figure 3.17

Press and to select item: Cable and Fiber, press to enable digit

OLT-55 User’s Manual

Shineway Technologies, Inc. - 20 -

adjustment, press to confirm.

Press and to select Save, and press to save current record.

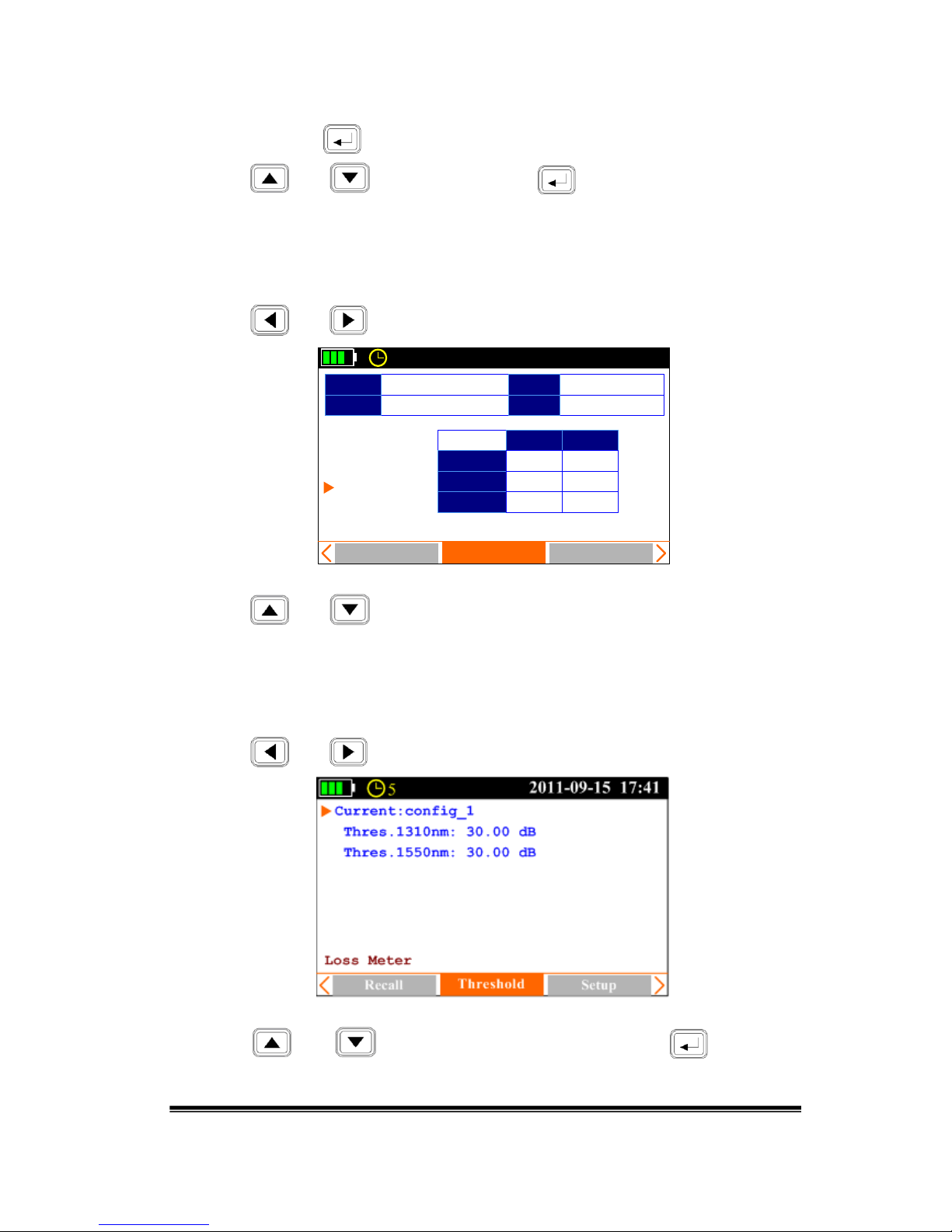

3.4.4 OLT-Recall

Press and to [Recall] sub-interface, as shown in Figure 3.18.

Save

Recall

Threshold

Loss Meter

Goto(Index)

Prev

Next

Del all

CABLE001Cable 2011-09-08Date

8/12

FIBER012Fiber 14:32:13Time

A->B(dB)

B->A(dB)

Len(km)

1310 1550

>55

>55

---.-

50.87

50.17

280.8

Del current

2011-09-15 17:41

5

Figure 3.18

Press and to select item: Del all, Del current, Goto ( Index ), Prev and

Next.

3.4.5 OLT-Threshold Setting

Press and to [Thresholds] sub-interface, as shown in Figure 3.18.

Figure 3.18

Press and to select the item to be adjusted, press to enable

OLT-55 User’s Manual

Shineway Technologies, Inc. - 21 -

adjustment, and press to confirm.

Thres: In bi-directional test, OLT-55 determines test result PASS or
FAIL according to the thresholds setting.

3.4.6 OLT-Setup

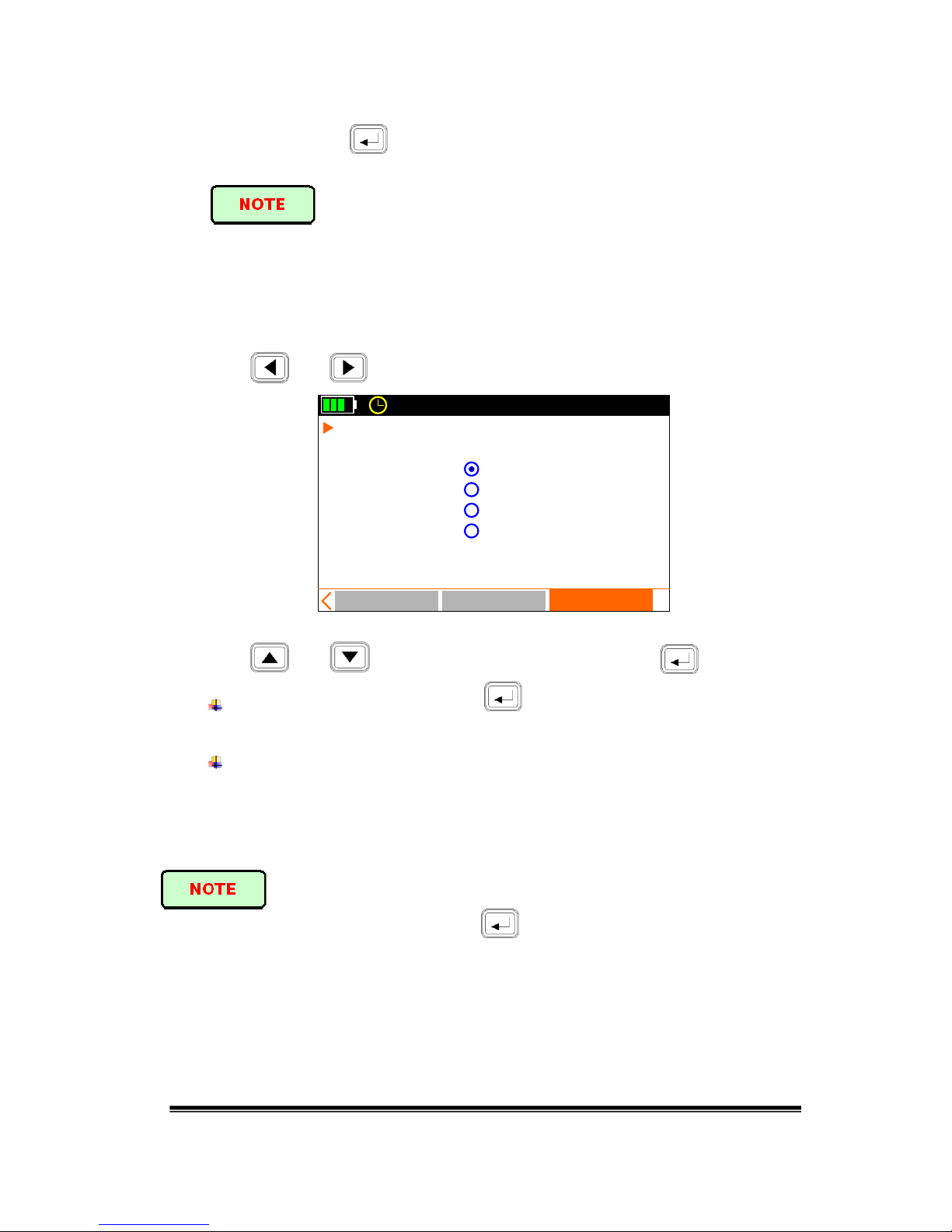

Press and to [Setup] sub-interface, as shown in Figure 3.19.

Threshold

Setup

Loss Meter

Zero

Auto save to:

Master unit

Remote unit

Both units

None

Recall

2011-09-15 17:41

5

Figure 3.19

Press and to select items: zero and Auto save to, press to confirm.

Zero: Screw on the dust cap, press the twice, the instrument will be

automatically calibrate zero;

Note: this operation should do first in the use of optical power meter.

Auto save to: The Zero results to be automatic save to Master unit, Remote unit,

Both units and None.

Operation Procedure about Bi-directional Test:

11..

Zero: Screw on the dust cap, press the twice, the instrument will be
automatically calibrate zero;

22..

Reference Setting: Ref. Type set to twin

33..

Threshold Setting: set "Thres" and "Loss"; the value of the Thres limit the maximum
loss of the entire link, "Loss" is generally provided by the fiber’s supplier, the basis for
calculation of the fiber length of the entire link ;

44..

Connect the reference patch-cord: connect one unit OLT port to another unit OLT port

OLT-55 User’s Manual

Shineway Technologies, Inc. - 22 -

with two reference patch cords. See Figure 3.20:

Figure 3.20

55..

Under [Set. Ref] sub-interface, select Start and then press , it will display the
reference power value on the interface.

66..

Toggle to [ BiDirTest ] sub-interface, connect measured fiber link as shown Figure 3.21,

then select Start and then press , test is running, and then the test result will be
displaied.

Figure 3.21

77..

Toggle to [Save] sun-interface, select Save.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 23 -

3.5 Optical Return Loss Test (ORL)-Option

Press to [Optical Return Loss] sub-interface, as shown in Figure 3.22.

Test

Save

Default

ORL Zero

1310nm

ORL Meter

31. 52

dB

sensitivity:62.53dB

ORL Ref(14.7dB)

Recall

2011-09-15 17:41

5

Figure 3.22

3.5.1 ORL-ORL Test

Press and to [Test] sub-interface, as shown in Figure 3.22.

Press and to select Default, ORL Zero, and ORL Ref(14.7dB):

Default: after press , the value of ORL Zero and ORL Ref(14.7dB) restores to
factory defaults;
ORL Zero: Connect one end of the test patch-cord to the OLT port, and at the other end of
the patch-cord winding on a small diameter round bars, while observing the current return
loss value displayed, the return loss value in the winding process will gradually become

larger, when the return loss value does not change, press to save the current return
loss value as the ORL Zero.

ORL Ref(14.7dB) : “(14.7dB)” means the current ORL value measured under default ORL

zero value and default ORL reference. Connect the reference patch-cord to OLT port, press

and to select OK, and press to save current ORL zero value。

ORL zero value should be reset when changing patch cord or
disconnecting/reconnecting patch cord.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 24 -

3.5.2 ORL-Save Record

Press and to [Save] sub-interface, as shown in Figure 3.23.

Test

Save

Recall

Cable:CABLE001

Fiber:FIBER001

1310nm

ORL Meter

31. 52

dB

sensitivity:62.53dB

Save

2011-09-15 17:41

5

Figure 3.23

Press and to select item: Cable and Fiber, press to enable digit

adjustment, press to confirm.

Press and to select Save, and press to save current record.

3.5.3 ORL-Recall

Press and to [Recall] sub-interface, as shown in Figure 3.24.

Goto(Index)

Prev

Next

Del all

CABLE001Cable 2011-09-08Date

5/7

Index/sum

1310 nm

Wavelen.

31.52dB

ORL

62.53dB

Sens.

Save

Recall

Setup

ORL Meter

FIBER005Fiber 13:25:31Time

Del current

2011-09-15 17:41

5

Figure 3.24

Press and to select item: Del all, Del current, Goto ( Index ), Prev and
Next.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 25 -

3.5.4 ORL-Setup

Press and to [Setup] sub-interface, as shown in Figure 3.25.

Recall

Setup

Zero

ORL Meter

Save

2011-09-15 17:41

5

Figure 3.25

Screw on the dust cap, press the twice, the instrument will be automatically calibrate
zero;

Operation Procedure about Optical Return Loss Test:

11..

Zero: Screw on the dust cap, press the twice, the instrument will be
automatically calibrate zero;

22.

.

Set ORL Zero: toggle to [Test] sub-interface, refer to 3.5.1 set ORL Zero. At this time
the display on the right-bottom of the interface sensitivity:××.××dB means

lower bound of the measurable return loss value.

33..

Set ORL Ref: refer to 3.5.1 set ORL Ref. Then press to toggle another
wavelength and set ORL Ref at this wavelength. All the wavelength should do. At this
time the display value on the interface should show about 14.70.

44..

Replace test patch-cord and one connects OLT port, another connects measured optical
link, now read the ORL value directly.

55..

Toggle to [Save] sub-interface to save the test result.

4. Maintenance and Calibration

4.1 Cleaning of the connectors

Keep the cleanness of connectors and dust caps. The detector needs to be cleaned timely.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 26 -

4.2 Calibration Requirement

Calibration of OLT-55 is recommended every three years. Please contact Shineway
Technologies Inc. or our agent for proper calibration.

OLT-55 User’s Manual

Shineway Technologies, Inc. - 27 -

5. Warranty Information

5.1 Terms of Warranty

OLT-50 is warranted against defective material and workmanship for a period of one (1)
year from the date of shipment to the original customer. Any product found to be defective
within the warranty period would be repaired or replaced by the Provider free of charge.

In no case will the Provider’s liabilities exceed the original purchase price of the product.
The warranty doesn’t include the accessories and optional parts.

5.2 Exclusions

The warranty on your equipment shall not apply to defects resulting from the following:

 Unauthorized repair or modification
 Misuse, negligence, or accident

The Provider reserves the right to make changes to any of its products at any time without
having to replace or change previously purchased units.

5.3 Warranty Registration

A warranty registration card is included with the original shipment of equipment. Please

take a few moments to fill out the card and mail or fax it to ShinewayTech’s local Customer

Service Center to ensure proper initiation of your warranty term and scope of your warranty.

5.4 Returning Instruments

To return instrument for reasons of yearly calibration or other, please contact the local
Customer Service Center of ShinewayTech to obtain additional information and a RMA#
(Return Materials Authorization number). And describe briefly reasons for the return of the
equipment, to allow us offer you more efficient service.

To return the instrument in the case of repair, calibration or other

OLT-55 User’s Manual

Shineway Technologies, Inc. - 28 -

maintenance, please note the following:

 Be sure to pack the instrument with soft cushion like Polyethylene, so as to protect

the shell of the instrument.

 Please use the original hard packing box. If use other packing material, please

ensure at least 3 cm soft material around the instrument.

5.5 Contact Customer Service

Please check our web site (www.shinewaytech.com) for updates to this manual and
additional application information. If you need technical or sales support, please contact
local Shineway Technologies Customer Service.

Shineway Technologies (China), Inc.:

Address: Fl.7, Zhongtai Plaza, No.3 Shuangqing Rd, Haidian District, Beijing,

China

Postal code: 100085
Tel: [phone]
Fax: [phone]
Email: [email protected]
WEB: www.shinewaytech.com

THANK YOU FOR CHOOSING
SHINEWAY TECHNOLOGIES!

DOC P/N：MAN-OLT-50-EN V1202

OLT-55 User’s Manual

Shineway Technologies, Inc. - 29 -
