1. Instrument Profile
1.1. Physical Characteristics
This chapter introduces various major parts of DTA-SDH/155 so that you can know the appearance
Top
Figure 1-1 DTA-SDH/155 Profile
and overall structure of the instrument.
Façade
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
5
Figure 1-2 Top View
(1) Electrical adapter port;
(2) BNC input joint for external clock;
(3) Standard USB port;
(4) BNC joint of output port;
(5) BNC joint of input port;
(6) SFP port for opticalinput/output.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
6
Figure 1-3 Façade View
(1) Fastening metal buckle of the belt;
(2) Color LCD screen;
(3)LED pointer light; ：Instrumentation Power on instructions; ：Instrumentation external
power supply instructions;
Note: In order to ensure the performance and battery life, please use the first three put the
battery completely discharge and recharge 12-14 hours, After 4-6 hours per charge achieved.
(4) Keypad: keys can be used for operation in case of the failure of touch screen.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
7
Figure 1-4 Back View
(1) Back bracket of the instrument;
(2) Battery cabin.
1.2. Introduction to Graphical User Interface
This chapter introduces the graphical user interface (GUI) of DTA-SDH/155.
Figure 1-5 Graphical User Interface
(1) Information prompt area: including the error, alarm, insert error, running prompt and electric
⑶
[4]
⑴
⑵
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
8
quantity of battery;
(2) Main display area: the display of various functions, setup and test results of the instrument;
(3) Function key area: different function keys in different interfaces to realize the operation of
the instrument;
（4）Language select.
2. Test Configuration
The test configuration interface defines the setup of different test modes, which is the most
basic setup for specific test of instrument, mainly including test mode select, port select, mapping
and test code pattern select. See Figure 2-1 as follows:
Figure 2-1 Test Configuration Interface
Six shortcut keys in the lower part of the interface are defined as follows:
“Set”—all parameter setups in the interface are valid;
“Save” —save up the current setup. As in Figure 2-2 Save Interface, a file name can be
selcted for saving up the current configuration.
Figure 2-2 Save Interface
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
9
“Load”—load a stored configuration file as in Figure 2-3 Configuration File:
Figure 2-3 Configuration File
Click ”Load” to pop up a stored configuration file, select a file name and confirm. In this case,
configuration parameters are the contents of a selected configuration file. Press “Set” to make the
configuration valid.
“Insert”—insert error code, overhead and alarm for a test.
“Start”—press the current configuration to implement a test. When the test starts, the run key
on the upper part of the interface becomes green, and “Start” key changes to “Stop” key. Click the
stop button to suspend the current test. At the same time, the pointer light “Start” on the upper part
of the interface returns to grey;
“Exit”—exit the current interface (test status unchanged), and return to the previous interface.
2.1. Test Mode
As in Figure 2-4, the instrument has nine test modes.
Figure 2-4 Test Mode Interface
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
10
2.1.1. SDH Path Mode (Default Mode of the Manufacturer)
For the structure chart, see Figure 2-5 as follows:
Figure 2-5 SDH Path Mode
2.1.2. SDH Demux Mode
For the structure chart, see Figure 2-6 as follows:
Figure 2-6 SDH Path Demux Mode
2.1.3. SDH Mux Mode
For the structure chart, see Figure 2-7 as follows:
Figure 2-7 SDH Mux Mode
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
11
2.1.4. SDH Monitor Mode
For the structure chart, see Figure 2-8 as follows:
Figure 2-8 SDH Monitor Mode
2.1.5. SDH Through Mode
For the structure chart, see Figure 2-9 as follows:
Figure 2-9 SDH Through Mode
2.1.6. PDH Path Mode
For the structure chart, see Figure 2-10 as follows:
Figure 2-10 PDH Path Mode
2.1.7. PDH Monitor Mode
For the structure chart, see Figure 2-11 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
12
Figure 2-11 PDH Monitor Mode
2.1.8. PDH Span Mode
For the structure chart, see Figure 2-12 as follows:
Figure 2-12 PDH Span Mode
2.1.9. PDH Through Mode
For the structure chart, see Figure 2-13 as follows:
Figure 2-13 PDH Through Mode
2.2. Parameter Setup
2.2.1. Physical Interface
The instrument supports electrical port and optical port. In SDH test mode, physical interface
can be selected as optical port-”O” or electrical port- “E” while consistent ports are required for
receiving or transmission i.e. both ”O” or both “E”. In PDH test, only electrical port-“E” is available.
For the physical interface setup, see Figure 2-14 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
13
Figure 2-14 Physical Interface Setup
2.2.2. Receiving Gain
The instrument supports receiving gain at two levels including 0dB and 18dB. See Figure 2-15
as follows:
Figure 2-15 Receiving Gain Setup
2.2.3. Mapping
The mapping and de-mapping modes: E1 (unframed, CCS, CCS/CRC, CAS & CAS/CRC), E3
(unframed/frame), E4 (unframed/frame), C-12 (KLM optional), C-3 (TUG3 optional), C-4. Receiving
and transmission can be set up separately- “RX≠TX”. Moreover, a coupling mode can be set up-
“RX=TX”. See Figure 2-16 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
14
Figure 2-16 Mapping Mode Setup
2.2.4. PRBS Code Pattern
For the setup interface of test code pattern, see Figure 2-17 as follows:
Figure 2-17 Test Code Pattern Setup
Options for test code pattern: 2E23, 2E23 (INV), 2E20, 2E20 (INV), 2E15, 2E15 (INV), 2E11,
2E11 (INV), 2E9, 2E9 (INV), 1111 and 0101. The receiving and transmission can be separately set
up. Moreover, the coupling mode can also be selected.
2.2.5. Transmission Clock
For the setup interface of transmission clock, see Figure 2-18 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
15
Figure 2-18 Clock Setup
2.3. LED Interface
LED interface comprises SDH interface and TCM interface, of which SDH interface includes all
alarms and errors of PDH.
2.3.1. SDH Interface
For the interface, see Figure 2-19 as follows:
Figure 2-19 LED Indicating Diagram
LINE: line-related
LOS: loss of signal on line side
AIS: alarm indicating signal on line side
LOL: loss of locking of line clock
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
16
LTC: loss of external clock
RS: related to regenerator section
LOF: loss of frame alignment (6)
OOF: frame alignment (5)
EFAS: frame alignment (1-4)
TIM: trace identifying mark mismatch of regenerator section
B1: error code monitoring of regenerator section, and BIP8 check error
MS: related to mux section
AIS: remote alarm indication of mux section
RDI: remote defect indication of mux section
REI: remote error indication of mux section
B2: error code monitoring of mux section, and BIP-24 check error
AU: related to administration unit pointer
AIS: status indication signal of AU pointer alarm
LOP: loss of AU pointer
+PJE: positive AU pointer adjustment
-PJE: negative AU pointer adjustment
NDF: AU pointer new data symbol
INV: invalid AU pointer
NEW: new AU pointer
PAIS: AU pointer H1, H2 whole 1 alarm indication signal
HP: related to high-order path
UNQ: high-order path unloaded or monitoring unloaded with signal alarm
REI: remote error indication of high-order path
RDI: remote defect indication of high-order path
PLM: payload mismatch alarm of high-order path
TIM: trace identifying mark mismatch of high-order path
B3: error code monitoring of high-order path, and high-order B3 check error
TU: related to bypass pointer
AIS: TU pointer alarm indication signal
LOP: loss of TU pointer
+PJE: positive TU pointer adjustment
-PJE: negative TU pointer adjustment
NDF: new data flag of TU pointer
INV: invalid TU pointer
NEW: new TU pointer
PAIS: TU pointer H1, H2 whole 1 alarm indication signal
LP: related to low-order path
UNQ: low-order path unloaded or monitoring unloaded with signal alarm
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
17
REI: remote error indication of low-order path
RDI: remote defect indication of low-order path
PLM: payload mismatch alarm of low-order path
TIM: trace identifying mark mismatch of low-order path
LOM: loss of multiframe
RFI: remote failure indication of low-order path
BIP-2: monitoring of error code of low-order path
Frm: related to frame
LOF: loss of frame alignment
RAI: remote alarm indication
CRCL: CRC loss
EFAS: frame error
ECRC: CRC error
REI: error code of remote block
MAIS: multiframe alarm indication
CASL: multiframe loss
MRAI: multiframe remote alarm indication
PATTERN: related to code pattern
SYNC: PRBS out-of-synchronism
AIS: PRBS whole 1
EBIT: PRBS with error code
SLIP: PRBS slide code
2.3.2. TCM Interface
For TCM interface, see Figure 2-20 as follows:
Figure 2-20 TCM LED Indication Interface
HP: high-order path
UNEQ: signal not equipped with alarm
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
18
LTC: TCM frame loss alarm
RDI: TCM remote defect alarm
ODI: TCM output defect alarm
TIM: TCM trace mismatch
REI: TCM remote error alarm
OEI: TCM output error alarm
AIS: TCM alarm indication signal
IEC: TCM input error counting
LP: low-order path
UNEQ: signal not equipped with alarm
LTC: TCM frame loss alarm
RDI: TCM remote defect alarm
ODI: TCM output defect alarm
TIM: TCM trace mismatch
REI: TCM remote error alarm
OEI: TCM output error alarm
AIS: TCM alarm indication signal
IEC: TCM input error counting
3. Error Performance Analyzer
Error performance analyzer is the second option of the main interface as in Figure 3-1:
Figure 3-1 Error Performance Analyzer Interface
The error analyzer includes three parts i.e. tests summary, error test result & error performance
analyzer.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
19
3.1. Tests Summary
For tests summary interface, see Figure 3-2 as follows:
Figure 3-2 tests summary
“Start time” refers the time of the system when ”Start” shortcut key is clicked on. “Duration”
refers to the continual time keeping after “Start time”. Click the exit button to stop.
“Send Pat” and “Rev Pat” are the code sample of PRBS in the “Test Configuration“ interface.
“Current status” is error or alarm indication.
3.2. Error Test Result
For error test result interface, see Figure 3-3 as follows:
Figure 3-3 Error Test Result
“Start time” refers the time of system when ”Start” shortcut key is clicked on. “Duration” refers to
the continual time keeping after “Start time”. Click the exit button to stop.
Display items include the error code second and ratio of EBIT and EFAS.
In any interface, click on “Start” shortcut key to start synchronous time keeping and operation.
Click the exit button to stop.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
20
3.3. Error Performance Analyser
3.3.1. SDH Part
Error performance analyzer of SDH part including: G.826, G.828, G.829 and M.2101.
G.826 including: MS, HOPOH, LOPOH; and interface indicators including EB, BBE, BBER, ES,
ESR, SES, SESR, UAS, UASR. See Figure 3-4 as follows:
Figure 3-4 G.826 Analyzer Interface
G.828 including: MS, HOPOH, LOPOH; and interface indicators including EB, BBE, BBER, ES,
ESR, SES, SESR, UAS, UASR, SEP, SEPR. See Figure 3-5 as follows:
Figure 3-5 G.828 Analyzer Interface
G.829 including: RS, MS; and interface indicators including EB, BBE, BBER, ES, ESR, SES,
SESR, UAS, UASR. See Figure 3-6 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
21
Figure 3-6 G.829 Analyzer Interface
M.2101 including: MS, HOPOH, LOPOH; and interface indicators including EB, BE, BER, ES,
ESR, SES, SESR, UAS, UASR, SEP, SEPR. See Figure 3-7 as follows:
Figure 3-7 M.2101 Analyzer Interface
3.3.2. PDH Part
Error performance analyser of PDH including: G.821, G.826, M.2100.
G.821 interface indicators including: EBIT, EBITR, ES, ESR, SES, SESR, UAS, UASR, See
Figure 3-8 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
22
Figure 3-8 G.821 Analyzer Interface
G.826 interface indicators including EB, BBE, BBER, ES, ESR, SES, SESR, UAS, UASR as in
Figure 3-9:
Figure 3-9 G.826 Analyzer Interface
M.2100 interface indicators including BE, BER, ES, ESR, SES, SESR, UAS and UASR. See
Figure 3-10 as follows:

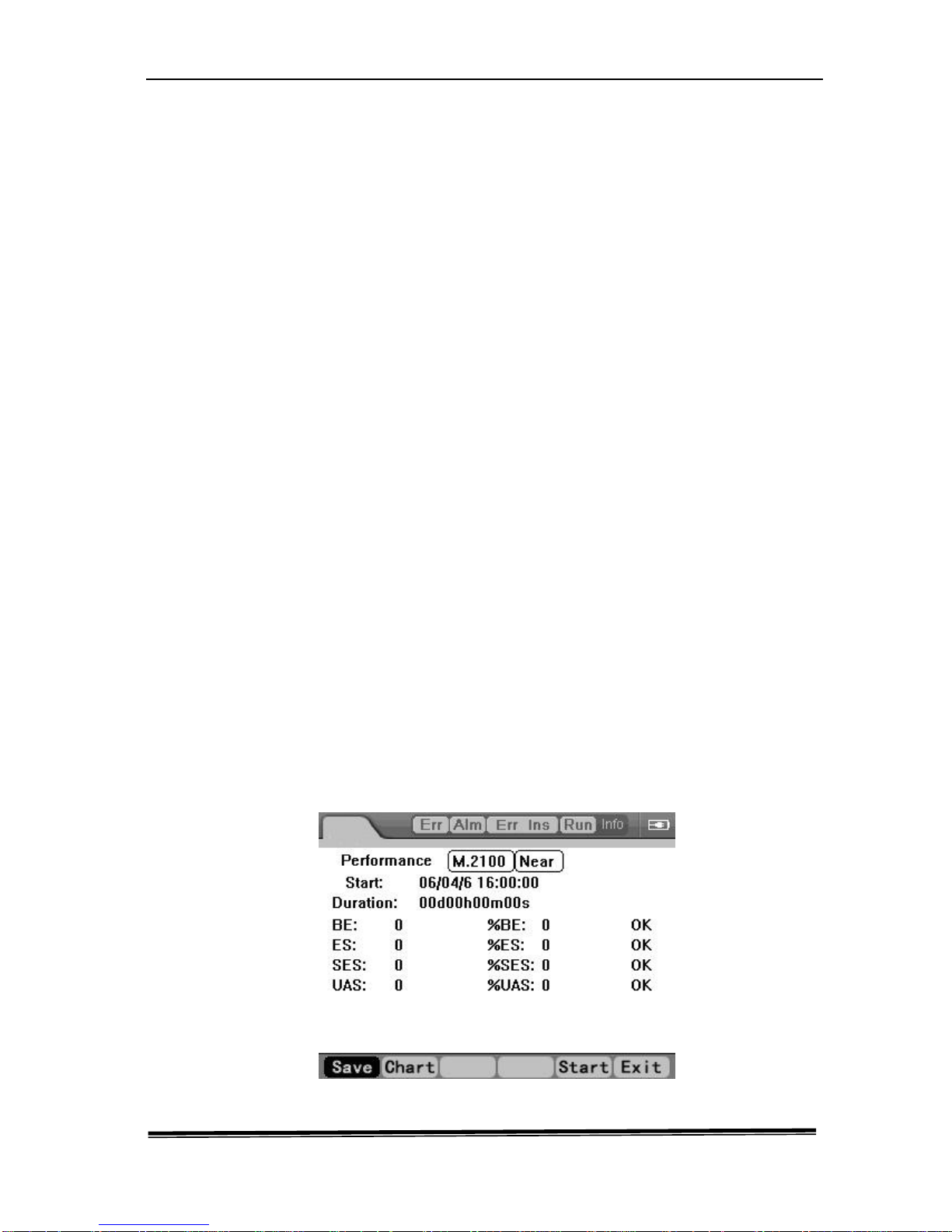

Figure 3-10 M.2100 Analyzer Interface
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
23
In the performance analyzer interface in above, click on the “Chart” function key to display
various results in a chart as in Figure 3-11:
Figure 3-11 Result Chart
In any interface, click on ”Start” shortcut key to start the synchronous counting and operation.
Click on the exit button to stop time keeping and operation.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
24
4. Event Record
Event record interface including: trace overhead test, regular overhead test, pointer value test,
pointer sequence test, error insert test, insert alarm, pointer adjusting test as in Figure 4-1.
Figure 4-1 Event Record Interface
4.1. Trace Overhead Test
Trace overhead test includes HOPOH (J0, J1) & LOPOH (J0, J2). Each part involves “Transmit
value”, “Expected value” and “Receive value”. The input value or parameter of “Transmit value” and
“Expected value” is set up by the ”Set” shortcut key, of which the result influences display select of
TCM in LED. “Receive value” will not be controlled by a shortcut key and receive in real time. The
initial interface is HOPOH. See Figure 4-2 as follows:
Figure 4-2 Trace Overhead Test
J0 has default value of “111111111111111”. J1 & J2 have default value of “111111111111111”.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
25
4.2. Regular Overhead Test
Including HOPOH and LOPOH. See Figure 4-3 as follows:
Figure 4-3 Regular Overhead Test
The contents include the transmission and receiption of S1, G1, H4, V5, K1, K2, K3, K4 and C2.
The ”Set” shortcut key can set up an input value or parameter of “Transmit value”. “Receive value”
is not controlled by the shortcut key and can receive in real time.
4.3. Pointer Value Test
For pointer value test, see Figure 4-4 as follows:
Figure 4-4 Pointer Value Test
The contents including: “Pointer type”: AU and TU, with a default value of AU.
“NDF”: ON, OFF, with a default value of OFF, where “ON” can be inserted only one time.
Otherwise, the point may be lost. During a test, OFF can be selected.
“Setup SS BITS”: 10.
“Transmit value of pointer“: scope of setup AU 0-782, TU3 0-764, TU12 0-139, with a default
value of 128.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
26
“Receive value of pointer“: receive in real time.
The ”Set” shortcut key can set up the input value or parameter for “Pointer type”, “NDF, “Setup
SS BITS” and “Transmit value of pointer“. “Receive value of pointer“ is not controlled by the shortcut
key and can receive in real time.
4.4. Pointer Sequences Test
For pointer sequences test, see Figure 4-5 as follows:
Figure 4-5 Pointer Sequences Test
The setup contents of “Pointer sequences” include: single-step reversed polarity, adding of one
pair at fixed period, loss of one at fixed eriod, pair of reversed polarity, single step, burst, 87-3, 87-3
plus, 87-3 minus, periodicity, periodicity plus and periodicity minus, with a default value of
“single-step reversed polarity”.
“INIT”: scope of setup 0-1638sec, with a minimum step length of 25ms and default value of 60.
“COOL”: scope of setup 0-1638sec, with a minimum step length of 25ms and default value of
30.
“T1”: scope of setup 0-107374182sec, with a minimum step length of 25ms, time type of
“millisecond, sec, minute, hour ” and default value of 1sec.
“T2”: scope of setup 0-65sec, with a minimum step length of 1ms, time type of “millisecond,
sec ” and default value of 2 millisecond.
“TADD”: scope of setup 0-255, with a default value of1.
“Pointer type”: AU, TU, with a default value of AU.
The “Set” shortcut key can set up all the input values or parameters. Once it is set up, “Insert
mode” changes to the current mode (insert sequence) instead of the original mode with a display on
the upper part of the screen. Then, the ”Insert” shortcut key can implement the insert.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
27
4.5. Error Insert Test
For error insert test, see Figure 4-6 as follows:
Figure 4-6 Error Insert Test
“Start time” refers to the time of system when the “Start” shortcut key is clicked on. “Duration” is
continual time keeping after “Start time”. After the running start, the start button changes to the exit
button. Click on the exit button to step the time keeping and running.
“Insert mode”: rate (default parameter)—1.0E-3, 1.0E-4, 1.0E-5, 1.0E-6, 1.0E-7, 1.0E-8, 1.0E-9,
with a default value of 1.0E-3.
Burst—scope of setup 0-8000, with a default value of 2000.
Repetitive burst—scope of setup 0-8000, with a default value of 2000.
“Insert error”:
Line—ECOD. “Insert mode” can be rate, burst and repetitive burst.
PDH—EFAS, ECRC, REBE. “Insert mode” is continual, with a default value of EFAS.
SDH (default parameter)—B1 (the maximum value of burst or repetitive burst is 8000), B2 (the
maximum value of burst or repetitive burst is 8000), msREI (the maximum value of burst or
repetitive burst is 2000), hpB3 (the maximum value of burst or repetitive burst is 8000), hpREI (the
maximum value of burst or repetitive burst is 8000), lpB3 (the maximum value of burst or repetitive
burst is 8000), lpREI (the maximum value of burst or repetitive burst is 2000), lp3REI (the maximum
value of burst or repetitive burst is 8000), BIP2 (the maximum value of burst or repetitive burst is
2000). “Insert mode” can be rate, burst and repetitive burst, with a default value of B1.
Pattern—EBIT. “Insert mode” can be rate, burst and repetitive burst.
The “Set” shortcut key can set up all the input values or parameters. Once it is set up, “Insert
mode” changes to the current mode (insert error code) instead of the original mode with a display
on the upper part of the screen. Then, the ”Insert” shortcut key can implement the insert. Error insert
function is unavailable in PDH test mode.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
28
4.6. Insert Alarm
For insert alarm, see Figure 4-7 as follows:
Figure 4-7 Insert Alarm
“Start time” refers to the time of system when the “Start” shortcut key is clicked on. “Duration” is
continual time keeping after “Start time”. Click on the exit button to stop.
“Insert mode”: continual.
“Insert alarm “:
Line—LOS, AIS.
PDH—LOF, RAI, CRCL, MAIS, CASL, MRAI.
SDH (default parameter)—EFAS, LOF, OOF, msAIS, msRDI, auAIS, hpRDI, hpPLM, hpUNEQ,
tuAIS, tuLOM, lpRFI, lpRDI, lpPLM, lpUNEQ, tuLOP, rsTIM, hpTIM, lpTIM, with a default value of
EFAS.
The “Set” shortcut key can set up all the input values or parameters. Once it is set up, “Insert
mode” changes to the current mode (insert alarm) instead of the original mode with a display on the
upper part of the screen. Then, the ”Insert” shortcut key can implement the insert. Insert alarm
function is unavailable in PDH test mode.
4.7. Pointer Adjusting Test
For pointer adjusting test, see Figure 4-8 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
29
Figure 4-8 Pointer Adjusting Test
“Start time” refers to the time of system when the “Start” shortcut key is clicked on. “Duration” is
continual time keeping after “Start time”. Click on the “Start” shortcut key again to stop.
“Insert mode”: repetitive burst, scope of setup AU 0-2000, TU3 0-2000, TU12 0-500, with a
default value of 500.
“Pointer event “: AU +PJ, AU –PJ, AU INV, TU +PJ, TU –PJ, TU INV.
The “Set” shortcut key can set up all the input values or parameters. Once it is set up, “Insert
mode” changes to the current mode (insert pointer) instead of the original mode with a display on
the upper part of the screen. Then, the ”Insert” shortcut key can implement the insert. The default
value is AU+PJ.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
30
5. Function Test
Function test including: APS test, transparency test, TCM test, RTD test and tributary scan test.
See Figure 5 -1 as follows:
Figure 5 -1 Function Test
5.1. APS Test
For APS test, eee Figure 5 -2 as follows:
Figure 5 -2 APS Test
“Trigger”: MS-AIS, AU-AIS, TU-AIS, B1, and B2, with a default value of MS-AIS.
“Switching time “: with a unit of sec, real-time reception and display in the interface.
The “Set” shortcut key can set up all the input parameters of “Trigger”. Test starts immediately
once in the menu, with the display of results in “Switching time“ and “Status“ column. Pay attention
to the interlocking with ”Start” shortcut key.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
31
5.2. Data Path (Transparency) Test
For data path test, see Figure 5 -3 as follows:
Figure 5 -3 Transparency Test
“Trans OH”: D1-D3, D4-D12, E1, E2, F1 and None, with a default value of None.
“Trans Pat”: 2E11, 2E15, 2E20 and 2E23, with a default value of 2E11.
“Rec. OH”: D1-D3, D4-D12, E1, E2, F1 and None, with a default value of None.
“Rec. Pat”: 2E11, 2E15, 2E20, and 2E23, with a default value of 2E11.
In data transparency test and SDH path test, PRBS insert type in interface setup menu includes
an additional “None” option to realize the interlocking of both interfaces. That is to say, the receiving
terminal or/and transmission terminal of both must be None. The last select is applied as the final
parameter of inserting PRBS and can be set up by ”Set” key.
The “Set” shortcut key can set up all the input values or parameters.
5.3. TCM Test
For TCM test interface, see Figure 5 -4 as follows:
Figure 5 -4 TCM Test
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
32
“Err Mode”:
Rate (default parameter)—1.0E-3, 1.0E-4, 1.0E-5, 1.0E-6, 1.0E-7, 1.0E-8 and 1.0E-9, with a
default value of 1.0E-3.
Outburst—scope of setup 0-8000, with a default value of 2000.
Repetitive burst—scope of setup 0-8000, with a default value of 2000.
None.
“Err Position”: LP, HP, with a default value of HP.
“Err Event“: tcREI, tcOEI, tcIEC, with a default value oftcREI. The maximum value of burst or
repetitive burst is as follows.
The maximum value of burst or repetitive burst
Type of error code
HP
VC3 LP
VC12 LP
tcREI
8000
8000
2000
tcOEI
8000
8000
2000
tcIEC
8000
8000
2000
Table 5-1 List of the Maximum Values of Burst or Repetititve Burst of Error Code
“Alm Mode”: continual, None (default parameter).
“Alm Position”: LP, HP, with a default value of HP.
“Alm Event“: tcUNQ, tcLTC, tcRDI, tcODI, tcTIM, tcAIS, with a default value of oftcUNQ.
Add None into the error code and alarm mode for inserting TCM respectively, and realize the
interlocking. The last select is applied as the final parameter for inserting TCM and is set up by ”Set”
key.
The “Set” shortcut key can set up all the input values or parameters.
5.4. RTD Test
RTD includes SDH test and PDH test, with test interface as in Figure 5-5:
Figure 5 -5 RTD Test
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
33
“Start time” refers to the time of system when the “Start” shortcut key is clicked on. “Duration” is
continual time keeping after “Start time”. Click on the “Exit” shortcut key to stop.
“Current”: indicating the measuring result of current RTD.
“Offset”: scope of setup 0-9999, with a unit of us, and moreover, “Set Offset” can be added with
the value of “Current”.
“Set Offset”: add “Current” to “Offset”.
“State”: measuring, and measured.
“Pat”: indicating current alarm status of SYNC, AIS, EBIT and SLIP.
Test starts once in the menu, with a display of test result in “Current” and “State” column. Pay
attention to the interlocking with the ”Start” shortcut key.
5.5. Tributary Scan Test
For tributary scan test, see Figure 5 -6 as follows:
Figure 5-6 Tributary Scan Test
“Tributary scan”: 1-63 and *(when the receiving part of “Test configuration“ is E1 or VC12), 1-3
(when the receiving part of “Test configuration“ is E3 or C3).
“TUG3”: 1-3 and *, “TUG2”: 1-7 and *, “TU12”: 1-3 and *(when the receiving part of “Test
configuration“ is E1 or VC12).
Click on the “Scan” shortcut key to enter the scan result interface directly. The default value is
to select all.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
34
6. Test Result
The test result includes alarm test result, error code test result, pointer test result, overhead
test result, TCM test result, transparency test result, frequency test result and tributary test result,
with the interface as in Figure 6-1. All test result menus have a save function. Click on the
“Save“ shortcut key to save up the current test results.
Figure 6-1 test result
6.1. Alarm Test Result
For alarm test result interface, see Figure 6-2 as follows:
Figure 6-2 Alarm Test Result
“Alarm type”:
PDH part: including continual seconds of LOS, AIS, LTI, LOF, RAI, CRCL, MAIS, CASL, MRAI,
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
35
Pat AIS and Pat LSS. (Only in E1 mode)
SDH part: including LOS, LOF, RS TIM, MS AIS, MS RDI, AU AIS, AU LOP, HP UNEQ, HP RDI,
HP TIM, HP PLM, LTI, Pat AIS, Pat LSS, TU AIS (grey when set up as C4), TU LOP (grey when set
up as C4), LP UNEQ (grey when set up as C4), LP RDI (grey when set up as C4), RFI (grey when
set up as C3 or C4), LP TIM (grey when set up as C4) and LP PLM (grey when set up as C4).
In any interface, click on the “Start” shortcut key to start synchronous counting and operation.
Click on ”Stop” button to stop. Click on the “Chart” shortcut key to generate a dynamic histogram of
alarm test results in this interface directly.
6.2. Error Code Test Result
For error code test result interface, see Figure 6-3 as follows:
Figure 6-3 Error Code Test Result
“Error type”:
PDH part: including error code counting, sec & rate of ECOD, EFAS, ECRC, REBE and EBIT.
(Only in E1 mode)
SDH part: including error code counting, sec & rate of B1, B2, MRAI, HP B3, LP B3 (grey when
set up as C12 or C4), HP REI, LP REI (grey when set up as C4), EBIT and BIP2 (grey when set up
as C3 or C4).
In any interface, click on the “Start” shortcut key to start synchronous counting and operation.
Click on the exit button to stop. Click on the “Chart” shortcut key to generate a dynamic histogram of
error test results in this interface directly.
6.3. Pointer Test Result
For pointer test result interface, see Figure 6-4 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
36
Figure 6-4 Pointer Test Result
Pointer test result including: pointer value and SS BITS value of AU and TU, and counting and
rate of +AUP JE, -AUP JE, AU NDF, AU INV, +TUP JE, -TUP JE, TU NDF and TU INV.
In any interface, click on the “Start” shortcut key to start synchronous counting and operation.
Click on ”Stop” button to stop. Click on the “Chart” shortcut key to generate a dynamic histogram of
alarm test results in this interface directly.
6.4. Overhead Test Result
For overhead test result interface, see Figure 6-5 as follows:
Figure 6-5 Overhead Test Result
Overhead test result including:
RS: A1, A2, J0, B1, E1, F1, D1, D2, D3
AU: H1, V1, V2, H2, L1, L2, H31, H32, H33
MS: B2, K1, K2, D4, D5, D6, D7, D8, D9, D10, D11, D12, S1, Z1, Z2, M1, E2
TU12: V1, V2, V3, V4
LOPOH: V5, J2, N2, K4
HOPOH: J1, B3, C2, G1, F2, H4, F3, H4, F3, K3, N1
All results aren’t controlled by the shortcut key. Real-time reception and display are available
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
37
once in the interface. Click on the ”Stop” button to stop.
6.5. TCM Test Result
For TCM test result interface, see Figure 6-6 as follows:
Figure 6-6 TCM Test Result
The display of the number, error code sec and rate of TC-REI, TC-OEI and IEC of N1 and N2 in
the overhead of high-order & low-order and the duration of TC-UNO, TC-LTC, TC-RDI, TC-TIM,
TC-AIS is available.
All results aren’t controlled by the shortcut key. Real-time reception and display are available
once in the interface. Click on the ”Stop” button to stop.
6.6. Data Path Test (Transparency) Result
For data path test result interface, see Figure 6-7 as follows:
Figure 6-7 Transparency Test Result
The display of the number, error code sec & rate of EBIT and the alarm time of LSS is available.
All results aren’t controlled by the shortcut key. Real-time reception and display are available
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
38
once in the interface. Click on the ”Stop” button to stop.
6.7. Frequency Test Result
For frequency test result, see Figure 6-8 as follows:
Figure 6-8 Frequency Test Result
“Rev Pat”: PRBS code pattern of the receiving part in setup menu.
“Send Pat”: PRBS code pattern of the transmitting part in setup menu.
“Frequency“: actual frequency for receiving, with a unit of bit/s.
“Offset”: the offset between actual receiving frequency and ideal frequency (155.52Mb/s), with
a unit of ppm.
“Minimum“: the minimum value of the frequency measured in the interface, with a unit of bit/s.
“Maximum“: the maximum value of the frequency measured in the interface, with a unit of bit/s.
All results aren’t controlled by the shortcut key. Real-time reception and display are available
once in the interface. Click on the ”Stop” button to stop.
6.8. Tributary Test Result
For tributary test result interface, see Figure 6-9 as follows:
Figure 6-9 Tributary Test Result
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
39
The display of tributary scan results of VC12 (E1), VC3 (E3) and VC4 (E4) (specified according
to setup mode of the receiving part in setup menu) is available. Real-time reception and display
are available once in the interface. Click on the “Stop” button to stop.
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
40
7. System Setup
For the main item of system setup, see Figure 7-1 as follows:
Figure 7-1 System Setup
7.1. File Management
The file management includes configuration file and result file as in Figure 7-2.
Figure 7-2 File Management
7.1.1. Configuration File:
The configuration parameter of nine modes is available. Click on a file, press the configuration
parameter of the file and enter the configuration interface directly as in Figure 7-3:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
41
Figure 7-3 Configuration File
7.1.2. Result File
Ten test results are available as in Figure 7-4:
Figure 7-4 Result Test Interface
7.2. Version Information
View the version information of the current software and hardware as in Figure 7-5 as follows:
Figure 7-5 Version information
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
42
7.3. Recover Default
Recover the system to the default setup as in Figure 7-6:
Figure 7-6 Default Recovery
7.4. Time Setup
Set up the time of system as in Figure 7-7:
Figure 7-7 Time Setup
“Date”: YYYY—2000-2030, MM—1-12, DD—1-31.
“Time“: HH—1-23, MM—0-59, SS—0-59.
7.5. Touch Screen Calibration
Click on the below-left corner of screen and then, the screen will prompt to click on the up-right
corner to calibrate the screen as in Figure 7-8 as follows:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
43
Figure 7-8 Touch Screen Calibration Interface
7.6. Other Setup
See Figure 7-9 as follows:
Figure 7-9 Other Setup Interface
“Save Mode”: manual save, save once error interval, and timing save, with a default value
of ”Manual”.
“Save duration”: 5 minute, 15 minute, 30 minute and 1 hour, with a default value of “5minute”.
“KeyPressSound”: On, Off, with a default value of “On”.
“Alarm Sound”: On, Off, with a default value of “On”.
“Contrast”: Always on, Automatic, with a default value of “Auto”.
7.7. Performance Objectives
Set up the indicators of the performance test as in Figure 7-10:
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
44
Figure 7-10 Performance Objectives
7.8. USB Connection
USB will connect the instrument with PC via USB port for file loading and software update of
the instrument as in Figure 7-11 as follows:
Figure 7-11 Terminal Wiring Diagram
Contacting Customer Service
Please check our web site (www.shinewaytech.com) for updates to this manual and additional
application information. If you need technical or sales support, please contact local Shineway
Technologies Customer Service.
Shineway Technologies (China), Inc.:
Address: Fl.7, Zhongtai Plaza, No.3 Shuangqing Rd, Haidian District, Beijing, China
Postal code: 100085
Tel: +86-10-62953388
Fax: +86-10-62958572
Email: support@shinewaytech.com
WEB: www.shinewaytech.com
DTA-SDH/155
Operating Manual
Shineway Technologies, Inc.
45
THANK YOU FOR CHOOSING
SHINEWAY TECHNOLOGIES!
Loading...
