SPF2-10C & SPF2-12C
Portable Air Conditioner
User’s Manual
Thanks for choosing this high quality portable air conditioner. Please
read the Manual carefully before operation. In case of any problem,
please contact professional maintenance personnel in time.
CONTENT
Important Safety Tips
Precautions........................................................1
Product Introduction
Main Parts and Components...............................3
Control Panel and Remote Controller..................4
Product Operation
Placement and Installation..................................5
Operation Method...............................................7
Clean and Maintenance
Drainage Method................................................8
Maintenance......................................................8
Common Failures and Diagnosis
Intelligent Error Detection..................................10
Fuse Parameters..............................................10
Trouble-shooting..............................................10
This machine is for household use only.
Turn off the A/C before unplugging.
This appliance is not intended for use by children, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Don’t insert your fingers or any hard object to wind guide bar of the air outlet.
IMPORTANT SAFETY TIPS
PRECAUTION
PRECAUTIONS
Please read the Manual carefully before oper ating the machine:
This machine is for indoor use only. Please place it in dry environment.
Check power cord frequently. When power cord, plug or A/C is damaged, please
don’t operate.
If the power cord is not long enough, power extension cable can be used. Cable
should not scatter at places where power cord may be pulled out or people may be
stumbled.
The A/C should be away from heat source and avoid direct sunlight.
Turn off and unplug the A/C before removing or cleaning it, or replacing its parts or
when it is not used.
Clean the A/C according to the Manual.
Voltage of the A/C should meet requirements. Any damage incurred by incorrect
power isn’t included in the warranty.
Children are not allowed to play with the A/C.
Don’t place the A/C at any place with water or other liquid. Prevent water or liquid
from entering the A/C.
Don’t repair the A/C by yourself. Any possible hazard incurred by maintenance of
laypeople will violate the warranty. If the supply cord is damaged, it must
be replaced by professional maintenance personnel.
Please use the accessories provided by the A/C manufacturer; otherwise, the A/C
may be damaged.
Cleaning and user maintenance shall not be made by children
ithout supervision.
w
Special warning:
Don’t use the A/C beside gasoline or any other inflammable liquid.
Place the A/C on even ground and install it vertically, so as to ensure normal
operation of the compressor.
The A/C should be at least 19.7in away from surrounding objects. Keep air inlet and
outlet smooth.
Don’t use spraying agent and other solvent or flammable substances near the A/C;
otherwise, its plastic may deform and electric parts may be damaged.
Power
The plug should be in good condition and can’t be damaged. Don’t replace the plug
with power lug.
In order to run the A/C, plug the power cord first, and then press the power key.
Place unit in upright position for 2 hours before turning on for first time.
PRODUCT INTRODUCTION
MAIN PARTS AND COMPONENTS
1. Handle
2. Air inlet (L)
3. Control panel
4. Air outlet louver
5. Caster
6. Remote controller
7. Air inlet (R)
8. Hot air outlet
9. Drainage nozzle
10. Air inlet grille
11. Exhaust duct assembly
12. Window sealing plate assembly
1. Power key
Press this key at any time after turning on the A/C to swing
Press the key at cooling mode to increase/reduce the
g
ON/OFF time; press Up and Down keys simultaneously to
Press the key to choose cooling, fan, dehumidification
7. Temperature/ time display window
9.
switching key
CONTROL PANEL AND REMOTE CONTROLLER
Mid
Low
Cool Fan Dry
High
Cooling model
Press the key to turn ON/OFF the A/C.
2. Swing key
the wind guide bar automatically.
3. Speed key
Press the key to choose high/middle/low gear wind speed.
4. Temperature/ time adjusting key
setting temperature; press it at timing mode to adjust timin
switch Fahrenheit and Centigrade degree temperature.
5. Mode key
6. Timer key
Press the key at standby mode to set ON time.
Press this key at ON mode to set OFF time.
This window displays the adjusted temperature and time.
8. Remote controller receiving window
This window is used to receive signal of the remote
controller.
℃/℉
Press the key to switch ℃ and ℉.
PRODUCT OPERATION
PLACEMENT AND INSTALLATION
Placement
Place it at even and dry place, and k eep it at least 19.7in away from its surrounding
object.
19.7in
Installation
Screw the exhaust duct assembly in the air outlet behind the panel (anticlockwise).
Insert the air exhaust hose into the window sealing plate, adjust opening width of
It’s important to keep the exhaust duct smooth. Incorrect installation will affect work of
Prevent the exhaust duct from sharp bending.
Warning:
.
n
failure.
window so that the window can match with the sealing plate properly; length of the
sealing plate is adjustable.
Incorrect installation
the A/C.
Ensure air can flow smoothly in the duct.
The exhau st duct is designed especially for this model
Don’t replace or lengthen it; otherwise, it will result i
Notice:
Max. developed length of the exhaust duct is 59in . It’s better to shorten it while use
and keep it horizontal while installation.
Cooling mode
Press Speed key to choose High/Mid/Low speed.
Dehumidification mode
OPERATION METHOD
When the A/C enters cooling mode automatically or cooling mode is selected after
power ON, the cooling indicator lamp lights up.
Press Up/Down key to adjust setting temperature (16℃~~30℃) .
(61℉ 86℉)
Fan mode
When pre ssing mode key or choosing Fan mode by pressing the remote controller,
the wind indicator lamp lights up.
Press Speed key to choose High/Mid/Low speed.
Temperature can’t be set.
When pressing mode key or choosing dehumidification
mode by pressing the remote controller, the
dehumidification indicator lamp lights up.

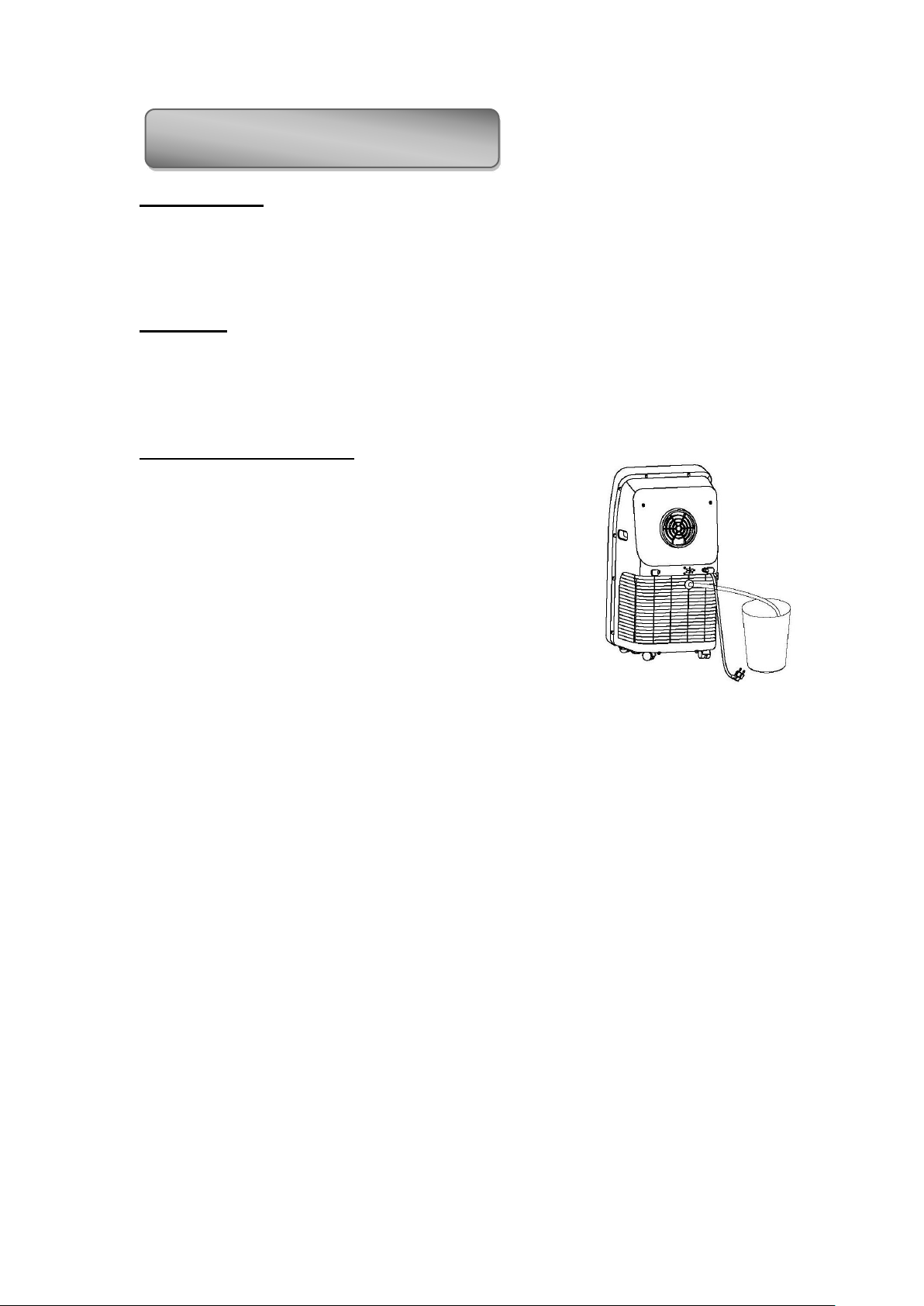

Remove the dehumidification water wedge, insert water
manifold, place the other end of the water manifold into
the water vessel or drainage passage, as shown in the
right figure.
In dehumidification mode, the fan is defaulted to run at
low speed, and wind speed
Temperature can’t be set.
can’t be adjusted.
Timer mode
display “FL”, and the compressor stops working
pull out the water plug to drain off water, and it will
Wipe with soft semi-dry cloth. Don’t use chemical reagent, such as benzene, alcohol
Vacum the filter screen once every two weeks. If it is blocked by dust, efficiency of
DRAINAGE
DRAINAGE METHOD
In standby state, press the Timer key to set ON time. Press Up and Down keys to set
ON time (1~24H), and the timer indicator lamp lights up.
In ON state, pressure the timer key to set OFF time. Press Up and Down keys to set
OFF time (1~24H), and the timer indicator lamp lights up.
CLEAN AND MAINTENANCE
This product is equipped with automatic water vaporization system. The condenser
is cooled with the circulating of condensing water, so as to improve cooling
efficiency and save energy.
If the internal
automatically. After power off, unscrew the water cover,
become normal after being restarted.
vessel is full of water, the display screen will
MAINTENANCECE
Notice: in order to avoid electric shock, please turn off the A/C and unplug before
maintenance or repair.
CLEANING
Unplug before cleaning.
and gasoline etc; otherwise surface of the A/C and even the whole A/C will be
damaged.
Prevent water from spattering in the A/C.
FILTER SCREEN
the A/C will be reduced.
Take out the air inlet grille and pull out the filter screen at both sides according to the
Put the filter screen into the warm water (about 104℉) added with neutral detergent,
Pull out the water plug to drain.
Wash the filter screen and reassemble it.
Cover the A/C with a plastic bag and place it at a dry place.
COMMON FAILURES AND DIAGNOSIS
INTELLIGENT ERROR DETECTION
direction shown in the following figures. Use vacum to remove lint from filters.
dry it at a shady place after cleaning.
SEASONAL CLEANING
If the A/C will not be used for a long time:
Run the A/C in fan mode for 2H till the inside is dry.
Turn off the A/C and unplug.
Dismantle the exhaust duct and keep it properly.
If possible store unit in its original box.
Error-detecting code
Multi-functional defection
E1 Error of the coil’s temperature sensor
TROUBLE
CAUSE
SOLUTION
FL
after being turning off.
A/C
avoid shaking
E2 Error of indoor temperature sensor
E4 Anti-freezing protection: temperature of the coil is too low and
the whole A/C is off. When temperature excesses 46℉, the
protection is released and previous working state is recovered.
FUSE PARAMETERS
Specification: Φ5×20mm
Voltage: 250VAC
Current: 3.15A
TROUBLE-SHOOTING
In case of any of the following trouble, please contact professional maintenance personnel
in time.
The A/C doesn’t
work
The A/C starts
frequently
Big noise of the
The compressor
doesn’t work
Notice: When there is any abnormal to the A/C, turn it off and unplug, and then
contact profes sional maintenance personnel.
No display Reset circuit breaker on AC cord
The display panel displays
“
”
Time OFF function is started The A/C can be restarted 3 minutes
Direct sunlight Draw the curtain
Doors and windows keep
open; there are lots of people
or heat source in room
Filter screen is very dirty Clean or replace it
Air inlet or air outlet is blocked Remove the stem
The A/C is placed unevenly Place it at even and firm ground,
Its delay protection is started Wait for 3min., turn on after
Restart the A/C after power off and
draining, then it will become normal
Close doors and windows, remove
heat source
temperature decreases
The above technical parameters are subject to change without notice.
Meaning of crossed –out wheeled dustbin:
Do not
facilities.
Contact you local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can
leak into the groundwater and get into the food chain, damaging your health and
well-being.
When replacing old appliances with new ones, the re
back your old appliance for disposals at least free of charge.
