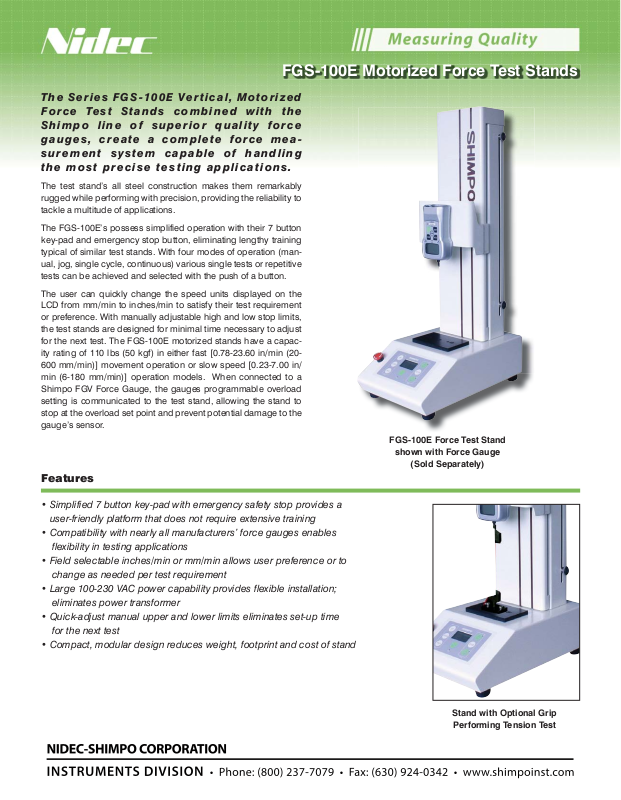

Shimpo FGS-100E-H, FGS-100E-L Data Sheet

FGS-100E Motorized Force Test Stands

The Series FGS-100E Vertical, Motorized
Force Test Stands combined with the
Shimpo line of superior quality force
gauges, create a complete force mea­surement system capable of handling
the most precise testing applications.

The test stand’s all steel construction makes them remarkably
rugged while performing with precision, providing the reliability to
tackle a multitude of applications.

The FGS-100E’s possess simplified operation with their 7 button
key-pad and emergency stop button, eliminating lengthy training
typical of similar test stands. With four modes of operation (man­ual, jog, single cycle, continuous) various single tests or repetitive
tests can be achieved and selected with the push of a button.

The user can quickly change the speed units displayed on the
LCD from mm/min to inches/min to satisfy their test requirement
or preference. With manually adjustable high and low stop limits,
the test stands are designed for minimal time necessary to adjust
for the next test. The FGS-100E motorized stands have a capac­ity rating of 110 lbs (50 kgf) in either fast [0.78-23.60 in/min (20­600 mm/min)] movement operation or slow speed [0.23-7.00 in/
min (6-180 mm/min)] operation models. When connected to a
Shimpo FGV Force Gauge, the gauges programmable overload
setting is communicated to the test stand, allowing the stand to
stop at the overload set point and prevent potential damage to the
gauge’s sensor.

Features

FGS-100E Force Test Stand

shown with Force Gauge

(Sold Separately)

• Simplified 7 button key-pad with emergency safety stop provides a
user-friendly platform that does not require extensive training

• Compatibility with nearly all manufacturers’ force gauges enables
flexibility in testing applications

• Field selectable inches/min or mm/min allows user preference or to
change as needed per test requirement

• Large 100-230 VAC power capability provides flexible installation;
eliminates power transformer

• Quick-adjust manual upper and lower limits eliminates set-up time
for the next test

• Compact, modular design reduces weight, footprint and cost of stand

Stand with Optional Grip

Performing Tension Test

FGS-100E Specifications

Model

Capacity 112.4 lbf (500N, 50kgf)

Movement Speed

Speed Accuracy ±5%

Stroke 15.75 in (400 mm)

Display LCD 3 Digits indicates movement speed, Operation Mode

Operation Mode Manual (MAU), Jogging (JOG), 1 Cycle (SIG), Continuous (CON)

Input Over Load Input Stops by FGV Over Load Signal

Dimensions Product: 3.66 × 5.91 in (93 × 150 mm); Table: 3.66 × 5.91 in (93 × 150 mm)

Temperature Range 32 - 113°F (0 - 45°C) No Condensation

Power Supply AC100 - 230V ± 10%

Product Weight Approx. 40.1 lbs (20 kg)

Warranty 2-Year

Included Accessories FGV overload set point communication cable

FGS-100E-L Low Speed
FGS-100E-H High Speed

FGS-100E-L: 6-180 mm/min (0.23-7.00in/min)
FGS-100E-H: 20-600 mm/min (0.78-23.60in/min)

Ordering Details

FGS-100E-L Vertical Motorized Test Stand with low speed 0.23-7.00 in/min (6-180 mm/min) and 110 lb (50 kg) capacity

FGS-100E-H Vertical Motorized Test Stand with high speed 0.78-23.60 in/min (20-600 mm/min) and 110 lb (50 kg) capacity

Accessories

FGS-100ECBL Interface cable for FGV Force Gauge Overload protection

*For available force grips and adapters visit our website at www.shimpoinst.com

FGS-100E Dimensions
