User's manual
Cross bike wheel set
User's manuals in other languages are available at :
http://si.shimano.com
•If the quick release lever is on the same side as
the disc brake rotor, there is the danger that it
may interfere with the disc brake rotor. Make
sure that even if the quick release lever is
tightened with your palm with all your
strength, the quick release lever does not
interfere with the disc brake rotor. If the lever
interferes with the disc brake rotor, stop using
the wheel and consult a dealer or an agency.
•After reading the user's manual carefully, keep it in a safe place for later
reference.
Quick release
lever
Disc brake rotor

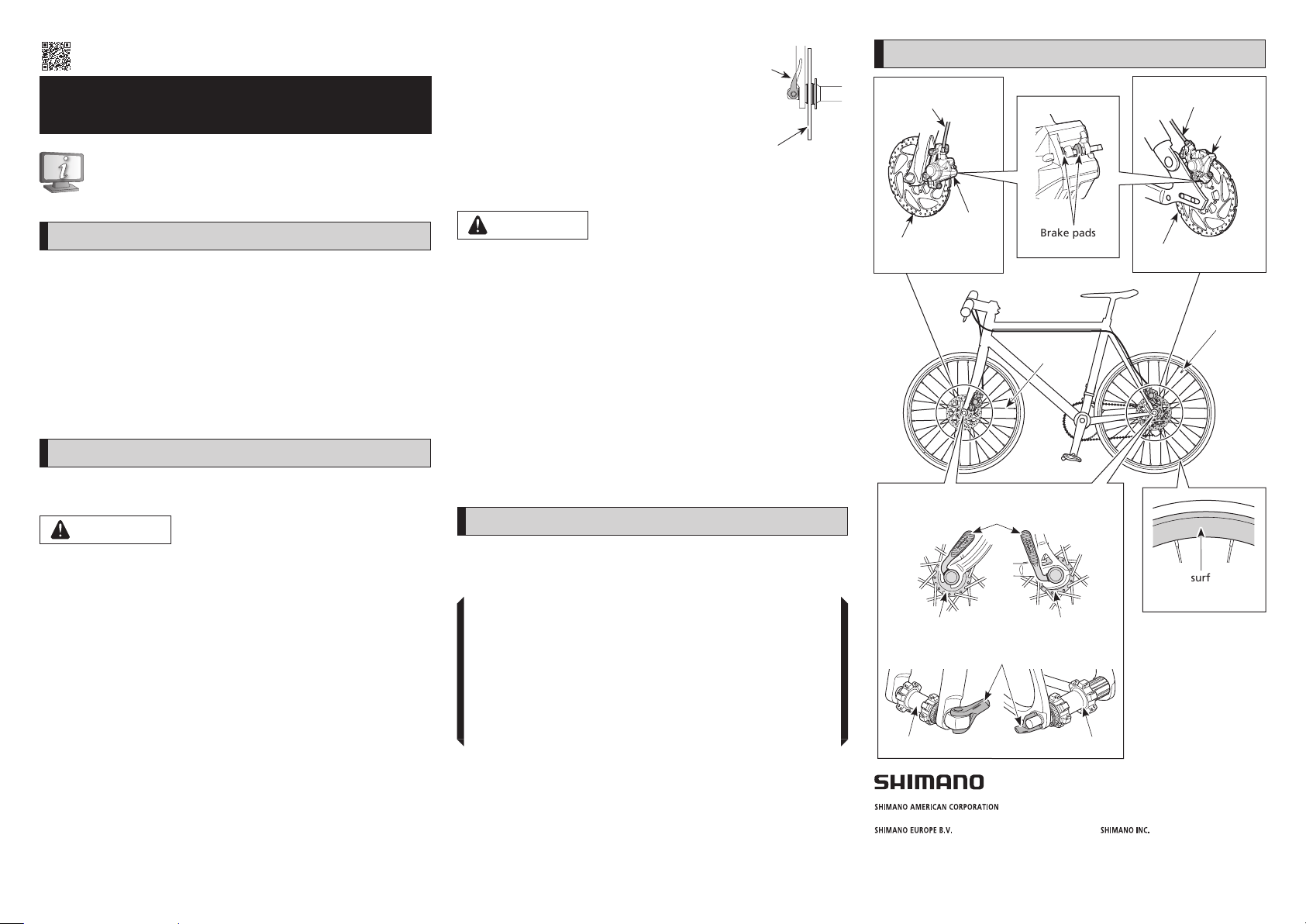

Names of parts
Brake cable/
Brake hose
Brake cable/
Brake hose
Caliper
IMPORTANT NOTICE
•Contact the place of purchase or a bicycle dealer for information on
installation and adjustment of the products which are not found in the
user's manual. A dealer's manual for professional and experienced bicycle
mechanics is available on our website (http://si.shimano.com).
•Do not disassemble or alter this product.
For safety, be sure to read this user's manual
thoroughly before use, and follow them for correct
use.
Important Safety Information
Guidelines that require replacement, contact the place of purchase or a
bicycle dealer.
WARNING
• Check that the wheels are fastened securely before riding the bicycle. If
the wheels are loose in any way, they may come off the bicycle and
serious injury may result.
• This wheel set is designed for recreation. Do not use this wheel set for
aggressive uses such as competition. The wheel may break, and you may
fall.
• Before use, check the wheels to make sure that there are no bent or loose
spokes, dents, scratches or cracks on the rim surface. Do not use the wheel
if any of these problems are found. The wheel may break, and you may
fall.
•If the quick release mechanism is not used correctly, the wheel may come
off the bicycle and serious injury could result. Read the Service Instructions
for the quick release mechanism thoroughly before use.
CAUTION
•The tires should be inflated to the pressure indicated on the tires before
use.
Note
•Do not apply any oil to the inside of the hub, otherwise the grease will
come out.
•We recommend that you ask bicycle dealers to adjust the spoke tensions if
there is any initial play in the spokes and after the first 1,000 km of riding.
•Do not use detergent or other chemicals when wiping the wheel,
otherwise it may cause the sticker on the rim to peel off.
•Also read the user's manual for the disc brake.
•Products are not guaranteed against natural wear and deterioration from
normal use and aging.
•For maximum performance we highly recommend Shimano lubricants and
maintenance products.
Regular inspections before riding the bicycle
Before riding the bicycle, check the following items. If any problems are
found with the following items, contact the place of purchase or a bicycle
dealer.
•Are there any bent or loose spokes?
•Are there any dents, scratches, or cracks on the rim surface?
•Are the wheels fixed?
•Is the brake oil leaking?
•Does each pad have a thickness of 0.5 mm or more?
•Is the disc brake rotor cracked or deformed?
•Do the wheels rotate smoothly?
•Is there any noise from the wheels?
Caliper
Disc brake rotor
Front hub
<E-THRU/Through axle>
Brake pads
Disc brake rotor
Valve hole
Spoke
<Quick release>
Quick release lever
Rim surface
Freehub
Axle release lever
FreehubFront hub
