UM-7FS0B-000
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222
Roebuck Way, Knowlhill, Milton Keynes, Buckinghamshire, MK5 8HL, United Kingdom
3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan

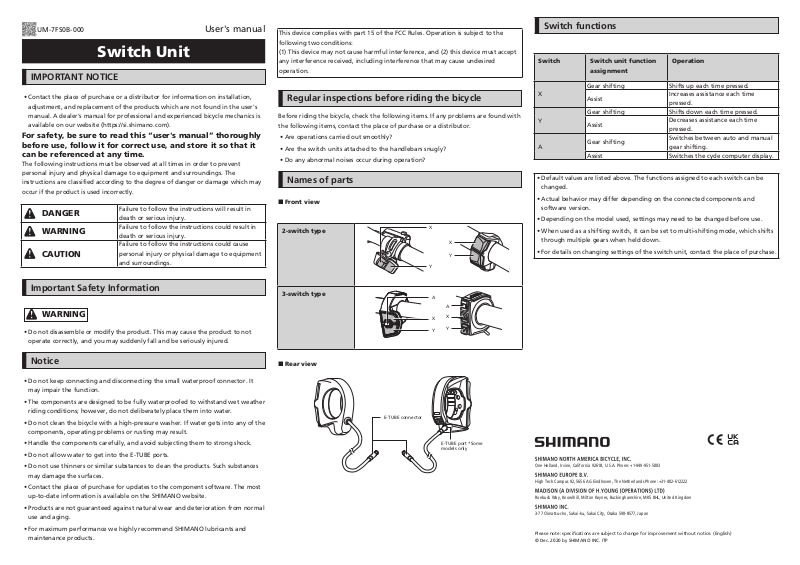

User's manual
Switch Unit
IMPORTANT NOTICE
•Contact the place of purchase or a distributor for information on installation,
adjustment, and replacement of the products which are not found in the user's
manual. A dealer's manual for professional and experienced bicycle mechanics is
available on our website (https://si.shimano.com).
For safety, be sure to read this “user's manual” thoroughly
before use, follow it for correct use, and store it so that it
can be referenced at any time.
The following instructions must be observed at all times in order to prevent
personal injury and physical damage to equipment and surroundings. The
instructions are classified according to the degree of danger or damage which may
occur if the product is used incorrectly.
DANGER
WARNING
CAUTION
Failure to follow the instructions will result in
death or serious injury.
Failure to follow the instructions could result in
death or serious injury.
Failure to follow the instructions could cause
personal injury or physical damage to equipment
and surroundings.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Regular inspections before riding the bicycle
Before riding the bicycle, check the following items. If any problems are found with
the following items, contact the place of purchase or a distributor.
•Are operations carried out smoothly?
•Are the switch units attached to the handlebars snugly?
•Do any abnormal noises occur during operation?
Names of parts
Front view
2-switch type
X
Y
Y
Switch functions
Switch Switch unit function
assignment
Gear shifting Shifts up each time pressed.
X
Y
A
•Default values are listed above. The functions assigned to each switch can be
changed.
•Actual behavior may differ depending on the connected components and
software version.
•Depending on the model used, settings may need to be changed before use.
•When used as a shifting switch, it can be set to multi-shifting mode, which shifts
through multiple gears when held down.
•For details on changing settings of the switch unit, contact the place of purchase.
Assist
Gear shifting Shifts down each time pressed.
Assist
Gear shifting
Assist Switches the cycle computer display.
Operation
Increases assistance each time
pressed.
Decreases assistance each time
pressed.
Switches between auto and manual
gear shifting.
Important Safety Information
WARNING
•Do not disassemble or modify the product. This may cause the product to not
operate correctly, and you may suddenly fall and be seriously injured.
Notice
•Do not keep connecting and disconnecting the small waterproof connector. It
may impair the function.
•The components are designed to be fully waterproofed to withstand wet weather
riding conditions; however, do not deliberately place them into water.
•Do not clean the bicycle with a high-pressure washer. If water gets into any of the
components, operating problems or rusting may result.
•Handle the components carefully, and avoid subjecting them to strong shock.
•Do not allow water to get into the E-TUBE ports.
•Do not use thinners or similar substances to clean the products. Such substances
may damage the surfaces.
•Contact the place of purchase for updates to the component software. The most
up-to-date information is available on the SHIMANO website.
•Products are not guaranteed against natural wear and deterioration from normal
use and aging.
•For maximum performance we highly recommend SHIMANO lubricants and
maintenance products.
3-switch type
Rear view
E-TUBE connector
A
A
X
X
Y
Y
E-TUBE port *Some
models only
Please note: specifications are subject to change for improvement without notice. (English)
© Dec. 2020 by SHIMANO INC. ITP
