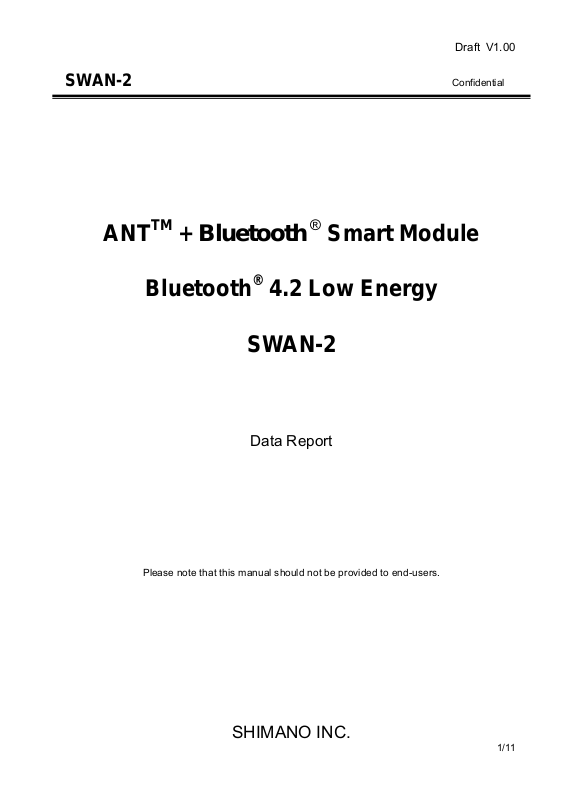

SHIMANO SWAN2 Users Manual

Draft V1.00

Confidential

SWAN-2

TM

ANT

+ Bluetooth ® Smart Module

Bluetooth® 4.2 Low Energy

SWAN-2

Data Report

Please note that this manual should not be provided to end-users.

SHIMANO INC.

1/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AG-A140402 (1/6)

Scope
This specification (“Specification”) applies to the hybrid IC “SWAN-2”, a ANT
Low Energy module (“Product”). .

1. Type: SWAN-2

2. Function:
Radio frequency module. ANT

3. Application: Health & Fitness Equipment, Sensor, Cycle computer

4. Note:

a. Regulatory information:

Compliance with each radio law and/or regulation in below listed countries has been
confirmed under the conditions follows:

- Company name of Manufacturer: SHIMANO INC.

- Equipment name/ Model name: Wireless Module / SWAN-2

- Manufacturing date: traceable from “lot number” shown on device

- Country of origin: JAPAN

- Countries: Canada, Japan, U.S.A., EU countries regulated under R&TTE directive,

Andorra, Brazil, Chile, Costa Rica, Panama, Russia, South Korea (only for RF
scheme), Taiwan and Venezuela,

-
To maintain the compliance, please install SWAN-2 into your final product within the
scope of the specification and regulation of each country.

 Canada: Regulatory information

a) SWAN-2 is certified as type of the portable device with Industry Canada Rules.

To maintain compliance with RF Exposure requirement, please use within specification of this
product.

- IC: 8117A-SWAN2

Ce produit est certifié comme type de l'appareil portable avec Industrie Règles de Canada.
Pour maintenir l'acquiescement avec exigence Exposition de RF, veuillez utiliser dans
spécification de ce produit.

- IC: 8117A-SWAN2

b) This device complies with Industry Canada license-exempt RSS standards.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.

L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit
pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du
dispositif.

TM

+Bluetooth

Control name
General Items

TM

+ Bluetooth

®

standard Ver 4.2 Low Energy conformity

®

4.2

SHIMANO INC.

2/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AG-A140402 (2/6)

c) Please notify certified ID by either one of the following method on your product.

-Contains Transmitter module IC : 8117A-SWAN2

-Contains IC : 8117A-SWAN2

pecifiez ID certifiée dans votre produit par une de méthode suivante.

-Contains Transmitter module IC : 8117A-SWAN2

-Contains IC : 8117A-SWAN2

 Japan: Regulatory Information

a) SWAN-2 is approved with the specific antenna on this module.

b) Please ensure that the sentence below is clearly stated on your product or product manual.

- This product has a radio system which was approved as a radio station in a low power data

communication system based on the Radio Law and the Telecommunication Business Law.
Name of the radio system: 001-A06159

 U.S.A.: Regulatory Information

a) SWAN-2 is certified as type of the portable device with FCC Rules.

To maintain compliance with RF Exposure requirement, please use within specification of this
product.

- FCC ID: WY7-SWAN2

b) This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

c) Please ensure that one of the following is clearly stated on your product.

-Contains Transmitter Module FCC ID: WY7-SWAN2

-Contains FCC ID: WY7-SWAN2

d) CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance could void the use’s authority to operate the equipment.

e) The antenna used for this transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

Control name
General Items

SHIMANO INC.

3/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AG-A140402 (3/6)

 EU: Regulatory information
a) Hereby, SHIMANO INC., declares that this SWAN-2 is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

Българин[Bulgarian] С настоящето [SHIMANO INC.] декларира, че [SWAN-2]

отговаря на съществените изисквания и другите приложими
изисквания на Директива 1999/5/ЕС.

Česky [Czech] [SHIMANO INC.] tímto prohlašuje, že tento [SWAN-2] je ve shodě se

základními požadavky a dalšími příslušnými ustanoveními směrnice
1999/5/ES.

Dansk [Danish] Undertegnede [SHIMANO INC.] erklærer herved, at følgende udstyr

[SWAN-2] overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.

Deutsch [German] Hiermit erklärt [SHIMANO INC.], dass sich das Gerät [SWAN-2] in

Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.

Eesti [Estonian] Käesolevaga kinnitab [SHIMANO INC.] seadme [SWAN-2] vastavust

direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.

Control name
General Items

Español [Spanish] Por medio de la presente [SHIMANO INC.] declara que el [SWAN-2]

cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [SHIMANO INC.] ∆ΗΛΩΝΕΙ ΟΤΙ [SWAN-2]

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.

Français [French] Par la présente [SHIMANO INC.] déclare que l'appareil [SWAN-2]

est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.

Italiano [Italian] Con la presente [SHIMANO INC.] dichiara che questo [SWAN-2] è

conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.

Latviski [Latvian] Ar šo [SHIMANO INC.] deklarē, ka [SWAN-2] atbilst Direktīvas

1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.

Lietuvių [Lithuanian] Šiuo [SHIMANO INC.] deklaruoja, kad šis [SWAN-2] atitinka

esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

SHIMANO INC.

4/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AG-A140402 (4/6)

Nederlands [Dutch] Hierbij verklaart [SHIMANO INC.] dat het toestel [SWAN-2] in

overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.

Malti [Maltese] Hawnhekk, [SHIMANO INC.], jiddikjara li dan [SWAN-2] jikkonforma

mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm
fid-Dirrettiva 1999/5/EC.

Magyar [Hungarian] Alulírott, [SHIMANO INC.] nyilatkozom, hogy a [SWAN-2] megfelel a

vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.

Polski [Polish] Niniejszym [SHIMANO INC.] oświadcza, że [SWAN-2] jest zgodny z

zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.

Português [Portuguese] [SHIMANO INC.] declara que este [SWAN-2] está conforme com os

requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Român [Romanian] Prin prezenta, [SHIMANO INC.], declară că aparatul [SWAN-2] este

în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente
ale Directivei 1999/5/CE.

Slovensko [Slovenian] [SHIMANO INC.] izjavlja, da je ta [SWAN-2] v skladu z bistvenimi

zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.

Control name
General Items

Slovensky [Slovak] [SHIMANO INC.] týmto vyhlasuje, že [SWAN-2] spĺňa základné

požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

Suomi [Finnish] [SHIMANO INC.] vakuuttaa täten että [SWAN-2] tyyppinen laite on

direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.

Svenska [Swedish] Härmed intygar [SHIMANO INC.] att denna [SWAN-2] står I

överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.

SHIMANO INC.

5/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AG-A140402 (5/6)

 Brazil: Regulatory information

a) SWAN-2 is certified under below certification information:

- ANATEL approval number: HHHH-AA-FFFF(TBD)

*ID barcode in accordance with UCC/EAN-128 and ANATEL approval Number shown in above label format will be replaced after

assignment accordingly.

b) This device works in a secondary level, this means that this kind of device doesn´t have harmful

protection against device of the same type, and they can´t interfered with first class equipments.

Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.

c) Anatel information:

This product is approved by ANATEL, in accordance with the procedures regulated by
Resolution 242/2000, and meets the applicable technical requirements.
For more information, please visit the ANATEL: http://www.anatel.gov.br

Informações Anatel:
Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados
pela Resolução 242/2000, e atende aos requisitos técnicos aplicados.
Para maiores informações, consulte o site da ANATEL: http://www.anatel.gov.br

 South Korea: Regulatory information

a) SWAN-2 is certified under below certification information:

- Company name of Applicant: SHIMANO INC.

- Conformity assessment number: MSIP-CRM-WY7-XXXXXXXXXXXXXX(TBD)

Control name
General Items

b) This radio equipment has the possibility of radio interference.

해당 무선 설비는 운용 중 전파 혼신 가능성이 있음

c) As this radio equipment has the possibility of radio interference, this equipment cannot be used

for any services related to human life safety.

.

해당 무선설비는 운용 중 전파혼신 가능성이 있으므로, 인명 안전과 관련된 서비스는

할 수 없습니다

.

SHIMANO INC.

6/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AG-A140402 (6/6)

 Taiwan: Regulatory information

a) SWAN-2 is certified under below certification information:

- Company name of Applicant: SHIMANO INC.

- NCC certification ID: CCXXxxYYyyyZzW(TBD)

b) Any changes or modifications are not allowed. The product is subject to not cause harmful

interference to radio communications and air flight safety. If this equipment does cause
interference, which can be determined stop shipping till the product is improved.
This device may not cause harmful interference, and this device must accept any interference
received, including interference that may cause undesired operation.

Control name
General Items

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射
頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

c) Caution: SWAN-2 is certified as full modular approval. You can install SWAN-2 into multifunction

device only. For other type of devices, host approval is required. Details and/or definition of
multifunction device should be confirmed authority.

d) Note:

1. The NCC ID should be showed on product casing.(*)

2. If a system contains NCC approved module, please show "This device contains NCC ID:

1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤

2. 系統廠商應於平台上標示「本產品內含射頻模組: XXXyyyLPDzzzz-x(TBD)」字樣

(*) SWAN-2 is too small to affix NCC ID on product case, allowance of alternatives method will be asked to and

obtained from NCC.

SHIMANO INC.

7/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AM-A140402 (1/1)

Control name
Absolute maximum ratings

Absolute maximum ratings

Symbol Parameter Min. Max. Units

VCC_NRF -0.3 +3.6 V

GND 0 V

VIO -0.3 VCC_NRF+ 0.3 V

Storage temperature -40 +85 Deg-C

MSL Moisture Sensitivity Level 2

ESD HBM Human Body Model 1 kV

ESD CDM Charged Device Model 100 V

Endurance Flash Memory Endurance 20000

Retention Flash Memory Retention 10 years At 40 deg-C

Number of times an

address can be written

between erase cycles

2 times

write/erase

cycles

SHIMANO INC.

8/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-AE-A140402 (1/1)

Control name
Electrical characteristics

Electrical characteristics
Recommendation operating range

Symbol Parameter Min. Typ. Max. Units

VCC_NRF

VCC_NRF

tR_VCC_NRF Supply rise time (0V to 1.8V)

TA Operation temperature -25 25 75

Supply voltage, normal mode

Supply voltage, normal mode,

DC/DC converter output voltage 1.9 V

1.8 3.0 3.6 V

2.1 3.0 3.6 V

100 ms

Deg-C

The on-chip power-on reset circuitry may not function properly for rise times outside the specified

interval.

RF Specifications

Symbol Description Min. Typ. Max. Units

Fop Operating frequencies 2402 2480 MHz

PLLres PLL programming resolution 1 MHz

Df Frequency deviation +/-225 +/-250 +/-275 kHz

PRF Maximum output power

PRFC RF power control range 20 24

PRFCR RF power accuracy

PWHISP RF power whisper mode

PBW 20 dB bandwidth for modulated carrier

PRF1 1st Adjacent Channel Transmit Power 1 MHz -20 dBc

PRF2 2nd Adjacent Channel Transmit Power 2 MHz -45 dBc

PRXMAX Maximum received signal strength at < 0.1% PER 0 dBm

PSENS IT Receiver sensitivity (0.1% BER) Ideal transmitter -93 dBm

PSENS DT Receiver sensitivity (0.1% BER) dirty transmitter -91 dBm

4

-30

950 1100 kHz

+/-4 dB

dBm

dB

dBm

SHIMANO INC.

9/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-BA-A140402 (1/2)

Control name
Pin Layout

Pin Descriptions

Pin Pin name Pin

function

1 GND Ground Ground (0 V)

P0.27

2

3

4 P0.21 Digital I/O General purpose I/O pin

5 VCC_NRF Power Power supply

6 AVDD Power Analog Power supply

7 P0.23 Digital I/O General purpose I/O pin

8 P0.17 Digital I/O General purpose I/O pin

9 GND Ground Ground (0 V)

10 DEC2 Power Power supply for low voltage mode

11 P0.19 Digital I/O General purpose I/O pin

12 GND Ground Ground (0 V)

13 OUT_ANT

14 OUT_MOD RF In/Out

15 GND Ground Ground (0 V)

16 SWDIO Digital I/O

17 SWDCLK Digital input HW debug and flash programming I/O

18 P0.25 Digital I/O General purpose I/O pin

19

20 GND Ground Ground (0 V)

21

22

AIN1

XL1

P0.26
AIN0

XL2

P0.03

AIN4

P0.01
AIN2

P0.02
AIN3

Digital I/O
Analog input

Analog input

Digital I/O

Analog input
Analog
output

Antenna

In/Out

Digital I/O

Analog input

Digital I/O
Analog input

Digital I/O
Analog input

Description

General purpose I/O pin

ADC input 1
Crystal connection for 32.768kHz crystal oscillator or
external 32.768kHz crystal reference

General purpose I/O pin

ADC input 0

Crystal connection for 32.768kHz crystal oscillator

Internal antenna. It should be connected to Pin 14 OUT_MOD for

normal operation.

RF I/O pin. It should be connected to Pin 13 OUT_ANT for normal
operation.

System reset (active low). Also HW debug and flash programming
I/O

General purpose I/O pin

ADC input 4

General purpose I/O pin

ADC input 2

General purpose I/O pin

ADC input 3

SHIMANO INC.

10/11

Draft V1.00

Confidential

SWAN-2

Control No.
HD-BA-A140402 (2/2)

Control name
Pin Layout

Pin Pin name Pin

function

23

24 DCC Power DC/DC output

25

26

27

28 GND Ground Ground (0 V)

P0.00
AREF0

P0.05

AIN6

P0.06
AIN7
AREF1

P0.04

AIN5

Digital I/O
Analog input

Digital I/O

Analog input

Digital I/O
Analog input
Analog input

Digital I/O

Analog input

Description

General purpose I/O pin
ADC Reference voltage

General purpose I/O pin

ADC input 6

General purpose I/O pin

ADC input 7

ADC Reference voltage

General purpose I/O pin

ADC input 5

SHIMANO INC.

11/11
