< Shift switch (left lever) >
< Shift switch (right lever) >
UM-0175B-000
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222
Roebuck Way, Knowlhill, Milton Keynes, Buckinghamshire, MK5 8HL, United Kingdom
3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan

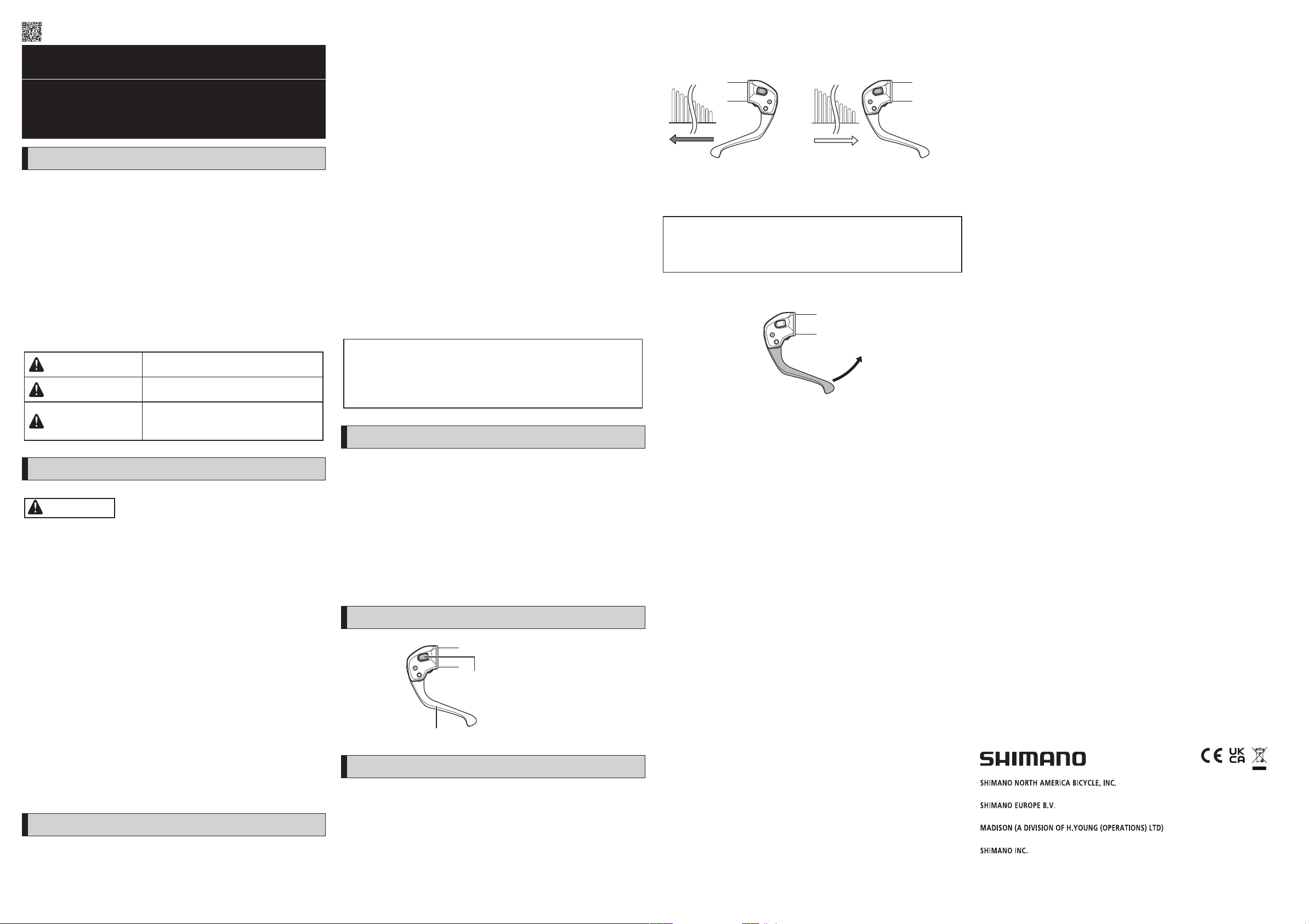

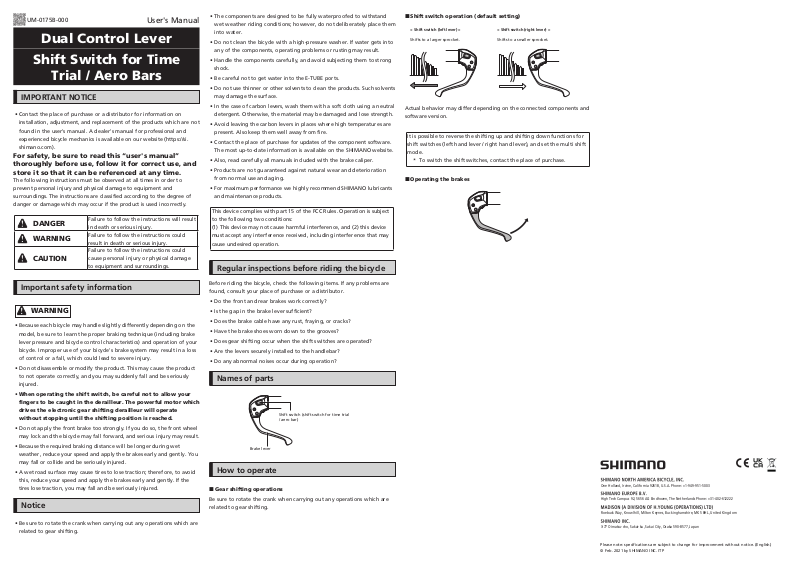

User's Manual
Dual Control Lever
Shift Switch for Time
Trial / Aero Bars
IMPORTANT NOTICE
•Contact the place of purchase or a distributor for information on
installation, adjustment, and replacement of the products which are not
found in the user's manual. A dealer's manual for professional and
experienced bicycle mechanics is available on our website (https://si.
shimano.com).
For safety, be sure to read this “user's manual”
thoroughly before use, follow it for correct use, and
store it so that it can be referenced at any time.
The following instructions must be observed at all times in order to
prevent personal injury and physical damage to equipment and
surroundings. The instructions are classified according to the degree of
danger or damage which may occur if the product is used incorrectly.
DANGER
WARNING
CAUTION
Failure to follow the instructions will result
in death or serious injury.
Failure to follow the instructions could
result in death or serious injury.
Failure to follow the instructions could
cause personal injury or physical damage
to equipment and surroundings.
•The components are designed to be fully waterproofed to withstand
wet weather riding conditions; however, do not deliberately place them
into water.
•Do not clean the bicycle with a high-pressure washer. If water gets into
any of the components, operating problems or rusting may result.
•Handle the components carefully, and avoid subjecting them to strong
shock.
•Be careful not to get water into the E-TUBE ports.
•Do not use thinner or other solvents to clean the products. Such solvents
may damage the surface.
•In the case of carbon levers, wash them with a soft cloth using a neutral
detergent. Otherwise, the material may be damaged and lose strength.
•Avoid leaving the carbon levers in places where high temperatures are
present. Also keep them well away from fire.
•Contact the place of purchase for updates of the component software.
The most up-to-date information is available on the SHIMANO website.
•Also, read carefully all manuals included with the brake caliper.
•Products are not guaranteed against natural wear and deterioration
from normal use and aging.
•For maximum performance we highly recommend SHIMANO lubricants
and maintenance products.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
Regular inspections before riding the bicycle
Shift switch operation (default setting)
Shifts to a larger sprocket.
Actual behavior may differ depending on the connected components and
software version.
It is possible to reverse the shifting up and shifting down functions for
shift switches (left hand lever / right hand lever), and set the multi shift
mode.
* To switch the shift switches, contact the place of purchase.
Operating the brakes
Shifts to a smaller sprocket.
Important safety information
WARNING
•Because each bicycle may handle slightly differently depending on the
model, be sure to learn the proper braking technique (including brake
lever pressure and bicycle control characteristics) and operation of your
bicycle. Improper use of your bicycle's brake system may result in a loss
of control or a fall, which could lead to severe injury.
•Do not disassemble or modify the product. This may cause the product
to not operate correctly, and you may suddenly fall and be seriously
injured.
•When operating the shift switch, be careful not to allow your
fingers to be caught in the derailleur. The powerful motor which
drives the electronic gear shifting derailleur will operate
without stopping until the shifting position is reached.
•Do not apply the front brake too strongly. If you do so, the front wheel
may lock and the bicycle may fall forward, and serious injury may result.
•Because the required braking distance will be longer during wet
weather, reduce your speed and apply the brakes early and gently. You
may fall or collide and be seriously injured.
•A wet road surface may cause tires to lose traction; therefore, to avoid
this, reduce your speed and apply the brakes early and gently. If the
tires lose traction, you may fall and be seriously injured.
Notice
Before riding the bicycle, check the following items. If any problems are
found, consult your place of purchase or a distributor.
•Do the front and rear brakes work correctly?
•Is the gap in the brake lever sufficient?
•Does the brake cable have any rust, fraying, or cracks?
•Have the brake shoes worn down to the grooves?
•Does gear shifting occur when the shift switches are operated?
•Are the levers securely installed to the handlebar?
•Do any abnormal noises occur during operation?
Names of parts
Shift switch (shift switch for time trial
/ aero bar)
Brake lever
How to operate
Gear shifting operations
Be sure to rotate the crank when carrying out any operations which are
related to gear shifting.
•Be sure to rotate the crank when carrying out any operations which are
related to gear shifting.
Please note: specifications are subject to change for improvement without notice. (English)
© Feb. 2021 by SHIMANO INC. ITP
