Left hand lever (front side) Right hand lever (front side)
UM-6RC0A-003
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222
3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan

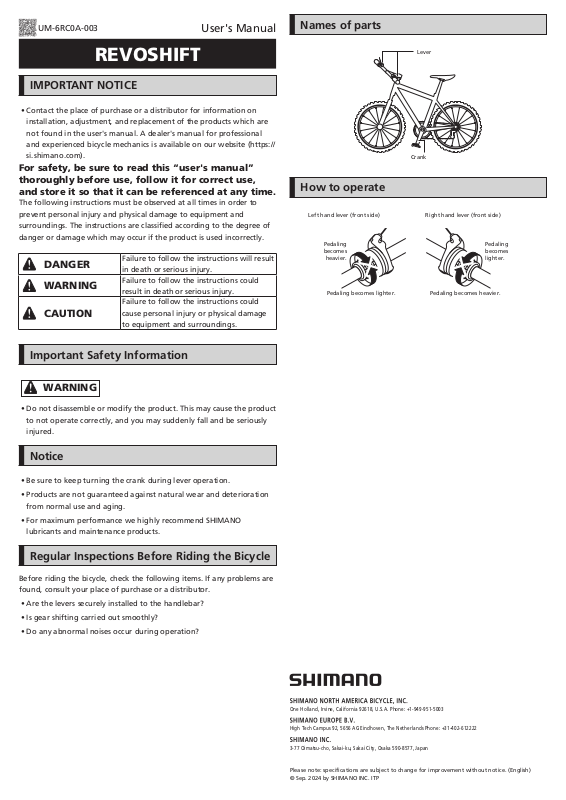

User's Manual
Names of parts
REVOSHIFT
IMPORTANT NOTICE
•Contact the place of purchase or a distributor for information on
installation, adjustment, and replacement of the products which are
not found in the user's manual. A dealer's manual for professional
and experienced bicycle mechanics is available on our website (https://
si.shimano.com).
For safety, be sure to read this “user's manual”
thoroughly before use, follow it for correct use,
and store it so that it can be referenced at any time.
The following instructions must be observed at all times in order to
prevent personal injury and physical damage to equipment and
surroundings. The instructions are classified according to the degree of
danger or damage which may occur if the product is used incorrectly.
DANGER
WARNING
CAUTION
Failure to follow the instructions will result
in death or serious injury.
Failure to follow the instructions could
result in death or serious injury.
Failure to follow the instructions could
cause personal injury or physical damage
to equipment and surroundings.
How to operate
Pedaling
becomes
heavier.
Lever
Crank
Pedaling
becomes
lighter.
Pedaling becomes heavier.Pedaling becomes lighter.
Important Safety Information
WARNING
•Do not disassemble or modify the product. This may cause the product
to not operate correctly, and you may suddenly fall and be seriously
injured.
Notice
•Be sure to keep turning the crank during lever operation.
•Products are not guaranteed against natural wear and deterioration
from normal use and aging.
•For maximum performance we highly recommend SHIMANO
lubricants and maintenance products.
Regular Inspections Before Riding the Bicycle
Before riding the bicycle, check the following items. If any problems are
found, consult your place of purchase or a distributor.
•Are the levers securely installed to the handlebar?
•Is gear shifting carried out smoothly?
•Do any abnormal noises occur during operation?
Please note: specifications are subject to change for improvement without notice. (English)
© Sep. 2024 by SHIMANO INC. ITP
