UM-0FC0A-002
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222
3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan
User's manual
Seat Post Lever
IMPORTANT NOTICE
•Contact the place of purchase or a distributor for information on installation,
adjustment, and replacement of the products which are not found in the user's
manual. A dealer's manual for professional and experienced bicycle mechanics is
available on our website (https://si.shimano.com).
For safety, be sure to read this “user's manual” thoroughly
before use, follow it for correct use, and store it so that it
can be referenced at any time.
The following instructions must be observed at all times in order to prevent
personal injury and physical damage to equipment and surroundings. The
instructions are classified according to the degree of danger or damage which may
occur if the product is used incorrectly.
Regular Inspections Before Riding the Bicycle
Before riding the bicycle, check the following items. If any problems are found,
consult your place of purchase or a distributor.
•Can the seat post height be adjusted smoothly?
•Is the lever securely attached to the brake band?
•Do any abnormal noises occur during operation?

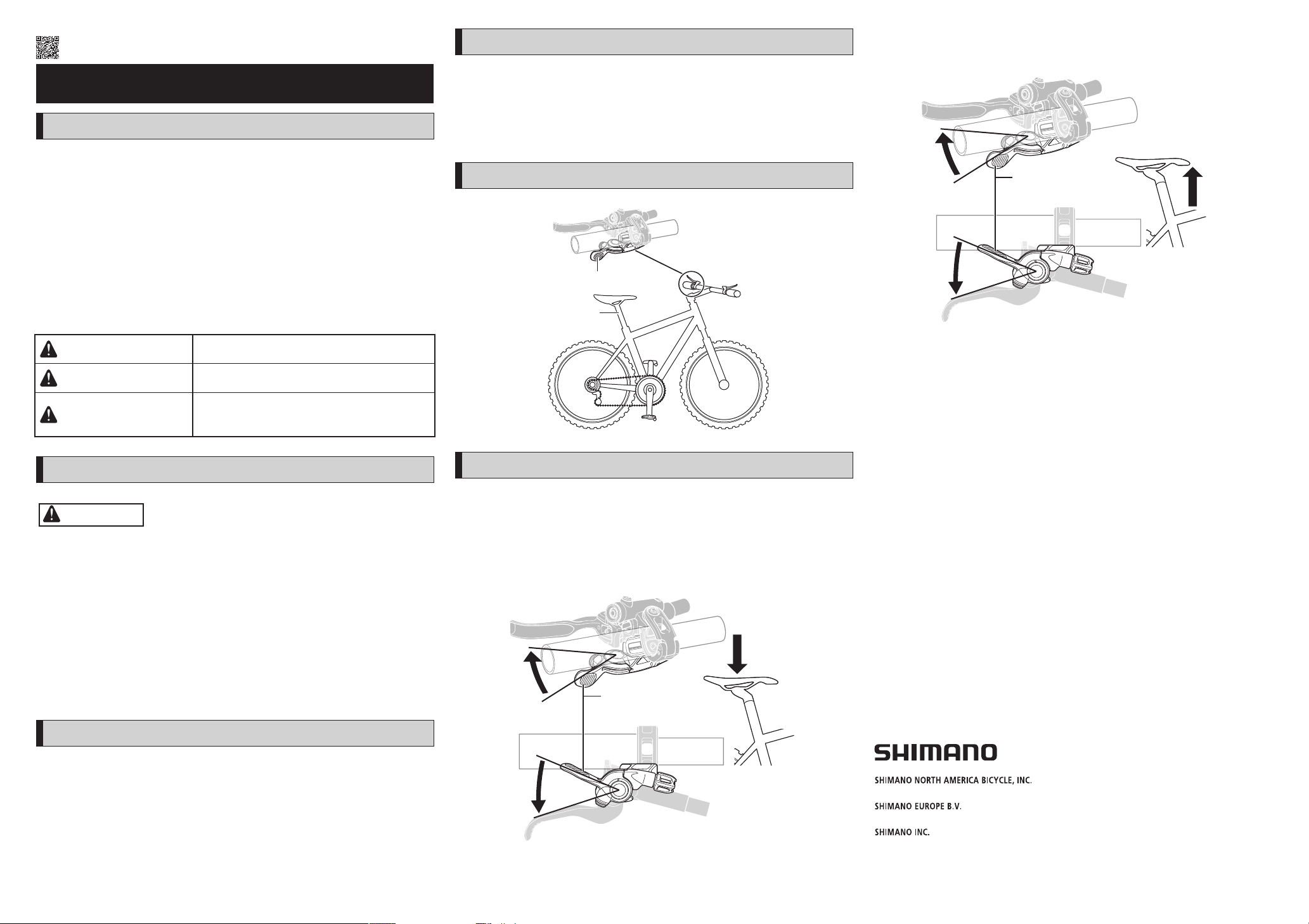

Names of parts
Lever
Seat post
2. Remove the load from the seat.
3. Release the lever once the seat is at your desired height.
[2][1]
Initial lever position
[1]
DANGER
WARNING
CAUTION
Failure to follow the instructions will result in
death or serious injury.
Failure to follow the instructions could result in
death or serious injury.
Failure to follow the instructions could cause
personal injury or physical damage to equipment
and surroundings.
Important Safety Information
WARNING
•Do not disassemble or modify the product. This may cause the product to not
operate correctly, and you may suddenly fall and be seriously injured.
•Refer to this information in conjunction with your seat post manual, and be sure
that you understand the seat height adjustment mechanism. Careless operation
of the lever may make the seat suddenly descend, causing you to fall and be
seriously injured.
•Make sure you are fully familiar with the adjustment mechanism before
attempting to adjust the seat height while riding. Otherwise, your feet may come
off the pedals, causing you to fall and be seriously injured. At first, you should
ride slowly on safe, level ground and thoroughly practice adjusting the seat
height until you can do it safely, without your feet coming off the pedals.
How to operate
Seat post height adjustment method
To lower the seat
1. Operate the lever in the direction indicated with the arrow.
2. Apply a load to the seat, and push the seat downward.
3. Release the lever once the seat is at your desired height.
[2]
[1]
Initial lever position
Notice
•Products are not guaranteed against natural wear and deterioration from normal
use and aging.
•Before riding the bicycle, confirm that the seat height will not impair the
operation of the bicycle (even if the seat height has been adjusted within the
adjustment range).
•For maximum performance we highly recommend Shimano lubricants and
maintenance products.
[1]
To raise the seat
1. Operate the lever in the direction indicated with the arrow.
Please note: specifications are subject to change for improvement without notice. (English)
© Aug. 2024 by SHIMANO INC. ITP
