Shimano EW-SW310 User's Manual

Download
Page 1
(English)
User's Manual
UM-7K60A-001
Satellite System ON/OFF
Switch
https://si.shimano.com
Page 2
Contents
IMPORTANT NOTICE........................................................................................ 3
Important safety information........................................................................ 4
SHIMANO STEPS battery management systems and compatibility............ 5
Notice............................................................................................................... 6
Regular inspections before riding the bicycle .............................................. 7
Booklet structure ............................................................................................ 8
Names and functions of parts........................................................................ 9
Troubleshooting............................................................................................ 12
2
Page 3
IMPORTANT NOTICE
IMPORTANT NOTICE
Contact the place of purchase or a distributor for information on installation, adjustment, and replacement of
the products which are not found in the user's manual. A dealer's manual for professional and experienced
bicycle mechanics is available on our website ( https://si.shimano.com ).
For safety, be sure to read this user's manual thoroughly before use, follow it for correct use, and store it so that
it can be referenced at any time.
The following instructions must be observed at all times in order to prevent personal injury and physical damage
to equipment and surroundings. The instructions are classified according to the degree of danger or damage
which may occur if the product is used incorrectly.
DANGER
WARNING
CAUTION
Failure to follow the instructions will result in death or serious injury.
Failure to follow the instructions could result in death or serious injury.
Failure to follow the instructions could cause personal injury or physical damage to equipment and surroundings.
3
Page 4
Important safety information
Important safety information
Do not disassemble or modify the product. This may cause the product to not operate correctly, and
you may suddenly fall and be seriously injured.
Do not pay excessive attention to the display while riding. Doing so may result in an accident.
Never modify the system. Doing so may cause a system error.
Use the product under the supervision of someone responsible for safety, and only as instructed. Do not
allow anyone (including children) with reduced physical, sensual, or mental capacity, or those without
experience or knowledge, to use the product.
Do not allow children to play near the product.
4
Page 5
Location of terminals
Battery (terminal) Battery mount (terminal)
SHIMANO STEPS battery management systems and compatibility
SHIMANO STEPS battery management systems and compatibility
There are two generations of the SHIMANO STEPS battery management system: first generation and second
generation (Gen.2).
This manual only describes products compatible with Gen.2.
With some exceptions, first-generation and Gen.2 products of SHIMANO STEPS components are not compatible
with each other. For details, refer to the compatibility information on the SHIMANO product website (
https://productinfo.shimano.com/#/com ).
The Gen.2 battery and compatible battery mount are marked “Gen.2” as indicated in the figure.
5
Page 6
Notice
Notice
Do not keep connecting and disconnecting the small waterproof connector. Doing so may impair the
waterproofing.
The components are designed to be fully waterproofed to withstand wet weather riding conditions; however,
do not deliberately place them into water.
Do not clean the bicycle in a high-pressure wash. If water gets into any of the components, operating
problems or rusting may result.
Handle the components carefully, and avoid subjecting them to strong shock.
Be sure to attach dummy plugs to any unused E-TUBE ports.
Do not allow water to get into the E-TUBE ports.
Do not use thinner or other solvents to clean the products. Such solvents may damage the surface.
Products are not guaranteed against natural wear and deterioration from normal use and aging.
For connectable SHIMANO STEPS components and shifting units, check the compatibility information on the
SHIMANO product website ( https://productinfo.shimano.com/#/com ).
For maximum performance we highly recommend SHIMANO lubricants and maintenance products.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This symbol on your product, literature, or packaging reminds you that this product must be taken to separate collection at the end of its working life. Do not dispose of this product as unsorted municipal waste but instead take it for recycling. By ensuring the product is disposed correctly, you will help to prevent potential negative consequences for the environment and human health. For info on your nearest recycling point, check with your local waste authority.
6
Page 7
Regular inspections before riding the bicycle
Regular inspections before riding the bicycle
Before riding the bicycle, check the following items. If any problems are found, consult your place of purchase or
a distributor.
Is there any looseness or damage in the component parts?
Are the components securely installed to the frame/handlebar/stem, etc.?
Is there sufficient charge remaining in the battery?
7
Page 8
Booklet structure
Booklet structure
SHIMANO STEPS user's manuals are split among several booklets, as described below.
Be sure to read these user's manuals thoroughly before use, and follow them for correct use. Store the user's
manuals so that they can be referenced at any time.
The latest user's manuals are available on our website ( https://si.shimano.com ).
Name Details
SHIMANO STEPS User's Manual This is the basic user's manual for SHIMANO STEPS. It contains the
following content:
SHIMANO STEPS quick guide
Basic operations when riding
How to operate assist bicycles that use flat handlebars, such as city, trekking, or MTB type bicycles
SHIMANO STEPS User's Manual for Drop Handlebar Bicycles (separate booklet)
SHIMANO STEPS Special Battery and Parts User's Manual (Gen.2)
SHIMANO STEPS Cycle Computer User's Manual ( clamp band type / bracket installation type / switch
unit integrated type )
Switch Unit User's Manual ( with LED indicator function / without LED indicator
function )
Satellite System ON/OFF Switch User's Manual It describes the handling and operations of the satellite system ON/OFF
This booklet describes how to operate assist bicycles that use a drop handlebar and are controlled using dual control levers. This should be read along with the SHIMANO STEPS User's Manual.
It contains the following content:
How to charge and handle the SHIMANO STEPS special battery
How to attach and remove the SHIMANO STEPS special battery to the bicycle
How to read the battery LEDs when charging or during an error
It contains the following content:
Method for configuring settings via the main body buttons and switch unit
Wireless communication method (supported models only)
This is the assist switch and shift switch user's manual. It describes switch unit handling and operations.
switch.
8
Page 9

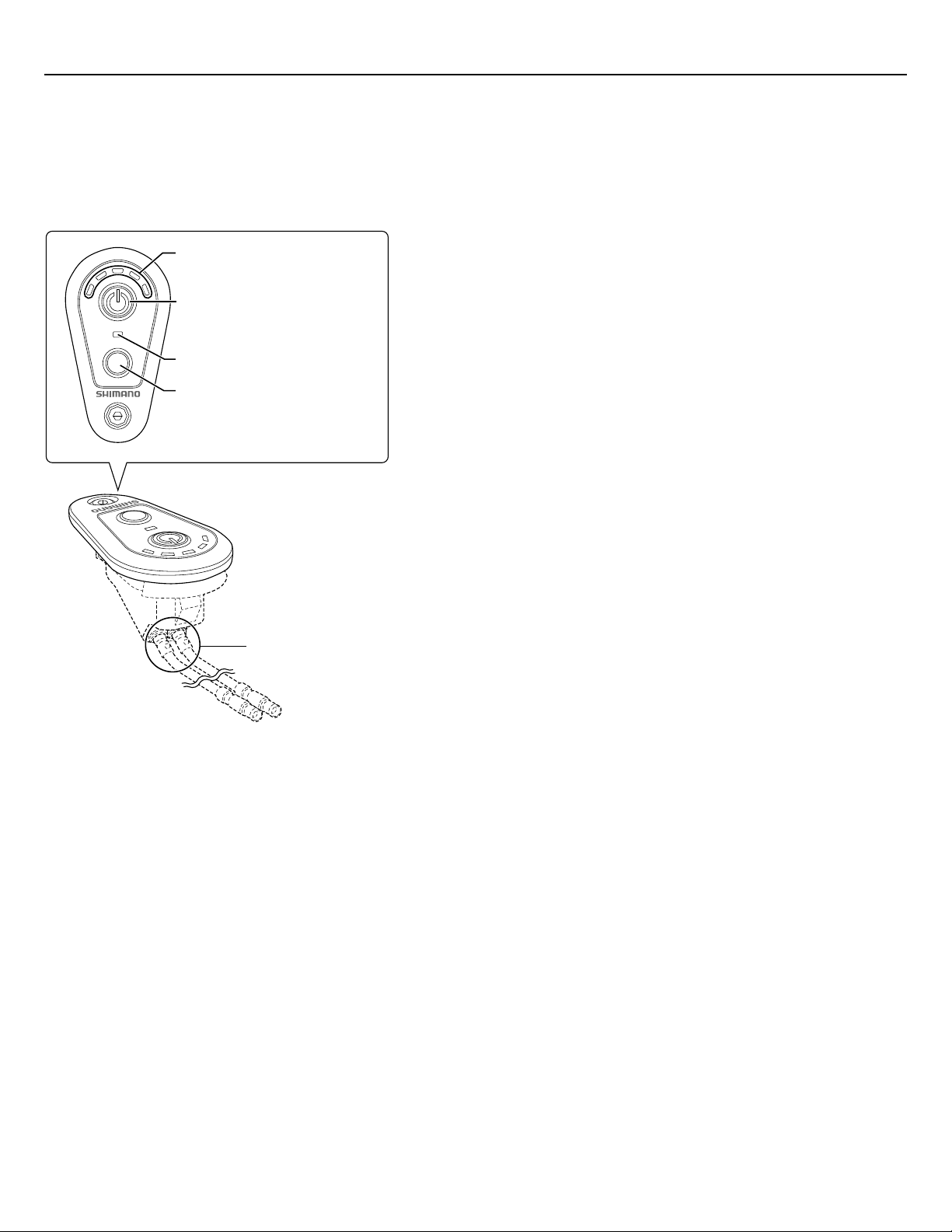

Power button
E-TUBE port
A button
Turns the main power of the bicycle ON/OFF.
Changes assist mode (default setting*).
LED1
LED2
Names and functions of parts Names and functions of parts
Names and functions of parts
Names and functions of parts
* Different functions can be assigned with E-TUBE PROJECT. For details, refer to the user's manual for E-TUBE
PROJECT.
LED1 display
When you press the power button, LED1 indicates the battery level by the number of lights.
* This battery level display uses zero to indicate a battery level where assistance can no longer be performed.
SHIMANO STEPS provides an amount of battery separate from the assist function for additional equipment such
as lights and anti-lock braking system (ABS). Therefore, the battery level may differ from that which can be
checked with the battery LED.
9
Page 10
Names and functions of parts Names and functions of parts
Display Battery level
All green 100 - 81%
Green x 4 80 - 61%
Green x 3 60 - 41%
Green x 2 40 - 21%
Red x 1 20 - 1%
LED2 display
Assist mode display
The assist mode switches in the order indicated in the table below each time the A button is pressed. The assist
mode returns to OFF when the power is turned OFF.
Refer to the “SHIMANO STEPS User's Manual” for details on the assist mode.
Display State
OFF The assist mode is OFF.
Light blue The assist mode with the lowest level of assistance.
Green
Flashing green
Yellow
The assist mode with an intermediate level of assistance. When two or fewer assist modes are set, this is not displayed.
When switching between multiple assist modes with an intermediate level of assistance, it flashes once then returns to green.
The assist mode with the highest level of assistance. When one assist mode is set, this indicates that assist is ON. Push the A button to turn LED2 OFF and disable the assist mode.
Other displays
Display State
Flashing yellow
* 1
The system has switched to adjustment mode. In this state, gear shifting operations cannot be performed with the switch unit (right).
Blue
* 2
Flashing blue
Flashing red Refer to “Error indication.”
The adjustment mode cannot be canceled with this product. Refer to the following for details on canceling
* 1
* 2
The system has switched to walk assist mode.
Assistance is functioning in the walk assist mode.
the adjustment mode:
10
Page 11
Names and functions of parts Names and functions of parts
SHIMANO STEPS Cycle Computer User's Manual
( clamp band type / bracket installation type / switch unit integrated type )
Rear Derailleur User's Manual
Refer to the “ SHIMANO STEPS User's Manual ” for details on the walk assist mode.
* 2
11
Page 12
Troubleshooting Error/warning indication
Troubleshooting
Error/warning indication
When an error or warning occurs, LED2 flashes red quickly.
Follow one of the procedures below to reset the indication:
Turn the power OFF, then ON again.
Remove the battery from the battery holder and install it again.
If the error persists, contact your place of purchase or a distributor for assistance.
When using a cycle computer, refer to the “SHIMANO STEPS Cycle Computer User's Manual” for information on
the display. For details on error/warning codes, check the latest versions below:
https://si.shimano.com/error
When a problem occurs
The FAQ for SHIMANO STEPS can be accessed with the following:
https://bike.shimano.com/faq/STP0A
12
Page 13
One Holl and, Irvine, California 92 618, U.S.A. Ph one: +1-949-9 51-5003
High Tec h Campus 92, 5656 AG Eindho ven, The Neth erlands Phone : +31-402-6122 22
Roebuck Way, Knowlhil l, Milton Keyn es, Buckingha mshire, MK5 8 HL, United Kin gdom
3-77 Oim atsu-cho, Sak ai-ku, Sakai City, Osaka 59 0-8577, Japan
Please note: specifications are subject to change for improvement without notice. (English) © Oct. 2022 by SHIMANO INC. ITP
