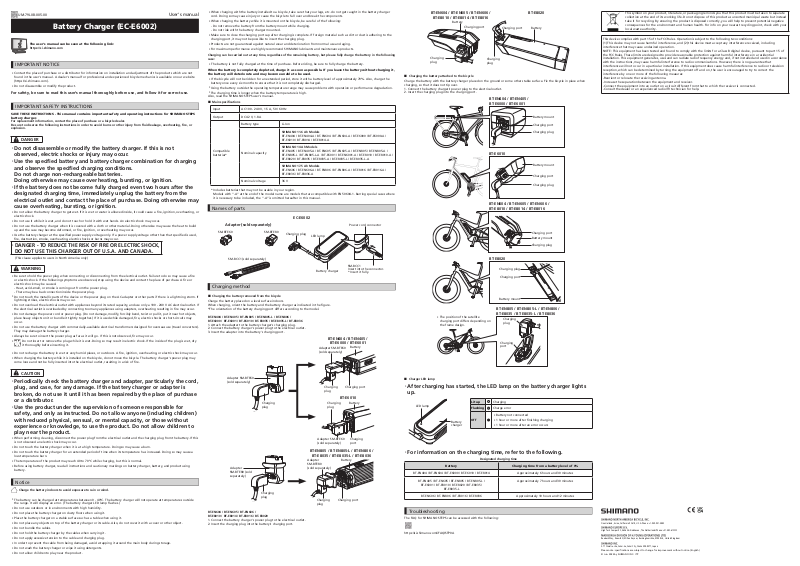

Shimano EC-E6002 User's Manual

One Holland, Irvine, California 92618, U.S.A. Phone: [phone]

High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: [phone]

Roebuck Way, Knowlhill, Milton Keynes, Buckinghamshire, MK5 8HL, United Kingdom

3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan

UM-79L0B-005-00

User's manual

Battery Charger (EC-E6002)

The user's manual can be seen at the following link:

https://si.shimano.com

IMPORTANT NOTICE

•

Contact the place of purchase or a distributor for information on installation and adjustment of the products which are not
found in the user's manual. A dealer's manual for professional and experienced bicycle mechanics is available on our website
(https://si.shimano.com).

•

Do not disassemble or modify the product.

For safety, be sure to read this user's manual thoroughly before use, and follow it for correct use.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for SHIMANO STEPS
battery charger.

For replacement information, contact the place of purchase or a bicycle dealer.
Be sure to observe the following instructions in order to avoid burns or other injury from fluid leakage, overheating, fire, or
explosion.

DANGER

•

When charging with the battery installed to a bicycle, take care that your legs, etc. do not get caught in the battery charger
cord. Doing so may cause injury or cause the bicycle to fall over and break the components.

•

When charging the battery while it is mounted on the bicycle, be careful of the following:

- Do not remove the battery from the battery mount while charging.

- Do not ride with the battery charger mounted.

•

Make sure to close the charging port cap after charging is complete. If foreign material such as dirt or dust is adhering to the
charging port, it may not be possible to insert the charging plug.

•

Products are not guaranteed against natural wear and deterioration from normal use and aging.

•

For maximum performance we highly recommend SHIMANO lubricants and maintenance products.

Charging can be carried out at any time, regardless of the remaining battery, but please fully charge the battery in the following
case:

•

The battery is not fully charged at the time of purchase. Before riding, be sure to fully charge the battery.

When the battery is completely depleted, charge it as soon as possible. If you leave the battery without charging it,
the battery will deteriorate and may become unable to be used.

•

If the bicycle will not be ridden for an extended period, store it with a battery level of approximately 70%. Also, charge the
battery once every six months to ensure that it is not completely discharged.

•

Using the battery outside the operating temperature range may cause problems with operation or performance degradation.

•

The charging time is longer when the battery temperature is high.

Also, read the SHIMANO STEPS user's manual.

 Main specifications

Input AC 100 - 240 V, 1.5 A, 50 / 60 Hz

Output DC 42 V, 1.8 A

Battery type Li-Ion

SHIMANO 11.6 Ah Models

BT-EN404 / BT-EN404-A / BT-EN604 / BT-EN604-A / BT-E6000 / BT-E6000-A /
BT-E6010 / BT-E8014 / BT-E8014-A

BT-EN604 / BT-EN605 / BT-EN606 /

BT-E8020

BT-E8010 / BT-E8014 / BT-E8016

Battery

Charging port

Charging
plug

 Charging the battery attached to the bicycle

Charge the battery with the battery charger placed on the ground or some other stable surface. Fix the bicycle in place when
charging, so that it does not tip over.

1. Connect the battery charger's power plug to the electrical outlet.

2. Insert the charging plug into the charging port.

Charging
plug

Charging port

Battery

BT-EN404 / BT-EN405 /
BT-E6000 / BT-E6001

Battery mount

Charging port

Charging plug

This symbol on your product, literature, or packaging reminds you that this product must be taken to separate
collection at the end of its working life. Do not dispose of this product as unsorted municipal waste but instead
take it for recycling. By ensuring the product is disposed correctly, you will help to prevent potential negative
consequences for the environment and human health. For info on your nearest recycling point, check with your
local waste authority.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

•

Do not disassemble or modify the battery charger. If this is not
observed, electric shocks or injury may occur.

•

Use the specified battery and battery charger combination for charging
and observe the specified charging conditions.
Do not charge non-rechargeable batteries.
Doing otherwise may cause overheating, bursting, or ignition.

•

If the battery does not become fully charged even two hours after the
designated charging time, immediately unplug the battery from the
electrical outlet and contact the place of purchase. Doing otherwise may
cause overheating, bursting, or ignition.

•

Do not allow the battery charger to get wet. If it is wet or water is allowed inside, it could cause a fire, ignition, overheating, or
electric shock.

•

Do not use it while it is wet, and do not touch or hold it with wet hands. An electric shock may occur.

•

Do not use the battery charger when it is covered with a cloth or other material. Doing otherwise may cause the heat to build
up and the case may become deformed, or fire, ignition, or overheating may occur.

•

Use the battery charger at the specified power supply voltage only. If a power supply voltage other than that specified is used,
fire, destruction, smoke, overheating, electric shocks or burns may occur.

•

DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT USE THIS CHARGER OUT OF U.S.A. AND CANADA.

(This clause applies to users in North America only)

SHIMANO 14 Ah Models

Compatible
batteries*

* Includes batteries that may not be usable in your region.

Models with “-A” at the end of the model name are models that are compatible with EN 50604-1. Barring special cases where
it is necessary to be included, the “-A” is omitted hereafter in this manual.

Nominal capacity

Nominal voltage 36 V

BT-EN405 / BT-EN405-A / BT-EN605 / BT-EN605-A / BT-EN805 / BT-EN805-A /
BT-EN805-L / BT-EN805-L-A / BT-E6001 / BT-EN6001-A / BT-E8010 / BT-E8010-A /
BT-E8020 / BT-E8035 / BT-E8035-A / BT-E8035-L / BT-E8035-L-A

SHIMANO 17.5 Ah Models

BT-EN606 / BT-EN606-A / BT-EN806 / BT-EN806-A / BT-E8016 / BT-E8016-A /
BT-E8036 / BT-E8036-A

Names of parts

EC-E6002

Adapter (sold separately)

SM-BTE60

SM-BCC1 (sold separately)

SM-BTE80

Charging plug

LED lamp

Power cord connector

BT-E6010

Battery mount

Charging port

Charging plug

BT-EN604 / BT-EN605 / BT-EN606 /
BT-E8010 / BT-E8014 / BT-E8016

Charging port

Battery mount

Charging plug

BT-E8020

WARNING

•

Be sure to hold the power plug when connecting or disconnecting from the electrical outlet. Failure to do so may cause a fire
or electric shock. If the following symptoms are observed, stop using the device and contact the place of purchase. A fire or
electric shock may be caused.

- Heat, acrid-smell, or smoke is coming out from the power plug.

- There may be a bad connection inside the power plug.

•

Do not touch the metallic parts of the device or the power plug on the AC adapter or other parts if there is a lightning storm. If
lightning strikes, electric shocks may occur.

•

Do not overload the electrical outlet with appliances beyond its rated capacity, and use only a 100 - 240 V AC electrical outlet. If
the electrical outlet is overloaded by connecting too many appliances using adapters, overheating resulting in fire may occur.

•

Do not damage the power cord or power plug. (Do not damage, modify, forcibly bend, twist or pull it, put it near hot objects,
place heavy objects on it or bundle it tightly together.) If it is used while damaged, fire, electric shocks or short-circuits may
occur.

•

Do not use the battery charger with commercially-available electrical transformers designed for overseas use (travel converters).
They may damage the battery charger.

•

Always be sure to insert the power plug as far as it will go. If this is not observed, fire may occur.

•

Do not insert or remove the plug while it is wet. Doing so may result in electric shock. If the inside of the plug is wet, dry
it thoroughly before inserting it.

•

Do not recharge the battery in wet or very humid places, or outdoors. A fire, ignition, overheating, or electric shock may occur.

•

When charging the battery while it is installed on the bicycle, do not move the bicycle. The battery charger's power plug may
come loose and not be fully inserted into the electrical outlet, resulting in a risk of fire.

CAUTION

•

Periodically check the battery charger and adapter, particularly the cord,
plug, and case, for any damage. If the battery charger or adapter is
broken, do not use it until it has been repaired by the place of purchase
or a distributor.

•

Use the product under the supervision of someone responsible for
safety, and only as instructed. Do not allow anyone (including children)
with reduced physical, sensual, or mental capacity, or those without
experience or knowledge, to use the product. Do not allow children to
play near the product.

•

When performing cleaning, disconnect the power plug from the electrical outlet and the charging plug from the battery. If this
is not observed an electric shock may occur.

•

Do not touch the battery charger when it is at a high temperature. Doing so may cause a burn.

•

Do not touch the battery charger for an extended period of time when its temperature has increased. Doing so may cause a
low-temperature burn.

•

The temperature of the product may reach 40 to 70°C while charging, but this is normal.

•

Before using battery charger, read all instructions and cautionary markings on battery charger, battery, and product using
battery.

Notice

Charge the battery indoors to avoid exposure to rain or wind.

•

The battery can be charged at temperatures between 0 - 40°C. The battery charger will not operate at temperatures outside
the range. It will display an error. (The battery charger LED lamp flashes. )

•

Do not use outdoors or in environments with high humidity.

•

Do not place the battery charger on dusty floors when using it.

•

Place the battery charger on a stable surface such as a table when using it.

•

Do not place any objects on top of the battery charger or its cable. Also, do not cover it with a cover or other object.

•

Do not bundle the cables.

•

Do not hold the battery charger by the cables when carrying it.

•

Do not apply excessive tension to the cable and charging plug.

•

In order to prevent the cable from being damaged, avoid wrapping it around the main body during storage.

•

Do not wash the battery charger or wipe it using detergents.

•

Do not allow children to play near the product.

Battery charger

Charging method

 Charging the battery removed from the bicycle

Charge the battery placed on a level surface indoors.
When charging, orient the battery and the battery charger as indicated in the figure.
*The orientation of the battery charging port differs according to the model.

BT-EN404 / BT-EN405 / BT-EN805 / BT-EN805-L / BT-EN806 /
BT-E6000 / BT-E6001 / BT-E6010 / BT-E8035 / BT-E8035-L / BT-E8036

1. Attach the adapter to the battery charger's charging plug.

2. Connect the battery charger's power plug to the electrical outlet.

3. Insert the adapter into the battery's charging port.

Adapter SM-BTE60
(sold separately)

Adapter SM-BTE60
(sold separately)

Charging
plug

Charging
plug

Adapter
SM-BTE80 (sold
separately)

Charging
plug

BT-EN604 / BT-EN605 / BT-EN606 /
BT-E8010 / BT-E8014 / BT-E8016 / BT-E8020

1. Connect the battery charger's power plug to the electrical outlet.

2. Insert the charging plug into the battery's charging port.

BT-EN805 / BT-EN805-L / BT-EN806 /

BT-E8035 / BT-E8035-L / BT-E8036

Adapter
SM-BTE80
(sold separately)

plug

Adapter SM-BTE60
(sold separately)

Charging
plug

SM-BCC1
Insert into the connector.
* Insert it fully.

BT-EN404 / BT-EN405 /

BT-E6000 / BT-E6001

Battery

Charging port

BT-E6010

BatteryCharging

Charging
port

Battery

Charging port

Charging plug

Charging port

Battery mount

BT-EN805 / BT-EN805-L / BT-EN806 /
BT-E8035 / BT-E8035-L / BT-E8036

•

The position of the satellite
charging port differs depending on
the frame design.

 Charger LED lamp

•

After charging has started, the LED lamp on the battery charger lights

Charging
plug

Charging
port

up.

Lit up Charging

LED lamp

Battery
charger

•

For information on the charging time, refer to the following.

Battery Charging time from a battery level of 0%

BT-EN404 / BT-EN604 / BT-E6000 / BT-E6010 / BT-E8014 Approximately 6 hours and 30 minutes

BT-EN405 / BT-EN605 / BT-EN805 / BT-EN805-L /

BT-E6001 / BT-E8010 / BT-E8020 / BT-E8035 /

BT-E8035-L

BT-EN606 / BT-EN806 / BT-E8016 / BT-E8036 Approximately 10 hours and 12 minutes

Troubleshooting

The FAQ for SHIMANO STEPS can be accessed with the following:

https://si.shimano.com/iFAQ/STP0A

Flashing Charge error

•

Battery not connected

Off

Designated charging time

•

1 hour or more after finishing charging

•

1 hour or more after an error occurs

Approximately 7 hours and 30 minutes

Please note: specifications are subject to change for improvement without notice. (English)
© Jun. 2024 by SHIMANO INC. ITP
