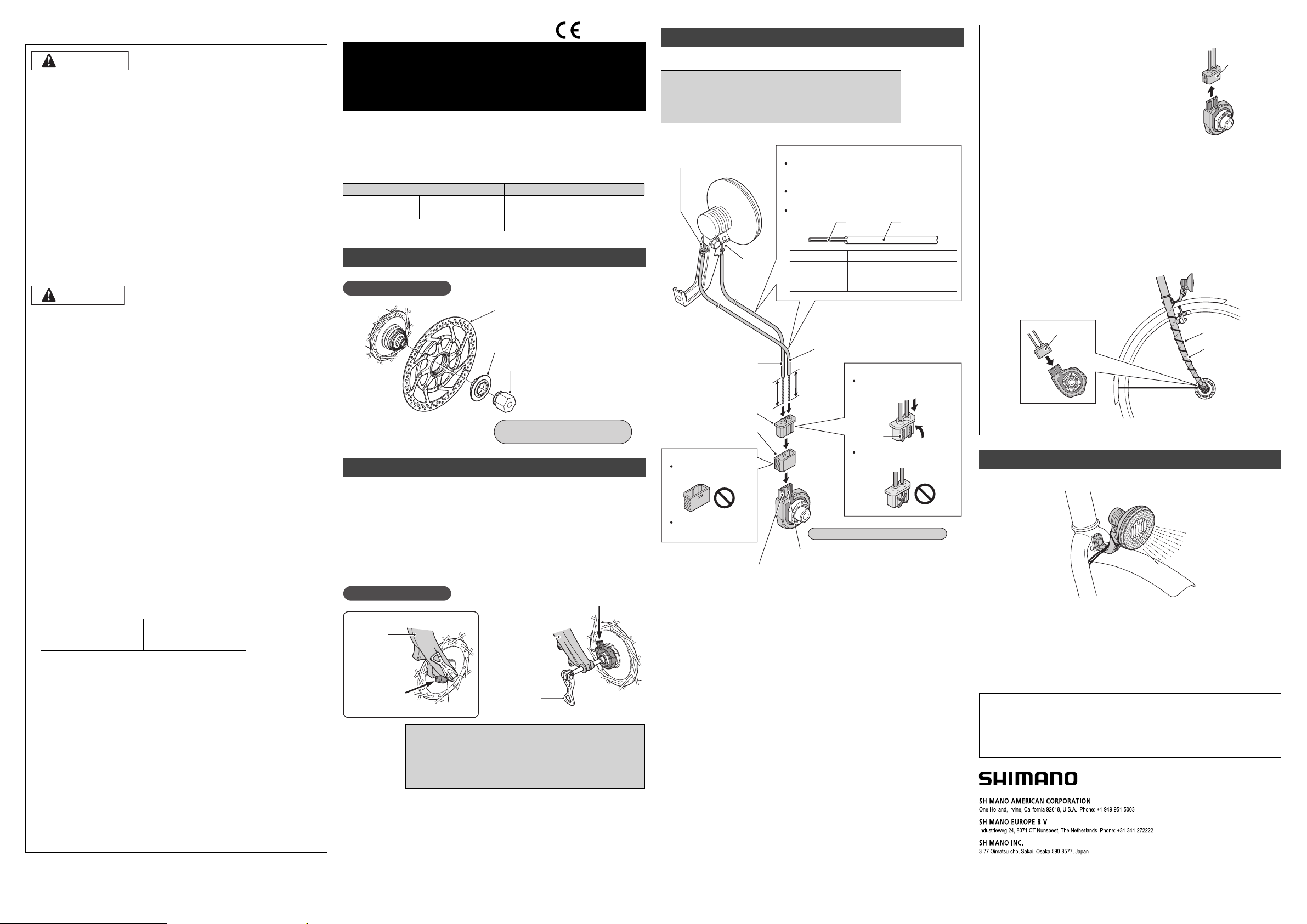

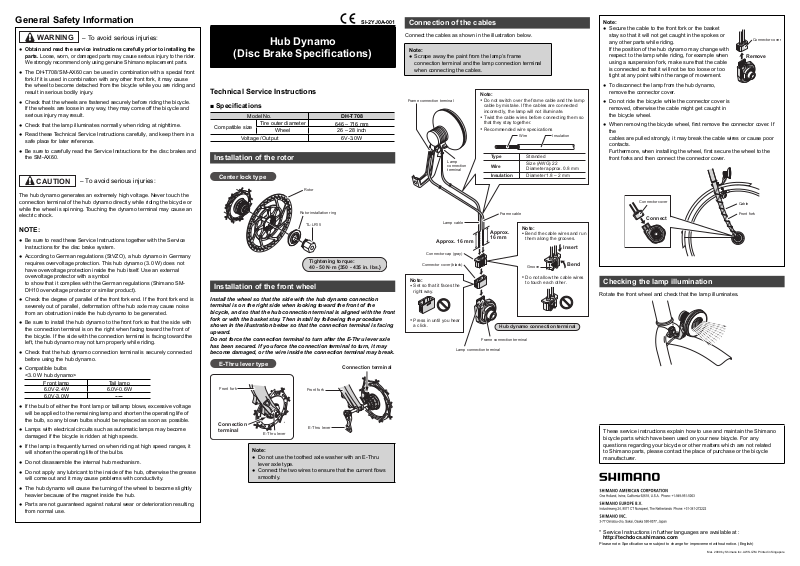

Page 1
General Safety Information
r
WARNING
●
Obtain and read the service instructions carefully prior to installing the
parts.
Loose, worn, or damaged parts may cause serious injury to the rider.
We strongly recommend only using genuine Shimano replacement parts.
● The DH-T708/SM-AX60 can be used in combination with a special front
fork.If it is used in combination with any other front fork, it may cause
the wheel to become detached from the bicycle while you are riding and
result in serious bodily injury.
● Check that the wheels are fastened securely before riding the bicycle.
If the wheels are loose in any way, they may come off the bicycle and
serious injury may result.
● Check that the lamp illuminates normally when riding at nighttime.
● Read these Technical Service Instructions carefully, and keep them in a
safe place for later reference.
● Be sure to carefully read the Service Instructions for the disc brakes and
the SM-AX60.
CAUTION
The hub dynamo generates an extremely high voltage. Never touch the
connection terminal of the hub dynamo directly while riding the bicycle or
while the wheel is spinning. Touching the dynamo terminal may cause an
electric shock.
NOTE:
● Be sure to read these Service Instructions together with the Service
Instructions for the disc brake system.
● According to German regulations (StVZO), a hub dynamo in Germany
requires overvoltage protection. This hub dynamo (3.0 W) does not
have overvoltage protection inside the hub itself. Use an external
overvoltage protector with a symbol
to show that it complies with the German regulations (Shimano SMDH10 overvoltage protector or similar product).
● Check the degree of parallel of the front fork end. If the front fork end is
severely out of parallel, deformation of the hub axle may cause noise
from an obstruction inside the hub dynamo to be generated.
● Be sure to install the hub dynamo to the front fork so that the side with
the connection terminal is on the right when facing toward the front of
the bicycle. If the side with the connection terminal is facing toward the
left, the hub dynamo may not turn properly while riding.
● Check that the hub dynamo connection terminal is securely connected
before using the hub dynamo.
● Compatible bulbs
<3.0 W hub dynamo>
Front lamp Tail lamp
6.0V-2.4W 6.0V-0.6W
6.0V-3.0W ------
● If the bulb of either the front lamp or taillamp blows, excessive voltage
will be applied to the remaining lamp and shorten the operating life of
the bulb, so any blown bulbs should be replaced as soon as possible.
● Lamps with electrical circuits such as automatic lamps may become
damaged if the bicycle is ridden at high speeds.
● If the lamp is frequently turned on when riding at high speed ranges, it
will shorten the operating life of the bulbs.
● Do not disassemble the internal hub mechanism.
● Do not apply any lubricant to the inside of the hub, otherwise the grease
will come out and it may cause problems with conductivity.
● The hub dynamo will cause the turning of the wheel to become slightly
heavier because of the magnet inside the hub.
● Parts are not guaranteed against natural wear or deterioration resulting
from normal use.
– To avoid serious injuries:
– To avoid serious injuries:
SI-2YJ0A-001
Hub Dynamo
(Disc Brake Specifi cations)
Technical Service Instructions
■ Specifi cations
Model No.
Compatible size
Tire outer diameter
Wheel 26 – 28 inch
Voltage /Output
Installation of the rotor
Center lock type
Rotor
Rotor installation ring
TL-LR15
Tightening torque:
40 - 50 N·m {350 - 435 in. lbs.}
Installation of the front wheel
Install the wheel so that the side with the hub dynamo connection
terminal is on the right side when looking toward the front of the
bicycle, and so that the hub connection terminal is aligned with the front
fork or with the basket stay. Then install by following the procedure
shown in the illustration below so that the connection terminal is facing
upward.
Do not force the connection terminal to turn after the E-Thru lever axle
has been secured. If you force the connection terminal to turn, it may
become damaged, or the wire inside the connection terminal may break.
E-Thru lever type
Front fork
Connection
terminal
E-Thru lever
Note:
● Do not use the toothed axle washer with an E-Thru
lever axle type.
● Connect the two wires to ensure that the current fl ows
smoothly.
Front fork
E-Thru lever
DH-T708
646 – 716 mm
6V-3.0W
Connection terminal
Connection of the cables
Connect the cables as shown in the illustration below.
Note:
● Scrape away the paint from the lamp’s frame
connection terminal and the lamp connection terminal
when connecting the cables.
Frame connection terminal
Lamp
connection
terminal
Lamp cable
Approx. 16 mm
Connector cap (gray)
Connector cover (black)
Note:
Set so that it faces the
right way.
Press in until you hear
a click.
Lamp connection terminal
Note:
Do not switch over the frame cable and the lamp
cable by mistake. If the cables are connected
incorrectly, the lamp will not illuminate.
Twist the cable wires before connecting them so
that they stay together.
Recommended wire speci cations
Type
Wire
Insulation
Approx.
16 mm
Frame connection terminal
Wire
Stranded
Size (AWG) 22
Diameter approx. 0.8 mm
Diameter 1.8 – 2 mm
Frame cable
Note:
Bend the cable wires and run
them along the grooves.
Do not allow the cable wires
to touch each other.
Hub dynamo connection terminal
Groove
Insulation
Insert
Bend
Note:
● Secure the cable to the front fork or the basket
stay so that it will not get caught in the spokes or
any other parts while riding.
Connector cove
If the position of the hub dynamo may change with
respect to the lamp while riding, for example when
Remove
using a suspension fork, make sure that the cable
is connected so that it will not be too loose or too
tight at any point within the range of movement.
To disconnect the lamp from the hub dynamo,
●
remove the connector cover.
● Do not ride the bicycle while the connector cover is
removed, otherwise the cable might get caught in
the bicycle wheel.
● When removing the bicycle wheel, fi rst remove the connector cover. If
the
cables are pulled strongly, it may break the cable wires or cause poor
contacts.
Furthermore, when installing the wheel, fi rst secure the wheel to the
front forks and then connect the connector cover.
Connector cover
Connect
Cable
Front fork
Checking the lamp illumination
Rotate the front wheel and check that the lamp illuminates.
These service instructions explain how to use and maintain the Shimano
bicycle parts which have been used on your new bicycle. For any
questions regarding your bicycle or other matters which are not related
to Shimano parts, please contact the place of purchase or the bicycle
manufacturer.
* Service Instructions in further languages are available at :
http://techdocs.shimano.com
Please note: Specifi cations are subject to change for improvement without notice. (English)
Mar. 2009 by Shimano Inc. AWS. IZM. Printed in Singapore
