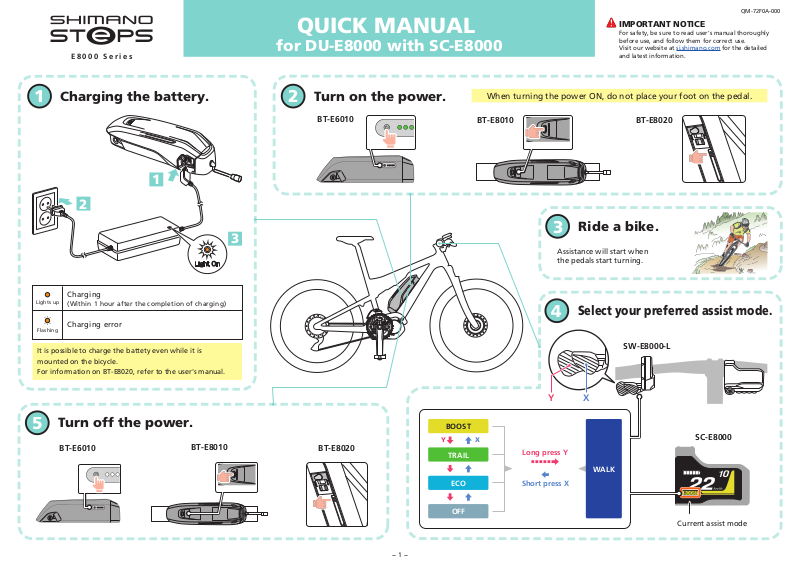

E8000 Series
Q
UICK MANUAL
for DU-E8000 with SC-E8000
QM-72F0A-000
IMPORTANT NOTICE
For safety, be sure to read user's manual thoroughly
before use, and follow them for correct use.
Visit our website at si.shimano.com for the detailed
and latest information.
Charging the battery.
1
1
2
Charging
Lights u p
Flashing
It is possible to charge the battety even while it is
mounted on the bicycle.
For information on BT-E8020, refer to the user's manual.
(Within 1 hour after the completion of charging)
Charging error
3
Turn on the power.
2
BT-E6010
When turning the power ON, do not place your foot on the pedal.
BT-E8010
Ride a bike.
3
Assistance will start when
the pedals start turning.
Select your preferred assist mode.
4
BT-E8020
SW-E8000-L
Turn off the power.
5
BT-E6010
BT-E8010
BT-E8020
− 1 −
BOOST
Y X
TRAIL
ECO
OFF
Y
Long press Y
Short press X
X
SC-E8000
WALK
Current assist mode
Page 2
E8000 Series
Q
UICK MANUAL
for DU-E8000 with SC-E6010
IMPORTANT NOTICE
For safety, be sure to read user's manual thoroughly
before use, and follow them for correct use.
Visit our website at si.shimano.com for the detailed
and latest information.
Charging the battery.
1
1
2
Charging
Lights u p
Flashing
It is possible to charge the battety even while it is
mounted on the bicycle.
For information on BT-E8020, refer to the user's manual.
(Within 1 hour after the completion of charging)
Charging error
3
Turn on the power.
2
2 sec
or
more
OR
When turning the power ON, do not place your foot on the pedal.
BT-E6010SC-E6010 BT-E8010
3
Assistance will start when
the pedals start turning.
4
BT-E8020
Ride a bike.
Select your preferred assist mode.
SW-E6010
Turn off the power.
5
SC-E6010
2 sec
or more
OR
BT-E6010
BT-E8010
BT-E8020
− 2 −
BOOST
Y X
TRAIL
ECO
OFF
Y
X
Long press Y
Short press X
SC-E6010
WALK
Current assist mode
