Shimano BL-MX70 User Manual
DESCRIPTION
SHIMANO
CODE NO.
ITEM
NO.
*
*
*
0611-2660
1
2
3
Cable Adjusting Bolt & Nut
Reach Adjusting Screw (M4 x 14.5) & Spring
Clamp Bolt (M6 x 14.8)
Y-8T6
Y-8XV
Y-8SB
98010
98020
10000
INTERCHANGE-
ABILITY
A
A
B
BL-M510
A: Same parts.
B: Parts are usable, but differ in materirals, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
1
2
3

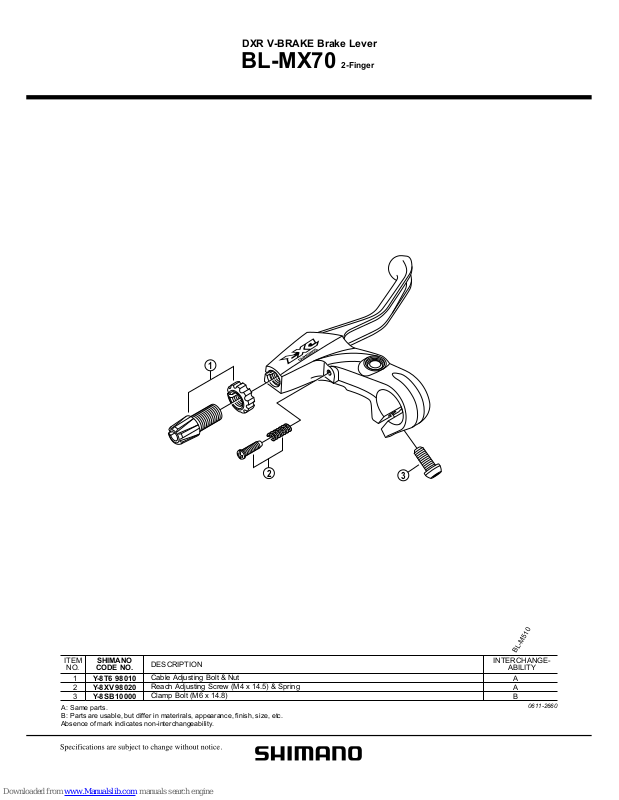

2-FingerBL-MX70
DXR V-BRAKE Brake Lever
FORWARD
R
BL-MX70
JAPAN
22.2
1
2
11 22
1 mm 1 mm
1 mm
FORWARD
R
Tightening torque:
6 – 8 N·m {52 – 69 in. lbs.}
5 mm Allen key
Link fixing bolt
Improper use of your bicycle's brake system may result in a loss
of control or an accident, which could lead to a severe injury.
Because each bicycle may handle differently, be sure to learn the
proper braking technique (including brake lever pressure and
bicycle control characteristics) for your bicycle.
Consult your bicycle dealer and the bicycle's owners manual, and
practice your riding and braking technique.
Brakes designed for use as rear brakes should not be used as
front brakes.
Obtain and read the service instructions carefully prior to installing
the parts. Loose, worn, or damaged parts may cause serious
injury to the rider. We strongly recommend only using genuine
Shimano replacement parts.
Be careful not to allow any oil or grease to get onto the brake
shoes. If any oil or grease do get on the shoes, you should
replace the shoes, otherwise the brakes may not work correctly.
Check the brake cable for rust and fraying, and replace the cable
immediately if any such problems are found. If this is not done, the
brakes may not work correctly.
Always make sure that the front and rear brakes are working
correctly before you ride the bicycle.
The required braking distance will be longer during wet weather.
Reduce your speed and apply the brakes early and gently.
If the road surface is wet, the tires will skid more easily. If the tires
skid, you may fall off the bicycle. To avoid this, reduce your speed
and apply the brakes early and gently.
Read these Technical Service Instructions carefully, and keep
them in a safe place for later reference.
Installation of the brake lever
Use a 5 mm Allen key to install the brake lever.
In order to realize the best performance, we recommend that the
following combination be used.
Installation of the V-BRAKE brake
While holding the shoe against the rim, adjust the amount of
shoe protrusion by changing over the washer B (thick or
thin) so that dimension A is kept at 32 mm or more.
General Safety Information
Shimano BR-MX70 Safety Information
The BR-MX70 V-BRAKE brake can only be used as a rear brake.
The optimum efficiency of the Multi-Condition Brake System can
be realized by using the brakes and brake levers in the
recommended set.
If the brake shoes have worn down until the grooves are no longer
visible, they should be replaced.
Parts are not guaranteed against natural wear or deterioration
resulting from normal use.
For maximum performance we highly recommend Shimano
lubricants and maintenance products.
For any questions regarding methods of handling or maintenance,
please contact the place of purchase.
NOTE:
Technical Service Instructions
SI-8ED0A
Multi-Condition
Brake System
DXR
BL-MX70
BR-MX70
Brake lever
Series
V-BRAKE brake
Brake cable
Multi-Condition Brake System
By providing superior wet weather braking performance
(control and modulation), braking performance will not vary
in a multitude of conditions when using this brake system.
– To avoid serious injuries:
Use the BR-MX70 V-BRAKE brake with V-BRAKE brakecompatible brake levers such as the BL-MX70 brake
levers.
Use a handlebar grip
with a maximum outer
diameter of 32 mm.
5 mm Allen key
Tightening torque:
5 – 7 N·m
{43 – 61 in. lbs.}
32 mm or more
Spring tension
adjustment screw
Spring tension
adjustment screw
Depress the brake lever about 10 times as far as the grip
and check that everything is operating correctly and that the
shoe clearance is correct before using the brakes.
While holding the shoe against the rim, tighten the shoe
fixing nut.
Please note: Specifications are subject to change for improvement without notice. (English)
Adjust the balance with the spring tension adjustment
screws.
Replacement of the cartridge shoe
Insertion of shoe fixing pin is very critical to keep shoe
properly fixed in place.
There are two different types of shoe and shoe holder to be
used in the left and right positions respectively. Slide the
new shoes into the grooves on the shoe holders while taking
note of the correct directions and pin hole positions.
L
FORWARD
FORWARD
L
R
FORWARD
FORWARD
R
FrontFront
Shoe Shoe
Shoe holder
Shoe fixing pin
Shoe fixing pin
Shoe holder
Shoe
insertion
direction
Shoe fixing pin
Shoe
Remove the shoe fixing pin, and then slide the shoe along
the groove to remove it from the shoe holder.
Tightening torque:
6 – 8 N·m {52 – 69 in. lbs.}
Tightening torque:
6 – 8 N·m {52 – 69 in. lbs.}
5 mm Allen key
Depress about
10 times
WARNING
– To avoid serious injuries:
WARNING
Inner cable lead
5 mm Allen key
Apr. 2006 by Shimano Inc. PIT. IZM. Printed in Malaysia
C
Insert the stopper pin of the brake body into the center
spring hole in the frame mounting boss, and then secure the
brake body to the frame with the link fixing bolt.
Spring hole
Stopper pin
A
B C
B
+
C
=
2 mm
Pass the inner cable through the inner cable lead, and after
setting so that the total of the clearances between the left and
right shoes and the rim is 2 mm, tighten the cable fixing bolt.
3.
4.
5.
6.
1.
2.
2.
1.
3.
Washer A
Washer A
Shoe fixing link
Shoe fixing nut
Washer
Washer B (thin)
Washer B (thick)
FORWARD
R
In the case of carbon
handlebars, it may be
necessary to lower the
tightening torque in order to
prevent damage to the
handlebar. Please consult
the bicycle or handlebar
manufacturer regarding the
appropriate level of
tightening torque for
carbon handlebars.
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
Industrieweg 24, 8071 CT Nunspeet, The Netherlands Phone: +31-341-272222
3-77 Oimatsu-cho, Sakai-ku, Sakai, Osaka 590-8577, Japan
For the right
For the left
