Shimadzu Analytical Balance Instruction Manual
AUW-D series AUW220D, AUW120D
AUW series AUW320, AUW220, AUW120
AUX series AUX320, AUX220, AUX120
321-56861-21D
MAR. 2013
AUY series AUY220, AUY120
T
PRIN
T
UNI
O/T
C A L
U
N
E
M
OWER
P
B R K
For Basic Operation
/10d
1d
Read the instruction manual thoroughly before you use the product.
Keep this instruction manual for future reference.
Requests
• Provide this manual to the next user in the event that the instrument is transferred.
• To ensure safe operation, contact your Shimadzu Balance representative for installation,
adjustment, or reinstallation after moving the instrument to a different site.
Notices
• The content of this manual is subject, without notice, to modifications for the sake of improve-
ment.
• Every effort has been made to ensure that the content of this manual was correct at the time
of creation. However, in the event that any mistakes or omissions are discovered, it may not
be possible to correct them immediately.
• The copyright of this manual is owned by Shimadzu Corporation. Reproduction and duplica-
tion of whole or part of the content without permission of the company are strictly prohibited.
• "Microsoft", "Windows", and "Excel" are registered trademarks of Microsoft Corporation of the
U.S.A. in the United States and other countries. All other company names and product names
that appear in this manual are trademarks or registered trademarks of the companies con-
cerned. Note that ™ and
• The company names, organization names and product names in this manual are trademarks
or registered trademarks of the companies and organizations concerned.
• Shimadzu does not guarantee that the WindowsDirect communication function will operate
without problems on all PCs. Shimadzu will accept no responsibility for any trouble that arises
as a result of using this function. You are recommended to back up all important data and pro-
grams in advance.
®
indications are not used.
For Basic Operation
© 2003-2013 Shimadzu Corporation. All rights reserved.
- I -
Notation Conventions
Note
This instruction manual uses the following notation conventions to indicate
Safety Precautions and additional information.
Caution
Note
Other conventions used in this manual include:
For Basic Operation
Item Description
1, 2, 3 .... Indicates the step number in a procedure or a sequence of changes in the balance display.
[ ] key Indicates the operation key on the balance. See 2.2.
“ ” Indicates the message appearing in the balance display.
mass display
Indicates that the balance is in the weighing mode and mass is displayed in one of the weighing units.
Indicates a potentially hazardous situation that may
result in injury to personnel or equipment damage.
Provides additional information needed to properly
use the balance.
- II -
Safety Precautions
To be strictly observed
To ensure that you use the balance safely and correctly, read the following precautions carefully and
observe them.
The levels of danger and damage that will arise if the balance is used incorrectly are classified and
indicated as shown below.
WARNING
Indicates a potentially
hazardous situation which,
if not avoided, could result in
serious injury or possibly death.
CAUTION
Indicates a potentially
hazardous situation which,
if not avoided, may result in
minor to moderate injury or
equipment damage.
Precautions are classified and explained by using one of the symbols below, depending on the
nature of the precaution.
Indicates an action that must be
performed.
Instructions Prohibitions
Indicates an action that must
NOT be performed.
WARNING
Never disassemble, modify or attempt to repair this product or any
accessory.
Prohibitions
Instructions
Instructions
Prohibitions
You could sustain an electric shock or the product could operate abnormally.
If you believe that the balance has failed, contact your Shimadzu representative.
Use the balance with correct power supply and voltage.

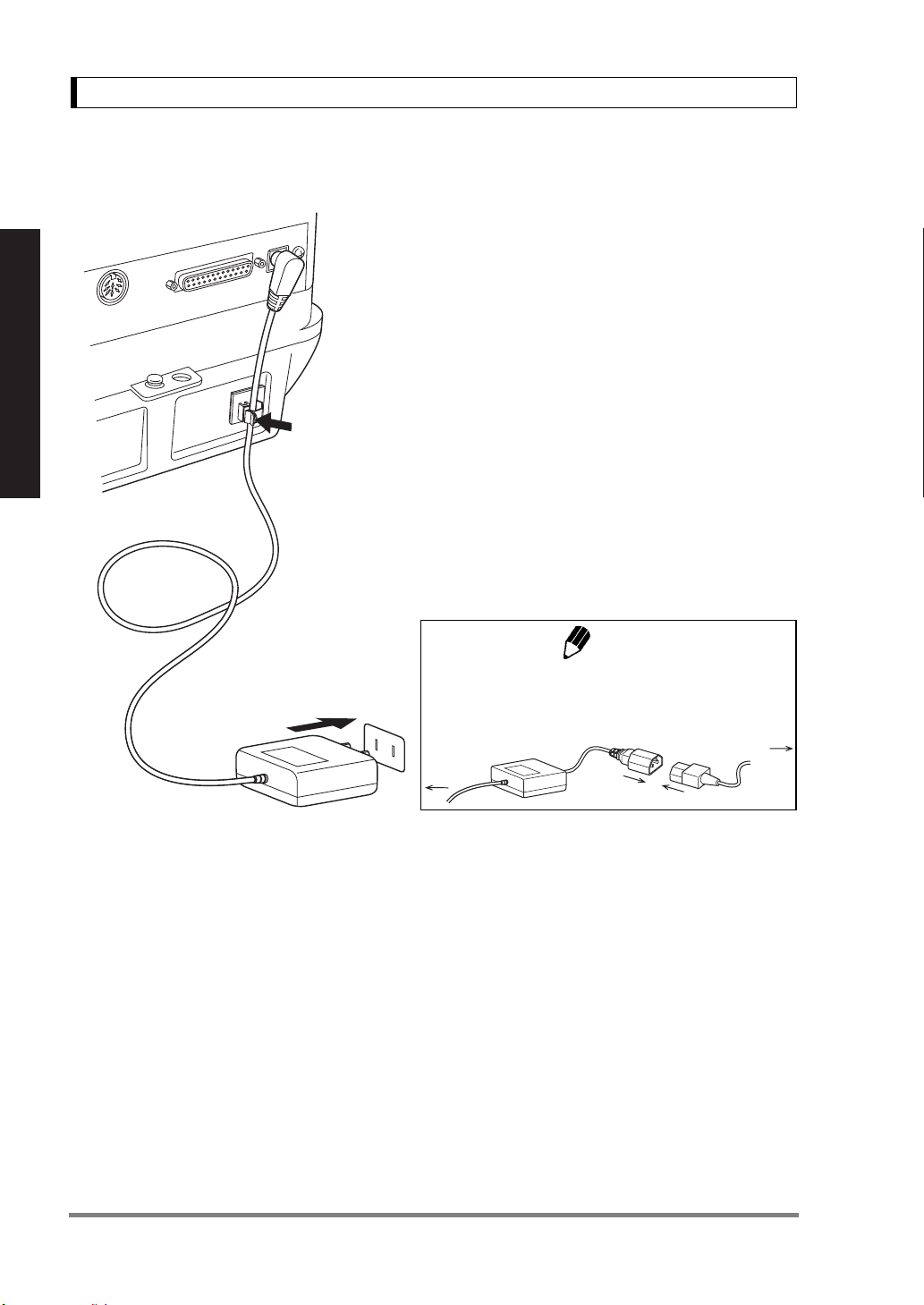

Use the balance with the attached AC adapter.
Using the balance with an incorrect power supply or voltage will lead to fire or trouble
with the balance.
Note also that if the power supply or voltage is unstable or if the power supply capacity
is insufficient, it will not be possible to obtain satisfactory performance from the balance.
Use the correct weighing units.
Using incorrect weighing units can lead to accidents as a result of weighing errors.
Check that the weighing units are correct before starting weighing.
Do not use the balance outdoors or anywhere where it will be exposed to
water.
You could sustain an electric shock or the product could operate abnormally.
For Basic Operation
- III -
Prohibitions
For Basic Operation
Instructions
Instructions
Instructions
Prohibitions
Instructions

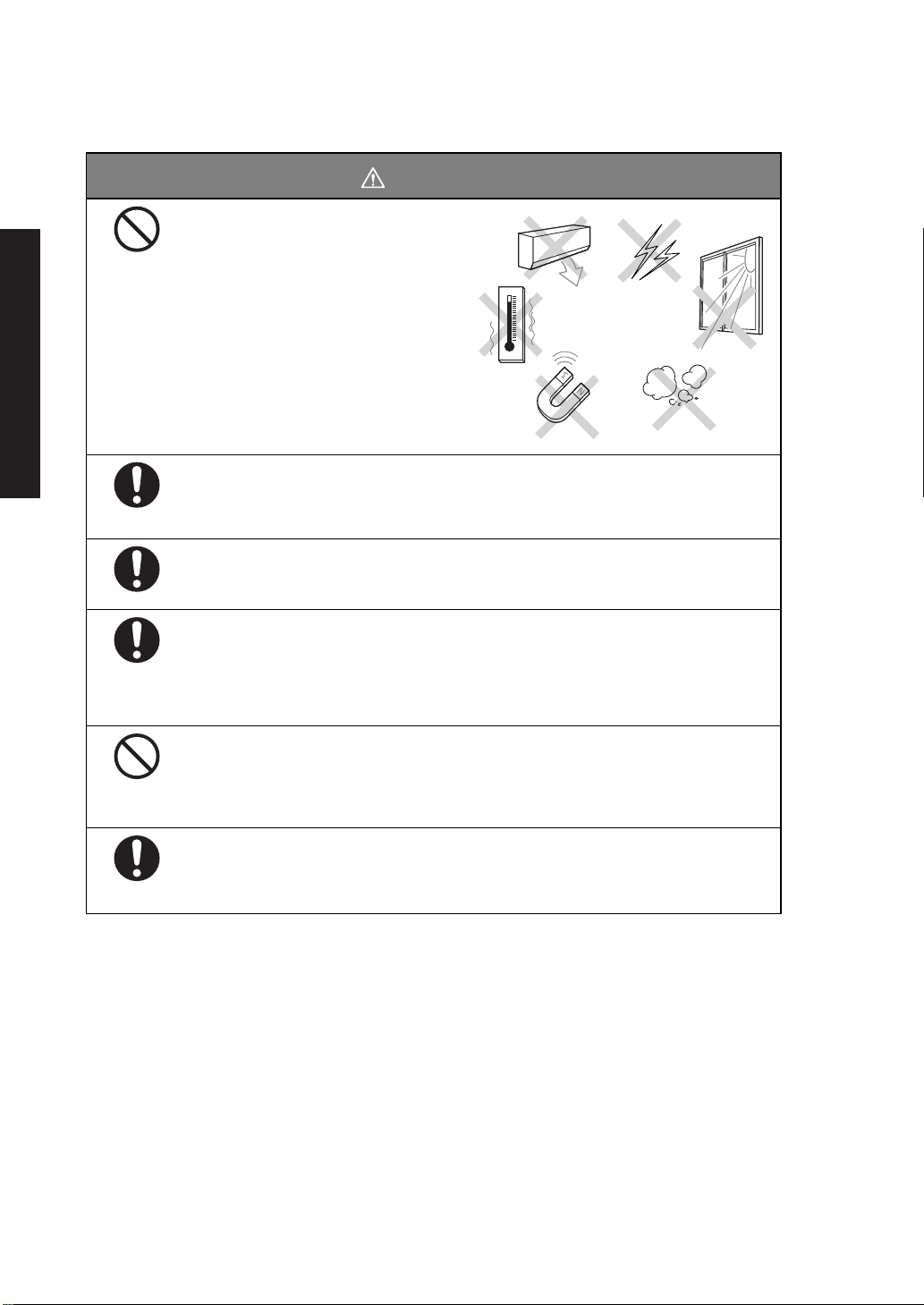

CAUTION
Avoid locations where the balance
will be exposed to any of the
following.
This could cause accidents or poor
performance.
• Air flow from an air conditioner,
ventilator, door or window
• Extreme temperature changes
•Vibration
• Direct sunlight
• Corrosive or flammable gases
• Dust, electromagnetic waves or a
magnetic field
Install the balance on a strong and stable flat table or floor in the room.
Placing the balance in an unstable site could lead to injury or trouble with the balance.
When selecting the installation site, take into account the combined weight of the
balance and the item to be weighed.
After a power outage, turn the power back ON.
When a power outage occurs, the power is shut off automatically. Therefore, begin
operation from 4.4 “Turning On the Power” (^ page 12) again.
Treat the balance with care and respect.
The balance is a precision instrument. Subjecting it to impacts could cause it to fail.
When moving the balance, remove pan and pan supporter. Grasp it firmly with both
hands to carry it.
If the balance has to be stored for a long time, store it in the packaging box in which it
was delivered.
Do not connect anything other than peripheral devices specified by
Shimadzu to the balance’s connector.
If you do, the balance may stop working normally.
In order to avoid trouble, always connect peripheral devices in accordance with the
directions in this manual.
If you detect anything abnormal (e.g. a burning smell) disconnect the AC
adapter immediately.
Continuing to use the balance with an abnormality could lead to fire or an electric
shock.
- IV -
Shimadzu Balances and 21 CFR Part 11
21 CFR Part 11
21 CFR Part 11, Electronic Records, Electronic Signatures, Final
Rule (often referred to as Part 11) is the United States Food and
Drug Administration (FDA) regulation affecting computer resources
and electronic records that are used for any document that is
required to be kept and maintained by FDA regulations.
Requirements concerning computer resources security are key elements in Part 11.
The controls implemented as a result of security related requirements are intended to result in trusted records.
Shimadzu CLASS-Balance Agent
Shimadzu provides a means for compliance with 21 CFR Part 11
with Shimadzu CLASS-Balance Agent software, part of a comprehensive laboratory data management system, Shimadzu CLASS
Agent.
Ask your Shimadzu representative about it.
Shimadzu WindowsDirect
When Shimadzu balances are integrated with laboratory software by
means of our WindowsDirect function, no communication software is
required or used.
The Shimadzu balance functions as a primary device in the system,
just as a keyboard, mouse or other data entry hardware does.
For this reason, system validation and compliance may be greatly
simplified with the use of Shimadzu balances.
Two-way Communication
Shimadzu balances have always been computer friendly and they
can be set up for bi-directional communication as part of a fully automated production system or LIMS.
This manual includes the command codes and information needed
by programmers to integrate Shimadzu balances with their software.
- V -
Action for Environment (WEEE)
To all user of Shimadzu equipment in the European Union:
Equipment marked with this symbol indicates that it was sold on or after 13th August 2005,
which means it should not be disposed of with general household waste. Note that our equip-
ment is for industrial/professional use only.
Contact Shimadzu service representative when the equipment has
reached the end of its life.
They will advise you regarding the equipment take-back.
With your co-operation we are aiming to reduce contamination from
waste electronic and electrical equipment and preserve natural
resource through re-use and recycling.
Do not hesitate to ask Shimadzu service representative, if you require
further information.
WEEE Mark
- VI -
Contents
1. Introduction ........................................................................................................... 1
2. Component Names and Functions ............................................................ 2
2.1 Main Components .............................................................................................. 2
2.2 Key Panel and Operation
2.3 Balance Display and Functions ........................................................................... 4
3. Specifications ....................................................................................................... 5
4. Installation ............................................................................................................. 7
4.1 Installation Site .................................................................................................. 7
4.2 Unpacking and Delivery Inspection .................................................................... 8
4.3 Installation
4.4 Turning On the Power
4.5 Span Calibration ............................................................................................... 13
......................................................................................................... 10
5. Basic Operation
(Read Chapters 1 to 5 for basic but proper operation of the balance.) 15
................................................................................... 3
........................................................................................ 12
5.1 Weighing ........................................................................................................... 15
5.2 Changing the Unit Display
5.3 Switching the Weighing Range (AUW-D series only) ........................................... 17
5.4 For Stable Measurement in Semi-micro Range (AUW-D series only)
.................................................................................. 17
................... 18
6. WindowsDirect Function ................................................................................ 20
6.1 What is WindowsDirect? .................................................................................... 20
6.2 WindowsDirect Settings
6.2.1 Setting the Balance ................................................................................ 20
6.2.2 Connecting the RS-232C Cable .............................................................. 21
6.2.3 Setting Up the Computer
6.2.4 Start and Checking Operation
6.3 Troubleshooting the WindowsDirect Communication Function ............................. 25
..................................................................................... 20
........................................................................ 22
................................................................. 24
7. Menu Item Selection ......................................................................................... 27
7.1 What is a menu? ................................................................................................ 27
7.2 What is a menu map?
7.3 Menu Item Selection Procedures
7.4 Useful Functions Related to Menu ...................................................................... 30
7.4.1 Settings Check Display
7.4.2 Returning to Default Settings (Menu reset)
7.4.3 Menu Lock ............................................................................................. 31
........................................................................................ 27
........................................................................ 28
.......................................................................... 30
.............................................. 30
- i -
Contents
8. Setting the Built-in Clock (AUW-D/AUW/AUX series only) ............ 32
8.1 Date ................................................................................................................... 32
8.2 Date Output Style
8.3 Time
................................................................................................................... 34
............................................................................................... 33
9. Display Settings ................................................................................................... 35
9.1 Bar Graph Display .............................................................................................. 35
9.2 Changing the Minimum Display (AUW/AUX/AUY series only) ............................... 36
9.3 Turning the Backlight On and Off (AUW series only) (Not for AUW-D)
.................. 37
10. Calibration ........................................................................................................... 38
10.1 What is calibration? ............................................................................................ 38
10.1.1 The Necessity of Calibration
10.1.2 Types of Calibration
10.2 Executing Calibration
10.2.1 Span Calibration With Built-in Weight (AUW-D/AUW/AUX series only)
10.2.2 Span Calibration With External Weights
10.2.3 Calibration Check With Built-in Weight (AUW-D/AUW/AUX series only) .... 42
10.2.4 Calibration Check With External Weights
10.3 Calibration Settings
10.3.1 Selecting Preset Calibration Method
10.3.2 PSC Fully-automatic span calibration (AUW-D/AUW/AUX series only)
10.3.3 Clock-CAL Fully-automatic span calibration (AUW-D/AUW series only) .... 47
10.3.4 PCAL: Calibration of the Built-in Weight (AUW-D/AUW/AUX series only)
10.3.5 Inputting External Calibration Weight Value for E-CAL
10.3.6 Inputting External Calibration Weight Value for PCAL
10.4 For GLP/GMP/ISO Compliance ........................................................................... 52
10.4.1 Calibration Report Setting ....................................................................... 52
10.4.2 Balance ID Setting .................................................................................. 53
10.4.3 Date Printout Setting
............................................................................................. 44
................................................................................ 39
.......................................................................................... 40
.................................................................... 38
...... 40
................................................... 41
................................................. 43
........................................................ 44
...... 45
.. 49
............................. 50
............................... 51
............................................................................... 54
11. Environment Settings ................................................................................... 55
11.1 What are environmental settings? ....................................................................... 55
11.2 Settings for Stability and Response ..................................................................... 55
11.2.1 Standard mode
11.2.2 Anti-convection mode
11.2.3 High-stability Mode ................................................................................. 56
11.2.4 Pouring Mode (fast response)
11.3 Stability Detection Band
11.4 Zero Tracking
11.5 Stability Mark Lighting Timing
..................................................................................................... 59
....................................................................................... 55
.............................................................................. 55
................................................................. 56
...................................................................................... 58
.............................................................................. 60
- ii -
Contents
12. Units ...................................................................................................................... 61
12.1 Setting Units of Measurement ............................................................................ 61
12.2 Percentage (%) Conversion
............................................................................... 63
13. Application Functions .................................................................................. 64
13.1 Piece Counting (PCS) ........................................................................................ 64
13.2 Solid Specific Gravity Measurement
13.3 Liquid Density Measurement .............................................................................. 68
13.4 Auto Print
13.5 Interval Timer (AUW-D/AUW/AUX series only)
13.6 Add-on Mode ..................................................................................................... 74
13.7 Formulation Mode
.......................................................................................................... 71
.............................................................................................. 77
................................................................... 65
.................................................... 72
14. Communication with Peripheral Devices ........................................... 79
14.1 Electronic Printer EP-80 ..................................................................................... 79
14.2 Personal Computer - RS-232C
14.2.1 Connecting the Cable ............................................................................ 80
14.2.2 Data Format ........................................................................................... 81
14.2.3 Command Codes
14.3 Communication Settings
14.3.1 What are communication settings?
14.3.2 Standard Setting
14.3.3 User Setting ........................................................................................... 86
14.4 Decimal Point Symbol in Output Data
........................................................................... 80
................................................................................... 83
.................................................................................... 85
......................................................... 85
.................................................................................... 85
................................................................. 89
15. Maintenance and Transport ...................................................................... 90
15.1 Maintenance ...................................................................................................... 90
15.2 Transport ........................................................................................................... 92
16. Troubleshooting .............................................................................................. 93
16.1 Error Code Displays .......................................................................................... 93
16.2 Troubleshooting
Appendices .................................................................................................................... 95
A-1. Menu map ......................................................................................................... 95
A-2. Standard Accessories and Maintenance Parts List .............................................. 98
A-3. Special Accessories (Options) List ...................................................................... 98
A-4. Specifications for RS-232C Connector
A-5. Table of Unit Conversion Constants .................................................................... 100
A-6. Performance Check Guide ................................................................................. 101
A-7. Below-weigh Hook Dimensions
A-8. Index ................................................................................................................. 104
................................................................................................. 94
................................................................ 99
.......................................................................... 103
- iii -
1. Introduction
1. Introduction
Thank you for choosing the Shimadzu AUW-D/AUW/AUX/AUY Series analytical balance. Shimadzu
confidently offers this high-performance analytical balance, the result of over 90 years of experience in
manufacturing precision balances. While providing rapid and accurate mass measurement, reliability
has been improved even more by employing the UniBloc cell, introduced for use in electronic balances
by Shimadzu in 1989. These Shimadzu analytical balances provide WindowsDirect functions for trans-
fer of measurement results to personal computer without installing software. This and other various
functions can be used to meet the operator’s objectives. Also, the AUW-D/AUW/AUX series offers con-
sistently accurate measurement without calibration work, with temperature detection and time setting,
and the built-in motor-driven calibration weight that performs fully-automatic span calibration.
In order to make full use of the functions and performance provided in the AUW-D/AUW/AUX/AUY
series balance, please read this instruction manual before using the balance and keep the manual for
future reference.
For information on the following points, please contact your Shimadzu Balance representative.
• Product warranty
• After service
For Basic Operation
This manual has notation for AUW-D series, AUW series, AUX series, AUY series, combined as AUW-
D/AUW/AUX/AUY series (or notations two to three series). Note that the menu settings and the calibra-
tion display examples shown in this manual are mainly for the AUW220 model. On different models,
the numerical values and other items may differ.
The model name can be found in the label placed in front of the weighing chamber. The alphabets in
model name indicate its series name. AUW220D and AUW120D are called AUW-D series.
Symbols Used in the Manual
1,2,3 … Shows operation procedure.
[POWER] key, etc. [ ] shows operation keys .
“E-CAL” etc.
g display
Mass display
Shows items displayed on the balance, including displays appearing during
menu selection.
The balance display is in gram unit so the value changes depending on the
load on the pan.
The balance display is in one of mass units so the value changes depending
on the load on the pan.
1
2. Component Names and Functions
2. Component Names and Functions
2.1 Main Components
Read these pages before installation
Weighing chamber
Eliminates the influence of air flow.
For Basic Operation
Anti-draft ring
Reduces influence on
measurement from air
drafts.
Balance main body
Label
Shows model name and information on legal measuring
instrument.
Indications of “Max”, “Min”, “e”,
“d” are required by legal metrology and do not restrict weighing
range in general weighing.

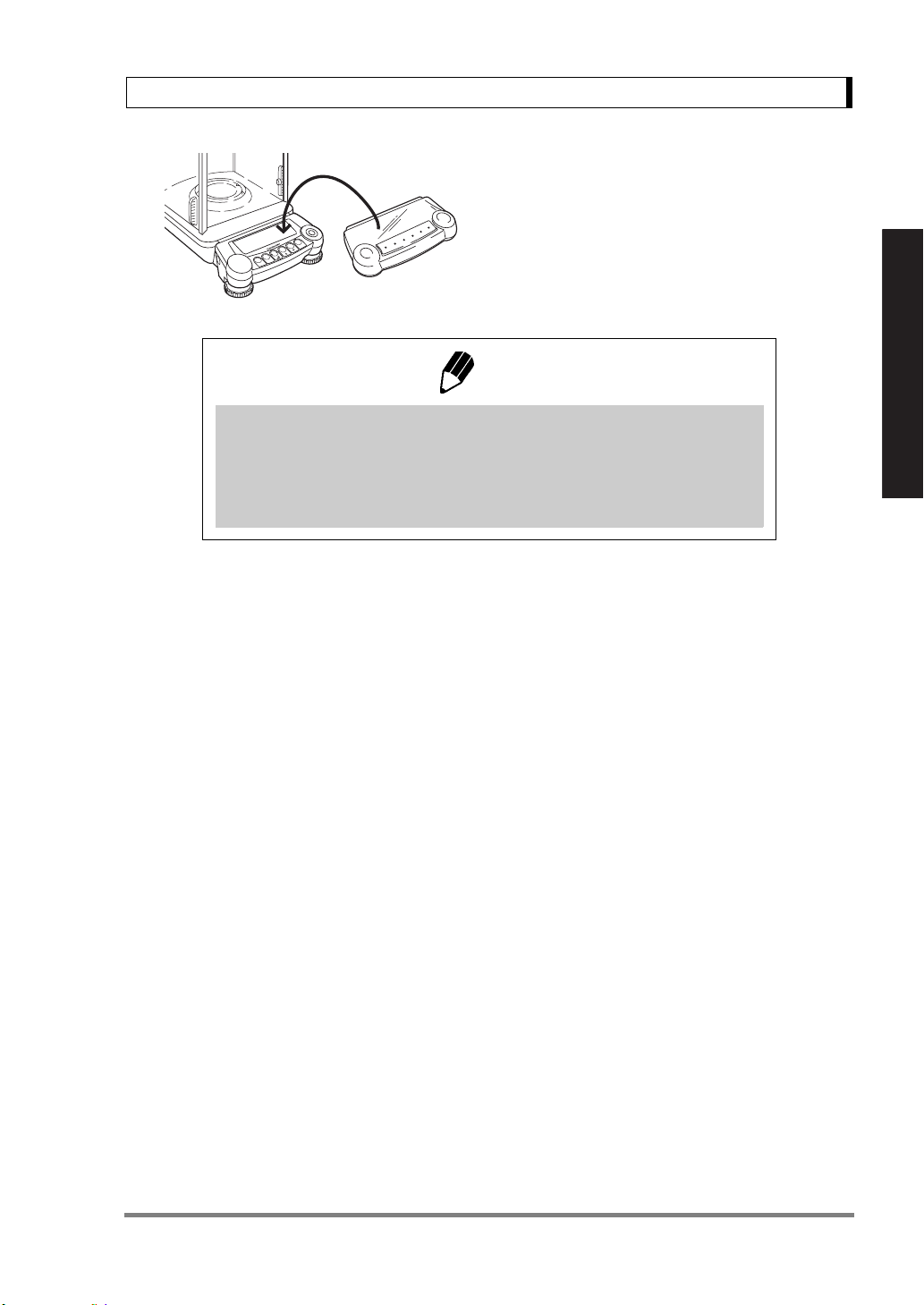

Keyboard connector
Sealing sticker
Please do not remove.
Data I/O connector
RS-232C connector
Glass door (3 places)
Opens to allow items to be put in
the weighing chamber.
Must always be closed when
reading the results.
Pan
Supports the object to be weighed.
1d/10d
PRINT
UNIT
O/T
C A L
MENU
POWER
B R K
Level screws
Adjusted for level installation
of the balance.
Display panel
Displays information such as
results, errors, functions in
progress, and information for
function settings.
Level indicator
used to install the
balance level.
Key panel
Contains the switches for
executing taring, function
setting, or calibration.
Ground terminal
attachment screw
2
DC IN
connector
Theft prevention ring
For chains or other
attachments.
Below-weigh hook cover
2.2 Key Panel and Operation
2. Component Names and Functions
1d/10d
[1d/10d] key
[POWER] key
POWER
B R K
[CAL] key
C A L
MENU
O/T
UNIT
PRINT
[O/T] key [UNIT] key [PRINT] key
The following is a list of the functions for each key.
Key
Pressed once and released Pressed and held for about 3 seconds
[POWER] Switches between the operation and standby modes. Switches the key notification buzzer on/off.
[CAL] Enter calibration or menu item selection. Enter calibration or menu item selection.
[O/T] Tares the balance. (Displays zero.)
[UNIT] Switches the units of measurement.
[PRINT]
[1d/10d]
Outputs the displayed values to an electronic printer,
computer, or other external devices.
AUW/AUX/AUY Switches display between 1d/10d. (Minimum display is rounded by one digit.)
AUW-D Switches the weighing range.
*1 Either “Taring” (at a weight exceeding 2.0% of the capacity) or “Zero-setting” (at a weight within 2.0% of the
capacity) takes place with a verified balance as a legal measuring instrument in EU.
*2 Output is not made until the display is stable with a verified balance as a legal measuring instrument in EU.
*3 Not applicable to a verified balance as a legal measuring instrument in EU.
Key
Pressed once and released Pressed and held for about 3 seconds
[POWER] Return to the menu above the current menu level. Returns to mass display.
[CAL] Moves to the next menu item.
[O/T] Select or set the displayed item, or enter into the displayed menu.
[UNIT] Numerical value input,
increases the numeric value of the blinking digit by 1.
[PRINT] Numerical value input, moves the blinking digit.
[1d/10d] No effect.
During Measurement
*1
Outputs the date and time to external
*2
devices. (Not with AUY)
During Menu Item Selection
*3
For Basic Operation
3
2. Component Names and Functions
2.3 Balance Display and Functions
For Basic Operation
Bar graph display section Units display section
Bar graph display section
(Some of the symbols and characters on the balance display are not used by this balance.)
Display Name Description
Stability mark
Tare symbol Indicates that Taring has been made at over 2.0% of the capacity.
Zero symbol
Weight symbol
[ ] Bracket
Number symbol Indicates numeric value entry.
Menu symbol Appears during menu selection. Always shown when the menu is locked.
Add-on symbol Indicates set-up of Add-on mode or Formulation mode.
Memory symbol Indicates set-up of Formulation mode.
Communication
symbol
Battery symbol
Auto Print symbol
Standby mark
Inverse triangle Illuminates as part of the solid specific gravity measurement display.
Indicates that the weighed value is stable. In menu selection, indicates the
currently selected item.
Note: Using a verified balance as a legal measuring instrument in the EU:
Indicates that the balance is set exactly to “Zero” with the zero-setting function
(within ±0.25e: e = verification scale interval).
Appears during span calibration. Blinks before automatic calibration starts.
Blinks to advise necessity of span calibration.
Note: Using a verified balance as a legal measuring instrument in the EU:
The figure(s) bordered by the bracket is(are) the auxiliary indicating device.
Indicates communication with external devices via RS-232C cable or Data I/O
connector. Shown when communication functions are ON.
Indicates a low battery voltage when using the balance with the optional battery pack.
Indicates set-up of the Auto Print function.
Appears during standby status. Indicates standby of the interval timer output
function.
4
3. Specifications
3. Specifications
Series name
Model name AUW220D AUW120D
Capacity 220g/82g 120g/42g 320g 220g 120g 320g 220g 120g 220g 120g
Minimum display
Repeatability
(standard
deviationσ)
Linearity
Response time
(typical)
Calibration weight Built-in None
Operation temperature range
Temperature coefficient
of sensitivity
(10 to 30 deg.c)
Sensitivity stability(10 to 30 deg.c)
Pan size 80mm dia Approx.
Main body
dimensions
Main body Weight 7kg Approx.
Rated electric
power supply
Data I/O RS-232C
Pollution Degree 2
Overvoltage Category
Altitude Up to 2000 m
Installation Site device may only used indoors
AC adapter (primary)
Display backlight
PSC automatic
span calibration
Clock-CAL
Built-in clock
GLP/GMP/ISO
calibration report
F
u
WindowsDirect
n
c
Interval timer
t
output
i
RS-232 C I/F
o
n
Specific gravity
measurement
software,
piece counting,
% display,
unit conversion
Analog
display
Battery
(option)
AUW-D series
(Dual range type)
0.1mg/0.01mg 0.1mg/0.01mg
≤0.1mg
(220g range)
≤0.05mg
(82g range)
±0.2mg
(220g range)
±0.1mg
(82g range)
3s
(220g range),
10s
(82g range,
Pouring mode
≤0.1mg
(120g range)
≤0.02mg
(42g range)
±0.2mg
(120g range)
±0.03mg
(42g range)
3s
(120g range),
10s
(42g range,
)
Pouring mode
)
±2ppm/
AUW series AUX Series AUY series
AUW320 AUW220 AUW120 AUX 320
0.1mg 0.1mg 0.1mg 0.1mg 0.1mg 0.1mg 0.1mg 0.1mg
≤0.15mg ≤0.1mg ≤0.1mg ≤0.15mg ≤0.1mg ≤0.1mg ≤0.1mg ≤0.1mg
±0.3mg ±0.2mg ±0.2mg ±0.3mg ±0.2mg ±0.2mg ±0.2mg ±0.2mg
5 to 40
deg.
C
deg.
C (when PSC function is Off) ±2ppm/
±2ppm (when PSC function is On)
220mm W X 330mm D X 310mm H
DC 12V, 1A
Category II
AC 100-240 V, 400mA 50/60Hz
AUX220 AUX120 AUY220 AUY120
3 s
deg.
•••
• • ••••••
• • •••
• • ••••••
• • ••••••
• • ••••••••
• • ••••••
• • ••••••••
• • ••••••••
• • ••••••••
• • ••••••••
C
For Basic Operation
5
3. Specifications
ECTA series name
Model name
Accuracy class
Capacity
Verification scale interval (e)
Number of verification
scale interval
g
Scale interval (d)
Range of use
Tare range (by subtraction)
Accuracy class
For Basic Operation
Capacity
Verification scale interval (e)
Number of verification scale
interval
ct
Scale interval (d)
Range of use
Tare range (by subtraction)
Calibration weight
Ambient operation temperature
Pan size
Main body dimensions
Main body weight
Rated electric power supply
Data I/O
Pollution Degree 2
Overvoltage Category Category II
Altitude Up to 2000 m
Installation Site device may only used indoors
AC adapter (primary) AC 100-240 V, 400mA 50/60Hz
Display backlight
PSC automatic span calibration
Clock-CAL
F
Built-in clock
u
n
GLP/GMP/ISO calibration
c
report
t
i
WindowsDirect
o
n
RS-232C I/F
Specific gravity measurement
software, piece counting, %
display
Analog display
AUW-D series (dual range type)
AUW220D AUW120D AUW320 AUW220
IIII
220g/82g 120g/42g 320g 220g
0.001g 0.001g 0.001g 0.001g
220000 120000 320000 220000
0.0001g/
0.00001g
0.001g to 220g 0.001g to 120g
220g 120g 320g 220g
IIII
1100ct/410ct 600ct/210ct 1600ct 1100ct
0.01ct 0.01ct 0.01ct 0.01ct
110000 60000 160000 110000
0.001ct/
0.0001ct
0.01ct to 1100ct 0.01ct to 600ct
1100ct 600ct 1600ct 1100ct
0.0001g/
0.00001g
0.001ct/
0.0001ct
AUW series AUX series AUY series
AUW120 AUX320 AUX220 AUX120 AUY220 AUY120
IIIIII
120g 320g 220g 120g 220g 120g
0.001g 0.001g 0.001g 0.001g 0.001g 0.001g
120000 320000 220000 120000 220000 120000
0.0001g 0.0001g
0.01g to
320g
0.001ct 0.001ct
0.1ct to
1600ct
220mmW X 330mmD X 310mmH approx.
0.0001g 0.0001g 0.0001g 0.0001g 0.0001g 0.0001g
0.01g to
0.01g to
0.01g to
0.01g to
220g
120g
320g
120g 320g 220g 120g 220g 120g
IIIIII
600ct 1600ct 1100ct 600ct 1100ct 600ct
0.01ct 0.01ct 0.01ct 0.01ct 0.01ct 0.01ct
60000 160000 110000 60000 110000 60000
0.001ct 0.001ct 0.001ct 0.001ct 0.001ct 0.001ct
0.1ct to
0.1ct to
1100ct
Built-in
10 to 30 deg.
80mm dia approx.
7kg approx.
DC 12V, 1A
RS-232C
0.1ct to
600ct
1600ct
600ct 1600ct 1100ct 600ct 1100ct 600ct
C
220g
0.1ct to
110 0ct
0.01g to
120g
0.1ct to
600ct
0.01g to
220g
0.1ct to
110 0ct
None
•••
• • ••••••
•••••
• • ••••••
• • ••••••
• • ••••••••
• • ••••••••
• • ••••••••
• • ••••••••
0.01g to
120g
0.1ct to
600ct
6
4. Installation
4. Installation
4.1 Installation Site
(1) Power Requirements
Select an installation site that is near a power source to allow the use of the attached AC
adapter or a site where the special accessory battery pack can be properly used. Verify that the
power voltage conforms to that indicated on the AC adapter.
(2) Installation site
The balance must be installed in a proper place to ensure safe and accu-
rate measurement. Avoid the following types of sites.
For Basic Operation
Caution
• Sites with air current from air conditioners, ventila-
tors, open doors, or windows.
• Sites with vibration.
• Sites in direct sunlight.
(Continued)
7
4. Installation
• Sites with extreme temperature changes, or high/
low temperature, or high/low humidity.
• Sites near flammable or corrosive gases.
• Sites with dust, electromagnetic waves, or magnetic fields.
Install on a sturdy and level tabletop in the room. Stone is recommended. Rather than the middle of the
room, the edges and corners are generally appropriate for vibration-free measurement.
For Basic Operation
Caution
The glass doors open backwards beyond the rear end of the main body.
Make certain enough space is saved to allow the doors fully open.
Note
Using a verified balance as a legal measuring instrument in the EU:
The balance must be used within the temperature range indicated on the
verification label.
4.2 Unpacking and Delivery Inspection
Caution
Analytical balance is a precision instrument. Make certain not to allow any
impact when placing it on the table.
10d
/
1d
PRINT
T
UNI
O/T
C A L
R
MENU
WE
O
P
B R K
8
Pan
Pan supporter
4. Installation
Explanatory operation sheet
1d/10d
PRINT
UNIT
O/T
C A L
MENU
POWER
B R K
Instruction manual
Balance main body
Anti-draft ring
In-use protective cover
AC adapter
Adapter cable holder
Verify that there has been no damage and that the following standard packing items are present. Con-
tact your local distributor in case of damaged or missing items.
Standard packed items and quantity
Standard packed items quantity
Balance main body 1
Pan 1
Pan supporter 1
Anti-draft ring 1
AC adapter 1
Adapter cable holder 1
Instruction manual 1
Explanatory operation sheet 1
Inspection certificate 1
In-use protective cover 1
For Basic Operation
9
4. Installation
4.3 Installation
For Basic Operation
(2)
Pan
(1)
Pan supporter
Anti-draft ring
(3)
1 Attach the adapter cable holder.
Peel the protective sheet of adhesive off the
adapter cable holder , and stick it on the back of
the balance as shown in the figure.
2 Place the balance main body on the installation
site.
3 Attach the pan supporter, the pan, and the anti-
draft ring.
(1) Gently attach the pan supporter on the center
axis of the weighing chamber.
(2) Gently place the pan on the pan supporter.
(3) Place the anti-draft ring.
POWER
B
R
C
K
MENU
Level screws
10
A
L
O
/T
U
N
IT
P
R
IN
T
1d
/10d
4 Adjust the horizontal level. (level adjustment)
There are two level screws on the front of this bal-
POW
E
R
C
B R
A
K
L
O
M
/
E
T
N
U
U
N
I
T
P
R
I
NT
1
d
/1
0
d
1d/10d
PRINT
Level indicator
bubble
ance. The screws grow longer when turned in
clockwise direction from above and they grow
shorter when turned counter-clockwise. Adjust the
level screws until the bubble in the level indicator
is in the middle of the red circle.
4. Installation
5 Attach the In-use protective cover.
When the key panel and the display must be pro-
tected from dirt and wear, place the cover over the
d
/10
1d
T
IN
PR
IT
UN
/T
O
L
A
C
U
ER
N
ME
OW
P
K
R
B
Using a verified balance as a legal measuring instrument in the EU:
Legal regulations require a verified balance be sealed. This control seal is a
self-destructive adhesive label. This seal is irreparably damaged invalidat-
ing the verification, if you attempt to remove it. The balance must then be
re-verified before it is used for legal measurements.
key panel.
Note
For Basic Operation
11
4. Installation
4.4 Turning On the Power
For Basic Operation
Clip
1 Insert the AC adapter plug in to the DC IN con-
nector on the back of the balance. Place the AC
adapter cable as shown in figure and hold it with
the adapter cable holder.
2 Plug the AC adapter to the power outlet. After
the balance performs a self check, calibration will
be automatically executed. During this process,
the display will change as follows. “CHE 5”, “CHE
4” ...... “CHE 0”, “*.**-*.**”, “CAL 2”, “CAL 1”, “CAL
0”, “CALEnd”, “oFF” (This span calibration imme-
diately after power up can be aborted by pressing
the [POWER] key, however at least one span cali-
bration is necessary before use. The AUY series
does not perform calibration and the display
showing “CAL...” will not appear.)
“*.**-*.**” shows version number of software.
Note
A power cable may be necessary to connect
the AC adapter to the power source, depending on the type of the AC adapter
.
AC Adapter
Balance
Power Source
Power cable
3 Press the [POWER] key. After all displays
appear, the gram (g) display appears. Also, the
display backlight illuminates (AUW series only).
4 Pressing the [POWER] key again turns on the
standby symbol and puts the balance in standby
(warm up) status. (For AUW-D/AUW/AUX series,
the current time is displayed according to the
built-in clock settings in 8. For the AUW series,
the backlight will turn off.)
12
4. Installation
4.5 Span Calibration
Note
Using a verified balance as a legal measuring instrument in the EU:
Span calibration must be performed once the balance is installed and
before using the balance as a legal measuring instrument in the EU. The
balance must be connected to power and warmed up for at least one hour
prior to span calibration and use as a legal measuring instrument.
When intending to use the AUW-D series in the small range (minimum dis-
play d=0.01mg), warm it up for at least four hours.
After installation, be certain to complete warm up and span calibration. During span calibration, the bal-
ance must be left in a very stable condition. To do this, leave the power on at standby (warm up) for an
hour or more before performing calibration. When using the AUW-D series in the small range (mini-
mum display 0.01mg), leave the power on for at least four hours. Also, perform calibration in conditions
without people entering and leaving the room and without air flow or vibration. The AUW series is
equipped with display backlight. Use of the backlight requires warm up in mass display such as "g", not
in standby state. The default setting of backlight is ON.
For Basic Operation
For AUW-D/AUW/AUX Series (No operation is required)
Fully-automatic span calibration by PSC
The default setting is ON for PSC, which performs fully-automatic span calibrations. When PSC is ON,
span calibration is automatically performed, if necessary, when the gram display first appears after the
balance is turned ON (See 4.4). When PSC operates, the weight symbol starts blinking about two
minutes beforehand for notification. During operation, the display will automatically change and the
motor sound of the weight loading system is heard. In order to ensure proper PSC operation, prevent
vibrations and air flow. When gram display returns after completion of span calibration by PSC, mea-
surement can begin according to 5. Basic Operation. (Fully-automatic span calibration by PSC is set to
ON by default. Also, span calibration with built-in calibration weight is set as preset calibration method
by default. For other methods, please refer to 10. Calibration. The AUW-D/AUW series also allow
Clock-CAL function to perform span calibrations regularly by time settings.
Note
For accurate measurement, perform span calibration again when the bal-
ance is moved or when the temperature of the installation site has
changed. It is recommended that either PSC or Clock-CAL be set to ON so
that the necessary calibrations will operate automatically.
13
4. Installation
(Example)
For Basic Operation
For AUY Series
Span calibration with external weights
1 Leave the pan with nothing on, in g display
mode.
2 Press the [CAL] key once. “E-CAL” will be dis-
played.
3 Press the [O/T] key. The zero display will blink.
Stability is confirmed after about 30 seconds and
the value of the weight that should be loaded will
blink.
4 Open the glass door, load the weights of the
amount shown, and close the glass door of the
weighing chamber.
g
d
0
/1
d
1
T
IN
R
P
IT
N
U
/T
O
L
A
C
R
U
E
N
E
W
M
O
P
K
R
B
5 After a short time, the zero display will blink.
Remove the weight from the pan and close the
glass door. After “CAL End” appears, the display
returns to g display mode and the calibration is
complete.
Span calibration by external weights is set for rou-
tine calibration by default in AUY series. For other
methods, see 10. Calibration.
Note
For accurate measurement, perform calibration again when the balance is
moved or when the temperature of the installation site has changed. Daily
calibration before use is recommended.
14
5. Basic Operation (Read Chapters 1 to 5 for basic but proper operation of the balance.)
5. Basic Operation
(Read Chapters 1 to 5 for basic but proper operation of the balance.)
Note
Before using the balance, warm up thoroughly (at least one hour) and cali-
brate. When intending to use the AUW-D series in the small range (mini-
mum display 0.01mg), warm it up for at least four hours.
5.1 Weighing
A
C
R
E
W
O
P
K
R
B
A
C
R
E
W
O
P
K
R
B
For Basic Operation
1 Open one of the glass doors of the weighing
chamber, place the weighing vessel (container)
on the pan, and close the glass door again.
(When using a container)
g
d
0
1
/
d
1
T
N
I
R
P
T
I
N
U
T
/
O
L
U
N
E
M
2 Wait for the display to stabilize and press the
[O/T] key (taring). The appearance of the stability
mark ( ) indicates a stable state. The display
will read zero.
g
d
0
1
/
d
1
T
N
I
R
P
T
I
N
U
T
/
O
L
U
N
E
M
3 Open the glass door, place the items to be
weighed in the weighing vessel and close the
glass door.
g
d
0
1
/
d
1
T
N
I
R
P
IT
N
U
T
/
O
L
A
C
R
U
E
N
E
W
M
O
P
K
R
B
4 After the display stabilizes, read the display.
15
5. Basic Operation (Read Chapters 1 to 5 for basic but proper operation of the balance.)
• Except when placing or removing items or calibration weights to and
• Air convection causes measurement error if the temperatures of the
For Basic Operation
Using a verified balance as a legal measuring instrument in the EU:
function (within ±0.25e: e = verification scale interval).
Using a verified balance as a legal measuring instrument in the EU:
The balance must be used within the temperature range indicated on the
verification label.
When PSC (refer to 10.3.2), fully-automatic span calibration, is not acti-
vated, operator must carry out span calibration (refer to 10.2) upon blink-
ing of the Weight Symbol.
Note
from the weighing chamber, keep the glass doors closed unless other-
wise described in this manual.
weighed item and the chamber are different. In order to avoid this,
equalize the temperatures by leaving the item in the extra space within
the chamber before weighing.
Notes
Indicates that the balance is set exactly to “Zero” with the zero-setting
16
5. Basic Operation (Read Chapters 1 to 5 for basic but proper operation of the balance.)
5.2 Changing the Unit Display
Pressing the [UNIT] key switches display between the registered units, piece counting and specific
gravity measurement modes. The units other than 'g', 'pcs', '%' and 'ct' are not registered in the default
settings.
Note
The units to be used must be registered as described in 12.Units. If the
power is turned off and turned on again, the weighing unit will be 'g'. (The
registered units remain.)
5.3 Switching the Weighing Range (AUW-D series only)
In the dual-range balance AUW-D series, when the power is connected and turned on, the balance is
set to the “small range” with a minimum display of 0.01mg. To switch to the “large range” with a mini-
mum display of 0.1mg, press the [1d/10d] key (except for AUW-D series, this key has a different func-
tion. 9.2) . When measurement exceeds the small range capacity (82g for AUW220D, 42g for
AUW120D) during use of the small range, display automatically switches to the large range. In this
case, taring with [O/T] key in the large range will fix the range, and reducing the load on the pan within
the small range capacity will not return it to the small range. [O/T] key has to be pressed again, within
the small range, to resume the small range display.
For Basic Operation
Small range
Large range
17
