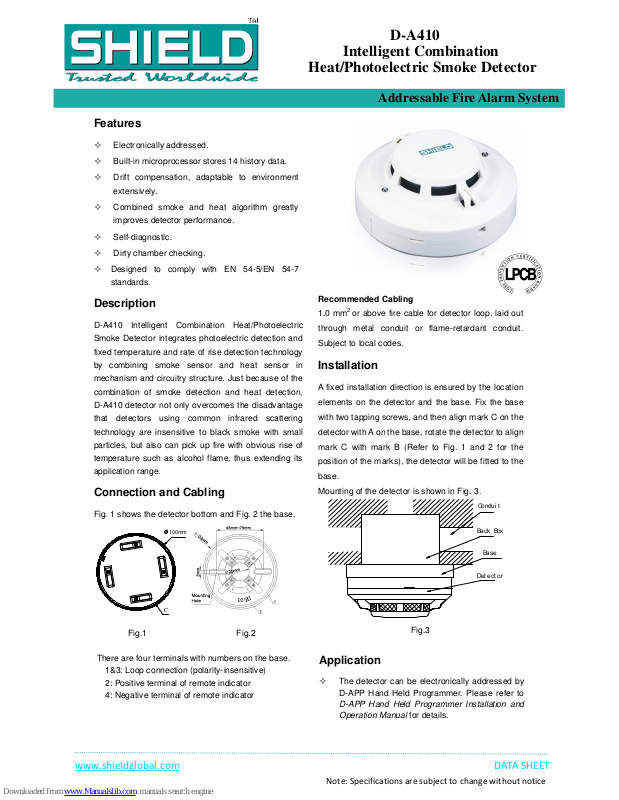

Page 1
Heat/Photoelectric Smoke
Detector
larm System
Features
Electronically addressed.
Built-in microprocessor stores 14 history data.
Drift compensation, adaptable to environment
extensively.
Combined smoke and heat algorithm greatly
improves detector performance.
Self-diagnostic.
Dirty chamber checking.
Designed to comply with EN 54-5/EN 54-7
standards.
Description
D-A410 Intelligent Combination Heat/Photoelectric
Smoke Detector integrates photoelectric detection and
fixed temperature and rate of rise detection technology
by combining smoke sensor and heat sensor in
mechanism and circuitry structure. Just because of the
combination of smoke detection and heat detection,
D-A410 detector not only overcomes the disadvantage
that detectors using common infrared scattering
technology are insensitive to black smoke with small
particles, but also can pick up fire with obvious rise of
temperature such as alcohol flame, thus extending its
application range.
Connection and Cabling
Fig. 1 shows the detector bottom and Fig. 2 the base.
100mm
D-A410
Intelligent Combination
Addressable Fire A
Recommended Cabling
2
1.0 mm
through metal conduit or flame-retardant conduit.
Subject to local codes.
Installation
A fixed installation direction is ensured by the location
elements on the detector and the base. Fix the base
with two tapping screws, and then align mark C on the
detector with A on the base, rotate the detector to align
mark C with mark B (Refer to Fig. 1 and 2 for the
position of the marks), the detector will be fitted to the
base.
Mounting of the detector is shown in Fig. 3.
or above fire cable for detector loop, laid out
Condui t
Back Box
C
Fig.1 Fig.2
There are four terminals with numbers on the base.
1&3: Loop connection (polarity-insensitive)
2: Positive terminal of remote indicator
4: Negative terminal of remote indicator
www.shieldglobal.com DATA SHEET
Base
Det ect or
Fig.3
Application
The detector can be electronically addressed by
D-APP Hand Held Programmer. Please refer to
D-APP Hand Held Programmer Installation and
Operation Manual for details.
Note: Specifications are subject to change without notice
Page 2
Specification
Operating
Voltage
Standby
Current
Alarm Current ≤5.0mA
Indicator Red. Flashes in polling, and
Alarm
Temperature
Class A2R
Alarm Temp
Programming
Method
Code Range one address within 1～242.
Weight About 120g
Ingress
Protection
Rating
Environment
Temperature
Relative
Humidity
Material
Enclosure
Dimensions Diameter: 100mm
Mounting
Hole Distance
Wiring
loop 24V (16V~28V)
≤0.8mA
illuminates in alarming
58℃
℃
58
Electronically programming
IP22
-10℃～+50℃
≤95%, non condensing
ABS
of
Height: 56mm(base)
45mm～75mm
Non-polarized 2-core for loop.
Polarized 2-core for remote
indicator.
Maintenance
The detector should be installed just before
commission and kept well before installation.
Corresponding measures should be taken for
dust-proof, damp-proof and corrosion-proof.
Dust covers are an effective way to limit the entry
of dust into smoke detector sensing chambers.
Therefore, the dust cover should not be removed
until the building starts to be used.
Clean the detector at least once 1 year to ensure
normal operation of the system.
If unwanted alarms are often found of the detector
on site, the sensing chamber should be cleaned.
Power must be removed from the detector before
cleaning.
Before cleaning the detector, notify the proper
authorities that the system is undergoing
maintenance and will be temporarily out of service.
Disable the zone or system undergoing
maintenance to avoid any unwanted alarms.
The detector should be tested again after cleaning
and re-installing. Notify the proper authorities
when the system is back in service.
Fire simulation test should be done to the detector
at least once 6 months.
Accessories and Tools
Model Name Remark
D-APP Hand held
programmer
DZ-03 Base Order separately
Order separately
Limited Warranty
SHIELD warrants that the product will be free of
charge for repairing or replacing from defects in design,
materials and workmanship during the warranty period.
This warranty doesn’t cover any product that is found
to have been improperly installed or used in any way
not in accordance with the instructions supplied with
the product. Anybody, including the agents,
distributors or employees, is not in the position to
amend the contents of this warranty. Please contact
your local distributor for products not covered by this
warranty.
www.shieldglobal.com DATA SHEET
Note: Specifications are subject to change without notice
