Shenzhen GPT26 User Manual

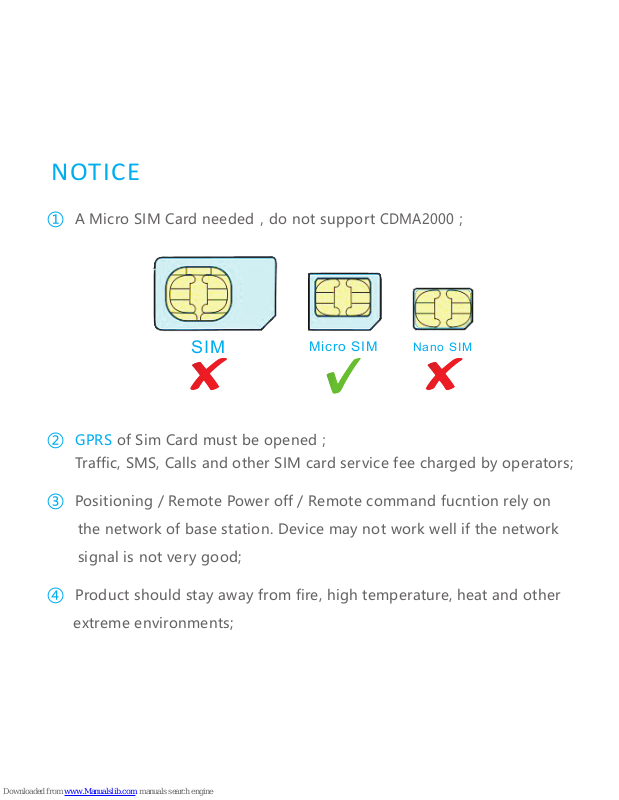

① A Micro SIM Card needed，do not support

CDMA2000

；

NOTICE

② GPRS of Sim Card must be opened；

Traffic, SMS, Calls and other SIM card service fee charged by operators;

③ Positioning / Remote Power off / Remote command fucntion rely on

the network of base station. Device may not work well if the network

signal is not very good;

④ Product should stay away from fire, high temperature, heat and other

extreme environments;

SIM

Micro SIM

Nano SIM

INTRODUCTION

GPS (GPS Satellite signal,Blue)

Quick flash: Searching for GPS

Satellite signals (Not positioned);

Slow flash: Found GPS signals ;

( Positioned by GPS )

Blue LED Long light after charging.

GSM LED ( LBS / Base signal, Red )

Quick flash: Searching for base signals

( Not connect yet) ;

Slow flash: Found base signals ;

( Base Connected and LBS start )

Red LED Long light when charging.

Recharge Hole

Power button : Press >3s to power on (No power off button, use app to power off)

SOS：Press >3s to send SOS alarm to web platform and APP when device is working.

USB Plug

Power On

SOS

LED Indicator

SIM Slot

GPS Positioning Accuracy 5-15m (Depend GPS signal)

About 200m (Depend Bases Density)

1575 MHz

7000 mAh

180 g

108.5(L)×66.5(W)×22.4(H)

20%~80%RH

-20℃~65℃

850/900/1800/1900 MHz

<3秒，<15秒，<60秒

LBS Positioning Accuracy

GPS Frequency

GSM Frequency

Hot/Warm/Cold Start Time

Battery Capacity

Dimensions (mm)

Temperature

Humidity

Weight

Funcon/Parameter

GPS/LBS double-Positioning mode, intelligent switching

For various application scenarios of vehicle tracking

Built-in magnets, can be adsorbed on iron

IP67 waterproof

Emergency SOS for help

Real-time tracking on Platform & APP ,playback track in 90 days

Receive SOS alarm, fence alarm, low battery alarm on APP
