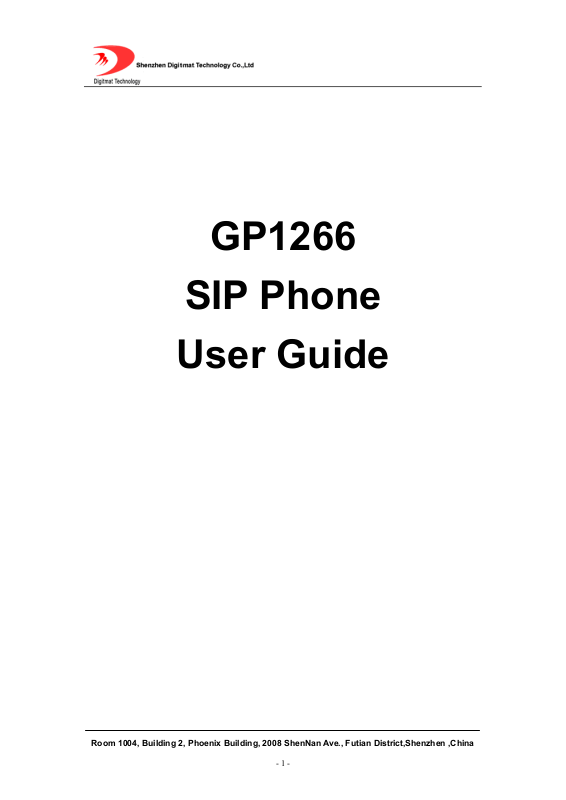

Shenzhen GP1266 User Guide
GP1266
SIP Phone
User Guide
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 1 -
INDEX
1. PRODUCT OVERVIEW ......................................................................................... 4
2. FEATURES AND SPECIFICATION ....................................................................... 4
2.1. Hardware Features.......................................................................................... 4
2.2. Software Features ........................................................................................... 5
2.3. Standard and Protocol..................................................................................... 6
2.4. Electric Requirements ..................................................................................... 7
2.5. Size ................................................................................................................. 7
2.6. Operating Requirements ................................................................................. 7
3. INSTALLATION...................................................................................................... 8
3.1. Parts List ......................................................................................................... 8
3.2. Connecting the Phone..................................................................................... 8
4. GP1266 APPEARANCE ........................................................................................ 9
4.1. GP1266 SIP Phone Illustration........................................................................ 9
4.2. Function Keys ............................................................................................... 10
4.3. LED Functions............................................................................................... 10
5. CONFIGURATION GUIDE ................................................................................... 11
5.1. Configuration with Keypad ............................................................................ 11
5.1.1. Using function keys ............................................................................ 11
5.1.2. Viewing System Info ........................................................................... 13
5.1.3. Network Settings ................................................................................ 14
5.1.4. Voice Settings..................................................................................... 14
5.1.5. Protocol Settings ................................................................................ 15
5.1.6. Dialplan Settings................................................................................. 16
5.1.7. System Settings.................................................................................. 16
5.2. Configuration with Web Browser ................................................................... 16
5.2.1. Network Settings ................................................................................ 17
5.2.2. Voice Settings..................................................................................... 19
5.2.3. Basic Protocol Settings....................................................................... 20
5.2.4. Advanced Protocol Settings ............................................................... 22
5.2.5. Dialplan Settings................................................................................. 24
5.2.6. System Settings.................................................................................. 27
5.2.7. Phone Book........................................................................................ 29
5.2.8. Digit Maps .......................................................................................... 29
6. USING GP1266 SIP PHONE ............................................................................... 31
6.1. Placing Phone Calls ...................................................................................... 31
6.1.1. Off-hook, On-hook and Speaker-phone Mode .................................... 31
6.1.2. Dial Directly ........................................................................................ 31
6.1.3. Redial ................................................................................................. 31
6.1.4. Call from CALL HISTORY................................................................... 32
6.1.5. Call from PHONE BOOK .................................................................... 32
6.1.6. Speed dial........................................................................................... 32
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 2 -
6.2. Answering calls ............................................................................................. 33
6.2.1. Answering a call ................................................................................. 33
6.2.2. Call Hold............................................................................................. 33
6.2.3. Call Waiting ........................................................................................ 33
6.2.4. Switch between two calls.................................................................... 33
6.3. Call Transfer.................................................................................................. 34
6.3.1. Blind Transfer ..................................................................................... 34
6.3.2. Attended Transfer............................................................................... 34
6.4. Call Forward.................................................................................................. 35
6.4.1. Forward Unconditionally ..................................................................... 35
6.4.2. Forward when busy ............................................................................ 35
6.4.3. Forward when no answer ................................................................... 35
6.5. Auto-answer .................................................................................................. 35
6.6. Mute .............................................................................................................. 35
6.7. Do Not Disturb (DND).................................................................................... 36
6.8. Checking Voice Message.............................................................................. 36
6.9. Save/Delete a CALL HISTORY..................................................................... 36
6.10. Edit PHONE BOOK....................................................................................... 37
6.10.1. Save PHONE BOOK .......................................................................... 37
6.10.2. Add a contact...................................................................................... 37
6.10.3. Modify a contact ................................................................................. 38
6.10.4. Delete a contact entry......................................................................... 39
6.10.5. Delete All Contacts ............................................................................. 39
7. FIRMWARE UPGRADE....................................................................................... 40
7.1 Manually upgrade................................................................................................... 40
7.1.1. Select upgrade item............................................................................ 40
7.1.2. Locate upgrade file ............................................................................. 40
7.1.3. Start upgrade...................................................................................... 41
8. LOAD AND STORE FACTORY SETTINGS......................................................... 41
8.1 Load Defaults Settings ........................................................................................... 41
8.2 Store Defaults Settings .......................................................................................... 41
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 3 -
1. PRODUCT OVERVIEW
IP is the acronym for Internet Protocol. An IP phone is a telephone which
transmits voice over network based on IP protocol, for example LAN (Local
Area Network), MAN (Metropolitan Area Network) and INTERNET.
The most significant feature of IP phone is transporting voice over data
communication network with almost no extra cost and comparable voice
quality and various supplementary services. Using IP phone, you will save
tremendously on international calls and long distance calls.
GP1266 SIP IP phones provide an affordable IP phone system with ease of
use, superior voice quality, economic physical design, advanced services, and
features.
GP1266 SIP IP phones come with a four lines dot-matrix LCD display, ten
speed dial keys and all kinds of calling features and functions. User can
configure either through keypad or web browser.
2. FEATURES AND SPECIFICATION
2.1. Hardware Features
● Main chip—AR1688 (MCU 60MHz ;DSP 72MIPS)
● On chip SRAM—116KB
● 18 Bits High Performance On chip Codec
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 4 -
● Program Memory—2 MB Flash memory
● Display LCD—128 X 64 Graphics Dot.
● Ethernet Port—2X 10/100M Connectors
● Power Over Ethernet
(POE) (Optional)
2.2. Software Features
● DHCP support for LAN or Cable modem
● PPPoE dialup
● Built in web server for configuration and upgrade
● On phone menu for configuration through keypad
● Automated provisioning of firmware and configuration via HTTP
● Manual upgrade firmware via HTTP;
● Multiple audio codec support:
PCMU;PCMA;G.726-32;GSM6.10;iLBC;Speex;G.729
● VAD(Voice Activity Detection)
● CNG (Comfort Noise Generation)
● Dynamic Jitter Buffer
● G.165/168 compliant 32ms echo cancellation
● Tone generation and DTMF generation
● DTMF Transmission: Inband audio; RFC2833; SIP INFO
● Call Hold with Music On Hold Support
● Call Waiting
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 5 -
● Call Transfer (Attended & Blind)
● Call Forwarding – Unconditional, No Answer, On Busy
● Auto-Answer
● Do-Not-Disturb
● Configurable Dial Plan Support
● Phone Book with 100 entries
● Speed Dialing Support (10 entries)
● Call History: Missed, Answered, Dialed Numbers with call time (10
each)
● Adjustable volume for both handset and speaker
● Hot Line Calling
2.3. Standard and Protocol
● SIP (RFC2543; RFC3261;RFC3262 ; RFC2976 ; RFC3264 ; RFC3311 ;
RFC3515 ; RFC3666 ; RFC3420 )
● IEEE 802.3 /802.3 u 10 Base T / 100Base TX
●Support for Layer3 Qos(Diff-Serv) and Layer 2 Qos (802.1P/Q)
● PPPoE: PPP over Ethernet
● Power over Ethernet: IEEE 802.3af (Optional)
● TCP/IP: Transmission Control Protocol / Internet Protocol
● ARP: Address Resolution Protocol
● ICMP: Internet Control Message Protocol
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 6 -
● RTP: Real-time Transport Protocol
● RTCP：Real-time Transport Control Protocol
● DHCP：Dynamic Host Configuration Protocol
● DNS：Domain Name Server
● TFTP：Trivial File Transfer Protocol
● HTTP：Hyper Text Transfer Protocol
● SNTP：Simple Network Time Protocol
● Syslog：The BSD syslog Protocol
2.4. Electric Requirements
●Voltage: 48V DC (POE Type); 5V AC/DC
●Power: 4.5W (max.)
2.5. Size
238 x 188 x 70 mm (L x W x H)
2.6. Operating Requirements
●Operation temperature: 0 to 45° C (32° to 113° F)
●Storage temperature: -30° to 85° C (-22° to 185° F)
●Humidity: 10 to 90% no dew
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 7 -
3. INSTALLATION
3.1. Parts List
Check this following list before installation to make sure that you have received
all items. If any item is not included in the package, please contact the
distributor.
1) One GP1266 SIP Main Case
2) One Handset
3) One Universal Power Adapter
4) One product qualification and guarantee
5) One User Guide CD-ROM
6) One RJ-45 Ethernet cable
3.2. Connecting the Phone
1. Connect handset to base: insert the handset cord into a handset cord jack
on the left side of the base.
2. Connect the phone to Network: plug the RJ-45 Ethernet cable into the
Ethernet Jack. Plug the other end of the cable into HUB or switch.
3. Power on the phone: plug one end of the power cord adapter into the
power connector on the phone. Then plug the other end of the power cord
adapter into the appropriate wall outlet.
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 8 -
4. GP1266 APPEARANCE
4.1. GP1266 SIP Phone Illustration
● GP1266 SIP Phone Front Illustration (Refer to Fig 4.1.1)：
Mute/
DND
LCD Display
Power
LED
Network1
LED
Network2
LED
Transfer
Hold
Message
Left
Speaker
OK
Flash
Call
Fig 4.1.1 GP1266 Phone Front
● GP1266 SIP Phone Back Illustrations(Refer to Fig 4.1.2 )
Speed dial
M1---M10
VOL+/UP
Right
Menu
VOL-/Down
Cancel
Redial
Network connect 1 Network connect 2
Power Jack
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 9 -
Fig 4.1.2 GP1266 SIP Phone Back
4.2. Function Keys
Keys Function Keys Function
M1-M10
UP(▲)
DOWN(▼)
LEFT(▲)
RIGHT(▼)
CANCEL
SPEAKER
FLASH
Speed-Dial key, each corresponds to
a speed dial number which will be
called by a single press.
Increase the output volume of handset or speakerphone.
In MENU mode, press this key to scroll up.
Decrease the output volume of handset or speakerphone.
In MENU mode, press this key to scroll down menu options.
In EDIT status, press this key to backspace.
In EDIT status, press this key to shift cursor right.
In MENU mode, press this key to go
back to the upper level of menu.
Enter speakerphone mode. Press
again to switch back to the handset
mode.
Press this key to accept a waiting
call, start a consulting call or switch
between two calls.
MENU
REDIAL
OK
CALL
When phone is idle,
press this key to enter
MENU mode.
Dial the last called
In MENU mode, enter
the submenu and
confirm the input.
Place a call to the
number entered.
number.
MESSAGE
TRANSFER
Place a call to the pre-configured
voice message number.
Press this key to complete a blind
transfer or attended transfer.
HOLD
MUTE/DND
Temporarily hold the
current call. Press
again to unhold.
Toggle DND on and
off when phone idle or
mute local voice when
in a call.
4.3. LED Functions
NETWORK1
LED
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
On: The connection is all right.
Flashing: Data transmitting and
receiving.
- 10 -
NETWORK2
LED
On: The connection is
all right.
Flashing: Data
POWER LED
Off: Network cable is
disconnected or network error.
On: the power supply is all right.
Off: the power supply is
disconnected.
HOLD LED
transmitting and
receiving.
Off: Network cable is
disconnected or
network error.
On: The call is on
hold .
MESSAGE
LED
On: There are unread voice
messages.
Off: No new voice message.
MUTE/DND
LED
On: Local voice is
muted when in a call;
Do-Not-Disturbed is
turned on when phone
idle.
5. CONFIGURATION GUIDE
After the phone is properly installed, users can use keypad or web browser to
configure its parameters.
5.1. Configuration with Keypad
5.1.1. Using function keys
1. Enter menu mode:
With the phone on-hook, press MENU key to enter the main menu. The
screen will display “Phone Book”. Please refer to Fig 5.1.1.
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 11 -

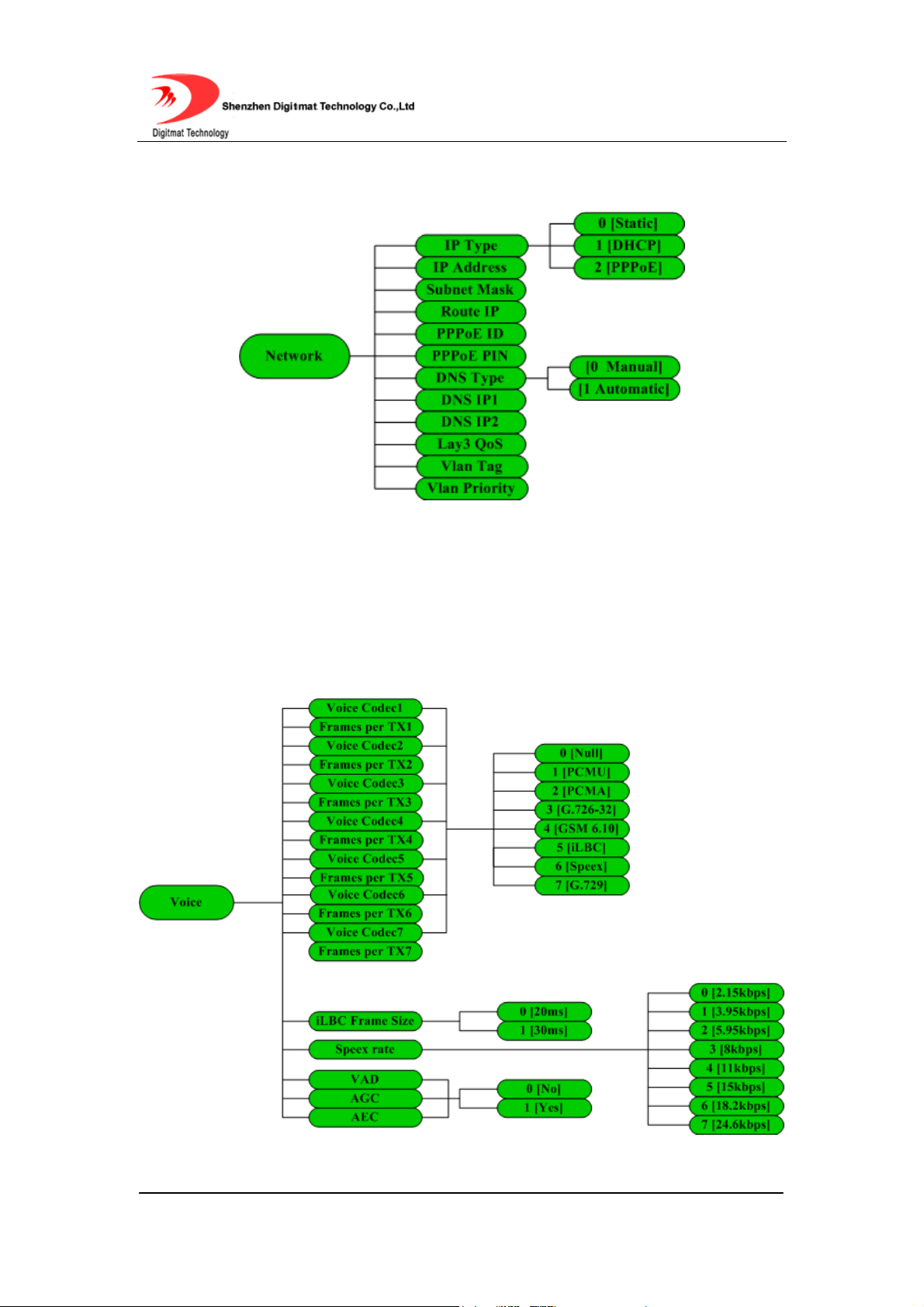

Fig 5.1.1 Main Menu and Phone Settings Menu Structure
2. Scroll the menu
Press UP（▲）, DOWN（▼） key to scroll through menu items.
3. Enter the submenu
Press OK key to enter the next level of the menu.
4. Edit and confirm
Press OK key to enter the edit mode, when current menu item has no
submenu. A cursor will appear in this mode. Press OK key to confirm the input.
5. Delete a character and move cursor
Use LEFT key to backspace and RIGHT key to shift cursor right in edit mode.
6. Return to the upper menu
Press CANCEL key to go back to the upper level of the menu or exit the edit
mode.
7. Exit menu mode and abort all changes
In menu mode, pick up the handset or press SPEAKER key to abandon the
changes and return to idle mode.
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 12 -
8. Save/Abandon the changes
After the parameters have been modified,
1. Press CANCEL key several times to go back to the main menu, LCD will
display “Save xxxx?”.
2. Press OK key. The phone will save the modified contents and reboot.
Or press CANCEL key, the phone will abandon all modifications and stay in
menu mode.
5.1.2. Viewing System Info
Step 1: With the phone on-hook, press MENU key to enter the main
menu.
Step 2: Press UP（▲）, DOWN（▼） key to scroll to System Info submenu.
Step 3: Press OK key to enter the System Info submenu.
Step 4: Use UP（▲）, DOWN（▼） key to scroll through the basic information
of the phone, including IP Address, Phone Number, MAC Address, Phone
Model, Protocol , Language , OEM Tag and Version .
Step 5: Press CANCEL key to go back to the upper menu.
Step 6: Use UP（▲）, DOWN（▼） key to scroll to Phone Settings submenu.
Press OK key to enter Phone Settings submenu.
Room 1004, Building 2, Phoenix Building, 2008 ShenNan Ave., Futian District,Shenzhen ,China
- 13 -
Loading...
