User Manual
AARDWOLF optiMA 10X
APF-10Xopt-120LED
IntelSocket LGA 2066/2011/1366/1156/1155/1151/1150/775
AMD Socket FM2 /FM2+ /FM1 /AM3+ /AM3 /AM2+ /AM2 /AM4
ENGLI SH
РУСС КИЙ
УКРАЇНСЬК А
www.senjin-cn.com www.performa.cool
HIGH PERFOR MANCE CPU COOLER
A1 陈超/180823内容修改，版本升级，用量料号材料不变。
English
WWW.SENJIN-CN.COM
2
English
WWW.SENJIN-CN.COM
2
1. Precautions
1) This model of processor cooling system must be used with 120 mm fan.
2) To prevent injury or damage to the fan or its blades, avoid moving objects or parts of
the body into the fan while fan it is operating.
3) Thermal Grease, which is included, is intended exclusively for installation of the system
on the processor and is not a food. Avoid touching of Thermal Grease with skin, eyes,
do not use inside, keep inaccessible for children and animals. If the Thermal Grease
has hit the skin, immediately rinse with water. If you come in or if you have other health
problems when using a Thermal Grease - immediately consult a doctor.
4) To prevent possible injures, gloves must be worn while handling this product.
5) It is advisable not to use force when fastening the fan and installing the system on the
processor, this can damage the parts of the device.
6) It is necessary to store and use the device in places not accessible to children.
7) Carefully read the setup and installation instructions before starting to work with the
device. If you find a discrepancy with the information provided, contact the seller of the
item to replace or complete.
8) When transporting a computer system, the cooler should be removed from the
motherboard. The Supplier is not responsible for the damage that occurred during the
transportation of the goods.
9) The appearance and completeness of the goods may be supplemented or modified in
order to improve or improve the quality of the goods.
10) The supplier is not responsible for damage to the processor cooling system and the
processor, as a result of the use of installing aggressive chemical thermal interfaces
not provided for by this instruction and manufactured by third parties.
English
WWW.PERFORMA.COOL
3
English
WWW.PERFORMA.COOL
3
2. Specifications
CPU Cooling system Aardwolf Optima 10X (АPF-10XOPT-120LED)
Product code: АPF-10XOPT-120LED
IntelSocket LGA
2066 /2011 /1366 /1156 /1155 /1151 /1150 /775
AMD Socket
FM2 /FM2+ /FM1 /AM3+ /AM3 /AM2+ /AM2 /AM4
Моdel
АPF-10XOPT-120LED
Маterials
Pure Сopper /Aluminium /Plastic
Fan size
120 х 120 х 25 mm
Bearing type
FSB (Fluid Shield Bearing)
Fan RPM
1000 ~ 1700rpm ± 10%
The surface area of the radiator plates
6409,39 cm2
Speed Control
PWM Control, Auto Restart
Fan Noise
16 ~ 31dBA
Connector
4 Pin
Input voltage
12V
Static pressure
3,81 mm / H2O
Fan Performance
60 CFM
Current strength
0,25А
Consumption
3 W
TDP
≤160W
Dimension (with fan)
130(W) х 94.9(L) х 153.3 (H) mm
Dimension (without fan)
130(W) х 82(L) х 153.3 (H) mm
Weight (with fan)
760 g
Weight (without fan)
503 g
Gross Weight
948 g
Thermal Interface
Thermal grease Aardwolf AF-TG2 in a syringe (1.5 g)
English
WWW.SENJIN-CN .COM
4
3. Components
Common components
Intel clip
Sockets 2066/2011/1366/1156/1155/1151/1150/775
AMD clip
Sockets FM2/FM2+/FM1/AM3+/AM3/AM2+/AM2/AM4
Manual
Cooler
Fan User`s manual
Fan Fixing Clips
Thermal grease (AF-TG2)
Backplate
Side caps
Screw stud
Screw sided thumbscrew
Nut thumbscrew
Thumbscrews
Plastic clip
Plastic clip
English
WWW.PERFORMA.COOL
5
4. Installation requirements
Limitations on dimensions
It is recommended that before installing the CPU cooling system to try the device. Place the
radiator without fasteners on the processor cover. Make sure that the body panel is free to
close and does not touch the heat pipes, radiator or fan. The parts of the device should not
touch other components of the motherboard.
Location of the device
The air flow of the front cooling fan must be directed to the radiator. In the case of the
installation of a second fan at the rear, it should be oriented towards the extraction
from the radiator.
M/B
On Intel processor slots, the radiator can be oriented vertically or horizontally.
Installation on Intel sockets – pic. 7, 14
On the processor connectors AMD is allowed only vertical installation of the radiator.
Installation on AMD sockets – pic. 24
English
WWW.SENJIN-CN.COM
6
RAM
The height of the RAM should not exceed 36 mm. If the RAM exceeds 36 mm in height,
there may be a conflict with the fan in the first and second memory slots from the processor.
Before installing of CPU cooling system on the processor, it is necessary to measure the
height of the RAM modules, and to check whether they interfere with the installation of
CPU cooling.
Motherboard
Before installing of CPU cooling, make sure that the power rails of the power circuits of the
motherboard do not interfere with the design of the device. Make sure that the capacitors
of the chip and other elements of the motherboard do not conflict with the mounting of
processor cooling and do not interfere with its installation.
VGA
Before installing processor cooling, make sure that the device does not fall into the
plane of placement of the video adapter.
5. Installation
Intel Socket 1366/1156/1155/1151/1150/775
Assemblingof reinforcing plate
1) Turn up the reinforcement plate recess so that the diagonal fastening legs for Intel
sockets were at the top.
Pic 1
English
WWW.PERFORMA.COOL
7
2) Thread the threaded studs through one of the three holes corresponding to the position
of the holes of the socket on which the installation is made.
Pic 2
775
115X
1366
3) Ensure that the square base of the stud tightly into the grooves comes reinforcing plate
on the reverse side.
Pic 3
4) Put on plastic locks. Make sure the stud tightly comes in a semi-circular groove lock.
Pic 4
until it clicks
English
WWW.SENJIN-CN.COM
8
Mounting of fasteners
1) Insert the assembled amplifying plate into the corresponding hole on the back of the
motherboard. It should fit snugly and not be distorted.
Pic 5
2) Put plastic supports on the studs.
Pic 6
3) Put on the studs with support brackets for Intel sockets. Put on the fastening feet as
shown in the picture, respecting the desired orientation. The orientation of the mounts will
coincide with the orientation of the cooler relative to the motherboard. By default, the vertical
orientation of the cooler is recommended.
English
WWW.PERFORMA.COOL
9
Pic 7
vertical horizontal

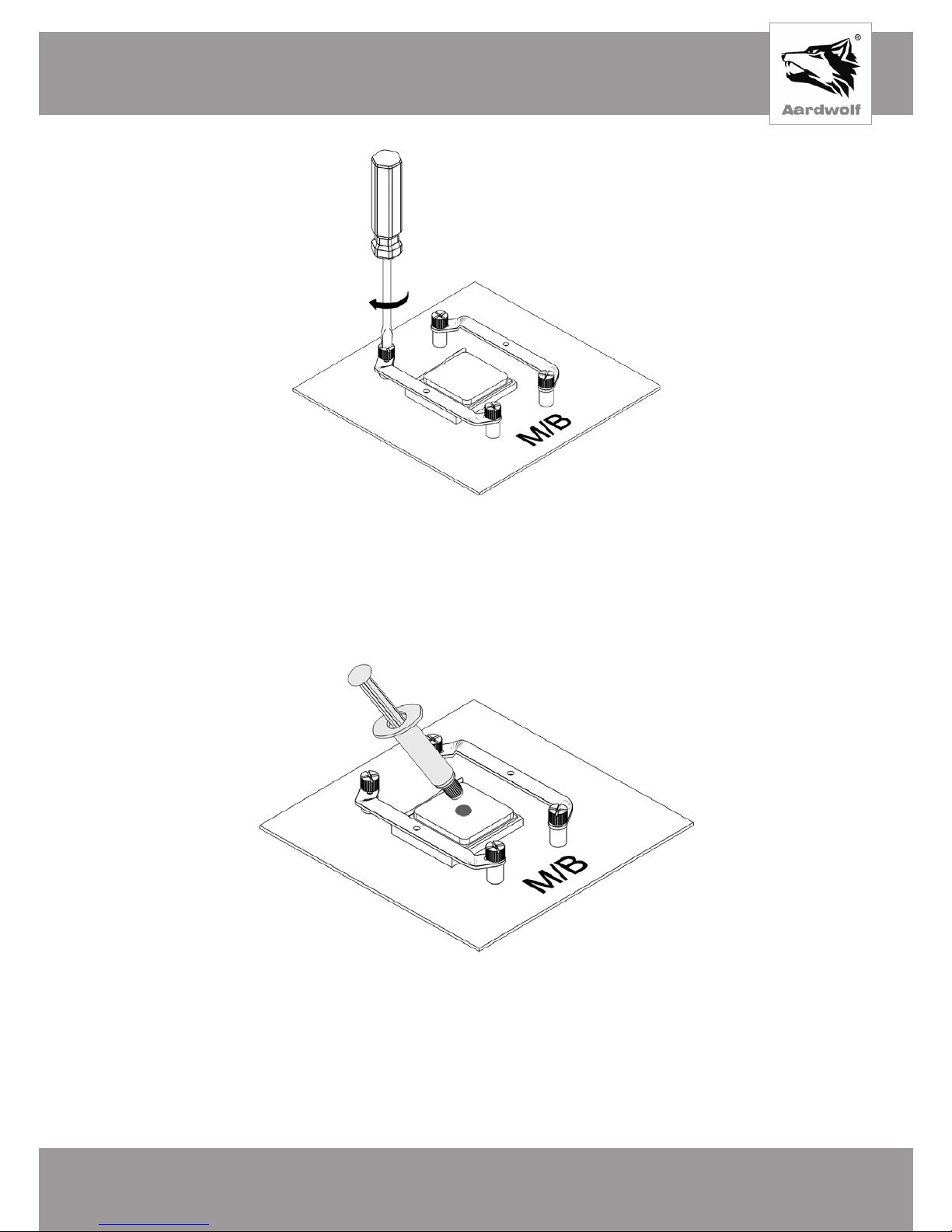

4) Fix the mounting feet with the nuts. It is recommended to screw on manually, and for
tightening use a cross or flat screwdriver.
Pic 8
English
WWW.SENJIN-CN.COM
10
Mounting of processor cooling
1) Apply a thermal interface to the processor, squeezing a small drop (diameter 4-5 mm)
onto its center.
Pic 9
2) Place the device on the processor cover. On Pic 10, the expected orientation of the
airflow output. The longer part of the radiator body should be at the back.
Pic 10
3) Make sure the holes in the pressure plate cooler and mounting feet are the same. Secure
the processor cooling, using two knurled screws, twisting them one by one in turn. Use
a screwdriver to tighten. At the end, make sure that the processor cooling is tight and
motionless in its place.
English
WWW.PERFORMA.COOL
11
Pic 11
4) Proceed to install the fan: - the point «Fan installation».
LGA INTEL Socket installation Intel Socket 2066/2011
Mounting of fasteners
1) Screw four double-sided screws into the mounting holes of socket 2011/2066 using the
side with wider thread.
Pic 12
English
WWW.SENJIN-CN.COM
12
Pic 13
3) The orientation of the mounts will coincide with the orientation of the cooler relative to the
motherboard. By default, the vertical orientation of the cooler is recommended.
horizontal vertical
Pic 14
2) Attach the fastening feet to the upper thread of the double-sided screws and secure with
nuts (as shown in Pic 13). It is recommended to screw on manually, and use a cross or flat
screwdriver for tightening. Observe the desired orientation.
English
WWW.PERFORMA.COOL
13
Mounting of processor cooling

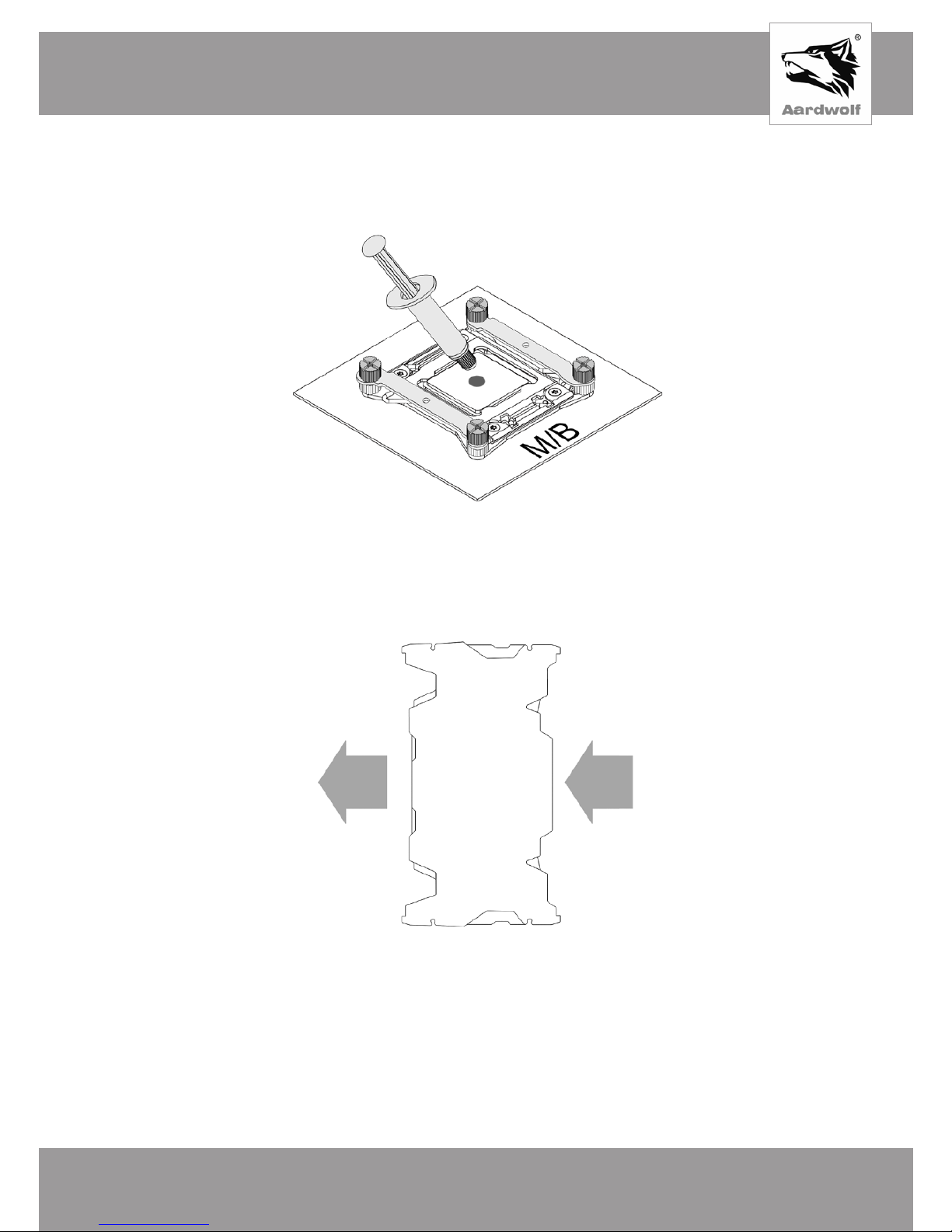

1) Apply a thermal interface to the processor, squeezing a small drop (diameter 4-5 mm)
onto its center.
Pic 15
2) Place the device on the processor cover. On Pic 16, the expected orientation of the
airflow output. The longer part of the radiator body should be at the back.
Pic 16
3) Make sure the holes in the pressure plate cooler and mounting feet are the same.
Secure the processor cooling, using two knurled screws, twisting them one by one in turn.
Use a screwdriver to tighten. At the end, make sure that the processor cooling is tight and
motionless in its place.
English
WWW.SENJIN-CN.COM
14
Pic 17
4) Proceed to install the fan: - the point «Fan installation».
AMD Socket Instalattion FM2 /FM2+ /FM1 /AM3+ /AM3 /AM2+ /AM2 /AM4
Assembling of reinforcing plate
1) Turn the amplifying plate with a depression downward so that the straight mounting pins
for the AMD sockets are at the bottom. Thread the threaded pins through the diagonal holes
in the direction from top to bottom. Ensure that the square base of the stud tightly into the
grooves comes reinforcing plate on the reverse side.
Pic 18
English
WWW.PERFORMA.COOL
15
2) Turn over the plate. Place the plastic clips until they click into place, as shown in the
illustration.
Pic 19
until it clicks
3) By default, the studs are set to a position suitable for sockets AM4. For the AM3
socket, the studs must be moved diagonally from the center, to the far sides of the
fastening paws.
For a socket AM4 For a socket AM3
Pic 20
Mounting of fasteners
1) Disconnect the stock AMD amplifying plate by removing the 4 screws, removing the
plastic clips and the metal strip from the back of the socket.
Pic 21
English
WWW.SENJIN-CN.COM
16
2) Insert the assembled amplifying plate into the corresponding hole on the back of the
motherboard. Make sure that it fits snugly and does not have any distortions.
Pic 22
3) Put on a plastic support studs.
Pic 23
4) Attach the mounting pins to the AMD sockets, as shown in Figure 24, and secure them
with the nuts. It is recommended to screw on manually, and for tightening use a cross or flat
screwdriver. Only the vertical orientation of the radiator is possible.
English
WWW.PERFORMA.COOL
17
Pic 24
Mounting of processor cooling
1) Apply a thermal interface to the processor, squeezing a small drop (diameter 4-5 mm)
onto its center.
Pic 25
2) Install processor cooling on the processor cover. In the figure, the expected orientation is
the exit of the air flow. The longer part of the radiator body should be at the back.
English
WWW.SENJIN-CN.COM
18
Pic 26
3) Make sure the holes in the pressure plate cooler and mounting feet are the same.
Secure the processor cooling, using two knurled screws, twisting them one by one in turn.
Use a screwdriver to tighten. At the end, make sure that the processor cooling is tight and
motionless in its place.
Pic 27
4) Proceed to install the fan: - the point «Fan installation».
English
WWW.PERFORMA.COOL
19
Fan Installation
1) Put the fan on the radiator, using the wire braces that are provided in the kit of the device
(Pic 28).
Pic 28
2) Connect the fan power to the corresponding connector of the motherboard
(CPU Fan).
Pic 29
