Customer Specification
17.3 Inch Color LCD Display
Model: HL1706LT
Name Department/Title Date Signature
Change History
Version Date Author Modification
A0 2015-8-17 Xu Hongjie
Preliminary
Last change:
2015-8-17
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 1 of 21
CONTENTS
1. SCOPE.................................................................................................................................................. 4
2. ELECTRICAL PER FORM ANCE....................................................................................... ... ............ 5
2.1 Power Supply ................................................................................................................................................5
2.2 Power Management......................................................................................................................................5
2.3 Interface.........................................................................................................................................................5
2.3.1 Signal Specifications................................................................................................................................................5
2.3.2 DVI-D connector......................................................................................................................................................6
2.3.3 Display Port..............................................................................................................................................................6
2.3.4 USB 2.0 Interface.....................................................................................................................................................7
2.3.5 Power connector.......................................................................................................................................................7
2.3.6 Signal switching.......................................................................................................................................................7
2.4 Panel Features .............................................................................................................................................................8
2.5 Display Performance...................................................................................................... ..............................8
2.5.1 Standard Testing Conditions.....................................................................................................................................8
2.5.2 Brightness.................................................................................................................................................................8
2.5.3 V iew angle............................................................................................................... .................................................8
2.5.4 Luminance Uniformity.............................................................................................................................................8
2.5.5 Contrast ratio............................................................................................................................................................9
2.5.6 White Color Coordinates..........................................................................................................................................9
2.5.7 Response Time .........................................................................................................................................................9
2.5.8 Color Gray................................................................................................................................................................9
2.6 Touch screen Performance ........................................................................................................................12
2.6.1 Features..................................................................................................................................................................12
2.6.2 General Specification.............................................................................................................................................12
2.6.3 Environmental Characteristics................................................................................................................................12
2.6.4 Optical Characteristics............................................................................................................................................12
3. OPERATING GUIDE........................................................... ................................ ... ..........................12
3.1 Keys assignment..........................................................................................................................................13
3.2 Key Functions in the OSD Menu...............................................................................................................13
4
. MECHANICAL SPECIFICATIONS................................................................................................ 14

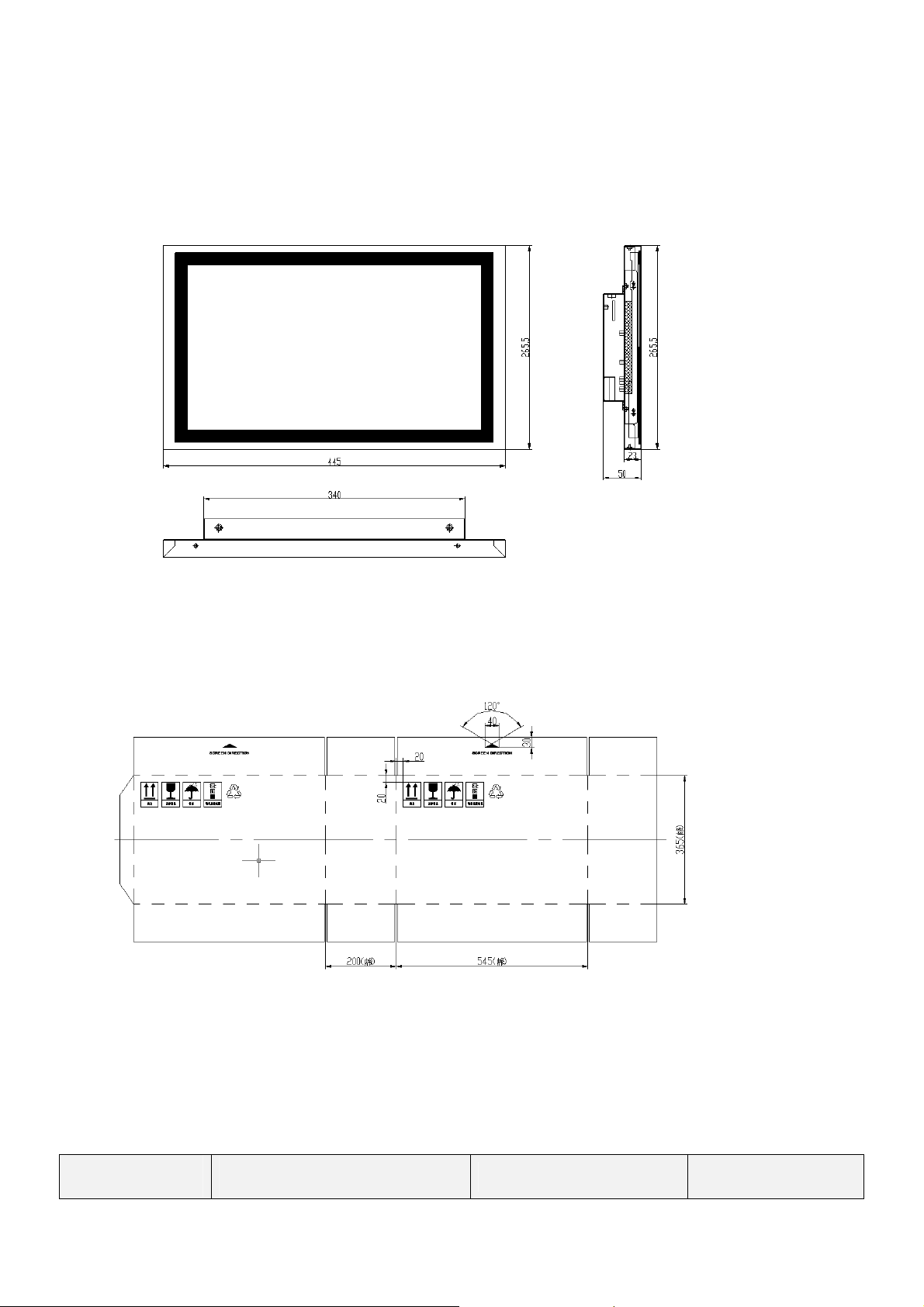

4.1 Outline Dimensions & Weight ...................................................................................................................14
4.2 Packaging ....................................................................................................................................................14
4.3 Label ............................................................................................................................................................15
5. ENVIRONMENT CONDIT ONS................................................ .. ................................ ... .................. 15
5.1 Operation Environment.............................................................................................................................15
5.2 Transport and Storage (Packed)...............................................................................................................15
5.3 Mechanical Load.........................................................................................................................................16
6.REGULATION .................................................................................................................................... 16
6.1 Safety Specifications...................................................................................................................................16
6.2 Electromagnetic Compatibility..................................................................................................................16
6.3 RoHS Compliance.......................................................................................................................................16
Last change:
2015-8-17
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 2 of 21
7. MTBF & Warranty............................................................................................................................. 16

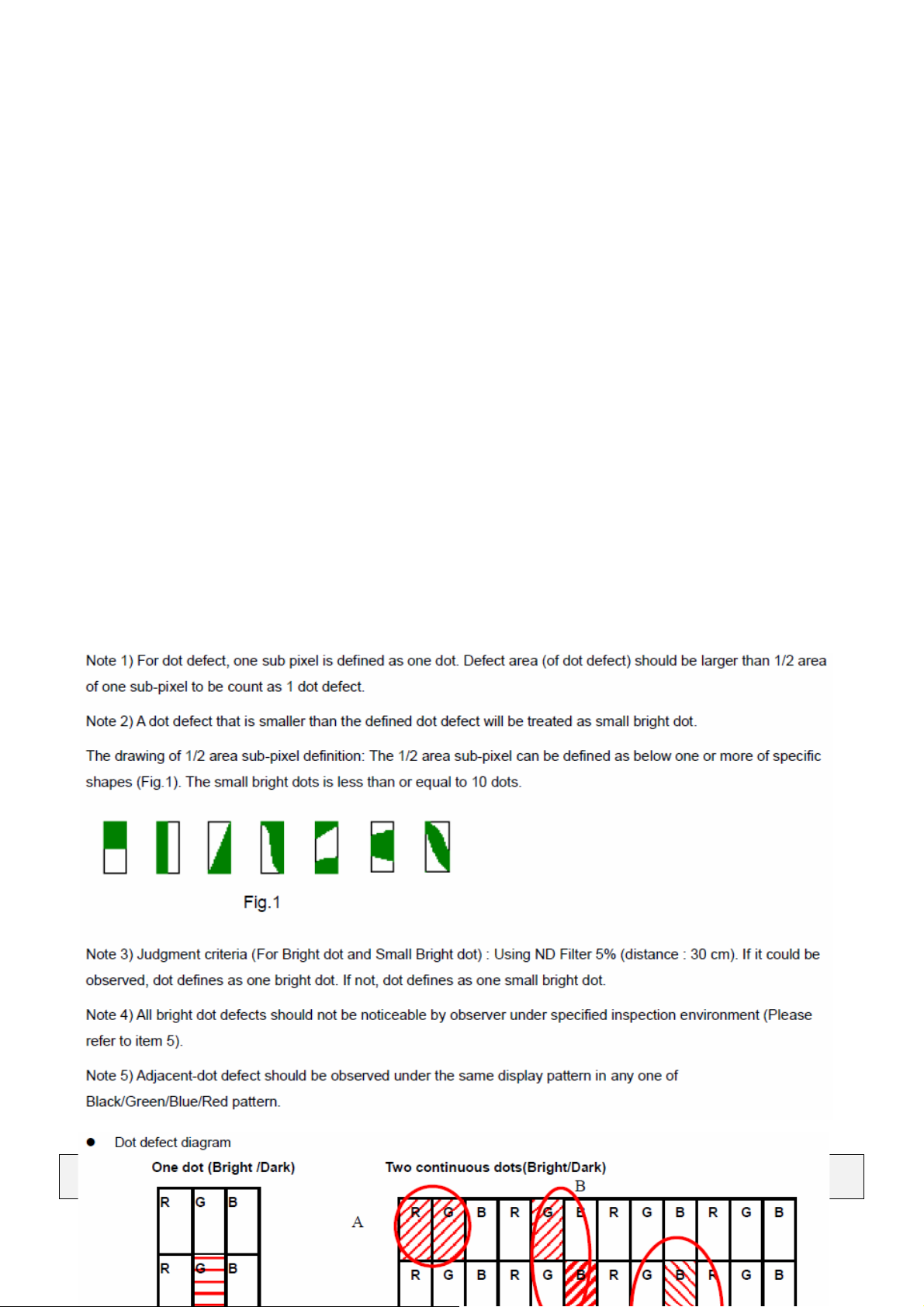

8. DEFECT, SCRATCH and DUST...................................................................................................... 16
8.1 Inspection instruments...............................................................................................................................16
8.2 Environment condition...............................................................................................................................17
8.2 Dot Defect................................................................................................. ...................................................17
8.3 Inspection Specification..............................................................................................................................19
Appendix: Preset Timings......................................... ... ................................ .......................................... 21
Last change:
2015-8-17
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 3 of 21
1. SCOPE
This document defines the performance requirements for a 17.3-inch FHD TFT LCD color monitor with
touch screen for medical use. This product is controlled by model name; any change will be recorded in the
list and confirmed by customer.
This high-resolution color display is specifically designed to meet the rigorous performance standards
needed for medical monitoring system.
The surface of the monitor has an anti-glare coating to minimize reflection and a hard coating to reduce
scratch.
The touch screen is projected capacitive touch screen, and is usable in Windows 7 environment.
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 4 of 21
2. ELECTRICAL PERFORMANCE
2.1 Power Supply
-Input Voltage : DC24V ± 10%
- Current (max) : 1.25A
- Power Consumption : <30W
2.2 Power Management
The following table shows the power consumption feature:
VESA
Mode
Normal
operation
While there is no sync or active video supplied by the system, the Power indicator LED will be in green
blinking status, and the monitor screen will display "No Signal".
Horizontal
Sync
Active Active Active Green Less than 30 W
Vertical Sync Video
Power
Indicator
Power
Consumption
2.3 Interface
2.3.1 Sign al Specifications
Item Spec
DVI
Digital
DVI-Digital
Single link
DVI EDID datum EDID via DVI I²C bus
TMDS: 600mV for each differential line
Input Impedance: 50 ohm
Display
Port
Last change:
2014-5-16
Display Port 1.1
Receiver
4 main Lanes
DP EDID datum EDID via AUX channel
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
Display Port: 600mV for each differential line
Impedance: 100 ohm per differential pair
HL1706LT
Page 5 of 21
Digital (DVI-D/DP) EDID
Week, year
00 FF FF FF FF FF FF 00 0A 84 16 19 01 00 00 00
32 13 01 03 81 26 1E 78 2E AE A5 A6 54 4C 99 26
14 50 54 BF EF 80 81 80 01 01 01 01 01 01 01 01
01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
13 00 78 2C 11 00 00 1E 00 00 00 FD 00 38 4B 1E
51 0E 00 0A 20 20 20 20 20 20 00 00 00 FC 00 48
4C 31 39 31 36 56 0A 20 20 20 20 20 00 00 00 10
00 00 3D 40 00 C0 03 00 78 2C 11 00 00 1E 00 F6
Serial number
Note: the datum above for reference only. Serial number, week and year will be changed according to
manufacture order.
2.3.2 DVI-D connector
Comply with Digital Visual Interface DVI Revision 1.0
DVI-D connector
Pin - Assignment of 29-pin DVI-D/DVI-I Female Connector
Pin 1 - TMDS Data 2- Pin 12 - TMDS Data 3- Pin 22 - TMDS Clock Shield
Pin 2 - TMDS Data 2+ Pin 13 - TMDS Data 3+ Pin 23 - TMDS Clock+
Pin 3 - TMDS Data 2/4 Shield Pin 14 - +5 V Power Pin 24 - TMDS Clock-
Pin 4 - TMDS Data 4- Pin 15 – Ground
Pin 5 - TMDS Data 4+ Pin 16 - Hot Plug Detect
Pin 6 - DDC Clock Pin 17 - TMDS Data 0-
Pin 7 - DDC Data Pin 18 - TMDS Data 0+
Pin 8 – N.C Pin 19 - TMDS Data 0/5 Shield
Pin 9 - TMDS Data 1- Pin 20 - TMDS Data 5-
Pin 10 - TMDS Data 1+ Pin 21 - TMDS Data 5+
Pin 11 - TMDS Data 1/3 Shield
2.3.3 Display Port
Comply with VESA Display Port Standard Version 1.1
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 6 of 21
DP connector
Pin
Number
1 ML0(p) 11 GND
2 GND 12 ML3(n)
3 ML0(n) 13 GND
4 ML1(p) 14 GND
5 GND 15 AUX(p)
6 ML1(n) 16 GND
7 ML2(p) 17 AUX(n)
8 GND 18 HPD
9 ML2(n) 19 Re-PWR
10 ML3(p) 20 PWR
20-pin Side of the Connected
Signal Cable
Pin
Number
20-pin Side of the Connected
Signal Cable
2.3.4 USB 2.0 Interfa ce
The monitor supports touch function, the touch screen only can be used in the Microsoft® Windows 7.
USB-B connector
Pin Signal
1 VBUS
2 D-
3 D+
4 GND
USB is connected to host system, in order to enable Touch panel.
2.3.5 Power co n n e c t o r
Customer side: Molex Mini-Fit Jr. PN 39-01-2020
PIN1:GND; PIN2:24V DC
Monitor side: Mini-Fit® Jr. Header
PN:39-29-9027
2.3.6 Signa l swi t ch ing
The default input port is Display Port, DVI signal only can be selected by OSD.
Note: Set Display Port as factory preset
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 7 of 21
2.4 Panel Features
Panel Module G173HW01.0
Size 17.3”
Aspect Ratio 16:9 (W:H)
Active Display Area 381.888 (H) x 214.812 (V) mm
Resolution 1920 (H)x 1080 (V) pixels
Pixel Pitch 0.1989(H) x 0.1989(V) mm
Color Depth 16.7M
Lamp Type LED (Replaceable module)
Surface Hard-coating(3H),Glare treatment
2.5 Display Performance
2.5.1 Standard Testing Conditions
- Warm up time
＞30 minutes.
- DC supply voltage 24V DC
- Ambient temperature 25 ± 5ºC
- Relative Humidity 30% --80%
- Video signal 1920x1080@ 60Hz; DVI-D/DP
- Ambient Environment Dark
- LUT Setting Native
- Luminance meter Minolta CA-210/CA310 or equivalent
2.5.2 Brightness
The light output shall be set on 250cd/m2 output during manufacturing
Note: White Luminance (L max) is defined as a Luminance of L255 Gray
Black Luminance (L min) is defined as a Luminance of L0 Gray
Test at the center point on LCD surface. (See Note 1 Note 4)
2.5.3 View angle
Left/Right: 80/80 degree (Typ.); 70/70 degree (Min.) (CR≥10) (Note 2)
Up/Down: 60/80 degree (Typ.); 50/70 degree (Min.) (CR≥10) (Note 2)
2.5.4 Lumi na n c e U n i f o r mity
Typ. 80%, Min 75%
Last change:
2014-5-16
Torch-Bigtide Digital Tech.,Co.,Ltd
Copyright @ Shenyang
HL1706LT
Page 8 of 21
2.5.5 Contrast ratio
600:1 (Typ.) (Note 3)
500:1 (Min.)
2.5.6 White Color Coordinates
x=0.30±0.01 y=0.31±0.01
2.5.7 Response Time
Typ. (Tr+Td): 37+3ms (Note 6)
Max. (Tr+Td): 50+10ms (Note 6)
2.5.8 Color Gray
64 gray levels should be displayable
Note1: Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between 20 minutes after the
backlight at the given temperature for stabilization of the backlight. This should be measured in the center of
screen. Test equipment should be equivalent with the following equipment.
Environment condition: Ta=25 ± 2ºC
Note2: Viewing angle is measured as follow:
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 9 of 21
Note 3: Definition of contrast Ratio (CR):
Ratio of gray max (Gmax) & gray min (Gmin) at the center point of the panel.
Gmax: Luminance with all pixels white
Gmin: Luminance with all pixels black
Note 4: Definition of Luminance of White: Luminance of white at center point.
Note 5: Definition of luminance uniformity
The luminance uniformity is calculated by using following formula.(Under White Screen Status)
Bmax: Maximum brightness
Bmin: minimum brightness
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 10 of 21
Note 6: Definition of response time is as follows:
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 11 of 21
2.6 Touch screen Performance
2.6.1 Features
Item Specification
Type P-CAP
Input Mode Finger
FPC
Cable
Interface Type
2.6.2 General Specification
Item Specification
Frame Size 414mm X247 mm
Tolerance -0.3,+0.3mm
USB-B 2.0 interface (
Voltage & connection provide by host
Active Area 382 X215mm
Black Silkscreen 16mm perimeter outside viewable area
Surface Treatment
Chemically hardened glass, no anti-reflective treatment
Total Thickness 2.3±0.20 mm
2.6.3 Environmental Characteristics
Item
Temperature Humidity (Non Condensing)
Operation -20°C ~ +70°C
Storage -20°C ~ +70°C
2.6.4 Optical Characteristics
Item Specification
Specification
10%RH ~ 90%RH（Max 50°C）
10%RH ~ 90%RH（Max 50°C）
Transmissivity 87±2%
3. OPERATING GUIDE
添加整机加按键的图片，做按键标注
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 12 of 21
3.1 Keys assignment
Menu
Up
Down
Set
3.2 Key Functions in the OSD Menu
Keys Action
Menu Switch signal input
Up Adjust Backlight
Down Adjust Brightness
Set Adjust Contrast
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 13 of 21
4. MECHANICAL SPECIFICATIONS
4.1 Outline Dimensions & Weight
4.2 Packaging
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 14 of 21
Carton Box
Width (mm) TBD
Dimension
Gross weight TBD
Depth (mm) TBD
Height (mm) TBD
4.3 Label
The manufacture serial number consists of 14 characters (majuscule and numbers), format as below:
10287 13 3 1 10 001
Serial number
Top Version
PN （Pilot Number）
Month （1,2,3,4,5,6,7,8,9,A,B,C）
Year
The last figure of production number.
Notes: Month using hexadecimal, A, B, C substitute for October, November, December.
Example: HL1706LT products machine Part Number 301010312, TOP version 1.0, in January 2014, the first
batch, the serial number of the first production is 10312141110001.
5. ENVIRONMENT CONDITONS
5.1 Operation Environment
Ambient temperature range +5 -- +35℃
Ambient humidity 15%-85%
Temperature gradient Max. 7℃/h , no condensation
Atmospheric pressure range 70 – 106 kPa
Altitude ≦5000m
5.2 Transport and Storage (Packed)
Ambient temperature range -20 -- +60℃
Ambient humidity 5%-90%
Temperature gradient Max. 10℃/h, no condensation
Atmospheric pressure range 70 – 106 kPa
≦5000m
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 15 of 21
5.3 Mechanical Load
Operation
Vibration
Shock
Packed unit
According to 2M2 EN60721-3-2
6.REGULATION
6.1 Safety Specifications
According to EN60068-2-6
10--58 Hz within ± 0.075 mm deflection
58—500 Hz at 10 m/s2
According to EN 60068-2-27 (single shock)
150m/s2, 6ms
No permanent shock allowed in operating conditions
EN60601-1, EN60601-1-2, ANSI/AAMI ES6060-1: 2005 +
Safety standards
Approvals
Protection class Protection class III
Degree of protection to
DIN 40050
Conformity CE
A2(R2012) + A1＆CAN/CSA-C22.2 NO. 60601-1:14,
FCC PART15B
cTUVus、CB (NCB Lab.)
IP 20
6.2 Electromagnetic Compatibility
IEC60601-1-2 Class B
FCC Part15 class B
6.3 RoHS Compliance
Comply with RoHS Directive 2011/65/EU
7. MTBF & Warranty
The monitor life time: ≥50,000 hours (Brightness reduction to 50%)
Warranty items refer to related service contract.
8. DEFECT, SCRATCH and DUST
8.1 Inspection instruments
8.1.1 Pattern generator: LD-2000 or equivalent model.
8.1.2 Video board: AU video board or equivalent. The output of the signal should comply with the
specification provided by AU.
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 16 of 21
8.1.3Luminance colorimeter: Topcon BM-7 or equivalent model
8.2 Environment condition
8.2.1 Room temperature: 20 ~ 25 C.
8.2.2 Humidity: 65±5% RH.
8.2.3 Illumination: Fluorescent light (Day-Light Type) display surface illumination to be 300 ~ 700 lux.
(standard 500lux.)
8.2.4To be a distance about 35 ± 5 cm in front of LCD unit, viewing line should be perpendicular to the
surface of the module judge the visual appearance with human’s eyes.
8.2.5 Take off the protector of polarizer while judging the display area.
8.2.6 If there is any question while judging, check the panel again while operating.
8.2 Dot Defect
Defects are classified as major defects and minor defects according to the degree of defectiveness
defined herein.
Major defects:
A major defect is a defect that is likely to result in failure, or to reduce materially the usability of the
product for its intended purpose.
Minor defects:
A minor defect is either a defect that is not likely to reduce materially the usability of the product for its
intended purpose, or a departure from an intended purpose with little bearing on the effective use or
operation of the product.
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 17 of 21
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 18 of 21
8.3 Inspection Specification
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 19 of 21
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 20 of 21
Appendix: Preset Timings
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1920 x 1080 60Hz
Last change:
2014-5-16
Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd
HL1706LT
Page 21 of 21
Loading...
