Sheng Jay Automation Technologies SJ-KV202 User Manual

Download

Sheng Jay Automation Technologies Co., Ltd.

SJ-KV202 User’s

Manual

Sheng Jay Automation Technologies Co., Ltd.

CONTENT

Before Use Cautions upon Use Package Components Names of Product Components Installing the Pow

Installing in the Vehicl

Basic Product Functions Using the Memory Card Firm U

pdat

Key Product Fe

atures

How to Operate the Pr

oduct Voice Guidance on Product States and LED Display Checking through the Micro SD Card

PC Viewer Fe

atures

Installing the PC View

PC Viewer Fe

atures

Product Specifications Product Specifications

Sheng Jay Automation Technologies Co., Ltd.

1. Cautions upon Us

Inf

ormation

Contents intended to prevent potential dangers by notifying consumers on the level of damage (bodily, monetary) of product safe

matters (electric shock, fire, explosion) in cases of consumer misuse. Read the following contents carefully for proper use.

Safety Warnings – Failure to observe the

safet

y instructions within this category could result in serious injury or de

ath.

Safety Cautions – Failure to observe the

safet

y instructions within this category could result in system error or damage.

Product Related

Do not disassemble, repair or modify the pr

oduct. Such acts may result in electric shock. For inspections or repairs, please visit your place of purchase or a designated repair center. The occurrence of accidents due to disassembly, modification or other forms of abnormal operations may prevent you from receiving maintenance services.

Quickly turn off the power within abnormal states, such as smoke or burning smells coming from the device. Such as lead to fire or electric shock.

Do not pour water onto the device.

As the device is not waterproof, such acts could result in product malfunction and lead to fire or electric shock.

Sheng Jay Automation Technologies Co., Ltd.

Product related

Never clean the product with chemical materials, such as benzene or thinners. Such materials may damage the device surface or cause internal malfunctions.

Do not subject the product to severe shock or introduce foreign objects. Please heed caution as the introduction of foreign substances could lead to product malfunction.

Always maintain the front side of the product in a clean

state. If foreign substances or stickers are placed in front of the product lens, normal recording is not possible. In addition, placing other objects in the vicinity of the product may be visible through reflections in the mirror. Never place other objects nearby the product.

Firmly fasten the product when installing for the first time. Improper installation could result in abnormal product operation or the product may fall off while driving. Following installation, heed caution not to subject the product to excessive force and shock.

When connecting the product power, use the genuine power cable supplied by our company. The use of non-genuine power cables or connecting the cable to other products may result in malfunction or fire.

If the product breaks, continued use may lead to hand or face injury. Visit a service center for repair before use

Sheng Jay Automation Technologies Co., Ltd.

Driving related

Refrain from prolonged use with the ignition turned

off.

Such acts could lead to battery discharge.

Do not watch or operate the product while driving. Operating the product while driving may result in accidents.

Heed caution as the quality of recorded videos may not be good in cases of sudden changes to brightness, such

when entering a tunnel, when the backlight is very strong, or when there is no light source during the night.

Refrain from excessive front window ti

nts.

Heed caution as videos recorded within vehicles with sun tints may be somewhat blurry or distorted.

Heed caution as event data may not be recorded within this product in cases of accidents under a certain impact level. In such cases, it is possible to use the manual recording feature to manually record such videos separately. If not, such are recorded as infinite recording files.

Heed caution as video data may not be recorded if the device power becomes disconnected during a major accident

Power installation must be done by a installation specialist. The method of installation may differ depending on the vehicle. User installations may result in vehicle and product malfunction. Damage to the vehicle and/or product caused by user installation/disassembly is the sole responsibility of the user.

Sheng Jay Automation Technologies Co., Ltd.

GPS Related

Commercial GPS products carry a margin of error of approximately 15m. Buildings, underground roads, tunnels, and roadside trees could increase the margin of error or prevent the GPS from being properly received.

The time required to receive the GPS signal from the point of turning on the device could be more than 10 minutes depending

the weather or environmental conditions.

Sheng Jay Automation Technologies Co., Ltd.

2. Package Components

Basic Components

[ KV202 Device ] [ Cigarette Jack Cable ] [ Video Cable ] [ Product Installation CD ]

[ Mount ]

[ Cable Clip ] [ Micro SD Card ] [ User’s Manual ] [ Suppl

ementary

Adhesive Sticker ]

• Check to see that all of the product components, shown above, are included.

• In case of missing components, please contact your place of purchase.

• The contents of this user’s manual are subject to change without prior notice for product improvement.

• Additional basic components are sold separately.

Sheng Jay Automation Technologies Co., Ltd.

3. Names of Product Components

Names of Product Components

12) Mount (external GPS included)

1) VIDEO Output port

11) Video Input port

2) USB port

10) GPS Input terminal

9) DC Power Input terminal

4) Camera Lens

8) Micr

ophon

3) Speak

7) Micro SD Slot

5) Cancel

Button

6) LED

5) Record

Button

Sheng Jay Automation Technologies Co., Ltd.

Descriptions of Product Components

Name

Description

1) VIDEO output port

Displays live video of recorded scenes and plays recorded scenes.

2) USB port

When connected with a PC, plays recorded videos and used to copy files to storage devices.

3) Camera Lens

Films the front of the vehicle. (Heed caution so that foreign substances do not cover the front of the lens

4) Spe

ake

Outputs product operating states through voice guidance.

5) Button

Rec

ord Button

Button related to recording, play, and se

tti

ngs.

Cancel Button

Button related to canceling recording, play, and se

tti

ngs

6) LED Displays the various operating states through LED (red / green / orange).

7) Micro SD Slot

Micro SD card slot. (Check to see that the card side is facing the right side before inserting.)

8) Mic

rophone

Built-in microphone records sounds.

9) DC Power Input terminal

This is the vehicle DC power input terminal. (12V ~ 24V)

10) GPS Input terminal

This is the GPS input terminal.

11) VIDEO input port

The rear view camera is connected through the video input port.

12) Mount

Structure that is convenient to attach to the room mirror

The mount is integrated with an external GPS.

Sheng Jay Automation Technologies Co., Ltd.

4. Installing in the Vehicl

Cautions upon Installati

• Please refrain from repeated detaching/re-attaching once the product has been

nstalled.

• Do not install or use the device outside of the

vehicle

Attach the device in a place where the driver’s field of vision is not blocked.

Position of Installati

• Position: recommended area of Black box

nstallation

•After attaching the Black box to the recommended installation area, use the product handles to adjust the camera so that it is horizontal

and

facing the fr

ont.

(Here, heed caution so that there are no obstructions in front of the lens.) Once power is turned on, the product led will turn on and "Startin

Infinite recording” voice guidance is provided and recording will

start.

Sheng Jay Automation Technologies Co., Ltd.

Connecting the Black box to the Vehicl

Connect the Main Unit and the Mount Place the groove at the top side of the main unit against the groove area on the mount

and push

until a “click” sound is heard.

Insert the Memory Card When inserting memory cards, check to see that the correct side of the card is facing up before inserting into the slot.

Remove Double-sided Tape Remove the double-sided tape attached to

the

mount.

Connect the Main Unit and the Moun

t Attach the device at an appropriate position, turn the handles to adjust the footage angle of the product so that the camera is facing the front and the vehicle interior. Here, heed caution so that there are no obstructions in front of the lens.

Connect Cigarette Jack (Main Unit

) Connect the cigarette jack cable with the main unit.

Organize Power Cable, Connect Power Use the cable clip to organize the power line and connect the power with the cigarette jack socket.

Vehicle Installation Complete After turning on the ignition, check to see whether the device LED turns on. Recording will start once the LED turns on and "Starting Infinite power recording.” voice guidance is provided.

• Attaching the device in a position that interferes with driv

er’s field of vision or with vehicle operations could result in acci

dents.

• Firmly attach the device so that it does not move or fall o

while driving.

Sheng Jay Automation Technologies Co., Ltd.

5. Inserting the Memory Ca

Inserting the Memory Card

• Insert the memory card with the part where the cut edge facing up. (refer to the product image above)

• Fully insert the card into the card slot.

• After inserting, connect the power plug and check whether the memory card is properly inserted through the voice guidance.

Memory Card Recommendations and Cautions

• Supported Memory Cards : 8GB/16GB/32GB (MAKER : ADATA, Class 10 recommended)

Cautions upon Using Memory Ca

rds

• If the card is not fully inserted, then footage may not record properly. Make sure to fully insert the card until you hear the 'click’ sound.

• Heed caution not to touch card contact area (gold area) or introduce foreign substances.

• Do not use the memory card used within the Black box for other purposes. Such could lead to abnormal operation.

• When purchasing Micro SD cards, compatibility issues may exist even with some genuine products. If such occurs, visit your place of purchase.

Sheng Jay Automation Technologies Co., Ltd.

5. Using the Memory Ca

Recording Times by Memory Capaci

The recording times shown below are the maximum values calculated for each recording mode and may slightly differ upon actual use.

Memory

Size

Classificati

Infinite Mode (2CH 30fps recording)

Parking Mode (2CH 5fps recording)

Ref

erenc

Infinite Recording

Event Recording

Manual (Forced) Event Recording

Parking Recording

Event/ Motion

Rec

ording

8GB

Max saving time

32 minutes

7 minutes

5 minutes

36 minutes

23 minutes

-HD level 2CH 30fps Infinite

recording

- H.264 Encoding

- 8Mbps (high resolution)

- High Profile

<Memory occupation by recording

mode>

- Infinite Mode : 75%

- Parking Mode : 25%

Max No. of Fil

64 Fil

14 Fil

10 Fil

72 Fil

es 46 Fil

16GB

Max saving time

64 minutes

15 minutes

10 minutes

71 minutes

48 minutes

Max No. of Fil

128 Fil

30 Fil

20 Fil

142 Fil

es 96 Fil

32GB

Max saving time

131 minutes

32 minutes

22 minutes

149 minutes

98 minutes

Max No. of Fil

262 Fil

64 Fil

44 Fil

298 Fil

196 Fil

Recording times may partially change with future firmware

updates.

Sheng Jay Automation Technologies Co., Ltd.

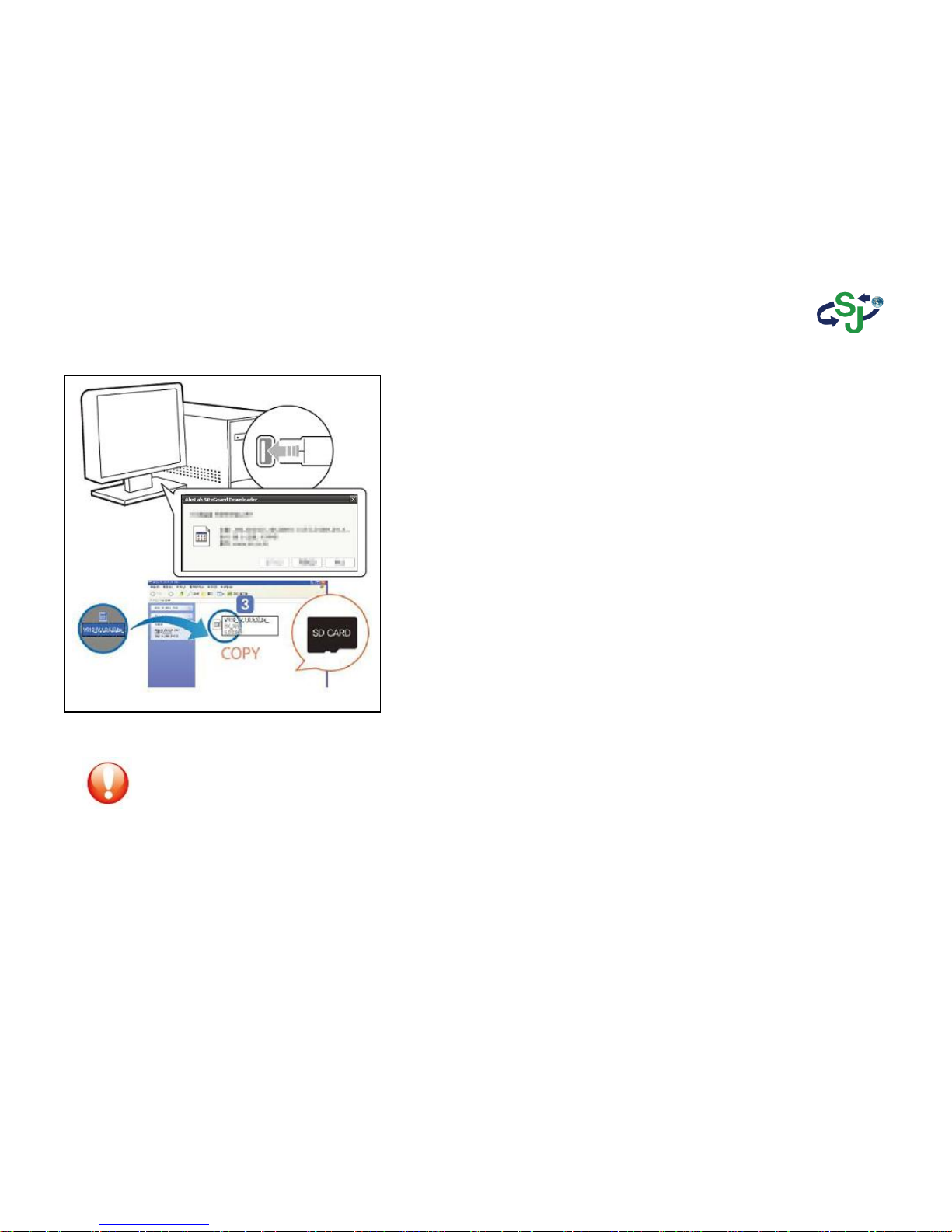

6. Firmware Updat

1. Remove the Micro SD card from the device and use a

card reader to connect with the PC.

2. Back up data currently in the memory card separately and format

the memory card.

3. Copy the downloaded firmware into the SD card.

Insert the SD card with the firmware copied and turn the power on.

At such time, the red LED will remain on. Once the firmware upgrade is complete, the LED will change to green.

6. 7. Once upgrade ends, the downloaded firmware is automatically

deleted.

8. Once upgrade is complete, the device will automatically reboot and recording can begin.

Cautions upon using Memory Cards

• Problems may occur within SD cards that have been used for prolonged periods of time.

• Regularly format the SD card for use.

• For stable recording functionality, the entire capacity of the SD card is not used.

Sheng Jay Automation Technologies Co., Ltd.

7. Key Product Features

Key Product Fe

atures

1. HD Resolution Real Time Recording

Within the HD (1280 x 720) resolution of the 16:9 WIDE screen, recording is conducted up to max 30 frames. A 2-million resoluti

camera suited to HD resolution has been

5. Mount Struct

ure

Designed so that the Black box frame can be freely

adjusted upwards/downwards while the wide viewing angle (145.5 degrees) enables monitoring of the vehicle exterior.

equipped

6. Dedicated Video

Player

2. VIDEO-OUT Features

3. Voice Recording

Navigation systems and external monit

ors can be connected to be play video and recorded files.

Through the dedicated PC program, the video and

voice data saved within the memory ca

rd are used to view driving video, vehicle information, time information and location information. In addition, recorded videos can be captured to print or save as image files.

Sounds are recorded through the built-i

microphone. In addition, it is possible to turn o

the microphone within the Configuration wi

ndo

for personal privacy protection.

7. Configurations Feature

Through the Configuration window, users are able to modify the recording speed

video quality, sensor sensitivity, voic

recording settings and other setti

ngs.

4. Compatibility with various memory

Supports 8GB, 16GB, 32GB memory ca

rds.

Sheng Jay Automation Technologies Co., Ltd.

Various Recording Fe

atures

Various Recording Features

Infinite Recording Normal video files are saved starting from device boot until turning off. If the data exceeds the capacity of the Micro SD card during continued recording, files are sequentially deleted starting with the oldest file in order to record new videos. (saved as inf file name, Example: inf_20120410_121030A)

Event Recording (Impact Detection Recording) In the case of an accident, sudden braking, sudden acceleration, sudden turn, or some other form of impact on the vehicle, the 3-axis acceleration sensor is used to save event files totaling 1 minute each comprised of 10 seconds prior to impact and 50 seconds after impact. (Impact detection recording during Infinite recording saved as evt file name, Example: evt_20120410_121030A, Impact detection recording during Parking recording saved as epk file name, Example: epk_20120410_121030A)

Manual Recording (Emergency Recording) If the user presses the Manual record button, then the corresponding video will be saved as a manual recording file even when there is no impact. (saved as man file name, Example: man_20120410_121030A)

Parking Mode Recording Pressing the parking mode button to monitor a parked vehicle will slowdown the recording speed to 5 frames to enable recording over long periods of time.

(When automatic parking mode has been set, then parking mode will automatically start once the vehicle is parked.) At such times, the product must be directly connected with the vehicle power. However, heed caution for vehicle battery discharge upon use. (saved as pak file name, Example: pak_20120410_121030A)

Motion Event Recording When requiring parking recording that records only when there is movement, motion event recording can be used. The Configuration window can be used to set motion event recording for parking recording only when there is movement. (saved as epk file name, Example: epk_20120410_121030A)

GPS Driving Information Saving Play Features

Through GPS data, the dedicated program can be used to check various related information, such as driving routes, speed information and driving time information.

When a video file must be checked urgently, a video cable can be used to directly connect the device with a navigation system or a car video device to play video files without having to connect with a PC.

Sheng Jay Automation Technologies Co., Ltd.

8. How to Operate the Product

Operating the Product

Power ON

After product installation, if the vehicle power or the ignition is turned on, the orange (red + green) LED will light up. After booting for approximately 15 seconds, the LED will blink as green and the ‘Starting infinite recording’ voice guidance will sound to indicate th

recording is starting in infinite recording mode.

Information : After power is connected, the mode will always start as infinite recording mode.

(However, when the parking mode feature is turned on, the mode will start as parking recording mode if the mode before the power was turned on had been parking recording mode.)

Power off

If the vehicle ignition is turned off or the power cable is removed, then the ‘System will end’ voice guidance will sound and the orange LED will blink. The device will completely turn off after the LED turns off.

Information : The power will turn off after the LED is completed off.

Infinite Recording

Once booting is complete, the green LED will turn on and the ‘Starting infinite recording’ voice guidance will sound and recording mode will start.

Information : Recording will not begin until the green LED turns on.

Upon connected the rear camera, the ‘rear camera has been connected’ voice guidance will sound prior to the Infinite Recording voice guidance

Blocking Voice Recording For personal privacy protection, Voice Recording can be turned off by using the program Configuration window and setting the voic

recording volume to 0

Sheng Jay Automation Technologies Co., Ltd.

Operating the Product

Event Recording

An accident, sudden braking, sudden acceleration, sudden turn, or some other form of impact on the vehicle is detected by the built-in sensor

The ‘Starting event recording’ voice guidance will sound and the red LED will blink fast to indicate that an event video is being recorded. Once

event recording is complete, the green LED will blink and the device will automatically convert back to infinite recording mode.

Information : After power is connected, the mode will always start as infinite recording mode

. (However, when the parking mode feature is turned on, the mode will start as parking recording mode if the mode before the power was turned on had been parking recording mode.)

Manual Recording

During infinite recording, if the user wants to record a video even though there is no impact, press the [ ] button. The ‘Starting even

recording’ voice guidance will sound and the red LED will blink fast to indicate that a manual video is being recorded. Once manual recording is

complete, the green LED will blink and the device will automatically convert back to infinite recording mode.

Parking Mode Recording is comprised of manual parking mode recording and automatic parking mode recording. For manual parking mode, the

manual parking mode setting must be enabled within Configuration. Pressing and holding the [ ] button will start parking mode recording. For

automatic parking mode, the automatic parking mode setting must be enabled. Upon parking, the ‘Starting parking recording’ voice guidance will

sound and the orange (Red + Green) LED will blink to indicate that parking mode recording will start. In Parking mode, the recording speed is

slowed down to 5 frames to ensure recording over long periods of time.

Information : In the case of manual parking mode recording, recording takes place in parking mode until the [ ] button is pressed to cance

mode and restore infinite recording.

Parking Mode

Recording

Parking Mode Event

Recording

Parking mode event recording is comprised of impact detection event recording and motion event recording. Impact detection event recording is

same as the impact detection event recording within infinite recording.

Motion event recording records only when movement is detected during parking.

Sheng Jay Automation Technologies Co., Ltd.

9. Voice Guidance on Product States and LED Display

1) When a video file must be checked urgently, it is possible to connect the product directly with a navigation system or car vi

deo

device with a video cable without having to connect with a PC.

Video Cabl

2) In order to start the video play mode, the power must be on and a cable must be used to connect the black box video output port with the external monitor input port. Also, the video device must be turned on.

3) Operating Method

File Play

Previous File

Next File

In Recording Mode, press the [ ] button to pause recording. In this state, pressing and holding the [ ] button will

direct

to the most recently recorded file and display the initial play screen. Press and hold the [ ] button to play the

recorded file.

In the play screen, press and hold the [ ] button to stop playing and display the initial play screen

In the play screen, pressing the [ ] button will go to the previous video file.

In the play screen, pressing the [ ] button will go to the following video file.

Information : When connecting with the navigation, first consult with the navigation manufacturer.

For some products, a RCA to STEREO (Y jack) must be purchase separately for connection.

Sheng Jay Automation Technologies Co., Ltd.

9. Voice Guidance on Product States and LED Display

State Operating State

Button Oper

ati

RED LED

GREEN LED Voice Guidance

Power ON

Power turned On -

15 seconds ON

15 seconds ON -

Power OFF

Power turned Off -

Normal blinking

“The system will end”

GPS Connection

GPS initially connected -

- -

“The GPS has been connected.”

Start Infinite Recording

After power is connected, immediately converts to infinite recording mode

OFF

Normal blinking

“ Starting Infinite Recording.”

End Infinite Recording

In infinite recording mode, stops infinite recording

Shortly press

OFF ON

Event Start

In infinite mode, changes to event recording

Fast blinking

OFF

“An event has been detected.”

Event End

Automatically converts from event recording

OFF

Normal blinking

to infinite mode

Start Manual Recording

Changes from infinite recording mode to manual recording mode

Shortly press

Fast blinking

OFF

“An event has been detected.”

End Manual Recording

Automatically converts from manual recording mode to infinite recording mode

OFF

Normal blinking -

Start Parking Recording

Changes from recording stopped state to parking recording mode

Press and hold

Normal blinking

“ Starting parking recording.”

End Parking Recording

Changes from parking recording mode to parking recording stopped state

Shortly press

OFF ON

Start Parking Mode Event

Changes from parking mode to event (impact/motion) recording

Fast blinking

OFF

“An event has been detected.”

End Parking Mode Event

Changes from event recording to parking recording

Normal blinking

Normal blinking -

Sheng Jay Automation Technologies Co., Ltd.

State

Operating State

Button Oper

ati

RED LED

GREEN LED

Voice Guidance

Change Play Mode

Changes from recording stopped state to play mode

Press and hold

OFF OFF

Start Play Mode

Plays current file in play mode

Press and hold

OFF OFF

End Play Mode

Changes from play mode to recording stopped state

Press and hold

OFF OFF

Select Next File

Selects next file in play mode

Shortly press

OFF OFF

Select Previous File

Selects previous file in play mode

Shortly press

OFF OFF

Eject Micro SD

When ejecting Micro SD

OFF

“Please re-insert the SD card.”

Insert Defective SD

When inserting a defective SD

- - “This SD card cannot be used.”

When requiring SD Card Formatting

When SD card requires formatting

- - -

“The SD card must be formatted.”

When conducting SD Card Formatting

When conducting SD card formatting

- - -

“SD card format is conducted.”

When connecting rear view camera

- - “The rear camera has been connected.”

When disconnecting rear view camera

- - -

“The rear camera has been disconnected.”

System Error

When camera and recording device reset has failed

- - -

“System error. System will restart.”

High/Low Temperature State

High temperature over 80 degrees Low temperature under -20 degrees

- - -

“The temperature protection feature will operate.”

Sheng Jay Automation Technologies Co., Ltd.

10. Checking through the Micro SDCa

1. Eject the Micro SD card from the device and use a card reader to connect with the PC.

2. Once connected with the PC, a removable disc will be

started

3. As shown in the figure, pressing “open folder to view files” will display the folder.

[ Micro SD card contents]

[ DCIM folder contents]

[ DCIMA folder contents >

]

Sheng Jay Automation Technologies Co., Ltd.

10. Checking through the Micro SDCa

Record : Folder with recorded files

• As folder in which recorded video files are saved, includes DCIMA/DCIMB folders.

• Front folder : Folder where front camera video files are saved

• Rear folder : Folder where rear camera video files are saved

• Front/Rear folders include Infinite/ event/ parking/ parking event/ manual files.

sys_data.ini : System

nformation

• Save user set information : resolution, impact detection, even setting, camera setting, etc.

• Voltage value of infinite and parking modes for automatic parking mode

Front folder : Folder where front camera video files are

save

• Includes Infinite/ event/ parking/ parking event/ manual files related to front camera videos.

Rear folder : Folder where rear camera video files are saved

• Includes Infinite/ event/ parking/ parking event/ manual files related to rear camera videos.

Parking event recording files (epk) : Event files (impact/motion) that occur during parking recording mode

Infinite event recording files (evt) : Event files (impact) that occur during infinite recording mode

Infinite recording files (inf) : Files recorded during infinite recording mode

Manual recording files (man) : Files recorded manually during infinite recording mode

Parking recording files (pak) : Files recorded during parking recording mod

Sheng Jay Automation Technologies Co., Ltd.

11. Installing the PC Viewer

1) In the installation CD, double click the

PCViewerSetup-1.0.8.0.exe file.

2) In the installation window, click “Next”

to start installation.

4) To continue, click “Next”. To save as a different name

enter the desired name.

5) Check the desired icons you want to create and click

“Nex

t”.

3) Designate the folder where you wish to save.

there are no changes, click “Next”.

6) Once the installation setup is complete, click “Install

”

to conduct installation. To return to a previ

ous

screen, click

“Back”.

Sheng Jay Automation Technologies Co., Ltd.

11. Installing the PC Viewer

1) To install Microsoft Visual C++ 2008 Redistributable, click “Next”

2) Check the “I agree” box and click

“Install”.

5) Once installation is complete, click

“Finish”

4) After installation is complete, click

“Finish”.

6) Once the PC Viewer is properly installed, the PCViewer.exe and PCViewerConfEditor.exe files will be created, as shown in the fi

gure.

Sheng Jay Automation Technologies Co., Ltd.

12. PC Viewer Features - 1

Main Screen

Play Control

File List & Sensor (G-Sensor) Informati

Map

Settings Button

Information :

PC Viewer image and functions may partiall

change with future

updates.

1. Main Sc

reen

Recorded files in file list are shown simultaneously as 2CH video.

Increase Play speed (-5~+5)

Play position

Volume control

2. Play Control

Play previous file

Play/Pause (Toggle)

Move in Frame units (forward direction)

Speedometer

1) Play: After selecting the file to play, the file can be played by clicking the play button or double-clicking the file from the file list.

2) Play in Frame units: The ▷| button can be used to play in Frame units.

3) Speedometer / Compass: If GPS information exists within the video, displays the speed and direction.

4) Video Capture: The currently playing video screen is saved or printed.

Defog

Decrease Play speed(-5~+5)

Stop

Play next file

Video Capture (File or Printer)

Compass

Sheng Jay Automation Technologies Co., Ltd.

12. PC Viewer Features - 2

3. File List

1) Add Video Fil

① Add Directory using Buttons

- Click the + button to select directory

- Select the Directory to open then press OK

② Add File using Buttons

- Click the + button to select file

- Select the file to open then press OK

③ Add Directory using Drag & Drop

- Drag & Drop is possible within the UI except only the Map

area.

- Same as adding by using the + button.

④ Add File using Drag & Drop

- Drag & Drop is possible within the UI except only the Map

area.

- Same as adding by using the + button.

2) Delete Video Fil

① Use the ‘-’ button to delete ② Use the DEL key to delete

3) Select Video Type When the right-side mouse button is pressed within the fie list title area,

the selection menu shown below is displayed. The file list is sorted in ascending order.

4) Sort File List When opening a directory of the same structure as in the Black box

memory card, the file list is sorted in ascending order according to the

date and time. Other added files are not sorted and added at the very end. Double-clicking the file list header will resort the file list. Each time the

header is clicked, the sorting order is changed between ascending and

descending order.

Information :

PC Viewer image and functions may partially change with future

updates.

Sheng Jay Automation Technologies Co., Ltd.

12. PC Viewer Features - 3

4. Partial Video

Zoom-In

1) Partial Video Zoom-I

n Select the area to zoom-in on by dragging with the mouse. The zoom-in area is shown on the opposite side. If the area is not properly selected, then video zoom-in is canceled.

2) Cancel Partial Video Zoom-I

Within the zoom in video, right-clicking with the mouse will cancel video zoom-in.

5. Full Screen

Mod

1) Full Screen Mode Double-clicking the play screen will convert to Full Screen mode.

2) Cancel Full Screen Mode Double-clicking the screen or pressing the ESC key will cancel Full Screen

mode.

3) Play Control Bar Moving the mouse towards the bottom-side of the screen will display the

play control bar.

nformation:

PC Viewer image and functions may partially change wi

future

updates.

Sheng Jay Automation Technologies Co., Ltd.

12. PC Viewer Features - 4

6. Map If GPS information exists within

the video, then the map is displayed at the bottom right side.

Upon clicking, the play position will jump to the selected position to begin playing. Jump play the same role as the play progress bar.

If GPS information does not exist or the Internet is not connected, then a logo is displayed within the map display area.

urrent

Location

Rout

ump

position

8. Video Capture While playing, clicking the video capture button will save or print the current screen.

9. Defog Feature used to capture current screen and make the image clearer. The +, - buttons are used to enlarge/reduce the image while the mouse is dragged to move the image.

: Reset video

size Defog scale: 0 ~ 15 (0: original image) Save : Saves resulting file Print : Prints resulting file

7. Automatic Recognition of Black Box Memory

If the program is started with the black box connected to the system, the videos within the black box memory are automatically added to the list. If the black is connected to the system after the program has started, the following window is displayed. Clicking the window will automatically add the videos within the black box memory to the list. At this time, the previous list is reset.

Inf

ormation:

PC Viewer image and functions may partially change with future updates

10. G-Sensor Informati

G-sensor information can be viewed by clicking the Sensor Tab.

Sheng Jay Automation Technologies Co., Ltd.

12. PC Viewer Features - 5

Rec

ording

1. Video Resolution : Set infinite video resolution

2. Infinite Video Quality : Set infinite video quality

3. G-Sensor Sensibility : Sets event sensitivity during infinite recording

4. Audio Input Volume : Adjusts volume upon recording (when set to 0, sound is not recorded)

5. Infinite Event Mode : Set whether to detect events during infinite recording

Information :

Configuration menus can be used by clicking the Configuration button on the top right side of the PC Viewer or by starting the PCViewerConfEditor.exe file.

Information :

Settings files can be opened by Drag & Drop, but applies only to sys_data.ini files . If the file name is different, use the Open button to open.

Information :

Configurations are normally saved within the sys_data.ini file within the Black box memory card. However, “Viewer” settings limited to the PC Viewer are saved within the PC registry.

Saves setting and closes Configuration.

Applies changes

Changes file to save settings

Restores default

values

Closes the Configuration screen

Opens a Settings

file

Inf

ormation:

PC Viewer image and functions may partially change with future updates.

Sheng Jay Automation Technologies Co., Ltd.

ation

12. PC Viewer Features - 6

Camera

1. Brightness : Sets camera brightness

2. Contrast : Sets camera contrast

Sharpness

: Sets camera sharpness

Frequency

: Sets camera frequency

Camera Rotate Mode

: Sets whether to rotate front camera

screen.

ETC

1. Language : Supports only English

2. Watermark : Sets whether to display watermark inform

on video recording

3. Audio Output Volume : Sets speaker volume level

4. Boot Recording : Enable/Disable automatic booting recordi

5. Preview Camera Selection : Select TV-out preview video

Parking

1. Parking Video Quality : Sets parking video quality

2. Parking Event Mode : Sets whether to detect events during

parking recording

3. Impact Event Sensibility : Sets impact event sensitivity during parking

4. Motion Event Sensibility : Sets motion event sensitivity during parking

recording

5. Parking AE Gain : Adjusts the AE Gain level during parking

recording

6. Background Recording : Feature used to save only event recordings

during parking recording

7. Detect Parking Mode : Sets whether to enter parking mode through

either manual or auto entry settings

Information :

Motion Events will operate upon setting to Save Event Only during parking recording

Inf

ormation:

PC Viewer image and functions may partially change with future updates.

Sheng Jay Automation Technologies Co., Ltd.

13. Product Specifications

Category Specifications

Ref

erenc

CPU MV8670

Product Classification Front HD 30fps, Rear HD 30fps 2Chs Black Box

Color/Size/Weight Black / 79mm x 53mm x Ø30mm

Supported Capacity micro SD 8GB / 16GB / 32GB Maker : ADATA, Class 10 recommended

Sensor 2M HD CMOS Sensor

Camera

Viewi

Angl

Diagonal 147.5 degrees/ Horizontal 110.8 degrees / Vertical 79.5

degrees

Based on Front Ca

mera.

Resolution 720p HD(1280 x 720) , VGA ( 640 x 480 ) HD 720p 30fps (2CH)

Sound

Built-in Microphone Voice recording (No-sound recording feature incl

uded)

Built-in Speaker 8ohm Voice Guidance

Acceleration Sensor 3-Axis Acceleration Sensor +2g / -2g

Input Support DC 12V / 24V Support

Current Consumption MAX 400mA @12V

Operating Temperature 0˚C ~ 55˚C

Sheng Jay Automation Technologies Co., Ltd.

Sheng Jay Automation Technologies SJ-KV202 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
