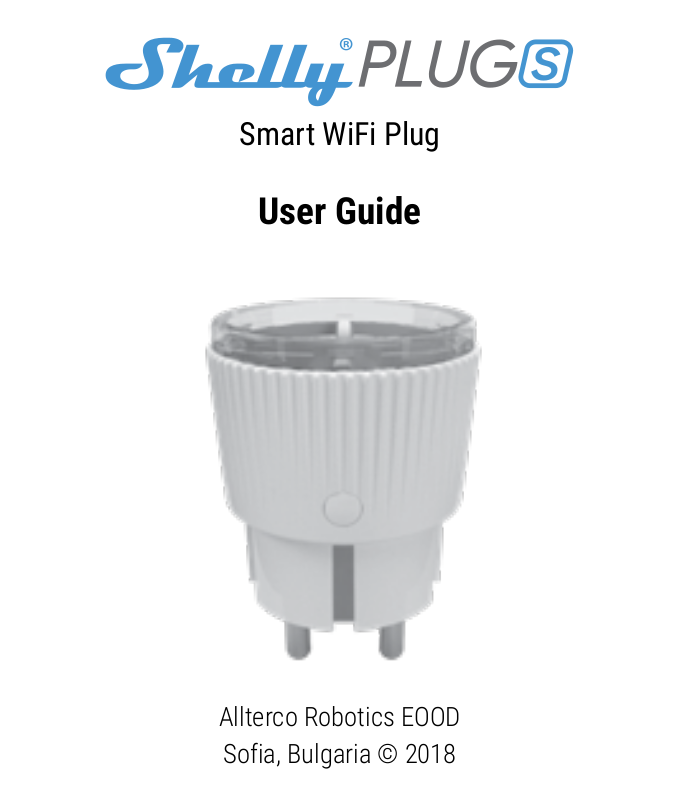

SHELLY SHELLY PLUG SB2 Instructions

Smart WiFi Plug
User Guide
Allterco Robotics EOOD
Sofia, Bulgaria © 2018
USER GUIDE
WiFi Smart Plug Shelly
Shelly® Plug S by Allterco Robotics is intended to be placed
electric power through it. Shelly may work as a standalone device or as an accessory to a home automation controller.
®
Specication
Power supply:
110-230V ±10% 50/60Hz AC
Max load:
12A / 230V, 50/60Hz
Complies with EU standards:
• RE Directive 2014/53/EU
• LVD 2014/35/EU
• EMC 2004/108/WE
• RoHS2 2011/65/UE
Working temperature:
-20° ÷ 40 °C
Radio signal power:
1mW
Radio protocol:
WiFi 802.11 b/g/n
Frequency:
2400 – 2500 MHz;
Operational range:
• up to 50 m outdoors
• up to 30 m indoors
Dimensions (HxWxL):
70 x 44 x 44 mm.
Electrical consumption:
< 1 W SAR:
1.15 W/Kg
1
Control via WiFi from a smart phone, PC, automation system or any other device supporting HTTP and/or UDP protocol.
• Microprocessor management.
vice to the power grid has to be performed with caution.
especially with the Power Button. Keep the devices for re­mote control of Shelly (mobile phones, tablets, PCs) away
from children.
Introduction to Shelly®
Shelly® is a family of innovative devices, which allow remote
control of electric appliances through mobile phone, PC or
home automation system. Shelly® uses WiFi to connect to
the devices controlling it (mobile phones, tablets etc.). They
can be in the same WiFi network or they can use remote
access (through the Internet - Shelly Cloud). Shelly® has an
integrated web server, through which the User may adjust,
control and monitor the Device. An API can be provided by
the Manufacturer. The User can register and access the Shelly
Cloud, using either Android or iOS mobile applications, or any
internet browser and the web site: https://my.shelly.cloud/.
Technical Information
CAUTION! Danger of electrocution. Connecting the de-
CAUTION! Do not allow children to play with the device,
2
Installation Instructions
CAUTION! Danger of electrocution. Even when the device
is turned off, it is possible to have voltage across its clamps.
CAUTION! Do not connect the Device to appliances
exceeding the given max load!
CAUTION! Before beginning the installation please read the accompanying documentation carefully and completely. Failure to follow recommended procedures could lead to malfunction, danger to your life or violation of the law. Allter­co Robotics is not responsible for any loss or damage in case of incorrect installation or operation of this device.
CAUTION! Use the Device only with power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the Device may damage it.
RECOMMENDATION: The Device may be connected to and may control electric circuits and appliances only if they comply with the respective standards and safety norms.
Factory Reset
You can return your Shelly Plug to its Factory Settings by
pressing and holding the Button for 10 seconds. Upon suc-
cessful factory reset Shelly’s WiFi LED will flash Red/Blue.
3
Initial Inclusion
Place Shelly into the power socket without any device/load
connected to the Shelly.
Press the Power Button. The LED should flash red/blue. This means that Shelly is in AP mode. Press the Button again and the LED will turn off. This means that Shelly is turned off.
LED States
Blue flashing quickly - AP Mode
Blue flashing slowly - STA Mode (no cloud)
Blue still - STA Mode (connected to cloud)
Red still - Relay On
Red & Blue flashing quickly - FW Update
Some of the features of the Shelly Cloud mobile application
are available at https://my.shelly.cloud/ as well.
Control your home with your voice
All Shelly devices are compatible with Amazons’ Alexa and Googles’ Assistant.
Please see our step-by-step guides on:
https://shelly.cloud/compatibility/Alexa https://shelly.cloud/compatibility/Assistant
4
MOBILE APPLICATION FOR SHELLY
Allterco Robotics EOOD Sofia, Bulgaria © 2018
5
®
The Shelly Cloud mobile application
Shelly Cloud gives you opportunity to control and adjust all
Shelly® devices from anywhere in the world. The only thing you need is connection to the Internet and our mobile applica­tion, installed on your smartphone or tablet.
To install the application please visit Google Play or App Store.
6
Registration
The rst time you open the Shelly Cloud mobile app, you
have to create an account which can manage all your Shelly® devices.
Forgotten Password
In case you forget or lose your password, just enter the e-mail address you have used in your registration. You will then receive instruc tions on how to change your password.
WARNING! Be careful when you type your e-mail address during the registra­tion, as it will be used in case you forgot your password.
After registering, create your
rst room (or rooms), where
you are going to add and use your Shelly devices.
Shelly Cloud allows easy
control and monitoring using
a mobile phone, tablet or PC.
-
Device Inclusion
To add a new Shelly device, connect it to the power grid following the Installation Instructions included with the Device.
7
Step 1
Place your Shelly into the
socket and wait for the WiFi
LED light to ash red/blue.
WARNING: If the LED does not ash red/blue,
press and hold the Button for at least 10 seconds. The
LED should then ash red/
blue. If not, please repeat or contact our customer sup­port at:support@shelly.cloud
Step 2
Choose “Add Device”.
In order to add more devices later, use the Menu at the top right corner of the main
screen and click “Add Device”.
Type the name and password for the WiFi network, to which you want to add Shelly.
Step 3 If using iOS: you will see the
following screen:
On your iOS device open Settings > WiFi and con nect to the WiFi network created by Shelly, e.g. Shelly- PlugS-35FA58.
If using Android: your de­vice will automatically scan and include all new Shelly devices in the WiFi network
that you dened.
8
-
Upon successful Device In­clusion to the WiFi network you will see the following pop-up:
Step 4:
Approximately 30 seconds after discovery of any
new devices оn the local WiFi network, а list will be
displayed by default in the
“Discovered Devices” room.
Step 5:
Select Discovered Devices and choose the Device you want to include in your account.
9
Step 6:
Enter a name for the Device.
Choose a Room, in which
the device has to be posi­tioned. You can choose an icon or upload a picture to make it easier to recognize.
Press “Save Device”.
Step 7:
To enable connection to the Shelly Cloud service for re­mote control and monitoring of the Device, press “YES on the following pop-up.
10
Shelly Devices Settings
After your Shelly device is in­cluded in the app, you can con­trol it, change its settings and automate the way it works.
To switch the device on and off, use the Power button.
To enter the details menu of the device, click on it’s name. From there you may control the device, as well as edit its appearance and settings.
Timer
To manage the power supply automatically, you may use:
Auto OFF: After turning on, the power supply will automatically shutdown
after a predened time (in
seconds). A value of 0 will cancel the timer.
11
Auto ON: After turning off, the power supply will be automatically turned on
after a predened time (in
seconds). A value of 0 will cancel the timer.
Weekly Schedule
This function requires Internet connection. Shelly may turn on/off au-
tomatically at a predened
time.
Sunrise/Sunset
This function requires an Internet connection. Shelly receives actual infor­mation about the time of sun­rise and sunset in your area. Shelly may turn on or off auto­matically at sunrise/sunset, or
at a specied time before or
after sunrise/sunset.
Internet/Security
WiFi Mode - Client: Allows the
device to connect to an avail able WiFi network. After typing the details in the respective
elds, press Connect.
WiFi Mode - Acess Point: Con­gure Shelly to create a Wi-Fi
Access point. After typing the
details in the respective elds, press Create Access Point.
Cloud: Enable or Disable con-
nection to the Cloud service.
Restrict the
Restrict Login: web interface of Shely with
a Username and Password.
After typing the details in
the respective elds, press
Restrict Shelly.
12
-
Safety
Max Power Protection:
gure Shelly to turn off when a dened power consumption
is reached. Range: 1-2500W. After typing the desired power consumption, press Save.
Power On Default Mode
This sets the default output state when Shelly is powered.
ON: Congure Shelly to turn
ON, when it has power.
OFF: Congure Shelly to turn
OFF, when it has power.
Restore Last Mode: Congure
Shelly to return to last state it was in, when it has power.
Firmware Update
Update the rmware of Shelly,
when a new version is released.
Con-
Settings
Time Zone and Geo-location
Enable or Disable the automatic detection of Time Zone and Geo-location.
Factory Reset
Return Shelly to its factory default settings.
Device Information
Here you can see the:
• Device ID - Unique ID
of Shelly
• Device IP - The IP of Shelly
in your Wi-Fi network
Edit Device
From here you can edit:
• Device Name
• Device Room
• Device Picture
When you are done, press Save Device.
13
The Embedded Web Interface
Even without the mobile app Shelly can be set and controlled through a browser and connection of a mobile phone or tablet.
ABBREVIATIONS USED: Shelly-ID –
consists of 6 or more characters. It may include numbers and letters, for example 35FA58. SSID – the name of the WiFi network, created by the de­vice, for example ShellyPlugS-35FA58. Access Point (AP) – WiFi network. Client Mode (CM) – another WiFi network.
Step 1
Place Shelly into the socket and wait the WiFi LED to flash red/blue.
CAUTION! If the WiFi LED does not flash red/blue, press and
hold the Button for 10 seconds. After the LED begins to flash red/
blue, release it.
Step 2
When the LED is flashing red/blue, Shelly has created a WiFi
network, with name such as ShellyPlugS-35FA58. Connect to it.
in this mode in Shelly creates its own
in this mode in Shelly connects to
Installation/Initial inclusion
14
Step 3
Type 192.168.33.1 into the address field of your browser to load the web interface of Shelly.
General - Home Page
This is the home page of the embedded web interface. Here you will see information about:
• Current electrical consumption
• Current state (on/off)
• Power Button
• Connection to Cloud
• Present time
• Settings
To manage the power supply automatically, you may use: Auto OFF: After turning on, the power supply will automatical-
ly shutdown after a predened time (in seconds). A value of 0
will cancel the automatic shutdown. Auto ON: After turning off, the power supply will be automati
cally turned on after a predened time (in seconds). A value of
0 will cancel the automatic power-on.
Timer
15
-
This function requires an Internet connection. To use In­ternet, a Shelly device has to be connected to a local WiFi network with working Internet connection.
Shelly may turn on/off automatically at a predened time.
This function requires an Internet connection. To use In­ternet, a Shelly device has to be connected to a local WiFi
network with а working Internet connection.
Shelly receives actual information through the Internet about the time of sunrise and sunset in your area. Shelly may turn
on or off automatically at sunrise/sunset, or at a specied time
before or after sunrise/sunset.
Max Power: You can limit the maximum power the socket will supply. If the pre-set current draw is exceeded, Shelly will turn the socket off. Allowable power can be set between 1 to 2500W.
WARNING! If you have entered incorrect information (wrong
settings, usernames, passwords etc.) you will not be able to connect to Shelly.
Weekly Schedule
Sunrise/Sunset
Safety
16
WiFi Mode - Client: Allows the device to connect to an available
WiFi network. After typing the details in the respective elds, press Connect.
WiFi Mode - Acess Point: Congure Shelly to create a Wi-Fi Access point. After typing the details in the respective elds, press Create Access Point.
Cloud: Enable or Disable connection to the Cloud service.
Restrict Login:
Username and Password. After typing the details in the respective elds, press Restrict Shelly.
Advanced - Developer Settings: Here you can change the action execution:
• Via CoAP (CoIOT)
• Via MQTT
ATTENTION: To reset the device, press and hold the Button
for at least 10 seconds. After the Button begins to ash in red/
blue, release it.
Internet/Security
Restrict the web interface of Shely with a
17
Power On Default Mode
This sets the default output state when Shelly is powered.
ON: Congure Shelly to turn ON, when it has power. OFF: Congure Shelly to turn OFF, when it has power. Restore Last Mode: Congure Shelly to return to last state it was
in, when it has power.
Firmware Upgrade: Shows present rmware version. If a newer
version is available, you can update your Shelly by clicking Upload to install it.
Time Zone and Geo-location
Enable or Disable the automatic detection of Time Zone and Geo-location.
Factory reset: Return Shelly to its factory settings. Device Reboot: Reboots the device.
Additional Features
Shelly allows control via HTTP from any other device, home auto­mation controller, mobile app or server. For more information about the REST control protocol, please visit:
www.shelly.cloud or send a request to developers@shelly.cloud.
Settings
18
You can find the latest version of
this User Guide in .PDF
by scanning the QR code
19
