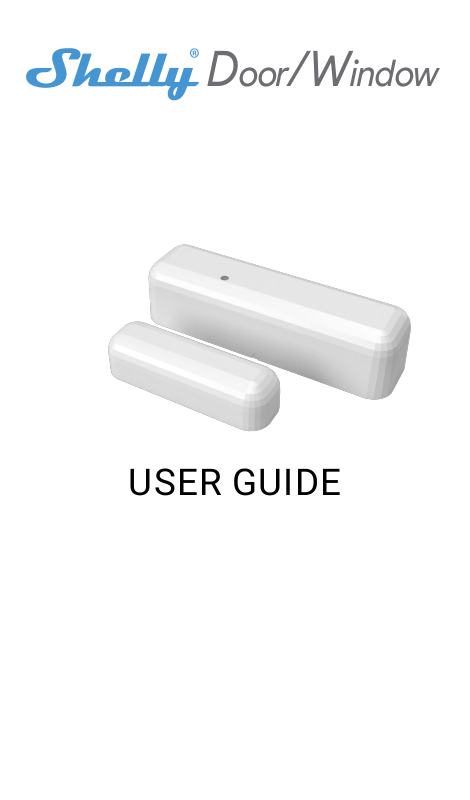

Shelly Door/Window by Allterco Robotics is intended to be
placed on a door or window in order to be aware of any open/
close, incline of opening, LUX sensor and vibration alert*. Shelly
Door/Window is battery powered, with battery life up to 2 years.
Shelly may work as a standalone device or as an accessory to a
home automation controller.
* Some of the features will be available after a FW update of
the device.
Specication
Power Supply
2x 3V CR123A Batteries
Battery life
2 years
Complies with EU standards
• RE Directive 2014/53/EU
• LVD 2014/35/EU
• EMC 2004/108/WE
• RoHS2 2011/65/UE
Working temperature
-10 ÷ 50°C
Temperature meas. range:
-10°C ÷ 50 °C (± 1°C)
Radio signal power:
1mW
Installation Instructions
⚠CAUTION! Before beginning the installation please read the
accompanying documentation carefully and completely. Failure
to follow recommended procedures could lead to malfunction,
danger to your life or violation of the law. Allterco Robotics is
not responsible for any loss or damage in case of incorrect installation or operation of this device.
⚠CAUTION! Use the Device only with batteries which comply
with all applicable regulations. Inappropriate batteries may
cause a short circuit in the Device, which may damage it.
⚠CAUTION! Do not allow children to play with the device, espe-
cially with the Power Button. Keep the devices for remote control of Shelly (mobile phones, tablets, PCs) away from children.
Wi-Fi DOOR/WINDOW SENSOR
Radio protocol
WiFi 802.11 b/g/n
Frequency
2400 – 2500 MHz
Operational range (depending
on local construction):
• up to 50 m outdoors
• up to 30 m indoors
Dimensions
• Sensor 82x23x20mm
• Magnet 52x16x13mm
Electrical consumption
• Static current: ≤10 μA
• Alarm current: ≤60 mA
2
Control your home with your voice
All Shelly devices are compatible with Amazons’ Alexa and
Googles’ assistant. Please see our step-by-step guides on:
https://shelly.cloud/compatibility/Alexa
https://shelly.cloud/compatibility/Assistant
Device „Wake Up“
To open the device remove the back cover.
Press the Button. The LED should ash slowly. This means
that Shelly is in AP mode. Press the Button again and the LED
will turn off and Shelly will be in „sleep“ mode.
Factory Reset
You can return your Shelly D/W sensor to its Factory Settings
by pressing and holding the Button for 10 seconds. Upon suc-
cessful factory reset the LED will ash slowly.
Additional Features
Shelly allows control via HTTP from any other device, home automation controller, mobile app or server. For more information
about the REST control protocol, please visit:
www.shelly.cloud or send a request to developers@shelly.cloud
MOBILE APPLICATION FOR SHELLY
3
Shelly Cloud gives you opportunity to control and adjust all
Shelly devices from anywhere in the world. The only thing you
need is connection to the Internet and our mobile application,
installed on your smartphone or tablet. To install the application please visit Google Play or App Store.
Registration
The rst time you open the Shelly Cloud mobile app, you have
to create an account which can manage all your Shelly devices.
Forgotten Password
In case you forget or lose your password, just enter the e-mail
address you have used in your registration. You will then receive instructions on how to change your password.
WARNING! Be careful when you
type your e-mail address during
the registration, as it will be used in
case you forgot your password.
After registering, create your rst
room (or rooms), where you are
going to add and use your Shelly
devices. Shelly Cloud allows easy
control and monitoring using a mobile phone, tablet or PC.
4
Device Inclusion
To add a new Shelly device, connect it to the power grid following the Installation Instructions included with the Device.
Step 1
Place your Shelly D/W sensor in the room where you want to
use it. Press the Button - the LED should turn on and ash
slowly.
WARNING: If the LED does not ash slowly, press and hold
the Button for at least 10 seconds. The LED should then ash
quickly. If not, please repeat or contact our customer support
at: support@shelly.cloud
Step 2
Choose “Add Device”.
In order to add more devices later, use the Menu at the top
right corner of the main screen and click “Add Device”.
Type the name and password for the WiFi network, to which
you want to add Shelly.
Step 3
If using iOS: you will see the following screen (g. 4)
On your iOS device open Settings > WiFi and connect to the
WiFi network created by Shelly, e.g. ShellyDW-35FA58.
If using Android (g. 5) your phone will automatically scan
and include all new Shelly devices in the WiFi network, that
you dened.
5
Upon successful Device Inclusion to the WiFi network you will
see the following pop-up:
Step 4:
Approximately 30 seconds after discovery of any new devices
оn the local WiFi network, а list will be displayed by default in
the “Discovered Devices” room.
Step 5:
Select Discovered Devices and choose the Shelly device you
want to include in your account.
6
Step 6:
Enter a name for the Device. Choose a Room, in which the device
has to be positioned. You can choose an icon or upload a picture to
make it easier to recognize. Press “Save Device”.
Step 7:
To enable connection to the Shelly Cloud service for remote
control and monitoring of the Device, press “yes” on the following pop-up.
7
Shelly Devices Settings
After your Shelly device is included in the app, you can change its
settings and automate the way it works. To enter the details menu
of the device, click on it’s name. From there you may control the
device, as well as edit its appearance and settings.
Sensor settings
Illumination denitions:
• Set Dark - dene the period of time (in miliseconds), in which the
LED will be not illuminated, when awake.
• Set Dusk - dene the period of time (in miliseconds), in which the
LED will be illuminated, when awake.
Internet/Security
WiFi Mode - Client: Allows the device to connect to an available WiFi
network. After typing the details in the respective elds, press Connect.
WiFi Client Back Up: Allows the device to connect to an available
WiFi network, as a secondary (backup), if your primary WiFi network
becomes unavailable. After typing the details in the respective
elds, press Set.
WiFi Mode - Access Point: Congure Shelly to create a Wi-Fi Access
point. After typing the details in the respective elds, press Create
Access Point.
Restrict Login: Restrict the web interface (IP in the Wi-Fi network) of
Shely with a Username and Password. After typing the details in the
respective elds, press Restrict Login.
8
Settings
Sensor Light
Enable or disable the light of the device, when the door is
opened/closed.
Firmware Update
Update the rmware of Shelly, when a new version is released.
Time Zone and Geo-location
Enable or Disable the automatic detection of Time Zone and
Geo-location.
Factory Reset
Return Shelly to its factory default settings.
Device Information
• Device ID - Unique ID of Shelly
• Device IP - The IP of Shelly in your Wi-Fi network
Edit Device
From here you can edit device name, room and picture. When
you are done, press Save Device.
THE EMBEDDED WEB INTERFACE
Even without the mobile app Shelly can be set and controlled
through a browser and connection of a mobile phone or tablet.
Abbreviations used:
• Shelly ID – consists of 6 or more characters. It may include
numbers and letters, for example 35FA58.
• SSID – the name of the WiFi network, created by the device,
for example ShellyDW-35FA58.
• Access Point (AP) – in this mode in Shelly creates its own
WiFi network.
• Client Mode (CM) – in this mode in Shelly connects to an-
other WiFi network.
Installation/Initial inclusion
Step 1
Place your Shelly D/W sensor in the room where you want to
use it. Press the Button - the LED should turn on and
ash slowly.
WARNING: If the LED does not ash slowly, press and hold
the Button for at least 10 seconds. The LED should then ash
quickly. If not, please repeat or contact our customer support at:
support@shelly.cloud
9
Step 2
When the LED is ashing slowly, Shelly has created a WiFi network, with name such as ShellyDW-35FA58. Connect to it.
Step 3
Type 192.168.33.1 into the address eld of your browser to load
the web interface of Shelly.
General - Home Page
This is the home page of the
embedded web interface.
Here you will see information
about:
• Current Illumination (in LUX)
• Current State (Opened or
Closed)
• Current battery percentage
• Connection to Cloud
• Present time
• Settings
Sensor Settings
Illumination Denitions:
• Set Dark - dene the period of time (in miliseconds), in which
the LED will be not illuminated, when awake.
• Set Dusk - dene the period of time (in miliseconds), in
which the LED will be illuminated, when awake.
Internet/Security
WiFi Mode - Client: Allows the device to connect to an avail-
able WiFi network. After typing the details in the elds, press
Connect.
WiFi Mode - Acess Point: Congure Shelly to create a Wi-Fi
Access point. After typing the details in the elds, press Create
Access Point.
Restrict Login: Restrict the web interface of Shely with a Username and Password. After typing the details in the respective
elds, press Restrict Shelly.
10
Advanced Developer Settings: Here you can change the action
execution:
• Via CoAP (CoIOT)
• Via MQTT
Cloud: Enable or disable the connection to the Cloud
Settings
LED Light Control: Enable or disable the light of the device,
when the door is opened/closed.
Time Zone and Geo-location: Enable or Disable the automatic
detection of Time Zone and Geo-location.
Firmware Update: Update the rmware of Shelly, when a new
version is released.
Factory Reset: Return Shelly to its factory default settings.
Device Reboot: Restart your Shelly device
Device ID: Unique ID of Shelly
Device IP: The IP of Shelly in your Wi-Fi network
11
Developers support
For the user guide
scan the QR code
Our Facebook support group: https://www.facebook.com/
groups/ShellyIoTCommunitySupport/
Our support e-mail: support@shelly.cloud
Our website: www.shelly.cloud
You can nd the latest PDF version of this user guide here:
(RoHSII Directive)
