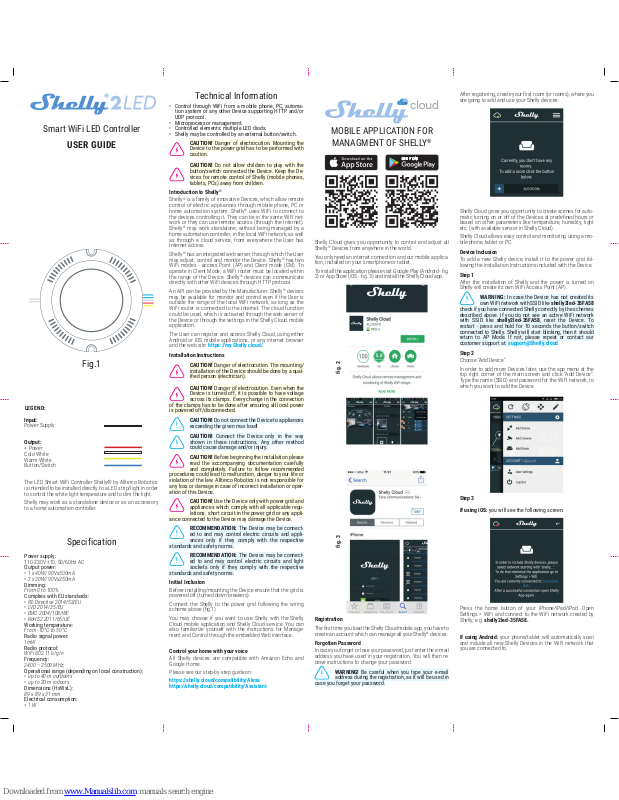

Shelly 2LED User Manual

USER GUIDE

Smart WiFi LED Controller

Power supply:

110-230V ±10, 50/60Hz AC

Output power:

• 1 x 40W/ 90Vx500mA

• 2 x 20W/ 90Vx250mA

Dimming:

From 0 to 100%

Complies with EU standards:

• RE Directive 2014/53/EU

• LVD 2014/35/EU

• EMC 2004/108/WE

• RoHS2 2011/65/UE

Working temperature:

From -10°C to 50°C

Radio signal power:

1mW

Radio protocol:

WiFi 802.11 b/g/n

Frequency:

2400 – 2500 MHz;

Operational range (depending on local construction):

• up to 40 m outdoors

• up to 20 m indoors

Dimensions (HxWxL):

89 x 89 x 31 mm

Electrical consumption:

< 1 W

The LED Smart WiFi Controller Shelly® by Allterco Robotics
is intended to be installed directly to a LED strip/light in order
to control the white light temperature and to dim the light.

Shelly may work as a standalone device or as an accessory
to a home automation controller.

Technical Information

• Control through WiFi from a mobile phone, PC, automa­tion system or any other Device supporting HTTP and/or
UDP protocol.

• Microprocessor management.

• Controlled elements: multiple LED diods.

• Shelly may be controlled by an external button/switch.

CAUTION! Danger of electrocution. Mounting the
Device to the power grid has to be performed with
caution.

CAUTION! Do not allow children to play with the
button/switch connected the Device. Keep the De­vices for remote control of Shelly (mobile phones,
tablets, PCs) away from children.

Introduction to Shelly

®

Shelly® is a family of innovative Devices, which allow remote
control of electric appli-ances through mobile phone, PC or
home automation system. Shelly® uses WiFi to connect to
the devices controlling it. They can be in the same WiFi net­work or they can use remote access (through the Internet).
Shelly® may work standalone, without being managed by a
home automation controller, in the local WiFi network, as well
as through a cloud service, from everywhere the User has
Internet access.

Shelly® has an integrated web server, through which the User
may adjust, control and monitor the Device. Shelly® has two
WiFi modes - access Point (AP) and Client mode (CM). To
operate in Client Mode, a WiFi router must be located within
the range of the Device. Shelly® devices can communicate
directly with other WiFi devices through HTTP protocol.

An API can be provided by the Manufacturer. Shelly® devices
may be available for monitor and control even if the User is
outside the range of the local WiFi network, as long as the
WiFi router is connected to the Internet. The cloud function
could be used, which is activated through the web server of
the Device or through the settings in the Shelly Cloud mobile
application.

The User can register and access Shelly Cloud, using either
Android or iOS mobile applications, or any internet browser
and the web site: https://my.Shelly.cloud/.

Installation Instructions

CAUTION! Danger of electrocution. The mounting/

installation of the Device should be done by a qual-

ied person (electrician).

CAUTION! Danger of electrocution. Even when the
Device is turned off, it is possible to have voltage

across its clamps. Every change in the connection
of the clamps has to be done after ensuring all local power
is powered off/disconnected.

CAUTION! Do not connect the Device to appliances

exceeding the given max load!

CAUTION! Connect the Device only in the way

shown in these instructions. Any other method

could cause damage and/or injury.

CAUTION! Before beginning the installation please

read the accompanying documentation carefully

and completely. Failure to follow recommended
procedures could lead to malfunction, danger to your life or
violation of the law. Allterco Robotics is not responsible for
any loss or damage in case of incorrect installation or oper­ation of this Device.

CAUTION! Use the Device only with power grid and

appliances which comply with all applicable regu-

lations. short circuit in the power grid or any appli­ance connected to the Device may damage the Device.

RECOMMENDATION: Тhe Device may be connect-

ed to and may control electric circuits and appli-

ances only if they comply with the respective
standards and safety norms.

RECOMMENDATION: The Device may be connect-

ed to and may control electric circuits and light

sockets only if they comply with the respective
standards and safety norms.

Initial Inclusion

Before installing/mounting the Device ensure that the grid is
powered off (turned down breakers).

Connect the Shelly to the power grid following the wiring

scheme above (g.1)

You may choose if you want to use Shelly with the Shelly
Cloud mobile application and Shelly Cloud service. You can
also familiarize yourself with the instructions for Manage­ment and Control through the embedded Web interface.

Control your home with your voice

All Shelly devices are compatible with Amazon Echo and
Google Home.

Please see our step-by-step guide on:

https://shelly.cloud/compatibility/Alexa
https://shelly.cloud/compatibility/Assistant

MOBILE APPLICATION FOR

MANAGMENT OF SHELLY

®

Shelly Cloud gives you opportunity to control and adjust all
Shelly® Devices from anywhere in the world.

You only need an internet connection and our mobile applica­tion, installed on your smartphone or tablet.

To install the application please visit Google Play (Android - g.

2) or App Store (iOS - g. 3) and install the Shelly Cloud app.

fig. 2

fig. 3

Registration

The rst time you load the Shelly Cloud mobile app, you have to

create an account which can manage all your Shelly® devices.

Forgotten Password

In case you forget or lose your password, just enter the e-mail
address you have used in your registration. You will then re­ceive instructions to change your password.

WARNING! Be careful when you type your e-mail
address during the registration, as it will be used in

case you forget your password.

After registering, create your rst room (or rooms), where you

are going to add and use your Shelly devices.

Shelly Cloud gives you opportunity to create scenes for auto-

matic turning on or off of the Devices at predened hours or

based on other parameters like temperature, humidity, light
etc. (with available sensor in Shelly Cloud).

Shelly Cloud allows easy control and monitoring using a mo­bile phone, tablet or PC.

Device Inclusion

To add a new Shelly device, install it to the power grid fol­lowing the Installation Instructions included with the Device.

Step 1

After the installation of Shelly and the power is turned on
Shelly will create its own WiFi Access Point (AP).

WARNING: In case the Device has not created its

own WiFi network with SSID like shelly2led-35FA58
check if you have connected Shelly correctly by the schemes
described above. If you do not see an active WiFi network
with SSID like shelly2led-35FA58, reset the Device. To
restart - press and hold for 10 seconds the button/switch
connected to Shelly. Shelly will start blinking, then it should
return to AP Mode. If not, please repeat or contact our
customer support at: [e-mail]

Step 2

Choose “Add Device”.
In order to add more Devices later, use the app menu at the

top right corner of the main screen and click “Add Device”.
Type the name (SSID) and password for the WiFi network, to
which you want to add the Device.

Step 3

If using iOS: you will see the following screen:

Press the home button of your iPhone/iPad/iPod. Open
Settings > WiFi and connect to the WiFi network created by
Shelly, e.g. shelly2led-35FA58.

If using Android: your phone/tablet will automatically scan
and include all new Shelly Devices in the WiFi network that
you are connected to.

Specification

Fig.1

LEGEND:

Input:

Power Supply

Output:

+ Power
Cold White
Warm White
Button/Switch

The Embedded Web Interface

Еven without the mobile app, Shelly can be set and controlled

through a browser and WiFi connection of a mobile phone,
tablet or PC.

ABBREVIATIONS USED:
Shelly-ID – the unique name of the Device. It consists of 6

or more characters. It may include numbers and letters, for
example 35FA58.

SSID – the name of the WiFi network, created by the Device,
for example shelly2led-35FA58.

Access Point (AP) – the mode in which the Device creates its
own WiFi connection point with the respective name (SSID).

Client Mode (CM) – the mode in which the Device is connect­ed to another WiFi network.

Initial inclusion
Step 1

Install Shelly to the power grid following the schemes de­scribed above and urn it on. Shelly will create its own WiFi
network (AP).

Step 2

When Shelly has created an own WiFi network (own AP), with
name (SSID) such as shelly2led-35FA58. Connect to it with
your phone, tablet or PC.

Step 3

Type 192.168.33.1 into the address eld of your browser to
load the web interface of Shelly.

General - Home Page

This is the home page of the embedded web interface. If it
has been set up is correctly, you will see information about:

• Channel 1/2 status and dimmer slider

• Connection to Cloud

• Present time - if connected to the Cloud

Internet & Security
WiFi Mode - Client: allows the Device to connect to an avail-

able WiFi network. In order to switch to this mode, the User
must enter the name (SSID) and the password to connect to
a local WiFi network. After entering the correct details, press

Connect.
WiFi Mode - Access Point (AP): allows the Device to operate

as a WiFi access point. The User can change the name (SSID)
and the password to access the AP. After you have entered
the desired settings, press Connect.

ATTENTION! If you have entered incorrect informa-

tion (wrong settings, usernames, passwords etc.),
you will not be able to connect to Shelly and you have to re­set the Device.

WARNING: In case the Device has not created its

own WiFi network with SSID like shelly2led-35FA58
check if you have connected Shelly correctly by the schemes
described above. If you do not see an active WiFi network
with SSID like shelly2led-35FA58, reset the Device. To
restart - press and hold for 10 seconds the button/switch
connected to Shelly. Shelly will start blinking, then it should
return to AP Mode. If not, please repeat or contact our
customer support at: [e-mail]

Restrict Login: Access to the Device
Enable Authentication – you can turn authentication on or

off
This is where you can set username and password for your
Shelly device. You must enter a username and password,
then press Save to save the changes.

Cloud: you can turn the connection between the Shelly device
and Shelly Cloud on or off.

Settings

In this menu, you can congure the Shelly device.
Firmware Update: Shows present rmware version. If a new-

er version is available, ocially announced and published by

the Manufacturer, you can update your Shelly Device. Click
Upload to install it to your Shelly Device.

Factory reset: Return Shelly to its factory settings, removes it
from your WiFi network and your account.

Device Reboot: Reboots the Device.

Managing the Shelly Device

Channel 1/2 Screen

In this screen you can control, monitor and change the set­tings for turning the light on and off. You can also see the cur­rent status (on/off) of the connected light to Shelly, Buttons
Settings, ON and OFF, Schedules and Timer.

To control Shelly press Channel 1/2:
To turn Shelly on press “Turn ON”.
To turn Shelly off press “Turn OFF”

Shelly Management Settings

This lets you personalize each Device in a unique manner, or
consistently, as you choose.

Timer

Automatic power on/shutdown of Shelly 2LED:
Auto OFF: After turning on, the power supply will be automat-

ically shut down after a predened time (in seconds). A value

of 0 will cancel the automatic shutdown.
Auto ON: After turning off, the power supply will be automat-

ically turned on after a predened time (in seconds). A value

of 0 will cancel the automatic start.

Sunrise/Sunset hours

This function requires an Internet connection. To
use Internet, a Shelly Device has to be connected to

a local WiFi network with а working Internet connection.

Shelly receives actual information through the Internet about
the time of sunrise and sunset in your area. Shelly may turn

on or off automatically at sunrise/sunset, or at a specied

time before or after sunrise/sunset.

On/Off schedule

This function requires an Internet connection. To
use Internet, a Shelly Device has to be connected to

a local WiFi network with working internet connection.

Shelly may turn on/off automatically at a predefined time.

Power On Default State

This sets Shellys’ default state when powered on from the
power grid.

ON: By default when the Device is powered and the connect­ed ight to it will be powered as well.
OFF: By default the Device and any connected ight will not be
powered, even when it is connected to the grid.
Restore Last State: By default the Device and the connected
ight will be returned to the last state they occupied (on or off)
before the last power off/shutdown.

Manufacturer: Allterco Robotics EOOD
Address: Soa, 1407, 103 Cherni Vrah Blvd.
Tel.: [phone]
E-mail: [e-mail]

http://www.Shelly.cloud

The Declaration of Conformity is available at:

https://Shelly.cloud/declaration-of-conformity/

Changes in the contact data are published by the Manufac-

turer at the ocial website of the Device:

http://www.Shelly.cloud

The User is obliged to stay informed for any amendments of
these warranty terms before exercising his/her rights against
the Manufacturer.

All rights to trademarks She® and Shelly® , and other intel­lectual rights associated with this Device belong to Allterco
Robotics EOOD.

2018/04/v01

Upon successful Device Inclusion to the WiFi network you will
see the following pop-up:

Step 4:

Approximately 30 seconds after discovery of any new Devic-

es оn the local WiFi network, а list will be displayed by default

in the “Discovered Devices” room.

Step 5:

Enter Discovered Devices and choose the Device you want to
include in your account.

Step 6:

Enter a name for the Device (in the Device Name eld). Choose a

Room, in which the Device has to be positioned. You can choose
an icon or add a picture to make it easier to recognize. Press
“Save Device”.

Step 7:

To enable connection to the Shelly Cloud service for remote
control and monitoring of the Device, press “YES” on the fol­lowing pop-up.

Shelly Devices Settings

After your Shelly device is included in the app, you can control
it, change its settings and automate the way it works.

To switch the Device on and off, use the respective ON/OFF
button.

To enter at the details menu of the respective Device, simply
click on it’s name.

From the details menu you may control the Device, as well as
edit its appearance and settings.

EDIT DEVICE – allows you to change the Device’s name, room
and picture.

DEVICE Settings – allows you to change settings. For ex­ample, with Restrict login you may enter a username and
password to restrict access to the embedded web interface
in Shelly. You may automate the Device operations from this
menu as well.

Timer

Тo manage the power supply automatically, you may use:

Auto OFF: After turning on, the power supply will automatically

shutdown after a predened time (in seconds). A value of 0 will

cancel the automatic shutdown.
Auto ON: After turning off, the power supply will be automati-

cally turned on after a predened time (in seconds). A value of

0 will cancel the automatic power-on.

Power On Default Mode

Тhis setting controls whether the Device will supply power

or not the output as a default whenever it is receiving power
from the grid:

ON: When the Device is powered, by default the socket will
be powered.

OFF: Even if the Device is powered, by default the socket will
not be powered.

Restore Last Mode: When power is restored, by default, the
appliance will return to the last state it was in before the last
power off/shutdown.

Sunrise/Sunset

This function requires an Internet connection. To
use Internet, a Shelly Device has to be connected to

a local WiFi network with а working Internet connection.

Shelly receives actual information through the Internet about
the time of sunrise and sunset in your area. Shelly may turn on

or off automatically at sunrise/sunset, or at a specied time

before or after sunrise/sunset.

Weekly Schedule

This function requires an Internet connection. To
use Internet, a Shelly Device has to be connected to

a local WiFi network with working internet connection.

Shelly may turn on/off automatically at a predened time.
