Shellab SVAC2E-2 User Manual

ECONOMY

VACUUM OVEN

Models:

SVAC1E

SVAC1E-2

SVAC2E

SVAC2E-2

Previously designated as:

1407, 1407-2, 1408, 1408-2

INSTALLATION AND INSTRUCTION MANUAL

1/ 2015

4861658

Sheldon Manufacturing Inc. P.O. Box 627, Cornelius, Oregon 97113

EMAIL: [e-mail] INTERNET: http://www.Shellab.com/~Shellab

1-800-322-4897 [phone] FAX [phone]

2

TABLE OF CONTENTS

SECTION 1.0 RECEIVING AND INSPECTION
SECTION 2.0 GRAPHIC SYMBOLS
SECTION 3.0 INSTALLATION
SECTION 4.0 CONTROL PANEL OVERVIEW
SECTION 5.0 PRECAUTIONS
SECTION 6.0 VACUUM OPERATION
SECTION 7.0 OPERATION
SECTION 8.0 MAINTENANCE
SECTION 9.0 TROUBLESHOOTING AND SERVICE
SECTION 10.0 PARTS LIST

UNIT SPECIFICATIONS

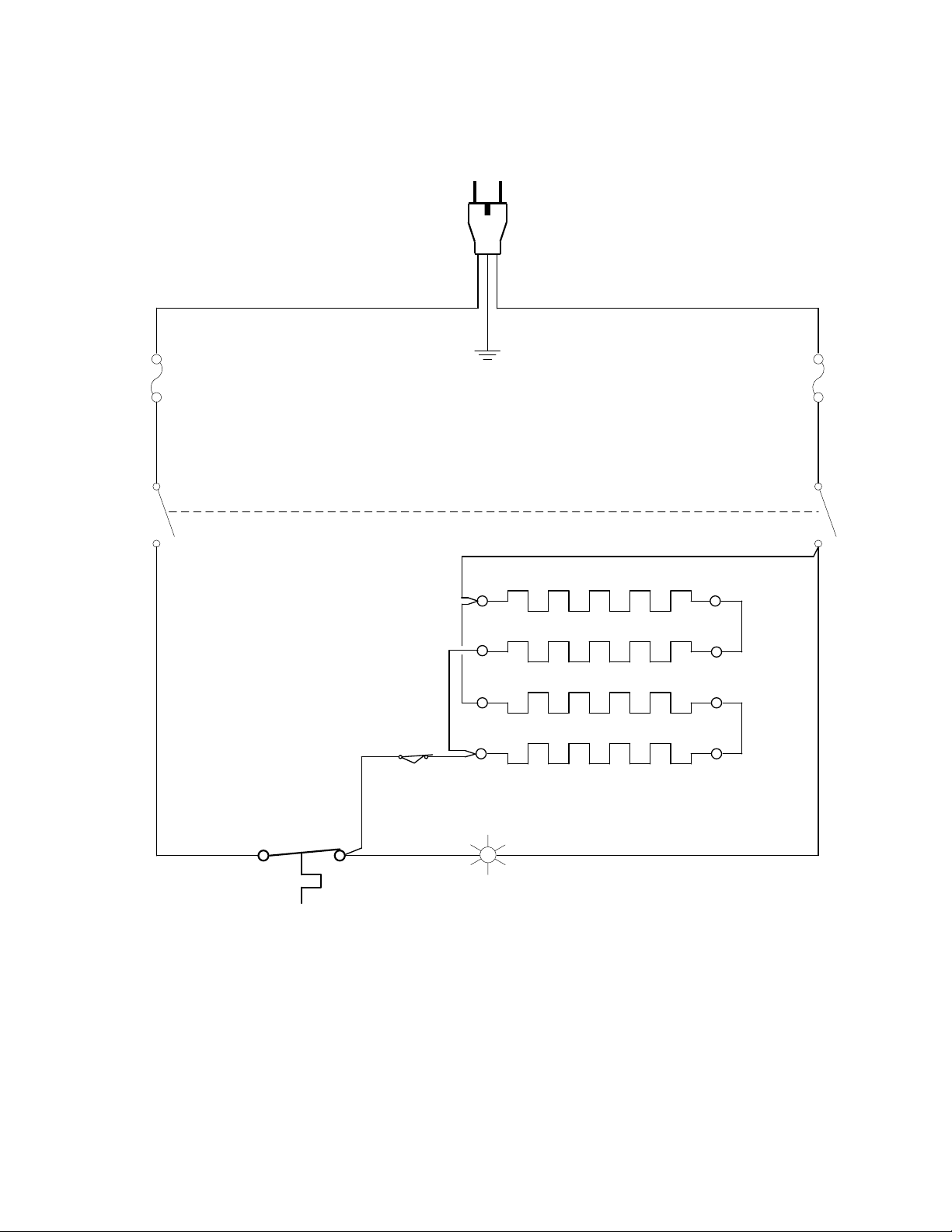

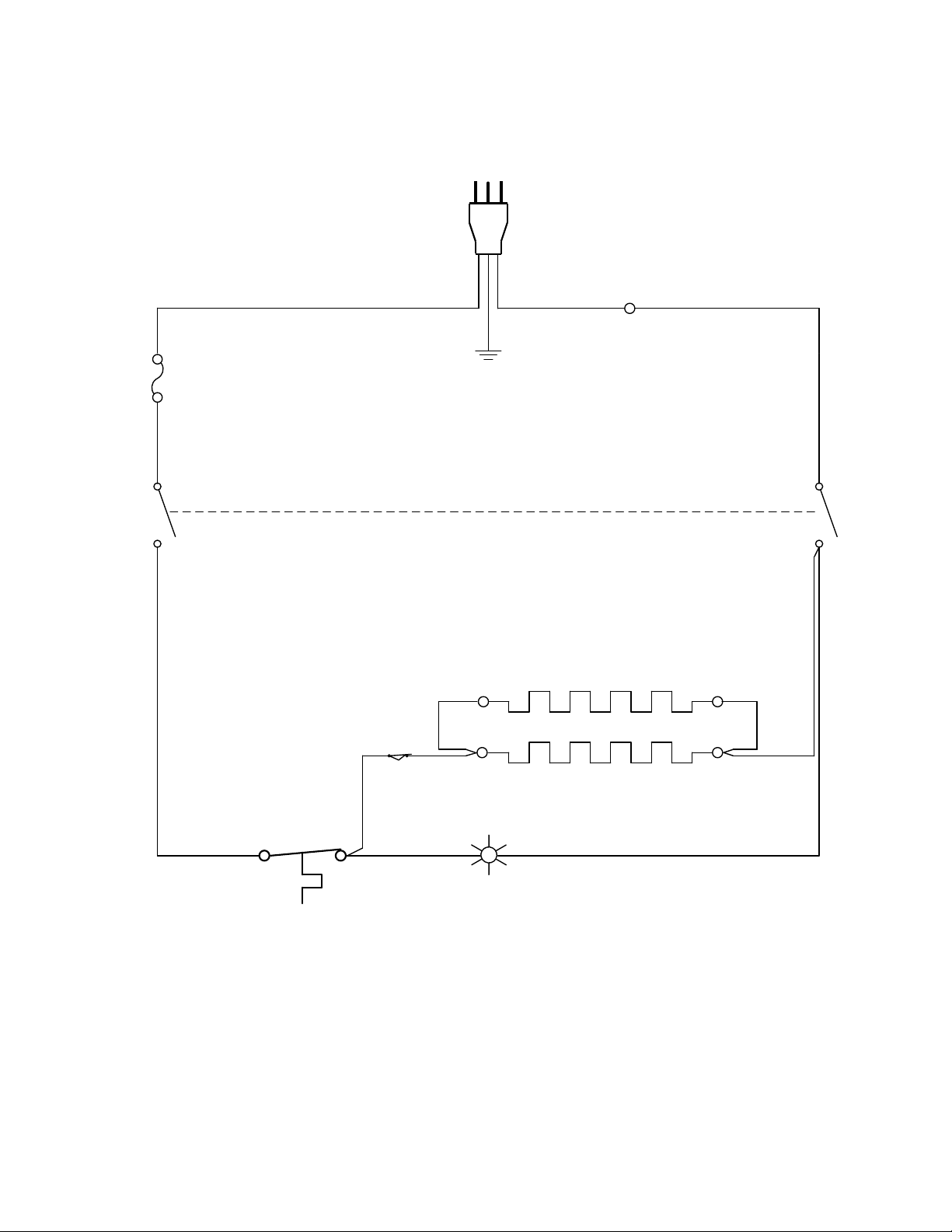

WIRE DIAGRAM

These units are general purpose vacuum ovens for professional, industrial or educational use
where the preparation or testing of materials is done at approximately atmospheric pressure
and no flammable, volatile or combustible materials are being heated. These units are not
intended for hazardous or household locations or use.

3

RECEIVING AND INSPECTION

Section

IMPORTANT: READ THIS INSTRUCTION MANUAL IMMEDIATELY.

Your satisfaction and safety require a complete understanding of this unit, including its
proper function and operational characteristics. Be sure operators are familiar with
these instructions before attempting to put the unit in service. NOTE: This equipment
must be used only for its intended application; any alterations or modifications will VOID
your warranty.

1.1 Inspection: The carrier, when accepting shipment, also accepts responsibility for safe
delivery and is liable for loss or damage claims. On delivery, inspect for visible exterior
damage. Note and describe on the freight bill any damage found and enter your claim on
the form supplied by the carrier.

1.2 Inspect for concealed loss or damage on the unit itself, both interior and exterior. If any,
the carrier will arrange for official inspection to substantiate your claim.

1.3 Return Shipment: Save the shipping carton until you are sure the unit has been
delivered in good condition. If for any reason you must return the unit, contact your
customer service representative for authorization. Supply the complete data label
information when requesting return authorization. Please see the manual cover for
information on where to contact customer service.

1.4 Accessories: Verify that all of the equipment indicated on the packing slip is included
with the unit. Carefully check all packaging before discarding. The units are equipped
with 2 shelves.

4

GRAPHICS SYMBOLS

Section

Your oven is provided with a display of graphic symbols to help in identifying the use and
function of the available adjustable components.

2.1 Indicates that you should consult your operation manual for further description

and discussion of a control or user item.

2.2 Indicates "AC Power On".

2.3 Indicates "Adjustable Temperature".

2.4 Indicates "Manual Adjustment".

2.5 Indicates "Heating".

2.6 Indicates "Earth Ground"

2.7 Indicates “Potential Shock Hazard” behind partition

2.8 Indicates “Unit should be recycled” (Not disposed of in land-fill)

5

INSTALLATION

Section

Local city, county or other ordinances may govern the use of this equipment. If you have any
questions about local requirements, please contact the appropriate local agency. Installation
may be performed by the end user.

Under normal circumstances this unit is intended for use indoors, at room temperatures
between 5 and 40C, at no greater than 80% Relative Humidity (at 25C) and with a supply
voltage that does not vary by more than 10%. Customer service should be contacted for
operating conditions outside of these limits.

3.1 Power Source: The power source must match the voltage, cycle, phase, and ampere
requirements listed on the data plate. This unit is intended for 50/60 HZ application.
Plug the cord into a grounded outlet. THE VOLTAGE OF THE OUTLET SHOULD NOT
VARY MORE THAN 10% FROM THE DATAPLATE RATING. A separate circuit is
recommended to preclude loss of product due to overloading or circuit failure. Note that
the electrical supply to the unit must conform to all national and local electrical codes.

3.2 Location: When selecting a site for the unit, consider conditions that may affect
performance, such as heat from radiators, ovens, autoclaves, etc. Avoid direct sun, fast­moving air currents, heating/cooling ducts, and high-traffic areas. To ensure air
circulation around the unit, allow a minimum of 30 cm between the unit and any walls or
partitions that might obstruct free airflow.

3.3 Lifting / Handling: This unit is heavy and care should be taken to use appropriate lifting
devices sufficiently rated for such loads. Please see Unit Sepcifications for weight
specifications. The unit should only be lifted from the bottom surface. Doors, handles
and knobs are not adequate for lifting or stabilization. The unit should be completely
restrained from tipping during lifting or transport. All moving parts such as shelves
should be removed to prevent shifting and damage. The doors should be positively
locked in the closed position during transport.

3.4 Leveling: The unit must sit level and solidly. The unit has four rubber feet that are
already attached to the unit and are not adjustable; however, the counter top must be
level for maximum working and safety conditions.

3.5 Cleaning: The oven has been cleaned at the factory, but not sterilized and should be
disinfected prior to use. Remove all shelving if assembled and clean the chamber with a
disinfectant that is appropriate for your application. DO NOT USE chlorine-based
bleaches or abrasives as this will damage the interior. DO NOT USE spray cleaners that
might leak through openings and cracks and get on electrical parts or that may contain
solvents that will harm the coatings. A thorough, periodic cleaning is strongly
recommended.

WARNING: Never clean the unit with alcohol or flammable cleaners with the unit
connected to the electrical supply. Always disconnect the unit from the electrical service
when cleaning and assure all volatile or flammable cleaners are evaporated and dry
before reattaching the unit to the power supply.

6

3.6 Shelves: See Figure One for proper orientation of shelves. DO NOT place items
directly on the floor of the chamber.

FIGURE ONE
