DESCRIPTION
• Acid and alkali resistant glazed surfaces
• Designed to withstand heavy use
• Suitable for waste disposal units or basket strainer waste
• Standard 3-1/2” drain opening
• Due to ± 2% dimensions, it is recommended that the cabinet
maker wait until your sink is delivered to make the cabinet
• No template available
• Includes “Shaws Classic” badge
• Weight 128lbs.
• 33” minimum cabinet size
WARRANTY
• 1 year on manufacturing defects
• 10 years on fading/staining

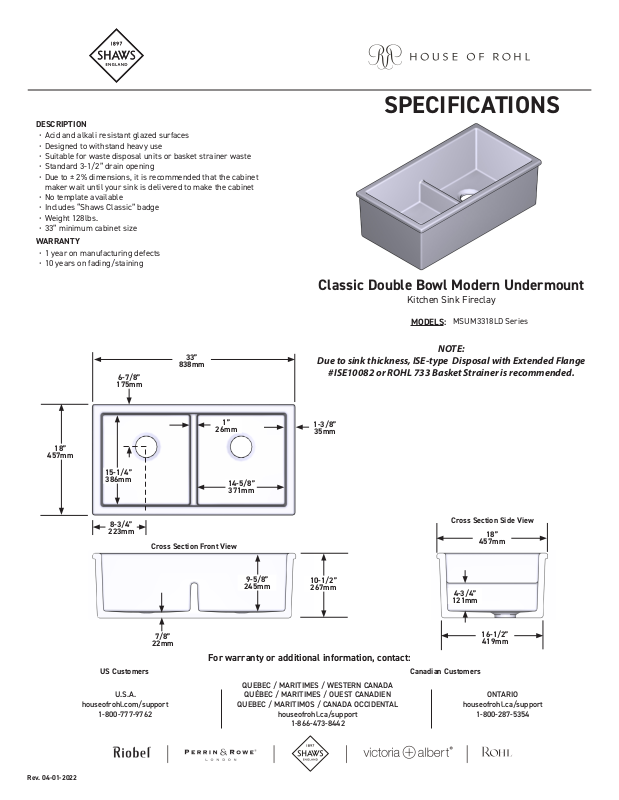

SPECIFICATIONS
Classic Double Bowl Modern Undermount
Kitchen Sink Fireclay
18”
457mm
6-7/8”
175mm
15-1/4”
386mm
8-3/4”
223mm
33”
838mm
1”
26mm
14-5/8”
371mm
Cross Section Front View
9-5/8”
245mm
MODELS:
MSUM3318LD Series
NOTE:
Due to sink thickness, ISE-type Disposal with Extended Flange
#ISE10082 or ROHL 733 Basket Strainer is recommended.
1-3/8”
35mm
Cross Section Side View
18”
457mm
10-1/2”
267mm
4-3/4”
121mm
Rev. 04-01-2022
7/8”
22mm
For warranty or additional information, contact:
US Customers Canadian Customers
houseofrohl.com/support
U.S.A.
1-800-777-9762
QUEBEC / MARITIMES / WESTERN CANADA
QUÉBEC / MARITIMES / OUEST CANADIEN
QUEBEC / MARITIMOS / CANADA OCCIDENTAL
houseofrohl.ca/support
1-866-473-8442
16-1/2”
419mm
ONTARIO
houseofrohl.ca/support
1-800-287-5354
