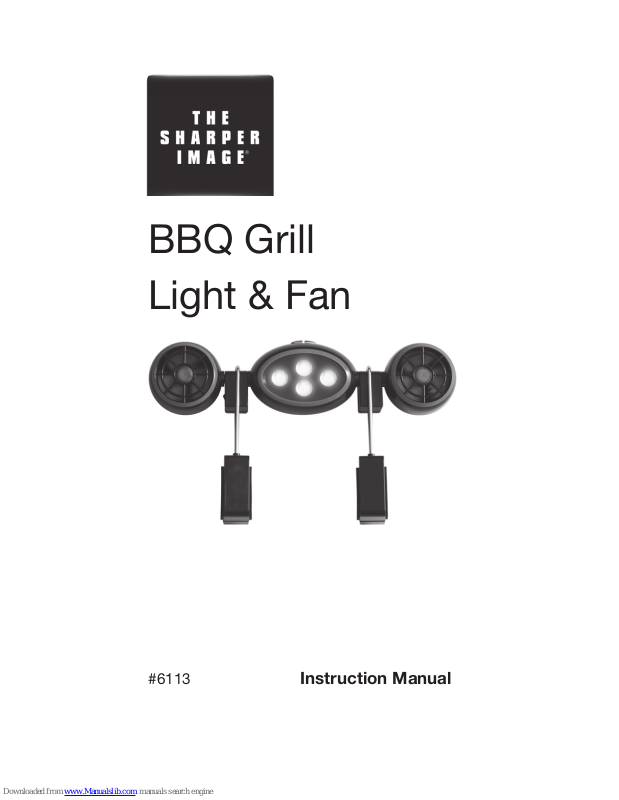

Page 1
Instruction Manual
BBQ Grill
Light & Fan
#6113
Page 2
WARNING
• THIS PRODUCT IS NOT A TOY. NOT TO BE
USED BY CHILDREN.
• DO NOT LOOK DIRECTLY AT THE BULB DOING SO MAY CAUSE EYE DAMAGE.
• USE EXTREME CAUTION WHEN USING
THE BBQ FAN & LIGHT. IF AT ANY TIME
THE BBQ FAN & LIGHT BECOMES TOO
HOT, ALLOW AMPLE TIME FOR YOUR BBQ
GRILL TO COOL DOWN, THEN REMOVE
THE BBQ FAN & LIGHT AND DISCONTINUE
USE.
• THIS PRODUCT SHOULD NOT BE USED
ON KETTLE GRILLS.
• HANDLE BBQ FAN & LIGHT WITH CARE.
• STORE AWAY FROM CHILDREN.
• DO NOT LEAVE THIS PRODUCT IN AN
UNCOVERED AREA AS THIS MAY CAUSE
WEATHER RELATED DAMAGE TO
ELECTRICAL COMPONENTS.
MOUNTING
1. Unscrew and remove the mounting bracket
bolts (1) from the upper and lower mounting
brackets (2) and (3).
2. Center BBQ Grill Light & Fan across grill
handle (4) so that the grill handle (4) sits inside
the openings of the upper and lower
mounting brackets (2) and (3).
3. Partially screw in place the mounting bracket
bolts (1). Adjust product to the
appropriate angle, and securely tighten
bolts (1).
NOTE: It may be necessary to remove the
rubber spacers (5) from the upper and lower
Page 3
mounting brackets if your BBQ grill’s handle is
too thick.
4. To adjust the distance between the BBQ Grill
Light & Fan and the grill, loosen the adjustment knob (7), slide product up or down on
the adjustment loops (6), and when satised,
tighten adjustment knob (7) securely.
TO USE
• Press fan control button (10) to turn the fans
(8) on and off.
• Press the light control button (11) to operate
the light.
• The fans (8) can be rotated individually for
premium performance so that any smoke
from the grill can be safely deected away.
• The light module (9) rotates for best lighting
conditions while grilling at night; adjust as
desired.
1. Mounting
bracket bolts
2. Upper mounting
bracket
3. Lower mounting
bracket
5. Rubber spacers
4. Grill Handle
9. Light module
7. Adjustment
knob
6. Adjustment
loops
8. Fan
module
10. Fan control
button
11. Light control
button
Page 4
13. Screw
12. Battery compartment
cover
14. Tabs
BATTERY INSTALLATION AND
REPLACEMENT
This product requires 8 x 1.5V “AA”
batteries (not included).
Using a Phillips head screwdriver, remove
screw (13) and lift off battery compartment
cover (12). Install batteries according to the
polarity drawing indicated. Replace battery
compartment cover (12), make sure to align
tabs (14) and tighten screw (13) securely to
close.
Page 5
CAUTION – Battery Safety Information
• Non-rechargeable batteries are not to be
recharged
• Rechargeable batteries must be removed
before recharging
• Rechargeable batteries should only be
recharged under adult supervision
• Do not mix alkaline, standard (carbon-zinc),
or rechargeable (nickel-cadmium) batteries
• Exhausted batteries are to be removed
• Do not mix old and new batteries
• Do not dispose of batteries in re; batteries
may explode or leak
• Do not dispose of product in re; batteries
may explode or leak
• If this product will not be used for an
extended period of time, remove the batteries
from the product
• The supply terminals are not to be
short-circuited
• Batteries are to be inserted with correct
polarity
• Clean the battery contacts and also those of
the product prior to battery installation
• As always, dispose of batteries in an
eco-friendly manner
MAINTENANCE & STORAGE
• If necessary, wipe clean with a damp cloth
using water only.
Page 6
The Sharper Image name and logo are registered trademarks.
Manufactured and Marketed by EB Brands, Hazleton, PA 18202 U.S.A,
866-677-1885
Under license from Sharper Image, © Sharper Image. All rights reserved.
SH6113IS01ENB
