SHARP SP2338 Technical Report

COPIER : SF-2025
Date
:
Nov. 19, 1998
No. : SP-2338
DISCONTINUANCE OF THE SCREW HOLE TAPS CARRIED OUT AS A MEASURE TO IMPROVE PRODUCTIVITY.
1.Model Name: SF-2025/2030/2040

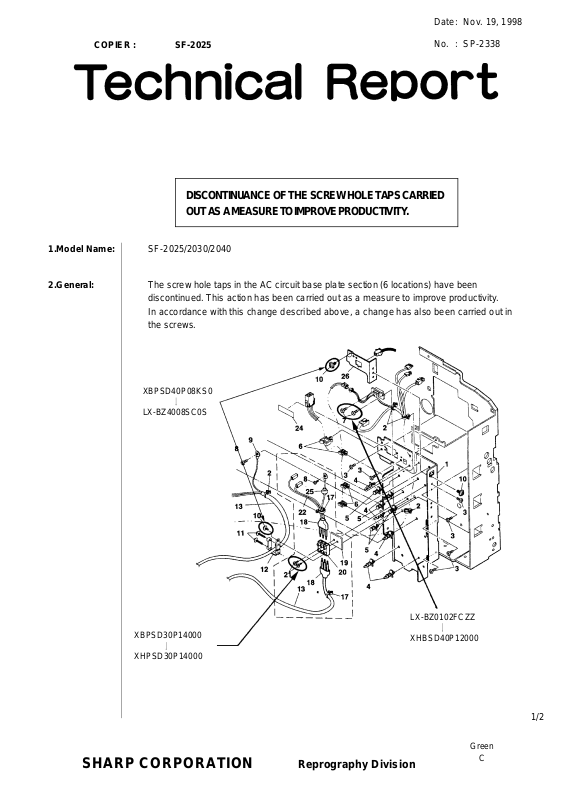

2.General: The screw hole taps in the AC circuit base plate section (6 locations) have been
discontinued. This action has been carried out as a measure to improve productivity. In accordance with this change described above, a change has also been carried out in the screws.
XBPSD40P08KS0 LX-BZ4008SC0S
XBPSD30P14000 XHPSD30P14000
LX-BZ0102FCZZ XHBSD40P12000
1/2
Green
C
Ref.
Model
name
Version P/G No.
No.
SF-2025 SF-2030
SF-2040 23 -1
24 -1
Current parts New parts
Parts code Parts code
LDAIU0529FCZZ LDAIU0529FCZ1 AQ AC circuit base
Price
Parts name
rank
Effec-
tive
time
Inter-
change-
ability
Note
SF-2025 SF-2030
SF-2040
SF-2025 SF-2030
SF-2040 23 -21
SF-2025 SF-2030
SF-2040 23 -7
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. Current type can be used in place of new type. New type cannot be used in place of current type.
3. Current type cannot be used in place of new type. New type can be used in place of current type.
Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the set.
24 -10
23 -10
All
24 -21
24 -7
XBPSD40P08KS0 LX-BZ4008SC0S
XBPSD30P14000 XHPSD30P14000 Screw (3 × 14)
LX-BZ0102FCZZ XHBSD40P12000 Screw (4 × 12)
5. Interchangeable if replaced with same types of related parts in use.
6. Others.
Screw (4 × 8)
AA
1st lot '98/10
5
2/2
