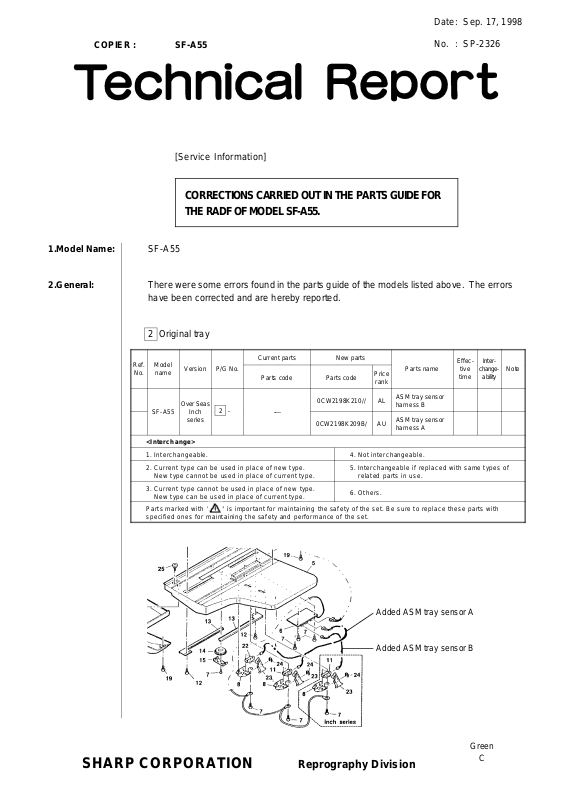

SHARP SP2326 Technical Report

COPIER : SF-A55

Date

:

Sep. 17, 1998

No. : SP-2326

[Service Information]

CORRECTIONS CARRIED OUT IN THE PARTS GUIDE FOR
THE RADF OF MODEL SF-A55.

1.Model Name: SF-A55

2.General: There were some errors found in the parts guide of the models listed above. The errors

have been corrected and are hereby reported.

2 Original tray

Ref.

Model

No.

name

SF-A55

<Interchange>

1. Interchangeable. 4. Not interchangeable.

2. Current type can be used in place of new type.
New type cannot be used in place of current type.

3. Current type cannot be used in place of new type.
New type can be used in place of current type.

Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

Version P/G No.

Over Seas

Inch

series

2 -

Current parts New parts

Parts code Parts code

0CW2198K210// AL

---­0CW2198K209B/ AU

5. Interchangeable if replaced with same types of
related parts in use.

6. Others.

Price

rank

Parts name

ASM tray sensor
harness B

ASM tray sensor
harness A

Effec-

tive

time

Inter-

change-

ability

Note

Added ASM tray sensor A

Added ASM tray sensor B

SHARP CORPORATION Reprography Division

Green

C
