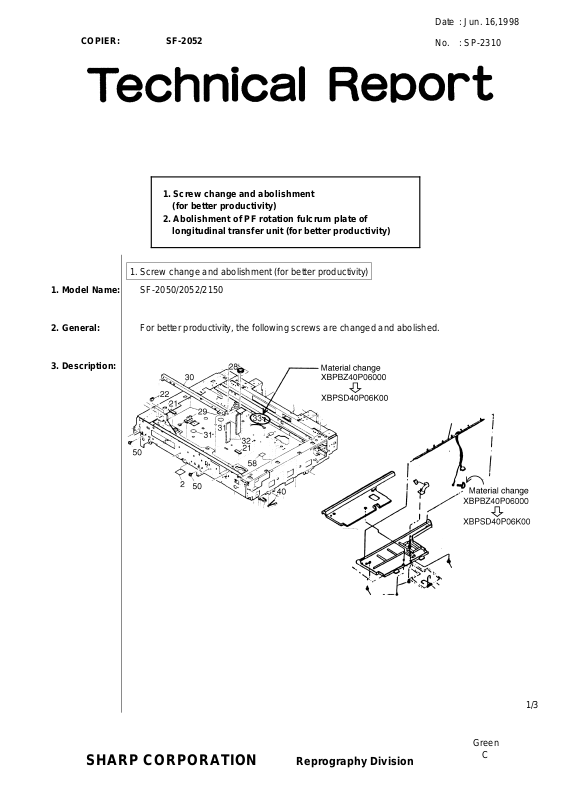

Date : Jun. 16,1998
COPIER: SF-2052
1. Screw change and abolishment
(for better productivity)
2. Abolishment of PF rotation fulcrum plate of
longitudinal transfer unit (for better productivity)
1. Screw change and abolishment (for better productivity)
1. Model Name: SF-2050/2052/2150
No. : SP-2310
2. General: For better productivity, the following screws are changed and abolished.
3. Description:
SHARP CORPORATION Reprography Division
1/3
Green
C
4. Action: From the 1st unit of the production in June, 1998
2. Abolishment of PF rotation fulcrum plate of longitudinal transfer unit (for better productivity)
1. Model Name: SF-2050/2052/2150
2. General: On the longitudinal transfer frame F itself of the longitudinal transfer unit, the fulcrum (projection)
for the paper guide of the longitudinal transfer is provided to abolish the fulcrum plate of the PF
rotation.
2/3
3. Action: From the middle of the production in June, 1998 (Running change)
Ref.
Model
No.
name
SF-2050
2
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. Current type can be used in place of new type.
New type cannot be used in place of current type.
3. Current type cannot be used in place of new type.
New type can be used in place of current type.
Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with specified ones
for maintaining the safety and performance of the set.
Version P/G No.
2052
2150
ALL
23 - 15
23 - 2
23 - 1
Current parts New parts
Parts code Parts code
CFRM-0852FC01 CFRM-0852FC02 AN
LPLTP3108FCZZ
XHBSE40P08000 Screw(M4X8)
Abolished
(Quantity 4)
5. Interchangeable if replaced with same types of related
parts in use.
6. Others.
Price
rank
Vertical Transport
PF Rotation Plate
-
Parts name
Frame F
Effec-
tive
time
Mid-
’98/6
Inter-
change-
ability
Note
5
3/3
