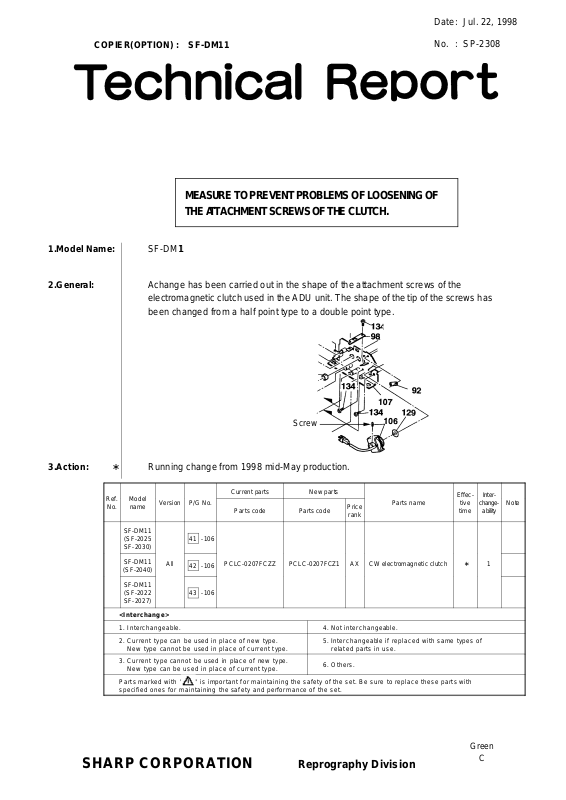

SHARP SP2308 Technical Report

COPIER(OPTION) : SF-DM11

Date

Jul. 22, 1998

No. : SP-2308

MEASURE TO PREVENT PROBLEMS OF LOOSENING OF THE ATTACHMENT SCREWS OF THE CLUTCH.

1.Model Name: SF-DM11

2.General: A change has been carried out in the shape of the attachment screws of the

electromagnetic clutch used in the ADU unit. The shape of the tip of the screws has been changed from a half point type to a double point type.

Screw

3.Action: ∗ Running change from 1998 mid-May production.

Ref.

Model

No.

name

SF-DM11 (SF-2025 SF-2030)

SF-DM11 (SF-2040)

SF-DM11 (SF-2022 SF-2027)

1. Interchangeable. 4. Not interchangeable.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

Version P/G No.

41 -106

All

42 -106

43 -106

Current parts New parts

Parts code Parts code

PCLC-0207FCZZ PCLC-0207FCZ1 AX CW electromagnetic clutch ∗ 1

5. Interchangeable if replaced with same types of related parts in use.

6. Others.

Price

rank

Parts name

Effec-

tive

time

Inter-

change-

ability

Note

SHARP CORPORATION Reprography Division

Green
