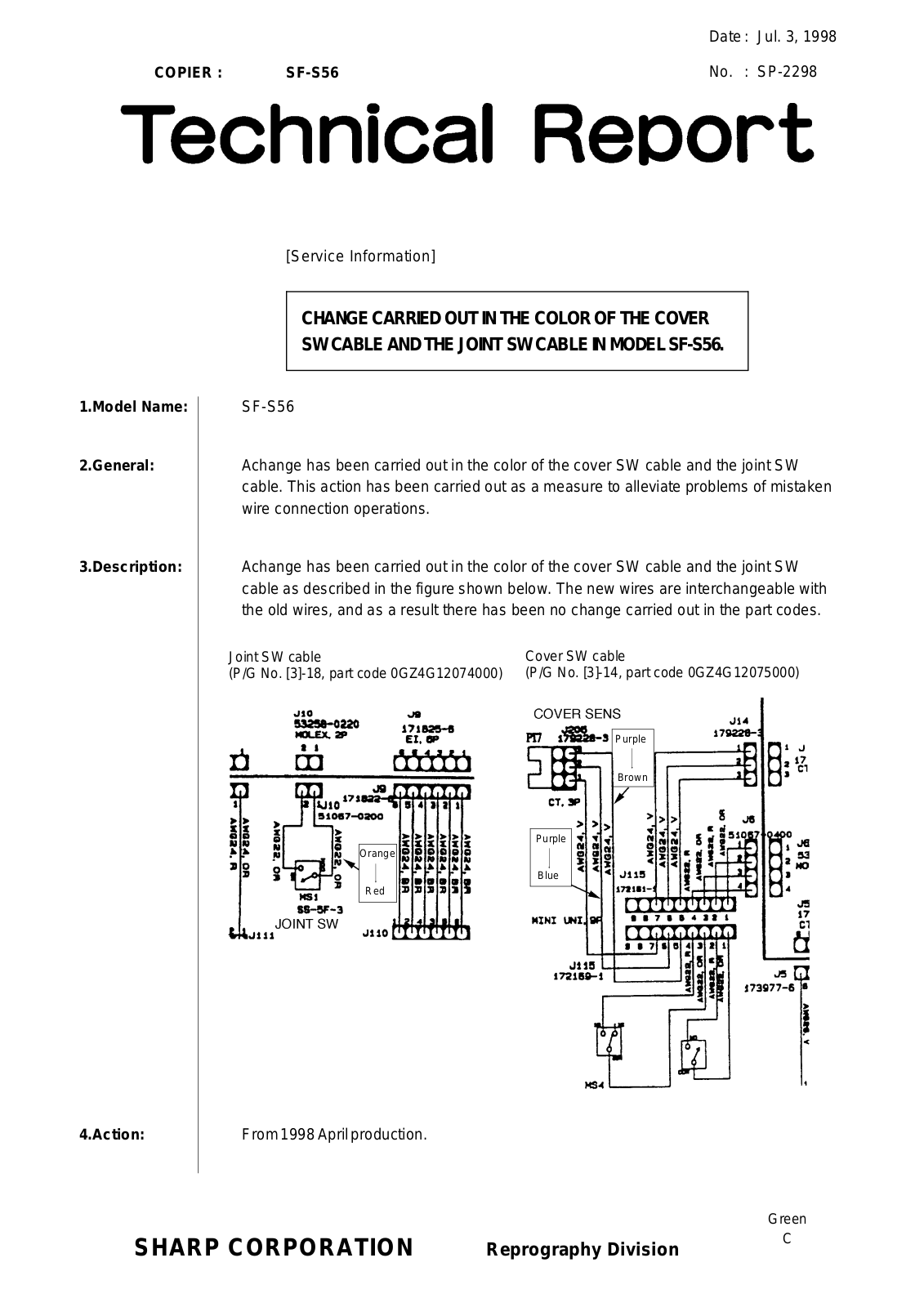

SHARP SP2298 Technical Report

COPIER : SF-S56

Date

Jul. 3, 1998

No. : SP-2298

[Service Information]

CHANGE CARRIED OUT IN THE COLOR OF THE COVER SW CABLE AND THE JOINT SW CABLE IN MODEL SF-S56.

1.Model Name: SF-S56

2.General: A change has been carried out in the color of the cover SW cable and the joint SW

cable. This action has been carried out as a measure to alleviate problems of mistaken wire connection operations.

3.Description: A change has been carried out in the color of the cover SW cable and the joint SW

cable as described in the figure shown below. The new wires are interchangeable with the old wires, and as a result there has been no change carried out in the part codes.

Joint SW cable (P/G No. [3]-18, part code 0GZ4G12074000)

Orange

Red

Cover SW cable (P/G No. [3]-14, part code 0GZ4G12075000)

Purple

Brown

Purple

Blue

4.Action: From 1998 April production.

SHARP CORPORATION Reprography Division

Green
