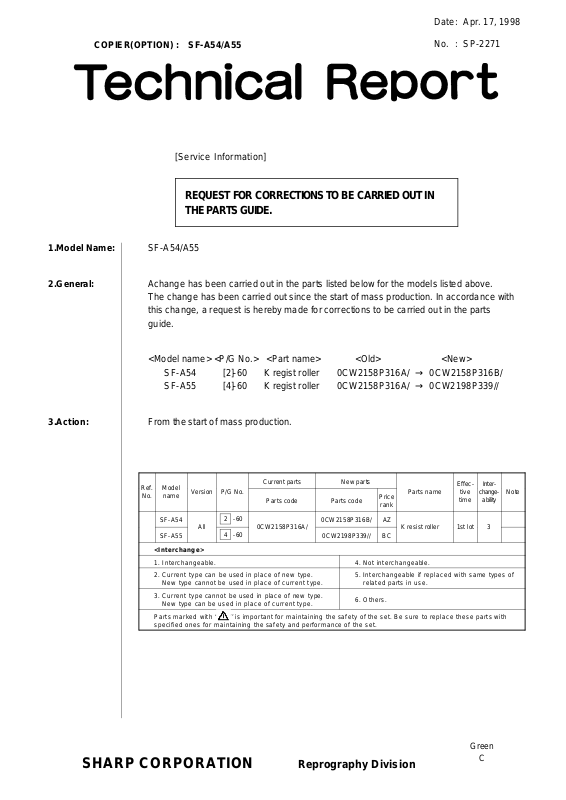

SHARP sp2271 Technical Report

COPIER(OPTION) : SF-A54/A55

Date

:

Apr. 17, 1998

No. : SP-2271

[Service Information]

REQUEST FOR CORRECTIONS TO BE CARRIED OUT IN
THE PARTS GUIDE.

1.Model Name: SF-A54/A55

2.General: A change has been carried out in the parts listed below for the models listed above.

The change has been carried out since the start of mass production. In accordance with
this change, a request is hereby made for corrections to be carried out in the parts
guide.

<Model name> <P/G No.> <Part name> <Old> <New>

SF-A54 [2]-60 K regist roller 0CW2158P316A/ → 0CW2158P316B/
SF-A55 [4]-60 K regist roller 0CW2158P316A/ → 0CW2198P339//

3.Action: From the start of mass production.

Ref.

Model

No.

SF-A54
SF-A55

<Interchange>

1. Interchangeable. 4. Not interchangeable.

2. Current type can be used in place of new type.

3. Current type cannot be used in place of new type.

Parts marked with ‘‘ ’’ is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

Version P/G No.

name

2 -60

All

4 -60

New type cannot be used in place of current type.

New type can be used in place of current type.

Current parts New parts

Parts code Parts code

0CW2158P316A/

Price

rank

0CW2158P316B/ AZ

0CW2198P339// BC

5. Interchangeable if replaced with same types of
related parts in use.

6. Others.

Effec-

Parts name

K resist roller 1st lot 3

tive

time

Inter-

change-

ability

Note

SHARP CORPORATION Reprography Division

Green

C
