Date: May. 30, 1997

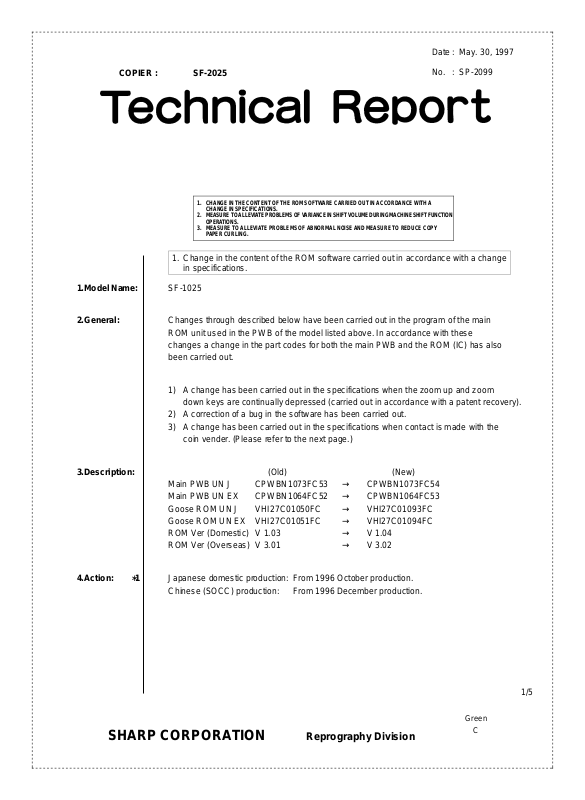

COPIER : SF-2025
1. CHANGE IN THE CONTENT OF THE ROM SOFTWARE CARRIED OUT IN ACCORDANCE WITH A
CHANGE IN SPECIFICATIONS.
2. MEASURE TO ALLEVIATE PROBLEMS OF VARIANCE IN SHIFT VOLUME DURING MACHINE SHIFT FUNCTION
OPERATIONS.
3. MEASURE TO ALLEVIATE PROBLEMS OF ABNORMAL NOISE AND MEASURE TO REDUCE COPY
PAPER CURLING.
No. : SP-2099
1. Change in the content of the ROM software carried out in accordance with a change
in specifications.
1.Model Name: SF-1025
2.General: Changes through described below have been carried out in the program of the main
ROM unit used in the PWB of the model listed above. In accordance with these
changes a change in the part codes for both the main PWB and the ROM (IC) has also
been carried out.
1) A change has been carried out in the specifications when the zoom up and zoom
down keys are continually depressed (carried out in accordance with a patent recovery).
2) A correction of a bug in the software has been carried out.
3) A change has been carried out in the specifications when contact is made with the
coin vender. (Please refer to the next page.)
3.Description: (Old) (New)
Main PWB UN J CPWBN1073FC53 → CPWBN1073FC54
Main PWB UN EX CPWBN1064FC52 → CPWBN1064FC53
Goose ROM UN J VHI27C01050FC → VHI27C01093FC
Goose ROM UN EX VHI27C01051FC → VHI27C01094FC
ROM Ver (Domestic) V 1.03 → V 1.04
ROM Ver (Overseas) V 3.01 → V 3.02
4.Action: ∗1 Japanese domestic production: From 1996 October production.
Chinese (SOCC) production: From 1996 December production.
SHARP CORPORATION Reprography Division
1/5
Green
C
1025 (MACHINES BOUND FOR THE OVERSEAS MARKETS) : DESCRI PT ION OF
CHANGES CARRIED OUT IN THE SOFTWARE.
1. A change has been carried out in the specifications when the zoom up and zoom
down keys are continually depressed (carried out in accordance with a patent recovery).
(Previous status)
When 200% is reached during enlargement zoom up operations, or 50% is reached
during reduction zoom up operations, the zoom up (or zoom down) operation will halt
and the lens started moving.
(Change)
When the set magnification is reached for fixed magnifications, the zoom up (or zoom
down) operation will halt and the lens starts moving.
2. When a change is carried out in the AE user after copy operations have been
completed, the change content is erased when the power supply changes between
“ON” and “OFF.”
(Cause)
A change was carried out in V 3.01 so that when a job was finished the counter data
was written to the EEPROM, but there was a bug in the write end detection (the
machine failed to detect that the write function has ended), and the machine remained
in the standby mode, waiting for the write end to be detected. In this status even if a
change was carried out in the AE user setting, the data could not be written to the
EEPROM (the EEPROM data could not be renewed) and when the power supply of
the machine was turned on or off, the data return to the data prior to the change.
(Action)
The bug in the write end detection described above has been corrected. In accordance
with this correction the trouble described above no longer occurs.
2/5
3. When “OUT OF PAPER” and “END OF JOB” are both detected simultaneously, TIME
OUT CLEAR was not be carried out.
(Cause)
Normally “OUT OF PAPER” is detected before “JOB END” (when the last page is fed
into the machine), and therefore, when the conditions described above occur the “OUT
OF PA PER” is determined to have occurred during the job, and the CLEAR TIMER is
halted (TIME OUT CLEAR is not carried out).
(Action)
When a normal “JOB END” occurs, the “OUT OF PAPER” is once again checked, and
if there is not copy paper left the “OUT OF PAPER” during the job data is cleared
(CLEAR TIMER is not allowed to halt).
2. Measure to alleviate problems of variance in shift volume during machine shift
function operations.
1.Model Name: SF-2035
2.General: There was a problem of variance occurring in the shift volume when the margin shift
function was carried out. As a measure to alleviate this problem a change was carried
out in the program content of the main ROM (IC).
3.Description: (Old) (New)
Main PWB UN (domestic) CPWBN0968FC62 → CPWBN0968FC64
Main PWB UN (EX) CP WBN0968FC63 → CWBN0968FC65
C10 main ROM UN (Domestic) VHI27C01047FC → VHI27C010A1FC
C10 main ROM UN (EX) VHI27C01048FC → VHI27C010A2FC
ROM Ver V3.68 → V3.69
4.Action: From 1996 December production.
3. Measure to alleviate problems of abnormal noise and measure to reduce copy paper
curling.
1.Model Name: SF-DM11
2.General: A change has been carried out in the parts described below. These changes have been
carried out as a measure to reduce copy paper curling, and as a measure to alleviate
problems of abnormal noise from the paper delivery bearing in the ADU unit.
3.Description: Return Roller NROLR0903FCZZ → NROLR0903FCZ1
Change in the diameter of the roller (96 in the figure)
Paper delivery bearing PCLR-0370FCZZ → PCLR-0428FCZZ
Change in material (109 in the figure)
4.Action: ∗2 From 1996 November production. (SECL)
From 1996 October production. (machines bound for markets other than SECL)
3/5
4/5
Figure 1
Ref.
Model name Version P/G No.
No.
Current parts New parts
Parts code Parts code
Price
rank
Parts name
Effec-
tive
time
Inter-
change-
ability
Note
1 SF-1025
Overseas
2 SF-2035
3 SF-DM11 All
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. Current type can be used in place of new type.
New type cannot be used in place of current type.
3. Current type cannot be used in place of new type.
New type can be used in place of current type.
Parts ma r ked w i th “ ” is imp or t an t fo r m a in ta i ning t he s a fe ty of the s e t. B e su r e to re pl ace t he s e pa r ts wi t h
specified on es fo r m a in ta i ning t he s a fe ty an d pe rf o rm an c e of t he s e t.
33 -901
33 -56 VHI27C01051FC VHI27C01094FC AY Main ROM un EX
33 -901 CPWBN0968FC63 CPWBN0968FC65 CA Main PWB (EX)
33 -76 VHI27C01048FC VHI27C010A2FC AY Main ROM un (EX) IC116
SF-2040
42 -109
SF-2025/2030
41 -109
SF-2022/2027
43 -109
SF-2040
42 -96
SF-2025/2030
41 -96
SF-2022/2027
43 -96
!
CPWBN1064FC52 CPWBN1064FC53 BW Main PWB un EX
PCLR-0370FCZZ PCLR-0428FCZZ AG Return drive bearing
NROLR0903FCZZ NROLR0903FCZ1 AT Return roller
5. Intercha ng ea bl e if replac e d wi th sa m e ty p es of
relate d pa r ts in use.
6. Others.
∗15
1st lot
’96/12
3
∗2
5/5
