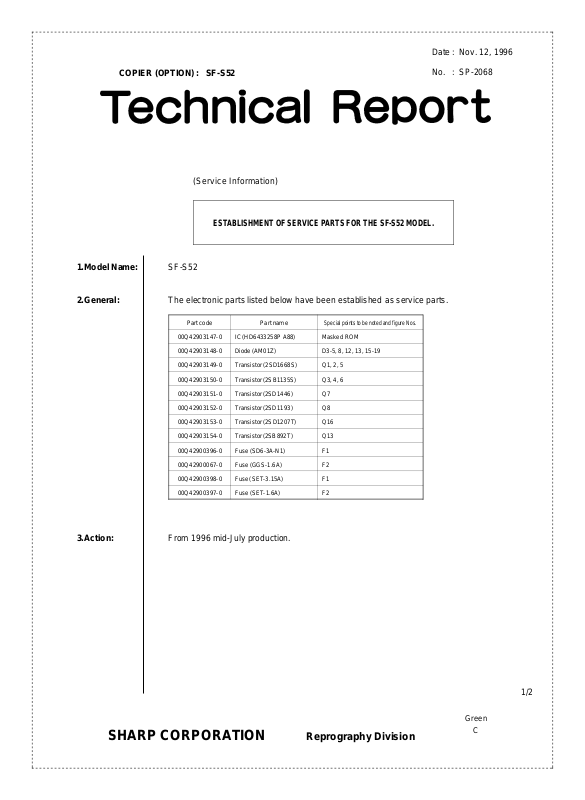

SHARP SP2068 Technical Report

Date: Nov. 12, 1996

COPIER (OPTION) : SF-S52

No. : SP-2068

(Service Information)

ESTABLISHMENT OF SERVICE PARTS FOR THE SF-S52 MODEL.

1.Model Name: SF-S52

2.General: The electronic parts listed below have been established as service parts.

Part code Part name Special points to be noted and figure Nos. 00Q42903147-0 IC (HD6433258P A88) Masked ROM 00Q42903148-0 Diode (AM01Z) D3-5, 8, 12, 13, 15-19 00Q42903149-0 Transistor (2SD1668S) Q1, 2, 5 00Q42903150-0 Transistor (2SB1135S) Q3, 4, 6 00Q42903151-0 Transistor (2SD1446) Q7 00Q42903152-0 Transistor (2SD1193) Q8 00Q42903153-0 Transistor (2SD1207T) Q16 00Q42903154-0 Transistor (2SB892T) Q13 00Q42900396-0 Fuse (SD6-3A-N1) F1 00Q42900067-0 Fuse (GGS-1.6A) F2 00Q42900398-0 Fuse (SET-3.15A) F1 00Q42900397-0 Fuse (SET-1.6A) F2

3.Action: From 1996 mid-July production.

SHARP CORPORATION Reprography Division

1/2

Green

Ref.

Model

No.

SF-S52 All

1. Interchangeable. 4. Not interchangeable.

2. C urr e nt t y pe c a n be u s ed i n p la ce of new ty pe . New ty pe cann ot be us ed i n place of curr ent type .

3. C urre nt ty pe cann ot be used i n place of new ty pe. New t y pe c a n be u sed in pla c e of c u rr en t ty p e.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

name

Version P/G No.

1 -12

Current parts New parts

Parts code Parts code

00Q42903147-0 BY

00Q42903148-0 AF Diode (AM01Z)

00Q42903149-0 AQ

00Q42903150-0 AR

00Q42903151-0 AY

—

00Q42903152-0 AX

00Q42903153-0 AH

00Q42903154-0

00Q42900396-0 Fuse (SD6-3A-N1) 00Q42900067-0 Fuse (GGS-1.6A) 00Q42900398-0 Fuse (SET-3.15A) 00Q42900397-0 Fuse (SET-1.6A)

5. Interchangeable if replaced with same types of relate d parts in use .

6. Others.

Price

rank

IC (HD6433258P A88)

Transistor (2SD1668S)

Transistor (2SB1135S)

Transistor (2SD1446)

Transistor (2SD1193)

Transistor (2SD1207T)

Transistor (2SB892T)

Parts name

Effec-

tive

time

Mid-

’96/7

Inter-

change-

ability

Note

2/2
