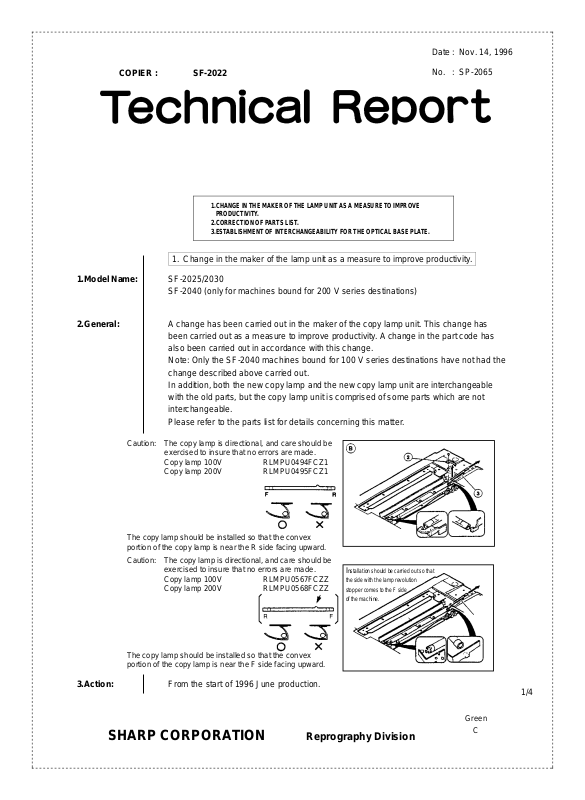

Date: Nov. 14, 1996
COPIER : SF-2022
1.CHANGE IN THE MAKER OF THE LAMP UNIT AS A MEASURE TO IMPROVE
PRODUCTIVITY.
2.CORRECTION OF PARTS LIST.
3.ESTABLISHMENT OF INTERCHANGEABILITY FOR THE OPTICAL BASE PLATE.
No. : SP-2065
1. Change in the maker of the lamp unit as a measure to improve productivity.
1.Model Name: SF-2025/2030
SF-2040 (only for machines bound for 200 V series destinations)
2.General: A change has been carried out in the maker of the copy lamp unit. This change has
been carried out as a measure to improve productivity. A change in the part code has
also been carried out in accordance with this change.
Note: Only the SF-2040 machines bound for 100 V series destinations have not had the
change described above carried out.
In addition, both the new copy lamp and the new copy lamp unit are interchangeable
with the old parts, but the copy lamp unit is comprised of some parts which are not
interchangeable.
Please refer to the parts list for details concerning this matter.
Caution: The copy lamp is directional, and care should be
exercised to insure that no errors are made.
Copy lamp 100V RLMPU0494FCZ1
Copy lamp 200V RLMPU0495FCZ1
The copy lamp should be installed so that the convex
portion of the copy lamp is near the R side facing upward.
Caution: The copy lamp is directional, and care should be
exercised to insure that no errors are made.
Copy lamp 100V RLMPU0567FCZZ
Copy lamp 200V RLMPU0568FCZZ
The copy lamp should be installed so that the convex
portion of the copy lamp is near the F side facing upward.
3.Action: From the start of 1996 June production.
nstallation should be carried out so that
I
the side with the lamp revolution
stopper comes to the F side
of the machine.
1/4
SHARP CORPORATION Reprography Division
Green
C
2. Correction of parts list.
1.Model Name: SF-2025/2030/2040
2.General: Some of the screws used to secure the drive connection plate in the rear frame of the
models listed above were not necessary and have therefore been discontinued.
3.Description: SF-2025/2030 P/G , SF-2040 P/G
10 -34
9 -34
LX-BZ0581FCZZ (Discontinued)
4.Action: From 1996 June production.
3. Establishment of interchangeability for the optical base plate.
1.Model Name: SF-1025/2022/2027/2035
2.General: The changes described below have been carried out on the models listed above as a
measure to establish interchangeability of the optical base plate with other models.
3.Description: Sub sheet A: PSHEP3736FCZZ
↓
Sub sheet C: PSHEP4045FCZZ
4.Action: ∗ Japanese production: From 1996 mid-May production.
Chinese (SOCC) production: From 1996 mid-June production.
2/4
Sub sheet C
Ref.
No.
Model
name
Version P/G No.
Current parts New parts
Parts code Parts code
Price
rank
Parts name
Effec-
tive
time
Inter-
change-
ability
Note
1
SF-2025
SF-2030
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
11 -901
100V
series
13 -89
11 -901
13 -89
200V
series
10 -901
12 -89
100V
series
11 -3
200V
series
10 -3 RLMPU0495FCZ1 RLMPU0568FCZZ
All 11 -1
200V
10 -1
series
11 -2
All
200V
10 -2
series
11 -4
All
200V
10 -4
series
11 -5
All
200V
10 -5
series
11 -6
All
200V
10 -6
series
11 -7
All
200V
10 -7
series
11 -8
All
200V
10 -8
series
11 -10
All
200V
10 -10
series
11 -11
All
200V
10 -11
series
CREFL0160FC31 CREFL0158FC31
CREFL0160FC32 CREFL0158FC32
RLMPU0494FCZ1 RLMPU0567FCZZ
LPLTM4124FCZZ LPLTM4994FCZZ AC Control plate
PREFL0160FCZZ PREFL0158FCZZ AU Main reflector
MSPRP1976FCZZ MSPRP2379FCZZ AH Lamp spring F
CFS-T0101FC31 CFS-T0107FC31 AN
LPLTM4123FCZZ LPLTM4993FCZZ AB Terminal plate
LPLTP4956FCZZ LPLTP4996FCZZ AK Side plate F
PCUSU0203FCZZ PCUSS0331FCZZ AB Cushion
MSPRP2101FCZZ MSPRP2381FCZZ AC Mirror spring
PMIR-0076FCZZ PMIR-0133FCZZ AR 1st mirror
BQ Copy lamp unit
1
BA Copy lamp
Q’ty: 4
1st lot
’96/6
Temperature
fuse
4
Q’ty: 2
3/4
Ref.
Model
No.
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
1
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
SF-2040
SF-2025
SF-2030
2
SF-2040
SF-2022
SF-2027
3
SF-2035
SF-1025
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. C urr e nt t y pe c a n be u s ed i n p la ce of new ty pe .
New ty pe cann ot be us ed i n place of curr ent type .
3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in p lac e of c u r ren t ty p e.
Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the set.
name
Version P/G No.
11 -12
All
200V
10 -12
series
11 -15
All
200V
10 -15
series
11 -16
All
200V
10 -16
series
11 -17
Al
200V
10 -17
series
11 -22
All
200V
10 -22
series
10 -34
9 -34
All
12 PSHEP3736FCZZ PSHEP4045FCZZ AB Sub sheet C ∗ 4
!
Current parts New parts
Parts code Parts code
CDAIU0459FC01 LDAIU0530FCZZ AN Base plate
LPLTP4122FCZZ LPLTP4996FCZZ AK Side plate R
MSPRP1977FCZZ MSPRP2380FCZZ AG Lamp spring R
LFIX-0445FCZZ LFIX-0492FCZZ AC
PSHEZ2401FCZZ PSHEZ3936FCZZ AF Sheet
LX-BZ0581FCZZ Discontinued — Screw 6
Price
5. Interchangeable if replaced with same types of
relate d parts in use .
6. Others.
Parts name
rank
Harness fixing
plate
Effec-
tive
time
1st lot
’96/6
Inter-
change-
ability
4
Note
4/4
