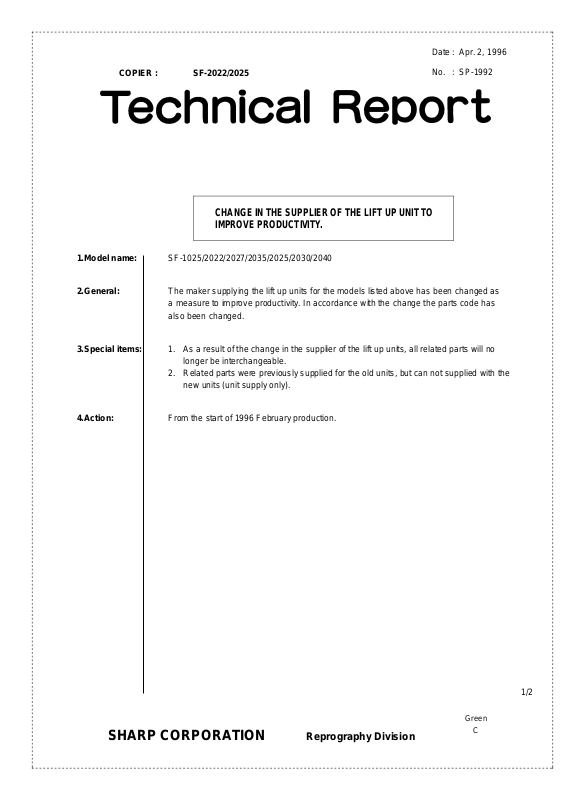

SHARP SP1992 Technical Report

Date: Apr. 2, 1996

COPIER : SF-2022/2025

No. : SP-1992

CHANGE IN THE SUPPLIER OF THE LIFT UP UNIT TO IMPROVE PRODUCTIVITY.

1.Model name: SF-1025/2022/2027/2035/2025/2030/2040

2.General: The maker supplying the lift up units for the models listed above has been changed as

a measure to improve productivity. In accordance with the change the parts code has also been changed.

3.Special items: 1. As a result of the change in the supplier of the lift up units, all related parts will no longer be interchangeable.

2. Related parts were previously supplied for the old units, but can not supplied with the new units (unit supply only).

4.Action: From the start of 1996 February production.

SHARP CORPORATION Reprography Division

1/2

Green

Ref.

No.

Model

name

SF-1025

SF-2022 SF-2027

SF-2035

Version P/G No.

9 -16 9 -17

13 -901

9 -16 9 -17

13 -901

41 -901

48 -17

53 -901

All

56 -17

9 -16 9 -17

13 -901

10 -16

Current parts New parts

Parts code Parts code

DUNTM6554FC11 DUNTM6785FCZZ BE Lift up unit

Price

Parts name

rank

Effec-

tive

time

1st lot

’96/2

Inter-

change-

ability

Note

SF-2025 SF-2030

SF-2040

1. Interchangeable. 4. Not interchangeable.

2. C urr e nt t y pe c a n be u s ed i n p la ce of new t ype. New ty pe cann ot be us ed i n place of curr ent type .

3. C urre nt ty pe cann ot be used i n place of new ty pe. New t y pe c a n be u sed in p la c e of c u rr en t ty p e.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

10 -17

14 -901

48 -17

9 -16 9 -17

13 -901

49 -17

5. Interchangeable if replaced with same types of relate d parts in use .

6. Others .

2/2
