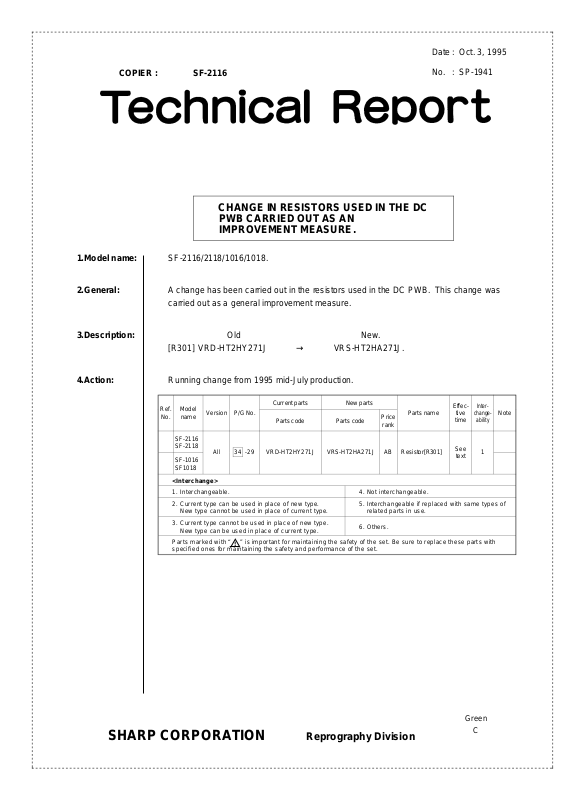

SHARP SP1941 Technical Report

Date: Oct. 3, 1995

COPIER : SF-2116

No. : SP-1941

CHANGE IN RESISTORS USED IN THE DC PWB CARRIED OUT AS AN IMPROVEMENT MEASURE.

1.Model name: SF-2116/ 2118/1016/1018.

2.General: A change has been carried out in the resistors used in the DC PWB. This change was

carried out as a general improvement measure.

3.Description: Old New. [R301] VRD-HT2HY271J → VRS-HT2HA271J.

4.Action: Running change from 1995 mid-July production.

Ref.

Model

No.

SF-2116 SF-2118

SF-1016 SF1018

1. Interc ha ng ea bl e. 4. Not int erc h an ge ab l e.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

speci fied ones fo r m aintaini ng t he s a fe ty an d pe rformance of the set .

name

Version P/G No.

34 -29 VRD-HT2HY271J VRS-HT2HA271J AB Resistor[R301]

All

Current parts New parts

Parts code Parts code

5. Interchangeable if replaced with same types of relate d parts in use .

6. Others .

Price

rank

Parts name

Effec-

tive

time

See

text

Inter-

change-

ability

Note

SHARP CORPORATION Reprography Division
