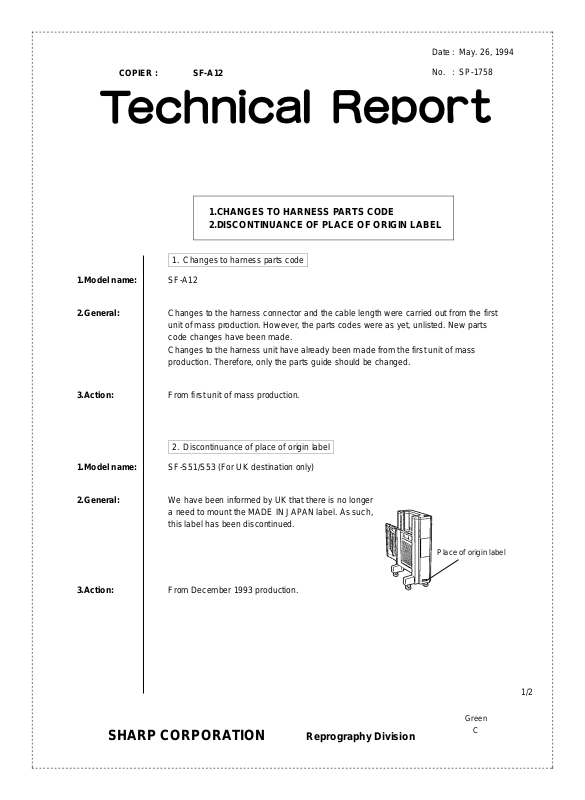

SHARP SP1758 Technical Report

Date: May. 26, 1994

COPIER : SF-A12

No. : SP-1758

1.CHANGES TO HARNESS PARTS CODE

2.DISCONTINUANCE OF PLACE OF ORIGIN LABEL

1. Changes to harness parts code

1.Model name: SF-A12

2.General: Changes to the harness connector and the cable length were carried out from the first

unit of mass production. However, the parts codes were as yet, unlisted. New parts
code changes have been made.
Changes to the harness unit have already been made from the first unit of mass
production. Therefore, only the parts guide should be changed.

3.Action: From first unit of mass production.

2. Discontinuance of place of origin label

1.Model name: SF-S51/S53 (For UK destination only)

2.General: We have been informed by UK that there is no longer

a need to mount the MADE IN JAP A N label. As such,
this label has been discontinued.

3.Action: From December 1993 production.

Place of origin label

SHARP CORPORATION Reprography Division

1/2

Green

C

Ref.

Model

No.

1 SF-A12 All

SF-S51

2

SF-S53

<Interchange>

1. Interc ha ng ea bl e. 4. N ot i nt er ch an ge ab l e.

2. Current type can be used in place of new type.
New type cannot be used in place of current type.

3. Current type cannot be used in place of new type.
New type can be used in place of current type.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

specifi e d on es fo r m ain ta in i ng t he s a fe ty an d pe r fo rma nc e o f th e s et .

Version P/G No.

name

2-4

3-3

3 -56

3 -57

3 -107

3 -109

3 -110

UK only — TLABJ1083CCZZ Discontinued —

!

Current parts New parts

Parts code Parts code

0CW2148K033A/ 0CW2148K033C/ AK Display harness 1st lot. —

0CW2148K024A/ 0CW2148K024C/ AL

0CW2148K028A/ 0CW2148K028E/ AK Earth wire 1st lot. —

0CW2148K026A/ 0CW2148K026C/ AW

0CW2148K027A/ 0CW2148K027G/ AX Harness ass’y 1st lot. —

0CW2148K034A/ 0CW2148K034B/ AL

0CW2148K025A/ 0CW2148K025B/ AN

Price

5. Interchangeable if replaced with same types of
relate d parts in use .

6. Others .

Parts name

rank

Sensor harness
ass’y

Sensor harness
1 ass’y

Power harness
ass’y

Motor harness
ass’y

Place of origin
label

Effec-

tive

time

1st lot. —

1st lot. —

1st lot. —

1st lot. —

’93/12 —

Inter-

change-

ability

Note

2/2
