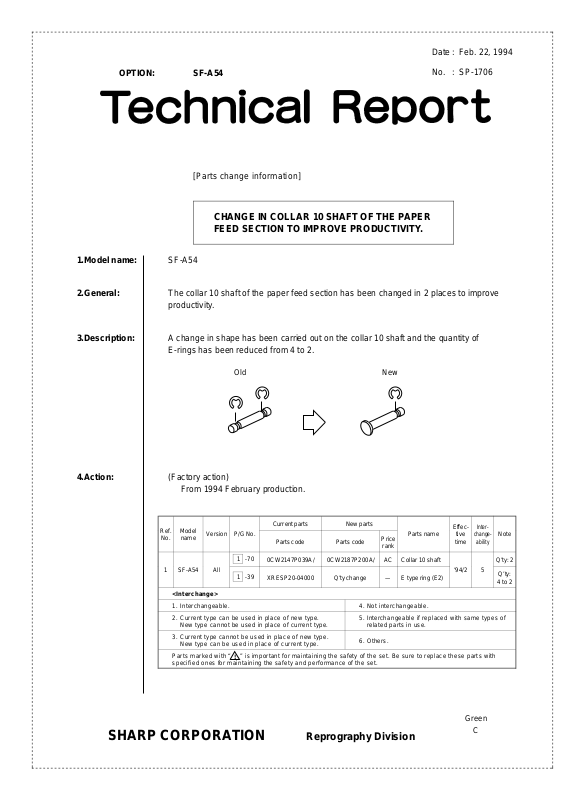

SHARP SP1706 Technical Report

Date: Feb. 22, 1994

OPTION: SF-A54

No. : SP-1706

[Parts change information]

CHANGE IN COLLAR 10 SHAFT OF THE PAPER FEED SECTION TO IMPROVE PRODUCTIVITY.

1.Model name: SF-A54

2.General: The collar 10 shaft of the paper feed section has been changed in 2 places to improve

productivity.

3.Description: A change in shape has been carried out on the collar 10 shaft and the quantity of E-rings has been reduced from 4 to 2.

Old New

4.Action: (Factory action)

From 1994 February production.

Ref.

Model

No.

1 SF-A54 All

1. Interc ha ng ea bl e. 4. Not int erc h an ge ab l e.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

spec i fi e d on es fo r m ai n ta in i ng t he s a fe ty and pe rfo r ma nc e o f th e s et .

name

Version P/G No.

1 -70

1 -39

Current parts New parts

Parts code Parts code

0CW2147P039A/ 0CW2187P200A/ AC Collar 10 shaft

XRESP20-04000 Q’ty change — E type ring (E2)

Price

5. Interchangeable if replaced with same types of relate d parts in use .

6. Others .

Parts name

rank

Effec-

tive

time

’94/2 5

Inter-

change-

ability

Note

Q’ty: 2

Q’ty:

4 to 2

SHARP CORPORATION Reprography Division

Green
