Date: Oct. 27, 1993
COPIER : SF-2035
No. : SP-1643
[Service information]
PARTS GUIDE CORRECTION.
1.Model name: SF-2035
2.General: The TC case units and DR cleaner parts have been changed from the 1st lot of the
SF-2035 machines.

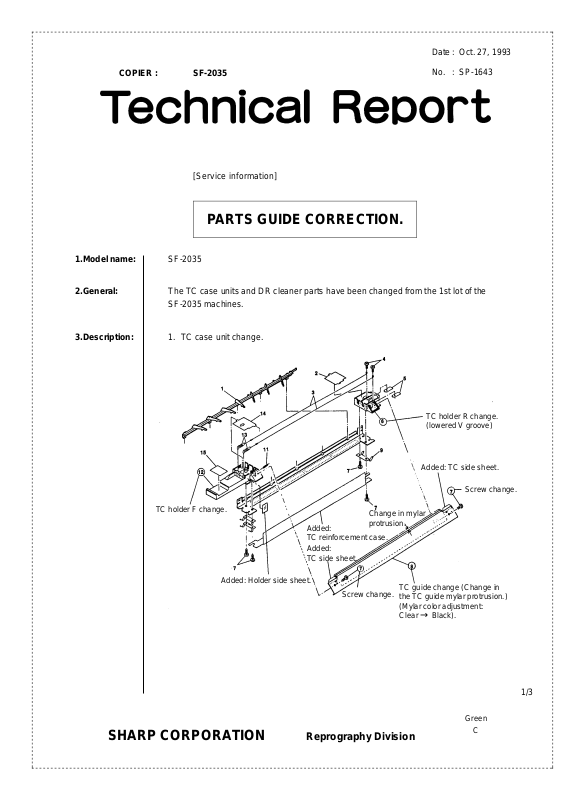

3.Description: 1. TC case unit change.
TC holder F change.
Added: Holder side sheet.
Change in mylar
Added:
TC reinforcement case.
Added:
TC side sheet.
Screw change.
protrusion.
TC holder R change.
(lowered V groove)
Added: TC side sheet.
Screw change.
TC guide change (Change in
the TC guide mylar protrusion.)
(Mylar color adjustment:
Clear → Black).
SHARP CORPORATION Reprography Division
1/3
Green
C
2. DR cleaner parts change.
Added shield molt.
(PMLT-0908FCZZ)
4.Effective time: (Production batch)
From the first unit of mass production.
Cut.
Cut.
Toner groove C cut (both ends, 2 locations
— marked by the diagonal lines).
Added shield molt F.
(PMLT-0911FCZZ)
2/3
Ref.
No.
Model
name
Version P/G No.
Current parts New parts
Parts code Parts code
Price
rank
Parts name
Effec-
tive
time
Inter-
change-
ability
Note
16
— PMLT-0908FCZZ AE shield molt
16 — PMLT-0911FCZZ AG shield molt F — Q’ty: 1
16 -39 CCLEZ0126FC31 No change AV Toner groove —
25 — PSHEP3422FCZZ AE
Holder side
sheet
25 — PSHEP3421FCZZ AE TC side sheet — Q’ty: 2
SF-2035 All
25 -8 CGIDM1358FC02 CGIDM1358FC03 AP TC guide AS 3
1st lot.
25 — PCASZ0253FCZZ AHTCreinforcement
case
25 -12 LHLDZ1145FCZ1 LHLDZ1145FCZ2 AK TC holder F 3
25 -6
25 -7
25 — LX-BZ0646FCZZ AA
LHLDZ1146FCZ1 LHLDZ1146FCZ3 AF TC holder R 3
XEBSD30P06000 Quantity change AA
Screw
(M3x6p taight)
Screw
(M6x6p taping)
25 -901 CCASZ0235FC52 CCASZ0235FC53 AY TC case unit 3
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. C urr e nt t y pe c a n be u s ed i n p la ce of new t ype .
New ty pe cann ot be us ed i n place of curr ent type .
3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in p la c e of c u rr en t ty p e.
Parts m ar ke d wi t h “ ” is i mp ort an t fo r m a inta i ni ng the sa fe ty of the s e t. B e su r e to re pl ac e t he se pa r ts wit h
!
5. Interchangeable if replaced with same types of
relate d parts in use .
6. Others .
specified ones for maintaining the safety and performance of the set.
— Q’ty: 1
Shape
alteration.
— Q’ty: 1
— Q’ty: 1
Q’ty:
—
6 to 4
— Q’ty: 2
3/3
