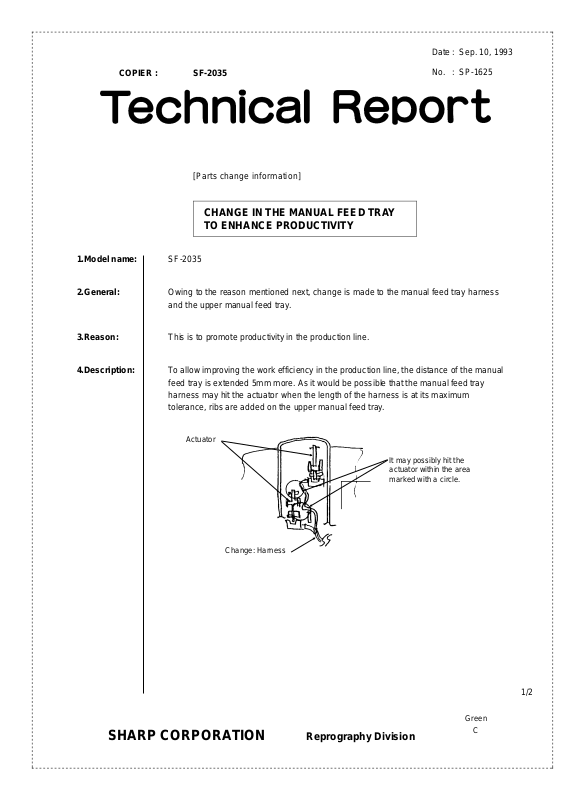

SHARP SP1625 Technical Report

Date: Sep. 10, 1993

COPIER : SF-2035

[Parts change information]

No. : SP-1625

CHANGE IN THE MANUAL FEED TRAY
TO ENHANCE PRODUCTIVITY

1.Model name: SF-2035

2.General: Owing to the reason mentioned next, change is made to the manual feed tray harness

and the upper manual feed tray.

3.Reason: This is to promote productivity in the production line.

4.Description: To allow improving the work efficiency in the production line, the distance of the manual

feed tray is extended 5mm more. As it would be possible that the manual feed tray
harness may hit the actuator when the length of the harness is at its maximum
tolerance, ribs are added on the upper manual feed tray .

Actuator

It may possibly hit the
actuator within the area
marked with a circle.

Change: Harness

SHARP CORPORATION Reprography Division

1/2

Green

C

A clamp a added for the rib at
the shadowed area.

A rib b added at the shadowed area.

An “A” mark added to distinguish
the old parts from the new.

Surface of the upper manual feed tray.

• Parts code changed after the change for the manual tray harness and the upper
manual feed tray.

Parts name Old New
Manual feed tray harness DHAI-2137FCZZ DHAI-2137FCZ1
Upper manual feed tray LSOU-0116FCZZ LSOU-0116FCZ1

5.Action: (Factory action)
From October 1993 for the manual feed tray harness.
From mid-September 1993 for the upper manual feed tray.

Ref.

Model

No.

SF-2035 All

<Interchange>

1. Interchangeable. 4. Not interchangeable.

2. C urr e nt t y pe c a n be u s ed i n p la ce of new t ype .
New ty pe cann ot be us ed i n place of curr ent type .

3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in p la c e of c u rr en t ty p e.

Parts m ar ke d wi t h “ ” is i mp ort an t fo r m a inta i ni ng t he sa fe ty of t he s e t. B e su r e to re pl ace these pa rts wi t h

specified ones for maintaining the safety and performance of the set.

name

Version P/G No.

Current parts New parts

Parts code Parts code

31 -33 DHAI-2137FCZZ DHAI-2137FCZ1 AQ

31 -9 LSOU-0116FCZZ LSOU-0116FCZ1 AW

!

Price

rank

5. Interchangeable if replaced with same types of
relate d parts in use .

6. Others .

Parts name

Manual feed
tray harness

Upper manual
feed tray

Effec-

Inter-

tive

change-

time

ability

’93/10 1

Mid­Sep.
’93

Note

1

2/2
