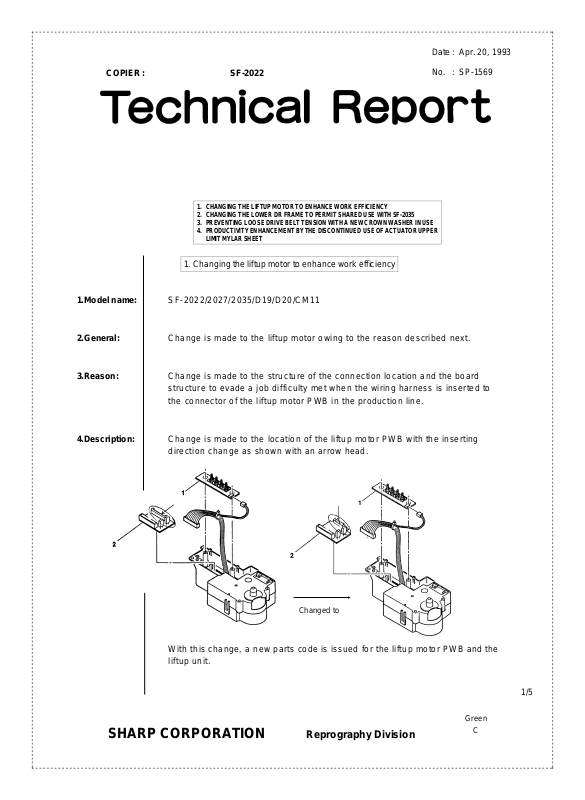

Date: Apr. 20, 1993
COPIER : SF-2022
1. CHANGING THE LIFTUP MOTOR TO ENHANCE WORK EFFICIENCY
2. CHANGING THE LOWER DR FRAME TO PERMIT SHARED USE WITH SF-2035
3. PREVENTING LOOSE DRIVE BELT TENSION WITH A NEW CROWN WASHER IN USE
4. PRODUCTIVITY ENHANCEMENT BY THE DISCONTINUED USE OF ACTUATOR UPPER
LIMIT MYLAR SHEET
1. Changing the liftup motor to enhance work efficiency
1.Model name: SF-2022/2027/2035/D19/D20/CM11
No. : SP-1569
2.General: Change is made to the liftup motor owing to the reason described next.
3.Reason: Change is made to the structure of t he connecti on location and the board
structure to evade a job difficult y met when the wiring harness is inserted to
the connector of the li ftup motor PWB in t he production li ne.
4.Description: Change is made to the location of the liftup motor PWB with the inserting
direction change as shown with an arr ow head.
Changed to
With this change, a new parts code is i ssued for t he liftup m otor PW B and the
liftup unit.
SHARP CORPORATION Reprography Division
1/5
Green
C
5.Action: (Factory action) Running change since February 1993.
2. Changing the lower DR frame to permit shared use with SF-2035
1.Model name: SF-2022/2027
2.General: Change is made to the lower DR frame owning to the reason described next.
3.Reason: To allow shared use with SF-2035.
4.Description: With this change, a new parts code iss ued for the lower DR fram e.
Lower DR frame: changed
(LFRM-0732FCZZ)
↓
(LFRM-0732FCZ1)
< LFRM-0732FCZ1 >
The existing lower DR frame
does not have the boss here.
5.Action: (Factory action) Running change since mid-January 1993.
∗The ol d type lower DR frame has no compat ibility wi th SF-2035.
2/5
3. Preventing loose drive belt tension with a new crown washer in use
1.Model name: SF-2022/2027
2.General: To avoid possible belt leaping owing to a loose tension of the drive belt while
producing a double sided copy, a crown washer is now used to avoid loose
screw that holds the tension plate.
3.Cause: The problem owes to a play inside the crown washer and the tension plate
holding screw.
4.Description: The ∅5 crown washer i s replac ed with a ∅4 crown washer to abate an inside
play to kill the l ooseness.
Main drive unit
Crown washer (XWVSD50-06000) Crown washer (XWVSD40-05000)
Paper feed drive unit
5.Action: (Factory action)
Running change since mid-January 1993.
Changed to
Changed to
Crown washer
(XWVSD50-06000)
Although it was not given in the parts guide, it had
been used since the first production.
Crown washer
(XWVSD40-05000)
3/5
4. Productivity enhancement by the discontinued use of actuator upper limit mylar
sheet
1.Model name: SF-2022/2027/2035
2.General: Change is made to the structure of t he paper exit guide owi ng to t he reason
described next.
3.Reason: To enhance the productivity.
4.Description: After changing the structure of the paper exit guide, the use of the actuator
upper limit mylar, attached to the paper exit guide, i s discontinued.
Actuator upper limit mylar discontinued.
(PSHEP3238FCZZ)
∗ Although it was not given in the parts guide, it had
been used since the first production of SF-7022
and SF-2027.
5.Action: (Factory action)
Since mid-February 1993.
Where changed in the structure of
the paper exit guide
Actuator upper limit mylar
Paper exit guide
Changed to
Change is made to
the height of the cut.
Paper exit guide structural change
(CGIDH1363FC01)
↓
(CGIDH1363FC02)
4/5
Ref.
Model
No.
SF-2022
1
2
SF-2022
3
SF-2022
4
<Inter c h an g e>
1. Interchangeable. 4. Not interchangeable.
2. C urr e nt t y pe c a n be u s ed i n place of n ew type.
New ty pe cann ot be us ed in place of curr ent type .
3. C urr e nt type c a nn ot b e us e d in p l ac e o f ne w ty p e.
New t y pe c a n be u s ed i n pl a ce of cur ren t ty p e.
Parts m ar ke d wi th “ ” is im p ort an t fo r m ain ta in ing the sa fe ty of the s e t. B e sur e t o rep l ace these pa rts wi th
specified ones for maintaining the safety and performance of the set.
name
2027
2035
D19
D20
CM11
2027
2027
2035
Version P/G No.
13 -2
41 -2
53 -2
9 -16
9 -17
13 -901
41 -901
All
48 -17
53 -901
56 -17
16 -32 LFRM-0732FCZZ LFRM-0732FCZ1 AZ Lower DR frame 1
20 -50 XWVSD50-06000 XWVSD40-05000 AA Crown washer 3
21 CGIDH1363FC01
6 -22
6 -36
!
Current parts New parts
Parts code Parts code
CPWBF0940FC31 CPWBF1013FC31 AU Liftup motor PWB
DUNTM6554FCZZ DUNTM6554FC11 BG Liftup unit 1
CGIDH1363FC02 AM Paper exit guide 5
PSHEP3238FCZZ
Price
rank
5. Interc ha ng ea ble i f r ep l ace d wi th s a m e typ es of
relate d pa r ts in us e.
6. Others.
Parts name
Effective
time
See
text.
Inter-
changeability
1
Note
Q’ty: 2
5/5
