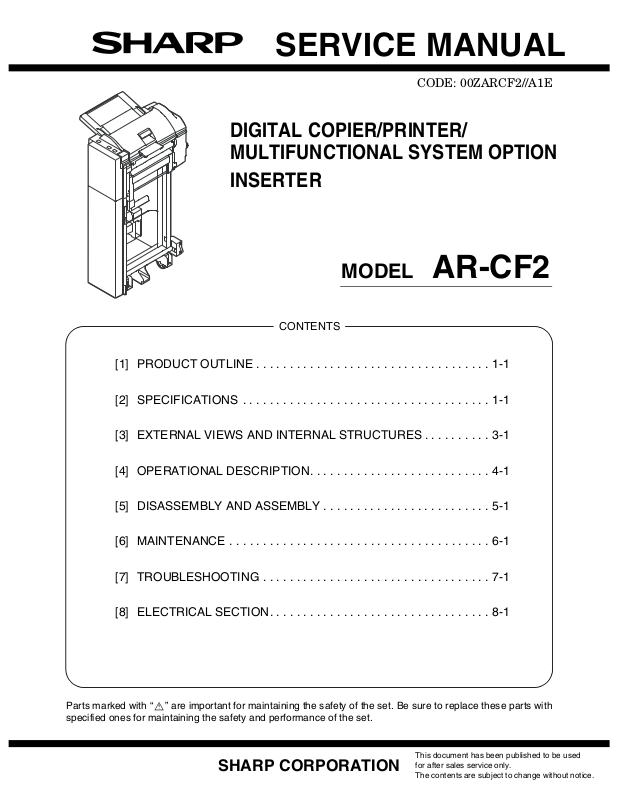

SERVICE MANUAL

CODE: 00ZARCF2//A1E

DIGITAL COPIER/PRINTER/ MULTIFUNCTIONAL SYSTEM OPTION

INSERTER

MODEL

CONTENTS

[1] PRODUCT OUTLINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[2] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[3] EXTERNAL VIEWS AND INTERNAL STRUCTURES . . . . . . . . . . 3-1

[4] OPERATIONAL DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

[5] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

[6] MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

AR-CF2

[7] TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

[8] ELECTRICAL SECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Parts marked with “ ” are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used

SHARP CORPORATION

for after sales service only. The contents are subject to change without notice.

[1] PRODUCT OUTLINE

This inserter is an optional unit for the AR-620 series of digital complex machines. With the inserter installed, blank sheets or printed sheets can be inserted as covers (made of cardboard) or tabbed sheets without being subject to the printing process (and without passing through a fixing unit). When the inserter is combined with a finisher (optional) and a punch unit (optional), printed sheets can proceed to the hole punching or stapling process without being subject to the copying process (or without passing through the main unit).

[2] SPECIFICATIONS

1. Basic specifications

A. Performance

Type of Installation Floorstanding Delivery speed Through mode

Productivity 50 cpm (when A4 or letter-sized insert sheets

Transport reference

Loading capacity 100 sheets max. (80 g/m

Offline function Provided Manual operation

section Stapling Possible Saddle stitching

(With folding) Punching Possible Paper jam

handling

(Horizontal transportation):

Straight mode: 217mm min. 800mm/sec

Saddle mode (Reverse):

are continuously transported/saddle mode not applicable)

Center reference through (when horizontally transported)

Maximum loading height: 12 mm (80g/m

Maximum loadable sheets: 30 (127g/m

Factor 0.6 or less applied to above limitations for special papers

Equipped with keys and LEDs

Possible

Paper feed/ Transport unit

Horizontal transport unit

B. Compatible paper types

Paper weight 60 – 256gm

should be less than 256µm)

Types Normal paper, special paper (OHP films, colored

paper, punched paper, tabbed paper)

Special papers OHP films: Saddle mode (reverse) not applicable

Punched paper: 2, 3, or 4 holes

2 holes (φ6.5): Hole pitch: 80mm 2 holes (φ8): Hole pitch: 70mm 3 holes (φ8): Hole pitch: 108mm+108mm 4 holes (φ6.5): Hole pitch:

4 holes (φ6.5): Hole pitch:

217mm min. 800mm/sec 216mm max. 1000mm/sec

216mm max. 1000mm/sec 217mm min. 800mm/sec 216mm max. 1000mm/sec

or less)

greater)

Paper feeding cover open/ close

Transportation guide open/ close

(Normal paper, whose thickness

80mm+80mm+80mm

21mm+70mm+21mm

Paper sizes Ledger (LD), Legal (LG), Letter (LT), Letter R

Size detection The 3 destinations below are user-definable

Paper sizes that can be stapled

Paper sizes that can be saddle stitched

Paper sizes that can be punched

(LTR), Foolscap, Executive R, Invoice R, 18K, 16K, 16K-R, Wide sheet Width: 304.8mm max. (12 inches max.) Length: 457.2mm max. (18 inches max.)

cm: A3, B4, A4, A4R, B5, B5R, A5R

(Foolscap is manually specified on the

operation panel of main unit) inch: LD, LG, LT, LTR, Executive R, Invoice R China: 8K, 16K, 16K-R

∗ Mixed loading is not possible. When offline, sta-

pling and punching are possible only for papers that have the identical width (A3 and A4, B4 and B5, LD and LT). Note that compatibility with the finisher is not considered.

Compliant with the specifications both of the main unit and the finisher.

Compliant with the specifications both of the main unit and the saddle finisher.

Compliant with the specifications both of the main unit and the punch unit.

C. Mechanical specifications

External dimensions

Footprint (W) 320 x (D) 580 mm

Weight Product weight Approx. 23kg

Item enclosed Inserter: 1

Product dimensions

Packaged dimensions

Package weight Approx. 32kg

(W) 320 x (D) 580 x (H) 1060 mm ∗ Latch unit and tray unit

excluded.

(W) 1295 x (D) 680 x (H) 516 mm

∗ Latch unit and tray unit

excluded.

2. Electrical specifications

Input voltage Supplied from the main unit

DC+24V ± 10% DC +5V ± 5%

Power consumption DC+24V: 58.3W max.

DC +5V: 1.1W max.

3. Environmental conditions

Operating conditions (normal operation)

Transport/storage environment

Temperature 5 – 35°C Humidity 20 – 85%RH (No condensing)

Temperature –20 – 50°C Humidity 10 – 90%RH (No condensing)

4. Compliance

Safety standard UL: 60950 the 3rd edition

Electromagnetic Compliance

C-UL: CAN/CSA-C22. 2 No.60950 the 3rd edition CE: EN60950 ITS (German GS mark)

VCCI: Class B FCC: Class B CE: EN50081-1 EN55024

AR-CF2 PRODUCT OUTLINE 1 - 1

[3] EXTERNAL VIEWS AND INTERNAL STRUCTURES

1. External components

No. Description Function

234

1 Paper feed tray Place blank or printed sheets to be

2 Paper guide Adjust this guide according to the paper

3 Top cover Open this cover to clear a paper jam. 4 Operator panel Operate the staple and punch unit with this

5 Paper guiding

section

6 Front cover Open this cover to remove jammed paper

inserted in this tray.

size.

panel (or with the operator panel of the main unit). Unlock the paper guiding section to clear a paper jam.

from the finisher or saddle finisher.

2. Sensors and switches

12 11

4 5

9 6

No. Symbol Description Type Function and operation Output

1 JCK_S W JAM cover open/

close switch

2 H_SEN Reverse sensor Reflective sensor Detects that a sheet to be

Microswitch Detects that the JAM cover is

opened or closed.

inserted is transported to the reverse sensor.

AR-CF2 EXTERNAL VIEWS AND INTERNAL STRUCTURES 3 - 1

When the JAM cover is opened, TP37 turns HIGH.

When a sheet is detected, TP1 turns HIGH.

Product name

(Model)

DE2L-FAAA HIROSE

SENSOR (SNS - SPI-337-01)

Manufacturer

CHERRY PRECISION SANYO

No. Symbol Description Type Function and operation Output

3 HI_SEN Paper exit sensor Photointerrupter Detects that a sheet to be

4 HYK_SEN Reverse unit open/

close sensor

5 KC_SEN Stand cover open/

close sensor

6 S_SEN Set sensor Photointerrupter Detects that the inserter is joined

7 EMP_SEN Empty sensor Photointerrupter Detects presence/absence of a

8 REG_SEN Registration sensor Photointerrupter Detects that a sheet to be

9 TIM_SEN Timing sensor Photointerrupter Detects that a sheet to be

10 T_VR Sheet width detection

potentiometer

11 T_SEN Tray sensor Photointerrupter Detects the length of a sheet to

12 TH_SEN Sub tray pullout

detection sensor

13 TS_SEN Sub tray retraction

detection sensor

Photointerrupter Detects that the reverse unit is

Photointerrupter Detects that the stand cover is

Potentiometer Detects the width of a sheet to

Photointerrupter Detects the pullout status of the

Photointerrupter Detects the retracted status of

inserted is transported to the paper exit sensor.

opened or closed.

to the main unit.

sheet to be inserted in the paper feed tray.

inserted is transported to the registration sensor.

inserted is transported to the timing sensor.

be inserted in the tray.

be inserted in the tray

sub tray.

the sub tray.

When a sheet is detected, TP7 turns LOW.

When the reverse unit is opened, TP9 turns LOW. When the stand cover is opened, TP10 turns LOW.

When the inserter is joined to the main unit, TP16 turns HIGH. When a sheet is detected, TP4 turns HIGH.

When a sheet is detected, TP5 turns LOW.

hen a sheet is detected, TP6 turns LOW.

The voltage of TP12 varies between 0 V and 5 V depending on the sheet width. When a sheet is detected, TP13 turns LOW.

When the pullout status is detected, TP14 turns LOW. When the retracted status is detected, TP15 turns LOW.

3. Motors, solenoid, and clutch

Product name

(Model)

TLP1241 (C5) TOSHIBA

TLP1241(C5) TOSHIBA

RDC505003A ALPS

GP1A73A SHARP

Manufacturer

3 5 1

No. Symbol Description Function Product name (Model) Manufacturer

1 K_MOT Paper feed motor Feeds a sheet to be inserted from the tray. 23KM-K112-P5V MINEBEA 2 H_MOT Reverse motor Reverses and ejects a sheet to be inserted. 17PM-J507-P2VS MINEBEA 3 Y_MOT Horizontal transport

motor

Transports a sheet to be inserted on the horizontal transport path.

17PM-J507-P3VS MINEBEA

4 F_SOL Flapper solenoid Switches over the flapper in the reversing operation. TDS-10SL-134 TDS 5 R_CL Registration clutch Holds the registration rollers to maintain registration. BJ-2.6-184 SHINKO 6 PBA-PANEL Operation panel PWB – 7 PBA-CONT Main control PWB –

AR-CF2 EXTERNAL VIEWS AND INTERNAL STRUCTURES 3 - 2

[4] OPERATIONAL DESCRIPTION

1. Structure

A. Cross-sectional view (Main body)

Pickup roller

Empty sensor

Registration sensor

Timing sensor

Paper exit sensor Horizontal

transport roller 2 Reverse sensor

B. Drive system

[List of actuators]

Actuator

Description Type Paper feed motor

Transport motor Pulse motor Inlet rollers (horizontal

Reverse motor Pulse motor Reverse rollers Reverse flapper

solenoid Registration

clutch

Pulse motor Pickup roller, feed rollers,

Solenoid Switch-over flapper in reverse

Electromagnetic clutch

Components to be driven

separation rollers, registration rollers, vertical transport rollers

transport rollers 1), paper exit rollers (horizontal transport rollers 2)

section Registration roller lock clutch

Paper feed roller

Separation roller

Registration roller

Vertical transport roller

Horizontal transport roller 1

Reverse roller

3. Operational description

A. Through-mode operation of inserter (Online)

Step 01: The inserter receives an operation command sent by the

main unit.

Step 02: The transport motor rotates at a speed specified by the main

unit. Horizontal transport rollers 1 (inlet rollers) and horizontal

transport rollers 2 (paper exit rollers) rotate.

Step 03: A sheet exits from the main unit.

2. Function outline

A. Operation mode

(1) Normal (online mode)

• Through (horizontal transport)

• Straight mode (normal paper feeding from inserter)

• Reverse mode (reverse paper feeding from inserter)

(2) Offline mode

• Punching mode (inserter operation = normal paper feeding)

• Stapling mode (inserter operation = normal paper feeding)

B. Delivery speed

(1) Delivery speed

• Straight mode: 217 mm or more; 800 mm/sec 216 mm or less; 1000 mm/sec

• Saddle mode (reverse): 420 mm/sec

Step 04: The paper exit sensor detects the leading edge of the sheet.

Step 05: The paper exit sensor detects the trailing edge the sheet. Step 06: The transport motor stops.

Horizontal transport rollers 1 and horizontal transport rollers 2 stop.

AR-CF2 OPERATIONAL DESCRIPTION 4 - 1

B. Normal paper feed operation of inserter (online/

offline)

[Paper loading]

Step 01: A sheet is placed in the paper feed tray of the inserter. Step 02: The START LED lights up in blue on the operator panel of

the inserter.

Step 03: An operation command is sent by the main unit, or a user

presses the START switch on the operator panel of the inserter.

Step 04: The registration clutch is turned ON to lock the registration

rollers.

[Separation]

Step 09: The paper feed motor starts to rotate in the forward direction.

The registration rollers and vertical transport rollers rotate. Step 10: The timing sensor detects the leading edge of the sheet. Step 11: The leading edge of the sheet passes between the vertical

transport rollers. Step 12: When sheet transport needs to be suspended for adjusting

the space between sheets, the paper feed motor stops to

stop the sheet.

[Transport]

Step 13: When a predetermined waiting time period has passed, The

paper feed motor restarts.

(If the transport motor has stopped, it is started.) Step 14: The paper exit sensor is turned ON, and detects the leading

edge of the sheet. Step 15: The timing sensor is turned OFF, and the trailing edge of the

sheet is detected. Step 16: When the trailing edge of the sheet leaves the vertical trans-

port rollers, the paper feed motor stops.

(When there is a next sheet to be inserted, the paper feed

motor reverses to take it in.

[Paper exit]

Step 05: The paper feed motor reverses to lower the pickup roller,

thereby taking in the sheet from the paper feed tray.

Step 06: The registration sensor detects the leading edge of the

sheet.

Step 07: The sheet makes contact with the registration rollers to form

a loop, thereby stopping the paper feed motor.

Step 08: The registration clutch is turned OFF.

[Leading-edge registration]

AR-CF2 OPERATIONAL DESCRIPTION 4 - 2

Step 17: The paper exit sensor is turned OFF, and the trailing edge of

the sheet is detected. Step 18: When there is no next sheet to be inserted, the transport

motor stops. Note: While the transport motor (horizontal transport rollers 1 and

horizontal transport rollers 2) rotates at a speed specified by the main unit in the online mode, it rotates at either of the speeds shown below in the offline mode.

∗ Transport speed in offline mode

Small-sized sheet (of which length detected in the tray is 216 mm or less): 1000 mm/sec Large-sized sheet (of which length detected in the tray is more than 216 mm): 800 mm/sec

C. Reverse paper feeding operation of inserter

(online)

[Paper loading]

Step 01: A sheet is placed in the paper feed tray of the inserter. Step 02: The START LED lights up in blue on the operator panel of

the inserter.

Step 03: The inserter reserves an operation command sent by the

main unit.

Step 04: The registration clutch is turned ON to lock the registration

rollers.

[Separation]

Step 09: The paper feed motor starts to rotate in the forward direction.

The registration rollers and vertical transport rollers rotate. If

the sheet is the first sheet, the flapper solenoid in the reverse

section is turned ON at this point of time. Step 10: The timing sensor detects the leading edge of the sheet. Step 11: The leading edge of the sheet passes between the vertical

transport rollers. Step 12: When sheet transport needs to be suspended for adjusting

the space between sheets, the paper feed motor stops to

stop the sheet.

[Entering reverse section]

Step 13: When a predetermined waiting time period has passed, the

flapper solenoid is turned ON, the paper feed motor restarts,

and the reverse motor starts to rotate in the forward direction. Step 14: The reverse sensor is turned ON, and detects the leading

edge of the sheet. Step 15: When the trailing edge of the sheet leaves the timing sensor,

the paper feed motor starts to slow down to stop.

(After the paper feed motor has completely stopped, if there

is a next sheet to be inserted, the paper feed motor starts to

reverse to take it in.)

Step 05: The paper feed motor reverses to lower the pickup roller,

thereby taking in the sheet from the paper feed tray.

Step 06: The registration sensor detects the leading edge of the

sheet.

Step 07: The sheet makes contact with the registration rollers to form

a loop, thereby stopping the paper feed motor.

Step 08: The registration clutch is turned OFF.

[Leading-edge registration]

AR-CF2 OPERATIONAL DESCRIPTION 4 - 3

Step 16: The reverse sensor is turned OFF. The trailing edge of the

sheet is detected, and the flapper solenoid in the reverse

section is turned OFF. When the sheet travels a predeter-

mined distance, the reverse motor stops.

[Exiting from reverse section]

4. Offline mode setting

A. How to set punching mode

The figure below shows the operator panel.

Punch LED

Start LED

Step 17: When the reverse motor has completely stopped, the reverse

motor starts to reverse, and the transport motor starts.

Step 18: The reverse sensor is turned ON, and detects the leading

edge of the sheet.

Step 19: The paper exit sensor is turned ON, and detects the leading

edge of the sheet.

Step 20: The reverse sensor is turned OFF. When the sheet travels a

predetermined distance after its trailing edge is detected, the reverse motor stops. (If the next sheet waits at the leading-edge registration position, the flapper solenoid in the reverse section is turned ON, the paper feed motor starts to rotate in the forward direction, and the reverse motor starts to rotate in the forward direction.)

[Paper exit]

Punch switch

Setting procedure: Step 01: Place a sheet in the tray. Step 02: Press the PUNCH switch on the operator panel. Step 03: The PUNCH LED lights up to indicate that setting has been

completed. Step 04: Press the START switch to start operation.

Canceling procedure: Step 01: Press the PUNCH switch on the operator panel. Step 02: The PUNCH LED goes out to indicate that setting has been

canceled. Note: If you cannot make or cancel setting by following the respective

procedures above, refer to "5. LED indication on operation panel" shown later. When no LEDs are lit, check the setting made by the main unit and the inserter status.

Start switch

B. How to set stapling mode

Staple mode LED 2

Staple mode LED 1

Staple mode LED 3

Staple mode LED 4

Setting procedure: Step 01: Place a sheet in the tray. Step 02: Press the STAPLE MODE switch on the operator panel. Step 03: Each time you press the switch, the STAPLE MODE LEDs

light up by turns in the following order: 1 → 2 → 3 → 4 → All

LEDs OFF → 1 → ... (When the saddle mode is cannot be

used, the order is: 1 → 2 → 3 → All LEDs OFF → 1 → ...) Step 04: When the desired LED lights up, press the START switch to

start operation.

Staple mode switch

Start switch

Step 21: The paper exit sensor is turned OFF, and the trailing edge of

the sheet is detected.

Step 22: If there is no next sheet to be inserted, the transport motor

stops.

AR-CF2 OPERATIONAL DESCRIPTION 4 - 4

(Refer to the correspondence between the stapling modes and LEDs shown later.)

Canceling procedure: Step 01: Press the STAPLE MODE switch on the operator panel. Step 02: All the STAPLE MODE LEDs go out to indicate that setting

has been canceled. Note 1: If you cannot make or cancel setting by following the respec-

tive procedures above, refer to "5. LED indication on opera-

tion panel" shown later. When no LEDs are lit, check the

setting made by the main unit and the inserter status. Note 2: The punching mode and saddle mode cannot be used at the

same time.

The correspondence between the punching/stapling mode settings and LEDs is shown below.

Punch

LED

❍●❍❍❍1-point stapling at back ❍❍●❍❍2-point stapling ❍❍❍●❍1-point stapling at front ❍❍❍❍●Saddle stapling (saddle stitching)

●❍❍❍❍Punching

●●❍❍❍Punching + 1-point stapling at back

●❍●❍❍Punching + 2-point stapling

●❍❍●❍Punching + 1-point stapling at front

∗ ●: means "Lit."

Staple mode LEDs

LED1 LED2 LED3 LED4

Stapling mode

5. LED indication on operator panel

Status Cause Explanation

Empty tray The selected MODE LED is lit.

Inserter problem Finisher problem Paper jam in inserter Lit The LED of the selected mode is lit. Paper jam in finisher Lit The LED of the selected mode is lit. Inserter alarm The LED of the selected mode is lit. Finisher alarm The LED of the selected mode is lit. Open inserter cover The LED of the selected mode is lit. Open finisher cover The LED of the selected mode is lit. Offline operation disabled Inserter tray specified stapling mode non-usable Punching non-usable Operation mode Stapling disabled Punching disabled Full tray (considered as a kind of finisher alarms) Other

Paper-loaded tray (Operable)

Paper-loaded tray(Non-operable)

Paper-loaded tray (Non-operable)

Waiting for start of offline operation In offline operation Blinking The LED of the selected mode is lit.

Note: For LED status, each blank means "not lit."

Inserter problem Lit Finisher problem Lit The LED of the selected mode is lit. Paper jam in inserter Lit Paper jam in finisher Lit The LED of the selected mode is lit. Inserter alarm Blinking The LED of the selected mode is lit. Finisher alarm Blinking The LED of the selected mode is lit. Open inserter cover The LED of the selected mode is lit. Open finisher cover The LED of the selected mode is lit. Incompatible paper size

Offline operation disabled Inserter tray specified stapling mode non-usable Punching non-usable Operation mode Stapling disabled Punching disabled Full tray (considered as a kind of finisher alarms) Other Main unit status "operation

A non-usable paper size "A4 lateral," etc. is added when the saddle mode is selected: Extra size

The selected mode is nonusable.

The selected mode is disabled. The LED of the selected mode is

The tray corresponding to the selected mode is full.

disabled," finisher status "nonoperable," etc. After a user presses the START switch

START LED

Red Green

Blinking

MODE LED

The LED of the selected mode is lit.

The LED of the selected mode is blinking.

The LED of the selected mode is lit.

Lit

The LED of the selected mode is lit.

The LED of the selected mode is blinking.

blinking.

The LED of the selected mode is lit.

AR-CF2 OPERATIONAL DESCRIPTION 4 - 5

6. Paper jam/error detection

A. List of Paper jams

Description Detection timing Explanation Not arrived at registration sensor

Not arrived at timing sensor

Not arrived at paper exit sensor

Not arrived at reverse sensor

Stay at registration sensor

Stay at timing sensor At a time of paper exit in normal

Stay at paper exit sensor At a time of paper exit in through

Stay at reverse sensor At a time of entering reverse

At a time of separating a sheet A paper jam is detected if the registration sensor is not turned ON, which means

At a time of leading-edge registration

At a time of paper exit in through mode

At a time of paper exit in normal paper feed mode

At a time of paper exit in reverse paper feed mode

At a time of entering reverse section

At a time of exiting from reverse section

At a time of paper exit in normal paper feed mode At a time of entering reverse section in reverse paper feed mode

paper feed mode At a time of entering reverse section in reverse paper feed mode

mode

At a time of paper exit in normal paper feed mode At a time of paper exit in reverse paper feed mode

section

At a time of exiting from reverse section

absence of a sheet, even when the paper feed motor has been driven for a fixed distance after the pickup roller starts to lower. A paper jam is detected if the timing sensor is not turned ON, which means absence of a sheet, even when the registration rollers (paper feed motor) have been driven for a fixed distance after they are started. A paper jam is detected if the paper exit sensor is not turned ON by the leading edge of a sheet, which means absence of a sheet, even when the transport motor has been driven for a fixed distance after the main unit sends a paper exit command. A paper jam is detected if the paper exit sensor is not turned ON, which means absence of a sheet, even when the leading edge of a sheet has traveled a fixed distance after it reaches the paper exit rollers (horizontal transport rollers 2). A paper jam is detected if the paper exit sensor is not turned ON, which means absence of a sheet, even when a sheet has been transported a fixed distance by the transport motor after the reverse sensor is turned ON, which means presence of a sheet. A paper jam is detected if the reverse sensor is not turned ON, which means absence of a sheet, even when the reverse motor has been driven for a fixed distance after leading-edge registration. A paper jam is detected if the reverse sensor is turned ON, which means absence of a sheet, even when the reverse motor has been driven for a fixed distance while a sheet is exiting from the reverse section. A paper jam is detected if the registration sensor is not turned OFF, which means presence of a sheet, even when the paper feed motor has been driven for a predetermined amount after a sheet reaches the starting position of leading-edge registration. A paper jam is detected if the timing sensor is not turned OFF, which means presence of a sheet, even when the paper feed motor has been driven for a fixed distance after the registration sensor is turned OFF, which means absence of a sheet. A paper jam is detected if the paper exit sensor is not turned OFF, which means presence of a sheet, even when the transport motor has been driven for a predetermined amount after the paper exit sensor is turned ON, which means presence of a sheet. A paper jam is detected if the paper exit sensor is not turned OFF, which means presence of a sheet, even when the transport motor has been driven for a fixed distance after the trailing edge of a sheet reaches the paper exit rollers (horizontal transport rollers 2). A paper jam is detected if the reverse sensor is not turned OFF, which means presence of a sheet, even when the reverse motor has been driven for a fixed distance after the timing sensor is turned OFF, which means absence of a sheet. A paper jam is detected if the reverse sensor is not turned OFF, which means presence of a sheet, even when the reverse motor has been driven for a predetermined amount after the reverse sensor is turned ON, which means presence of a sheet.

B. Error detection

(1) EEPROM errors

Explanation:

1) Timeout error The EEPROM is being programmed even after a predetermined

time period (150 msec) has passed.

2) Writing error The written data does not match the read data even when writing

and reading are retried.

3) Reading error Checking pieces of data read from three sources results in mis-

match even when checking is retried.

AR-CF2 OPERATIONAL DESCRIPTION 4 - 6

(2) Reverse sensor adjustment error

Explanation:

1) When the DA output exceeds the upper limit Even when the DA output is increased, the AD input value does

not fall within the appropriated range.

2) When the DA output is less than the lower limit Even when the DA output is decreased, the AD input value does

not fall within the appropriated range.

C. Alarm detection

Explanation: An alarm is issued because the size of a sheet in the tray cannot be

correctly detected when both the sub tray pullout detection sensor and the sub tray retraction detection sensor are turned OFF.

Indication: Shown by a LED on the operator panel of the inserter or of the main

unit as an inserter alarm.

[5] DISASSEMBLY AND ASSEMBLY

1. Paper Feed Separation Unit

A. Pickup Roller & Paper Feed Roller

1) Open the top cover

2) Remove the maintenance cover.

B. Torque Limiter & Separation Roller

1) Open the top cover.

2) Remove the maintenance cover.

3) Turn the separation roller unit to remove.

3) Turning the paper feed unit, remove the paper feed roller guide.

4) Remove the pickup roller and paper feed roller. A: Pickup roller B: Paper feed roller

4) Remove the torque limiter and the separation roller. A: Torque limiter B: Separation roller

AR-CF2 DISASSEMBLY AND ASSEMBLY 5 - 1

2. Paper Feed Unit

A. Horizontal Pass Roller 1 and Registration Roller

1) Open the top cover.

2) Open the mount cover.

3) Remove the front cover.

A: Horizontal pass roller 1 B: Registration roller

B. Horizontal Pass Roller 2 and Timing Roller

1) Open the top cover.

2) Remove the front cover and rear cover.

3) Disconnect the connector to remove the operating unit.

4) Remove the rear cover.

5) Remove the opening and closing cover supports and plastic Erings to remove the top cover.

4) Disconnect the connector, tray support and tray spring guide spindle to remove the tray unit.

AR-CF2 DISASSEMBLY AND ASSEMBLY 5 - 2

5) Remove the finisher latch cover.

A: Horizontal pass roller 2 B: Timing roller

5) Remove the cover bracket.

D. Paper Guide

C. Reverse Roller

1) Open the top cover.

2) Remove the front cover and rear cover.

3) Remove the finisher fixing bolt to remove the finisher positioning stay unit.

4) Remove the reverse supports and plastic E-rings to remove the reverse unit.

AR-CF2 DISASSEMBLY AND ASSEMBLY 5 - 3

3. Drive Unit

4. Other Parts

A. Belts

1) Open the top cover.

2) Remove the rear cover.

B. Gears

1) Open the top cover.

2) Remove the rear cover.

3) Disconnect the connector to remove the drive unit.

A. Sensors

5. Note on assembly

A. Reverse flapper solenoid adjustment

1) Rotate the solenoid lever (LVR-FM-SOL) fully clockwise.

2) Adjust the position of the bracket (BKT-FM-SOL) of the solenoid so that the solenoid's arm is completely retracted (that there is no clearance in the rubber spacer, the stopper E-ring, and the main unit of the solenoid). When adjusted, fix the bracket with screws.

Solenoid main unit

LVR-FM-SOL

Stopper E-ring

Rubber spacer

Screw

BKT-FM-SOL

AR-CF2 DISASSEMBLY AND ASSEMBLY 5 - 4

[6] MAINTENANCE

1. Maintenance list

✕ Check ❍ Cleaning ▲ Replace ∆ Adjust ✩ Lubricate ❏ Move position (Clean, replace, and adjust, if necessary.)

AR-M550U/M550N (PM: 250K)

AR-M620U/M620N (PM: 300K)

Unit name No. Part name

Paper separate section

Transport section

Drive section 5 Gears and their related parts ✕✩✩✩✩✩✩✩✩(Specified positions)

Others 7 Sensors ✕✕✕✕✕✕✕✕✕

(Note) Reference for replacement: Replace referring to the counter

value at the paper entry of the inserter. Paper feed roller and its related parts: 150K or one year Torque limiter: 400K

1 Pickup roller / Paper feed rollers ✕❍❍❍❍❍❍❍❍(Note) 2 Torque limiter ✕✕✕✕✕✕✕✕✕(Note) 3 Transport rollers ✕❍❍❍❍❍❍❍❍ 4 Transport paper guides ❍❍❍❍❍❍❍❍❍

6Belts ✕✕✕✕✕✕✕✕

250K 500K 750K 1000K 1250K 1500K 1750K 2000K

When

calling

300K 600K 900K 1200K 1500K 1800K 2100K 2400K

Remarks

AR-CF2 MAINTENANCE 6 - 1

[7] TROUBLESHOOTING

Problem The inserter does not perform at all when the main

Case1 Cause Loose contact with the main unit

Case2 Cause Loose contact of the connector terminal of

Case3 Cause JAM cover open/close switch fault

Case4 Cause Controller PCB fault

Problem

Case1 Cause Loose contact of the motor connector

Case2 Cause Disconnection of the motor coil

Case3 Cause Controller PCB fault

Problem

Case1 Cause Connector terminal fault of the reverse

Case2 Cause Disconnection of the solenoid coil

Case3 Cause Controller PCB fault

switch of the main unit is turned ON.

Check and remedy

The paper feed motor does not operate. The reverse motor does not operate. The horizontal transport motor does not operate.

Check and remedy

The paper is delivered without being reversed in the reverse paper feed mode.

Check and remedy

Check that each connector is firmly connected.

the wire (interface harness) connecting with the main unit

Check continuity in between the connector terminals. Replace the connection wire if no continuity is measured

Check continuity between the switch contacts., Replace the contacts if no continuity is measured.

Check that 24 V DC and 5 V DC are supplied from the main unit after the above cases 1 to 3 are confirmed. If 24 V and 5 V are not present at CN1-2 pin and IC5-32 pin on the PCB, replace the controller PCB.

terminal Check continuity of the connector contacts.(CN1 to 3)

Check continuity between the connector terminals. Replace the connection wire if no continuity is measured.

If the motor does not operate in the motor single operation mode, replace the controller PCB.

solenoid Check continuity of the connector

contact.(CN4)

Inspect the coil for continuity. Replace the coil if no continuity is measured.

If the solenoid does not perform in the solenoid single operation mode, replace the controller PCB.

Problem Paper jam is displayed on the system display.

Case1 Cause Paper jam

Check and remedy

Case2 Cause Reverse sensor fault

Check and remedy

Case3 Cause Paper exit sensor fault

Check and remedy

Case4 Cause Empty sensor fault

Check and remedy

Case5 Cause Registration sensor fault

Check and remedy

Case6 Cause Timing sensor fault

Check and remedy

Case7 Cause Controller PCB fault

Check and remedy

Problem

Case1 Cause Tray sensor fault

Case2 Cause Controller PCB fault

The machine does not detect the paper.

Check and remedy

Visual observation. Take out paper jams.

Measure a voltage of TP2 on the controller PCB and check that 3 to 3.6 V is observed when no paper is stacked, and that 1.5 V or less is observed when paper is stacked. Replace the sensor if the measured voltage exceeds these ranges.

Measure a voltage of TP7 on the controller PCB and check that 5 V is observed when no paper is stacked, and that 1 V or less is observed when paper is stacked. Replace the sensor if the measured voltage exceeds these ranges.

Measure a voltage of TP4 on the controller PCB and check that 1 V or less is observed when no paper is stacked, and that 5 V is observed when paper is stacked. Replace the sensor if the measured voltage exceeds these ranges.

Measure a voltage of TP5 on the controller PCB and check that 5 V is observed when no paper is stacked, and that 1 V or less is observed when paper is stacked. Replace the sensor if the measured voltage exceeds these ranges.

Measure a voltage of TP6 on the controller PCB and check that a 5 V is observed when no paper is stacked, and that 1 V or less is observed when paper is stacked. Replace the sensor if the measured voltage exceeds these ranges.

If the problem is not solved with the sensors whose level changes when each is turned ON/OFF, replace the controller PCB.

Measure a voltage of TP13 on the controller PCB and check thatV is observed when no paper is stacked, and that 1 V or less is observed when paper is stacked. Replace the sensor if the measured voltage exceeds these ranges.

If the problem is not solved with a change in the sensor level after the above case 1 is confirmed, replace the controller PCB.

AR-CF2 TROUBLESHOOTING 7 - 1

Problem

Case1 Cause Sub-tray pulling detection sensor fault

Case2 Cause Sub-tray pulling detection sensor fault

Case3 Cause Controller PCB fault

Tray alarm is displayed on the system display.

Check and remedy

Measure a voltage on TP14 on the controller PCB and check that 5 V is observed when the sub-tray is in place, and that 1 V or less is observed when the sub-tray is pulled out. Replace the sensor if the measured voltage exceeds these ranges.

Measure a voltage of TP15 on the controller PCB and check that 5 V is observed when the tray is in place, and that 1 V or less is observed when the tray is pulled. Replace the sensor if the measured voltage exceeds these ranges.

If the problem is not solved by a change in the sensor level after the above cases 1 and 2 are confirmed, replace the controller PCB.

Problem The registration clutch does not perform.

Case1 Cause Loose contact of the clutch connector

terminal Check and remedy

Case2 Cause Disconnection of the clutch coils

Check and remedy

Case3 Cause Controller PCB fault

Check and remedy

Check continuity of the connector

contacts. (CN4)

Inspect the coils for continuity. Replace

the coils if no continuity is measured.

If the clutch does not perform in the clutch

single operation mode, replace the

controller PCB.

Problem

Case1 Cause JAM cover open/close switch fault

Case2 Cause Reverse unit open/close sensor fault

Case3 Cause Rack cover open/close sensor fault

Case4 Cause Controller PCB fault

Problem

Case1 Cause Set sensor fault

Case2 Cause Controller PCB fault

Cover open is displayed on the system display.

Check and remedy

Inserter unset is displayed on the system display.

Check and remedy

Check continuity between the switch contacts., Replace the switch if no conduction is measured.

Measure a voltage of TP9 on the controller PCB and check that 1 V or less is observed when the reverse unit is open, and that 5 V is observed when the reverse unit is closed. Replace the sensor if the measured voltage exceeds these ranges.

Check continuity between the switch contacts. Replace the sensor if no conduction is measured.

If the problem is not solved by a change in the sensor level after the above cases 1 to 3 are confirmed, replace the controller PCB.

Measure a voltage of TP16 on the controller PCB and check that 5 V is observed when the inserter is set, and that 1 V or less is observed when the inserter is not set. Replace the sensor if the measured voltage exceeds these ranges.

If the problem is not solved by a change in the sensor level after the above case 1 is confirmed, replace the controller PCB.

AR-CF2 TROUBLESHOOTING 7 - 2

[8] ELECTRICAL SECTION

1. Actual Wiring Chart

Reverse Sensor

Paper Exit Sensor

Reverse Unit Open/Closed Sensor

Chassis Cover Open/Closed Sensor

Set Sensor

Empty Sensor

Housing Contact

Paper Feed Motor

Reverse Motor

Horizontal Transport Motor

Flapper Solenoid

Registration Sensor

Timing Sensor

Tra y

Tray Sensor

Tray Drawn Sensor

Tray Folded Sensor

Operation Panel

Tray Volume

Housing Contact

Housing

Contact

Housing Contact

Main Unit I/F

Finisher I/F

Sleeve FASTON Terminal

Housing Contact Contact

JAM Cover Open/Closed SW

Registration Clutch

BE: BN: BK: RD: YW: WE: OE: GY: SB: PK: VT:

Blue Brown Black Red Yellow White Orange Gray Sky-blue Pink Violet

AR-CF2 ELECTRICAL SECTION 8 - 1

2. Circuit Description

A. Outline

This circuit controls paper feed, transport, reverse, and delivery. This circuit consists of the following divisions: managing signals from

the sensors, the switches, and the main unit; driving the motors, the solenoid, and the clutch; the CPU and associated circuits.

B. Block Diagram

Main Unit

RXD0

SGND

TXD0

Inserter

H_SEN

HI_SEN

HYK_SEN

KC_SEN

S_SEN

EMP_SEN

REG_SEN

TIM_SEN

T_VR

T_SEN

TH_SEN

TS_SEN

P_ST_SW

P_MO_SW

P_PN_SW

P_PN_LED

P_MO_LED1

P_MO_LED2

P_MO_LED3

P_MO_LED4

P_ST_LED1

P_ST_LED2

COMMU-

NICATION

CIRCUIT

SENSORS

INPUT

CIRCUIT

INPUT

CIRCUIT

LED

DRIVE

CIRCUIT

JAM COVER

OPEN/CLOSED

DETECTION

CIRCUIT

(24V

CONDUCTIVE

DETECTION)

CPU

ROM

EEP ROM

DRIVER

Finisher

RXD1

SGN

TXD1

F_SOL

R_CL

K_MOT

H_MOT

Y_MOT

DC+24V

DC+5V

INRUSH

CURRENT

DC+5V

LIMITING

CIRCUIT

JCK_SW

AR-CF2 ELECTRICAL SECTION 8 - 2

DC+24V

C. Circuit Detail

(1) Communication Circuit

<1> TxD signal <2> RxD signal

Main Unit

Finisher

This circuit communicates with the main unit and the finisher. TxD0 and TxD1 are data signals transmitted from the main unit and the finisher to the inserter. RxD0 and RxD1 are data signals transmitted from the

inserter to the main unit and the finisher. Logical 1 is represented by +5V, and logical 0 is represented by 0V.

(2) Sensor Input Circuits

<1> Reverse Sensor (H_SEN)

Main Unit

Finisher

Reverse Sensor

H_SEN uses the reflective sensor integrated with an LED and a phototransistor.

The sensor detects a sheet between the sensor and the opposite reflector interrupting the light path.

The CPU (IC6-Pin94, 95, 96) output is transmitted to the sensor to light the LED through the D/A converter (IC13), the operational amplifier (IC15.2), and the transistor (Q1). Meanwhile the signal is transmitted to the CPU (IC6-Pin30) through the noise filters (R4, C2) and the comparator (IC1.1).

The signal input to the CPU follows the logic: "H" when a sheet is detected, "L" when not detected.

The analog signal is transmitted to CPU (IC-Pin105) through no comparator.

R1 and R10 divide the +5V voltage which is applied to the comparator as the reference voltage.

R13 is used to make the reference voltage have hysteresis.

AR-CF2 ELECTRICAL SECTION 8 - 3

Paper Exit Sensor

Reverse Unit Open/Closed Sensor

Chassis Cover Open/Closed Sensor

<2> Paper Exit Sensor (HI_SEN)

HI_SEN uses the photointerrupter integrated with an LED and a phototransistor. The sensor detects a sheet with the lever actuator interrupting the light path of the photointerrupter. The signal is transmitted to the CPU (IC6-Pin106) through the noise filters (R25,C9). The signal input to the CPU follow the logic: "L" when a sheet is detected, "H" when not detected. R39 is a current limiting resistor for the LED. R34 is a load resistor for the sensor.

<3> Reverse Unit Open/Closed Sensor (HYK_SEN)

HYK_SEN uses the photointerrupter integrated with an LED and a phototransistor. The sensor detects state of the reverse unit with the lever actuator interrupting the light path of the photointerrupter.

Set Sensor

Empty Sensor

Registration Sensor

Timing Sensor

The signal is transmitted to the CPU (IC6-Pin108) through the noise filters (R21,C7). The signal input to the CPU follows the logic: "L" when the reverse unit is open, "H" when closed. R37 is a current limiting resistor for the LED. R32 is a load resistor for the sensor.

<4> Chassis Cover Open/Closed Sensor (KC_SEN)

KC_SEN uses the photointerrupter integrated with an LED and a phototransistor. The sensor detects state of the chassis cover with the lever actuator interrupting the light path. The signal is transmitted to the CPU (IC6-Pin109) through the noise filters (R29,C11). The signal input to the CPU follows the logic: "L" when the chassis cover is open, "H" when closed. R41 is a current limiting resistor for the LED. R36 is a load resistor for the sensor.

<5> Set Sensor (S_SEN)

S_SEN uses the photointerrupter integrated with an LED and a phototransistor. The sensor detects the main unit with the lever actuator interrupting the light path. The signal is transmitted to the CPU (IC6-Pin2) through the noise filters (R56,C16). The signal input to the CPU follows the logic: "H" when the inserter is connected to the main unit, "L" when not connected. R59 is a current limiting resistor for the LED. R58 is a load resistor for the sensor.

<6> Empty Sensor (EMP_SEN)

EMP_SEN uses the photointerrupter including the LED and the phototransistor in one unit. The sensor detects a sheet with the lever actuator interrupting the light path. The signal is transmitted to the CPU (IC6-Pin31) through the noise filters (R7,C4). The signal input to the CPU is the following logic: the signal is "H" when a sheet is detected, "L" when not detected. R12 is the current limiting resistor for the LED. R11 is the load resistor for the sensor.

AR-CF2 ELECTRICAL SECTION 8 - 4

<7> Registration Sensor (REG_SEN)

REG_SEN uses the photointerrupter integrated with an LED and a phototransistor. The sensor detects a sheet with the lever actuator interrupting the light path. The signal is transmitted to the CPU (IC6-Pin32) through the noise filters (R14,C5). The signal input to the CPU follows the logic: "L" when a sheet is detected, "H" when not detected. R17 is a current limiting resistor for the LED. R16 is a load resistor for the sensor.

<8> Timing Sensor (TIM_SEN)

TIM_SEN uses the photointerrupter integrated with an LED and a phototransistor. The sensor detects a sheet with the lever actuator interrupting the light path. The signal is transmitted to the CPU (IC6-Pin33) through the noise filters (R19,C6). The signal input to the CPU follows the logic: "L" when a sheet is detected, "H" when not detected. R18 is a current limiting resistor for the LED. R31 is a load resistor for the sensor.

Paper Width Detection Potentiometer

Tray Sensor

Sub Tray Drawn Detection Sensor

Sub Tray Folded Detection Sensor

<9> Paper Width Detection Potentiometer (T_VR)

T_VR is a potentiometer. The paper width is detected using the output voltage, which may vary

depending on the potentiometer's knob position. The signal is transmitted to the CPU (IC6-Pin112) through the noise fil-

ters (R48,C12).

<10> Tray Sensor (T_SEN)

T_SEN uses the photointerrupter integrated with an LED and a phototransistor.

The sensor detects a sheet with the lever actuator interrupting the light path.

The signal is transmitted to the CPU (IC6-Pin126) through the noise filters (R46,C15).

The signal input to the CPU follows the logic: "L" when a sheet is detected, "H" when not detected.

R52 is a load resistor for the sensor.

<13> JAM Cover Open/Closed Switch (JCK_SW)

<11> Sub Tray Drawn Detection Sensor (TH_SEN)

TH_SEN uses the photointerrupter integrated with an LED and the phototransistor in one unit.

The sensor detects state of the sub tray with the lever actuator interrupting the light path.

The signal is transmitted to the CPU (IC6-Pin127) through the noise filters (R44,C14).

The signal input to the CPU follows the logic: "L" when the sub tray is drawn.

R51 is a load resistor for the sensor.

<12> Sub Tray Folded Detection Sensor (TS_SEN)

TS_SEN uses the photointerrupter integrated with an LED and a phototransistor.

The sensor detects state of the sub tray with the lever actuator interrupting the light path.

The signal is transmitted to the CPU (IC6-Pin128) through the noise filters (R42,C13).

The signal input to the CPU follows the logic: "L" when the sub tray is folded.

R50 is a load resistor for the sensor.

JCK_SW is the JAM cover open/closed detection switch using the microswitch.

+24V is supplied to the switch. The contacts open when the JAM cover is open.

When the switch turns on, +24V voltage is applied to the cathode of ZD2, the base current flows to Q12, and Q12 turns on to transmit the signal to the CPU (IC6-Pin111).

The signal is also used as the +24V conduction signal simultaneously. The signal input to the CPU follows the logic: "H" when the JAM cover

is open, "L" when closed. The +24V conduction signal follows the logic: "L" when the +24V volt-

age is conducted.

AR-CF2 ELECTRICAL SECTION 8 - 5

(3) Motor Drive Circuits

<1> Paper Feed Motor Drive Circuit (K_MOT)

Paper Feed MOT

Not Mounted

This circuit rotates/stops K_MOT and controls its rotational direction and the motor current. The circuit consists of the CPU (IC6), the D/A converter (IC13), the constant-current chopper driver IC (IC9), and other elements.

The signals of the stepping-motor drive excitation pattern from the CPU (IC6-Pin37,38,70,71) control the motor rotation speed and rotational direction.

<2> Reverse Motor Drive Circuit (H_MOT)

This circuit rotates/stops H_MOTand controls its rotational direction and the motor current. The circuit consists of the CPU (IC6), the D/A converter (IC13), the constant-current chopper driver IC (IC7), and other elements.

The analog signal from the D/A converter (IC13-Pin11) is divided into the constant voltage by R53 and R54. The divided voltage is applied to IC9-Pin9,11 to set the motor current.

Reverse MOT

Not Mounted

The signals of the stepping-motor drive excitation pattern from the CPU (IC6-Pin118, 120, 121, 122) control the motor rotation speed and rotational direction.

The analog signal from the D/A converter (IC13-Pin5) is divided into the constant voltage by R74 and R75. The divided voltage is applied to IC7-Pin3,14 to set the motor current.

<3> Transport Motor Drive Circuit (Y_MOT)

This circuit rotates/stops Y_MOT and controls its rotational direction and the motor current. The circuit consists of the CPU (IC6), the D/A converter (IC13), the constant-current chopper driver IC (IC8), and other elements.

The signals of the stepping-motor drive excitation pattern from the CPU (IC6-Pin97, 98, 101, 102) control the motor rotation speed and rotational direction.

AR-CF2 ELECTRICAL SECTION 8 - 6

Horizontal Transport MOT

Not Mounted

The analog signal from the D/A converter (IC13-Pin6) is divided into the constant voltage by R76 and R77. The divided voltage is applied to IC8-Pin3,14 to set the motor current.

(4) Flapper Solenoid and Registration Clutch Drive Circuit (F_SOL and R_CL)

Flapper SOL

Registration CL

This circuit controls the flapper solenoid operation and the registration clutch engagement.

When the signal F_SOL is "H", Q2 turns on to activate the solenoid. Similarly, when the signal R_CL is "H", Q3 turns on to engage the clutch.

(5) Reset Circuit

Not Mounted

The circuit transmits a reset signal to the CPU when the power is turned on or a power brownout is detected.

The circuit includes a watchdog timer intended to the CPU system operation diagnosis.

After the power is turned on, normally IC3-Pin8 (*RES) is "H". However, when the +5V voltage falls to 4.2V or less because of the power turned off or any trouble, IC3-Pin8 turns "L" to reset the CPU.

The clock signal from the CPU is transmitted to IC3-Pin3 (CK) at a regular interval to clear the watchdog timer embedded in IC3. However, if the clock signal from the CPU disappears because of a system trouble, IC3-Pin8 turns "L" to reset the CPU and stop the system operation.

The flapper solenoid drive signal is the PWM signal. At the beginning of the solenoid activation, the signal is adjusted to set the solenoid at 100% duty cycle. After the plunger of the solenoid is pulled in, the signal is adjusted to set the solenoid at 70% duty cycle in order to reduce the temperature rise with the plunger hold.

(6) EEPROM Circuit

This circuit consists of the data storage EEPROM and the peripheral circuits.

IC4 is a storage memory for the adjustment settings of the reverse sensor (reflective sensor) and the paper width detection potentiometer, and passes the data to the CPU through the four-wire serial interface.

Once data is stored, the data is retained and not cleared even if the power is turned off.

IC4-Pin1 (CS) is the chip selection terminal, and stays "H" during passing data.

IC4-Pin2 (SK) is the serial clock terminal. The serial data is transmitted synchronizing with the clock signal input to the terminal

IC4-Pin3 (DI) is the serial data input terminal. IC4-Pin4 (DO) is the serial data output terminal.

AR-CF2 ELECTRICAL SECTION 8 - 7

(7) Inrush Current Limiting Circuit

JAM cover open/closed

This circuit limits an inrush current flowing into the regeneration capacitor included in the motor drive system to a certain value or less. The circuit consists of the PTC thermistor (PTH2) that limits a current and the FET (Q11) that allows a steady current flowing.

When the JAM cover open/closed detection switch is closed, the cathode voltage of ZD1 starts rising to the zener voltage according to the time constant of R55 and C46. During the rise of the cathode voltage, Q11 is off because no base current to Q10 keeps Q10 off, and then a current flows to PTH2 to charge the regeneration capacitor.

(8) Operator Panel Drive Circuit

Operator Panel

After the regeneration capacitor is fully charged, and the cathode voltage of ZD1 reaches over the zener voltage according to the time constant of R55 and C46, Q11 is turned on because the base current from ZD1 to Q10 turns Q10 on. And then the current flows to Q11 instead of PTH2 to release the current limitation. The circuit consisting of PTH1 and D3 is intended to eliminate the electric charge accumulated in C46 immediately to limit an inrush current generated by momentary opening and shutting of the cover.

This circuit includes the input circuits of the switches on the operator panel and the drive circuits of the LEDs.

The circuits connected to CN15-Pin1, 2, 3 are the input circuits of the switches on the operator panel. The input signal from the switch goes "L" when the switch is on, "H" when off.

The circuits connected to CN15-Pin4,6-11 are the drive circuits of the LEDs on the operator panel. The LED lights when the signal is "H", does not light when "L".

AR-CF2 ELECTRICAL SECTION 8 - 8

(9) Operator Panel Circuit

This is the circuit of the operator panel board. The operator panel drive board turns each of the LED1-6 on or off, and

detects weather each of the PSW1-3 is on or off.

AR-CF2 ELECTRICAL SECTION 8 - 9

Memo

LEAD-FREE SOLDER

The PWB’s of this model employs lead-free solder. The “LF” marks indicated on the PWB’s and the Service Manual mean “Lead-Free” solder. The alphabet following the LF mark shows the kind of lead-free solder.

Example:

Solder composition Sn-Ag-Cu Sn-Ag-Bi

Sn-Ag-Bi-Cu Sn-Zn-Bi Sn-In-Ag-Bi Sn-Cu-Ni Sn-Ag-Sb Bi-Sn-Ag-P

Bi-Sn-Ag

5mm

Lead-Free

Solder composition code (Refer to the table at the right.)

(1) NOTE FOR THE USE OF LEAD-FREE SOLDER THREAD

When repairing a lead-free solder PWB, use lead-free solder thread. Never use conventional lead solder thread, which may cause a breakdown or an accident. Since the melting point of lead-free solder thread is about 40°C higher than that of conventional lead solder thread, the use of the exclusive-use soldering iron is recommendable.

Solder composition code

i n s

(2) NOTE FOR SOLDERING WORK

Since the melting point of lead-free solder is about 220°C, which is about 40°C higher than that of conventional lead solder, and its soldering capacity is inferior to conventional one, it is apt to keep the soldering iron in contact with the PWB for longer time. This may cause land separation or may exceed the heat-resistive temperature of components. Use enough care to separate the soldering iron from the PWB when completion of soldering is confirmed. Since lead-free solder includes a greater quantity of tin, the iron tip may corrode easily. Turn ON/OFF the soldering iron power frequently. If different-kind solder remains on the soldering iron tip, it is melted together with lead-free solder. To avoid this, clean the soldering iron tip after completion of soldering work. If the soldering iron tip is discolored black during soldering work, clean and file the tip with steel wool or a fine filer.

CIRCUIT DIAGRAM

CODE: 00ZARCF2/C1//

DIGITAL COPIER/PRINTER/ MULTIFUNCTIONAL SYSTEM OPTION INSERTER

CONTENTS

[1] BLOCK DIAGRAM . . . . . . . . . . . . . . 1-1

[2] ACTUAL WIRING CHART . . . . . . . . 2-1

[3] CIRCUIT DIAGRAM . . . . . . . . . . . . . 3-1

MODEL

AR-CF2

Parts marked with “ ” are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used

SHARP CORPORATION

for after sales service only. The contents are subject to change without notice.

[1] BLOCK DIAGRAM

S_SEN

T_VR

T_SEN

COMMU-

NICATION

CIRCUIT

SENSORS

INPUT

CIRCUIT

Main Unit

RXD0

SGND

TXD0

Inserter

H_SEN

HI_SEN

HYK_SEN

KC_SEN

EMP_SEN

REG_SEN

TIM_SEN

TH_SEN

TS_SEN

P_ST_SW

P_MO_SW

P_PN_SW

P_PN_LED

P_MO_LED1

P_MO_LED2

P_MO_LED3

P_MO_LED4

P_ST_LED1

P_ST_LED2

INPUT

CIRCUIT

LED

DRIVE

CIRCUIT

JAM COVER

OPEN/CLOSED

DETECTION

CIRCUIT

(24V

CONDUCTIVE

DETECTION)

DC+24V

DC+5V

JCK_SW

CURRENT

DC+5V

CPU

INRUSH

LIMITING

CIRCUIT

ROM

EEP ROM

DRIVER

Finisher

RXD1

SGN

TXD1

F_SOL

R_CL

K_MOT

H_MOT

Y_MOT

DC+24V

AR-CF2 BLOCK DIAGRAM / ブロック図 1 - 1

[2] ACTUAL WIRING CHART

Reverse Sensor

Paper Exit Sensor

Reverse Unit Open/Closed Sensor

Chassis Cover Open/Closed Sensor

Set Sensor

Empty Sensor

Registration Sensor

Housing Contact

Main Unit I/F

Paper Feed Motor

Reverse Motor

Horizontal Transport Motor

Flapper Solenoid

Registration Clutch

Timing Sensor

Tra y

Tray Sensor

Tray Drawn Sensor

Tray Folded Sensor

Operation Panel

BE:

Blue

BN:

Brown

BK:

Black

RD:

Red

YW:

Yellow

WE:

White

OE:

Orange

GY:

Gray

SB:

Sky-blue

PK:

Pink

VT:

Violet

Tray Volume

Housing Contact

Housing

Contact

Housing Contact

Finisher I/F

Sleeve FASTON Terminal

Housing Contact Contact

JAM Cover Open/Closed SW

AR-CF2 ACTUAL WIRING CHART / 実体配線図 2 - 1

[3] CIRCUIT DIAGRAM AND PARTS LAYOUT

1. CIRCUIT DIAGRAM

Main Unit +24V

JAM Cover Open/ Closed SW

Reverse Sensor

Paper Exit Sensor

Reverse Unit Open/ Closed Sensor

Main Unit I/F

Main Unit +5V

Chassis Cover Open/ Closed Sensor

Document Width Detection Volume

Tray Sensor

Sub Tray Drawn Detection Sensor

Sub Tray Folded Detection Sensor

Set Sensor

Empty Sensor

Registration Sensor

Timing Sensor

Mode 5

no-mounting

AR-CF2 CIRCUIT DIAGRAM AND PARTS LAYOUT / 回路図と部品配置図 3 - 1

Finisher I/F

Reverse Motor

no-mounting

Horizontal Transport Motor

no-mounting

Flapper Solenoid

Registration Clutch

no-mounting

Paper Feed Motor

no-mounting

no-mounting no-mounting

AR-CF2 CIRCUIT DIAGRAM AND PARTS LAYOUT / 回路図と部品配置図 3 - 2

no-mounting

2. PARTS LAYOUT

A. PARTS SURFACE

Signal Name

CN2 CN3 CN1

No. No. No.

1 H_MOT_*B 1 N.C. 1 K_MOT_A 2 H_MOT_B 2 +24V 2 +24V 3 H_MOT_*A 3 +24V 3 K_MOT_*A 4 H_MOT_A 4 Y_MOT_A 4 K_MOT_B 5 +24V 5 Y_MOT_*A 5 +24V 6 +24V 6 Y_MOT_B 6 K_MOT_*B

7 Y_MOT_*B

Signal NameSignal NameSignal Name

CN4

No.

4 R_CL 3 +24V 2 F_SOL 1 +24V

Signal Name

CN10

No.

Signal Name

CN14 3 DTR0

No.

Signal Name

1 +5V 1 TxD0 2 SGND 3 S_SEN CN9 4 +5V 5 SGND 6 SGND 6 EMP_SEN 5 RESET 7 +5V 4 DTR1 8 SGND 3 DSR1

9 REG_SEN 2 RxD1 10 +5V 1 TxD1 11 SGND 12 TIM_SEN CN15 13 N.C.

Signal Name

1 P_ST_SW 2 P_MO_SW 3 P_PN_SW 4 P_PN_LED 5 SGND 6 P_MO_LED1 7 P_MO_LED2 8 P_MO_LED3

9 P_MO_LED4 10 P_ST_LED1 11 P_ST_LED2

3 *J_PTH 2 JCK_SW 1 +24V

CN6

Signal Name

No.

1 +24V 2 PGND

CN7

Signal Name

No.

7 SGND 6 +5V 5 RESET 4 DSR0

2 RxD0

Signal Name

No.

AR-CF2 CIRCUIT DIAGRAM AND PARTS LAYOUT / 回路図と部品配置図 3 - 3

B. SOLDER SURFACE

AR-CF2 CIRCUIT DIAGRAM AND PARTS LAYOUT / 回路図と部品配置図 3 - 4

Memo

LEAD-FREE SOLDER

Example:

Solder composition Sn-Ag-Cu Sn-Ag-Bi

Sn-Ag-Bi-Cu Sn-Zn-Bi Sn-In-Ag-Bi Sn-Cu-Ni Sn-Ag-Sb Bi-Sn-Ag-P

Bi-Sn-Ag

5mm

Lead-Free

Solder composition code (Refer to the table at the right.)

(1) NOTE FOR THE USE OF LEAD-FREE SOLDER THREAD

(2) NOTE FOR SOLDERING WORK

Solder composition code

z i n s



  !"#$%&'()*+  ,-(./012345

5mm

 

6789:;<=>?@: AB> 89C1DE)FGHIJGK;L,M ?D @: >NO>FMP QR STU-VWXY?Z[

 

NOLP \\R S ABFMP QR STU--];^L_`[Yabc)deLf)DM LCghijIklmnopqrst^L,`[d=uvwx`bO YVWj@: yz{L|rU-VWU}~LI YU[)  ZUD@: U})3L--)=`[67U}@: 67b)U}L@`b%`VIM U}@:

CAUTION FOR BATTERY REPLACEMENT

(Danish) ADVARSEL !

Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering.

(English) Caution !

Danger of explosion if battery is incorrectly replaced.

Dispose of used batteries according to manufacturer’s instructions.

(Finnish) VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan suosittelemaan

tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden

(French) ATTENTION

Il y a danger d’explosion s’ il y a remplacement incorrect

de la batterie. Remplacer uniquement avec une batterie du

même type ou d’un type équivalent recommandé par

Mettre au rebut les batteries usagées conformément aux

(Swedish) VARNING

(German) Achtung

Explosionsgefahr bei Verwendung inkorrekter Batterien.

Als Ersatzbatterien dürfen nur Batterien vom gleichen Typ oder

vom Hersteller empfohlene Batterien verwendet werden. Entsorgung der gebrauchten Batterien nur nach den vom

Udskiftning må kun ske med batteri

af samme fabrikat og type.

Levér det brugte batteri tilbage til leverandoren.

Replace only with the same or equivalent type

recommended by the manufacturer.

mukaisesti.

le constructeur.

instructions du fabricant.

Explosionsfara vid felaktigt batteribyte.

Använd samma batterityp eller en ekvivalent

typ som rekommenderas av apparattillverkaren.

Kassera använt batteri enligt fabrikantens

instruktion.

Hersteller angegebenen Anweisungen.

CAUTION FOR BATTERY DISPOSAL

(For USA, CANADA)

THIS PRODUCT CONTAINS A LITHIUM PRIMARY

(MANGANESS DIOXIDE) MEMORY BACK-UP BATTERY

THAT MUST BE DISPOSED OF PROPERLY. REMOVE THE

BATTERY FROM THE PRODUCT AND CONTACT YOUR

LOCAL ENVIRONMENTAL AGENCIES FOR INFORMATION

ON RECYCLING AND DISPOSAL OPTIONS.

CE PRODUIT CONTIENT UNE PILE DE SAUVEGARDE DE

MÉMOIRE LITHIUM PRIMAIRE (DIOXYDE DE MANGANÈSE)

QUI DOIT ÊTRE TRAITÉE CORRECTEMENT. ENLEVEZ LA

PILE DU PRODUIT ET PRENEZ CONTACT AVEC VOTRE

AGENCE ENVIRONNEMENTALE LOCALE POUR DES

INFORMATIONS SUR LES MÉTHODES DE RECYCLAGE ET

"BATTERY DISPOSAL"

"TRAITEMENT DES PILES USAGÉES"

DE TRAITEMENT.

Printed in Japan.

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted,

in any form or by any means,

electronic; mechanical; photocopying; recording or otherwise

without prior written permission of the publisher.

Trademark acknowledgements

• Microsoft® Windows® operating system is a trademark or copyright of Microsoft Corporation in the U.S.A. and other countries.

• Windows and Windows U.S.A. and other countries.

• IBM and PC/AT are trademarks of International Business Machines Corporation.

• Acrobat

reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems Incorporated.

• All other trademarks and copyrights are the property of their respective owners.

95, Windows® 98, Windows® Me, Windows NT® 4.0, Windows® 2000,

XP are trademarks or copyrights of Microsoft Corporation in the

SHARP CORPORATION

Digital Document System Group Products Quality Assurance Department Yamatokoriyama, Nara 639-1186, Japan

2003 November Printed in Japan

SHARP SM-ARCF2 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
