Sharp SJ-FP813V User Manual
Device of this mark is a trademark of
Sharp Corporation.
Plasmacluster is a registered trademark
or a trademark of Sharp Corporation.
REFRIGERATOR - FREEZER
OPERATION MANUAL
CONTENTS
WARNING• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CAUTION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DESCRIPTION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPERATION• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
STORING FOOD• . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CARE AND CLEANING• . . . . . . . . . . . . . . . . . . . . . . 12
REPLACING THE PLUG• . . . . . . . . . . . . . . . . . . . . . 13
BEFORE YOU CALL FOR SERVICE• . . . . . . . . . . . 14
SJ-FP813V
Thank you very much for buying this SHARP product. Before using your SHARP refrigerator,
please read this operation manual to ensure that you gain the maximum benet from it.
This refrigerator is for household only, with ambient temperature between +5°C and +43°C. •
The refrigerator should not be subjected to temperatures of -10°C or below for a long period of time.
WARNING CAUTION
Household use only
This refrigerator contains ammable refrigerant (R600a: ■
isobutane) and insulation blowing gas (cyclopentane).
Observe the following rules to prevent ignition and
explosion.
The refrigeration system behind and inside the •
refrigerator contains refrigerant. Do not allow any sharp
objects to come into contact with the refrigeration
system.
Do not use mechanical devices or other means to •
accelerate the defrosting process. (This refrigerator has
an adopted automatic defrosting system.)
Do not use electric appliances inside the refrigerator.•
Use only the specied parts when replacing the •
refrigerator compartment light.
Do not block the openings on the circumference of the •
refrigerator.
Do not use ammable sprays, such as spray paint near •
the refrigerator. It may cause explosion or re.
If the refrigeration system should get punctured, do not •
touch the wall outlet and do not use open ames. Open
the window and air out the room. Then ask a service
agent approved by SHARP for servicing.
This refrigerator should be disposed appropriately. •
Take the refrigerator to a recycling plant for ammable
refrigerant and insulation blowing gases.
Do not store highly volatile and ammable materials such ■
as ether, petrol, propane gas, aerosol cans, adhesive
agents and pure alcohol etc.
These materials are liable to explode.
Dust deposited on the power plug may cause re. Wipe it ■
off carefully.
Do not attempt to change or modify this refrigerator. This ■
may result in re, electric shock or injury.
Ensure that the refrigerator presents no danger to children ■
while being stored for disposal. (e.g. remove the magnetic
door seals to prevent child entrapment.)
Do not touch the compressor unit or its peripheral parts, ■
as they become extremely hot during operation and the
metal edges may cause injury.
Do not touch food or metal containers in the freezer ■
compartment with your wet hands. This may cause frostbite.
Do not use an extension cord or adapter plug. ■
Do not place bottled and canned drinks in the freezer as ■
they may crack when frozen.
Make sure that the power cord has not been damaged ■
during installation or moving. If the power plug or cord
is loose, do not insert the power plug. There is a risk of
electric shock or re.
Disconnect from the mains electricity supply by removing ■
the mains plug from the electricity supply socket. Do not
remove by pulling the mains lead. This may cause electric
shock or re.
The refrigeration system behind and inside the refrigerator ■
contains refrigerant. Do not allow any sharp objects to
come into contact with the refrigeration system.
In case of gas leak, ventilate the area by opening a window, ■
etc. Do not touch the refrigerator or the power outlet.
Do not place objects containing liquid or unsteady objects ■
on top of refrigerator.
IMPORTANT
■
Should the exible supply cord be damaged, it must be
replaced by service agent approved by SHARP as a
special cord is required.
■
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Information on Disposal for Users (private households)
1. In the European Union
Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!
Used electrical and electronic equipment must be treated separately and in accordance with
legislation that requires proper treatment, recovery and recycling of used electrical and electronic
equipment.
Following the implementation by member states private households within the EU states may
return their used electrical and electronic equipment to designated collection facilities free of
charge*. In some countries* your local retailer may also take back your old product free of charge
if you purchase a similar new one.
Attention:
Your product is marked
with this symbol.
It means that used
electrical and electronic
products should not
be mixed with general
household waste.
There is a separate
collection system for
these products.
*) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please dispose of
these separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the
necessary treatment, recovery and recycling and thus prevent potential negative effects on the
environment and human health which could otherwise arise due to inappropriate waste handling.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authorities and ask for the correct
method of disposal.
For Switzerland: Used electrical or electronic equipment can be returned free of charge to the
dealer, even if you don't purchase a new product. Further collection facilities are listed on the
homep
age of www.swico.ch or www.sens.ch.
3
INSTALLATION
90mm
or more
60mm
or more
60mm
or more
1180 mm
1500 mm
Free standing type
WARNING
Do not install the refrigerator in a damp or wet ■
location as this may cause damage to the insulation
and a leakage. Condensation may also build on the
outer cabinet and cause rust.
Keep adequate ventilation space around the refrigerator.
1
The gure shows the minimum required space for •
installing the refrigerator. (Please note that power
consumption is measured in a different environment.)
By keeping greater space, the refrigerator may be •
operated under a less amount of power consumption.
If using the refrigerator in the smaller space dimension •
than the below gure, it may cause the temperature
rise in the unit, loud noise and failure.
The space between the rear of the refrigerator and the •
wall should be 60mm or more and less than 75mm.
If the space is wider than 75mm, you may get injured
by touching compressor and its peripheral parts which
are extremely hot during the operation.
Overall space
required in use
When right and left doors are not properly aligned, adjust
3
using the adjustable feet.
When the left door is
raised.
Lower the foot
at right side.
(Until the adjustable foot on the
other side is slightly off-ground.)
Remove the 4 screws of the cabinet lower part, and
4
then set the foot cover (supplied inside the refrigerator
compartment) with removed 4 screws.
Screw
(4 screws)
When the right door is
raised.
Lower the foot
at left side.
Screw
Foot cover
NOTE
Position your refrigerator so that the plug is accessible.•
Keep your refrigerator out of direct sunlight.•
Do not place next to heat generating appliance.•
Do not place directly on the ground. Provide suitable stand. •
To insert the power plug when the door is opened, door alarm •
sounds but it is not abnormal. This sound stops when closing
the door.
2
4
Use the two front adjustable feet, to ensure that the
refrigerator is positioned rmly and at on the oor.
Adjustable foot
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly with water.
DESCRIPTION
17
18
5
22 22
22
22
23
7
7
6
1
2
1
3
4
6
8 8
9
9
10
11 12 12
13
14
1
15
16
19
20
21
24
Door pockets 1.
Refrigerator shelves 2.
(3 pcs.)
(2 pcs.)
Shelf3.
Bottle pocket (left)4.
Highly sealed vegetable crisper5.
The cover of the Vegetable crisper
opens as the case is pulled.
Freezer cases (small) 6.
Freezer cases (large) 7.
Casters 8.
(4 pcs.)
Adjustable feet 9.
(3 pcs.)
(2 pcs.)
(2 pcs.)
Foot cover10.
Hybrid cooling panel11.
The panel is cooled from the rear, thus indirectly cools the
refrigerator compartment. In this way, food is refrigerated
gently, without exposing it to the cold air ow.
Light12.
Utility pocket cover13.
Utility pocket 14.
Egg holder15.
Egg pocket16.
Fruit case17.
Bottle pocket (right)18.
To store large-size bottles, move
the partition all the way back.
Partition
Fresh case19.
Ice cube maker 20.
Do not over ll the tray; •
otherwise the ice cubes will be joined
together when frozen.
When the ice cubes are made, •
turn the lever clockwise to empty the
ice into the Ice cube box.
Ice cube box 21.
To prevent damage to the Ice cube box, do not make
ice in the Ice cube box or pour oil into it.
Magnetic door seals 22.
(2 pcs.)
(2 pcs.)
(4 pcs.)
Lever
Ice cube box
Eco sign23.
With the refrigerator door is left open, the lamp will
slowly change its color from blue to orange. This shows
the temperature in the refrigerator is rising.

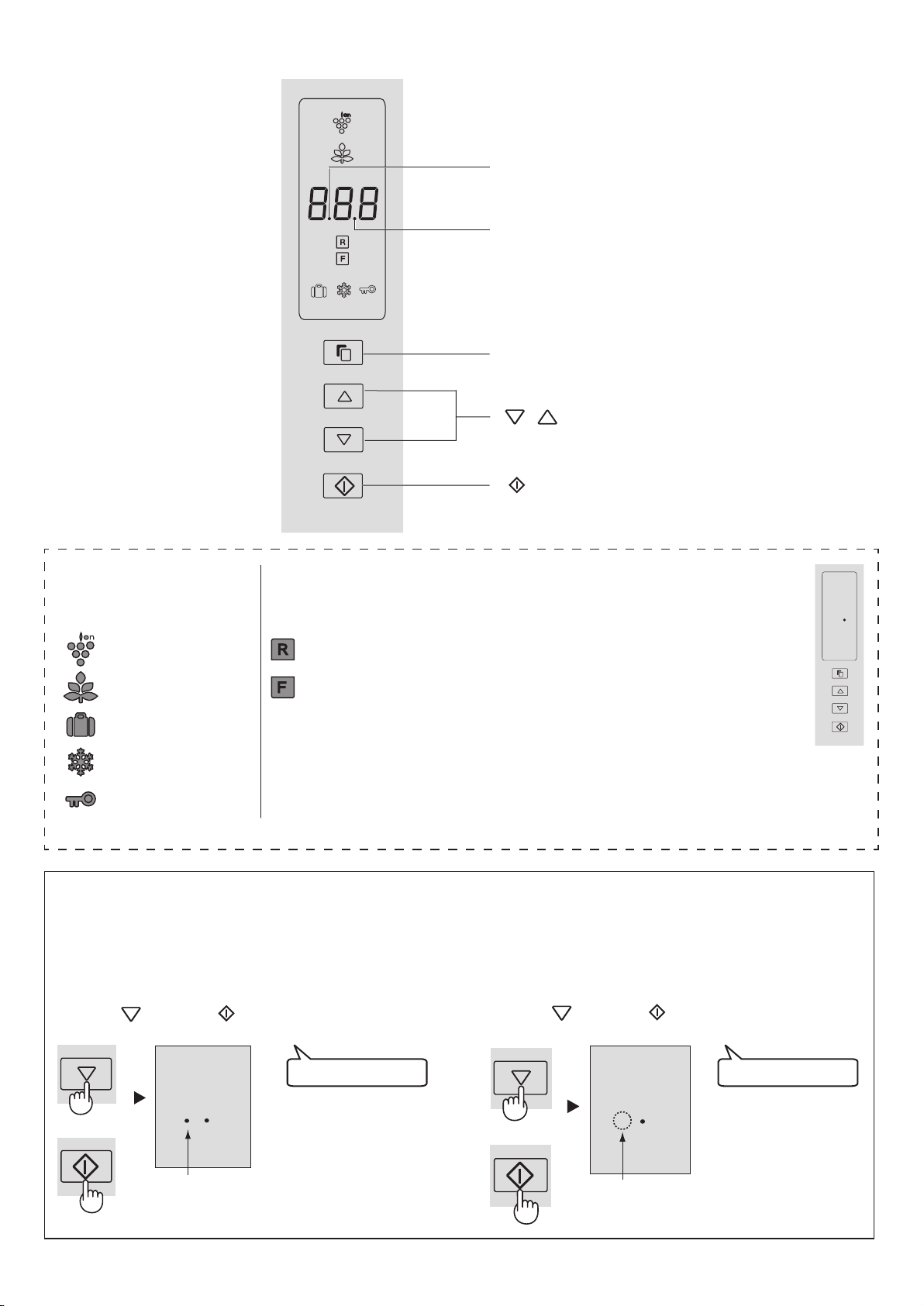

Control panel24.
Deodorizing unit
Deodorizing catalyst is installed on the routes of cold air. No
operation and cleaning are required.
More food can be stored by taking out the
internal accessories with duly cooling.
How to remove
To remove the partition, pull it to
the front with pushing the claw.
Claw
Push
Partition
How to set
Insert the four projections into
the upper parts.
5
