REFRIGERATOR - FREEZER
OPERATION MANUAL
Plasmacluster is a trademark
of SHARP Corporation
SJ-F78SP
CONTENTS
• WARNING .................................................. 3
• CAUTION ................................................... 3
• INSTALLATION........................................... 3
• DESCRIPTION ........................................... 4
• OPERATION............................................... 6
• STORING FOOD........................................ 9
• CARE AND CLEANING.............................10
• WHAT TO DO BEFORE YOU CALL
FOR SERVICE..........................................10
aa
原裝進口電冰箱
使用說明書
目錄
• 警告 ........................................................... 11
• 安全注意事項 ............................................. 11
• 安裝 ........................................................... 11
• 各部位名稱.................................................12
• 使用方法 .................................................... 14
• 食品的儲存.................................................17
• 保養 ...........................................................18
• 送修之前的初步檢查 ..................................18
ENGLISH
中文
SJ-F73SP-SL
SJ-F73SP-BK
SJ-F78SP-SL
SJ-F78SP-BK
■ Highly volatile and flammable materials such as ether,
Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation
manual to ensure that you gain the maximum benefit from it.
WARNING
CAUTION
INSTALLATION
Lower the right side. Lower the left side.
(Until the adjustable foot on the
other side is slightly off-ground.)
When the left door is raised. When the right door is raised.
Screw
(4 screws)
petrol, propane gas, adhesive agents and pure alcohol
etc. are liable to explode. Do not store these materials in
the refrigerator.
■ Dust deposited on the power plug may cause fire.
Wipe it off carefully.
■ Do not attempt to change or modify this refrigerator.
This may result in fire, electric shock or injury.
■ Ensure that the refrigerator presents no danger to
children while being stored for disposal. (e.g. remove the
door to prevent child entrapment.)
■ This refrigerator should be disposed appropriately.
Take the refrigerator to a recycling plant for flammable
insulation blowing gases.
WARNING
■ Do not install the refrigerator in a damp or wet
location as this may cause damage to the
insulation and a leak. Condensation may also
build on the outer cabinet and cause rust.
■ In order to prevent possible electric shock,
connect the earth wire to the grounding terminal
properly. (2 pin plug region)
Keep adequate ventilation space around the refrigerator.
1
The figure shows the minimum required space for
•
installing the refrigerator. It differs from the space in
the measurement condition of the amount of power
consumption.
It is possible to use the refrigerator with a less amount
•
of power consumption by keeping greater space.
If using the refrigerator in the space below dimension
•
of the figure, it may cause the temperatures in the unit
to rise, loud noise, and failure.
90mm
or more
60mm or more
■ Do not touch foods or metal containers in the freezer
compartment with your wet hands. This may cause
frostbite.
■ Do not use an extension cord or adapter plug.
■ Do not place bottled and canned drinks in the freezer as
they may crack when frozen.
■ Make sure that the power cord has not been damaged
during installation or moving. If the power plug or cord is
loose, do not insert the power plug. There is a risk of
electric shock or fire.
■ Disconnect from the mains electricity supply by
removing the mains plug from the electricity supply
socket. Do not remove by pulling the mains lead. This
may cause electric shock or fire.
■ The refrigeration system behind and inside the
refrigerator contains refrigerant. Do not allow any sharp
objects to come into contact with the refrigeration
system.
■ Should the flexible supply cord be damaged, it must be
replaced by service agent approved by SHARP as a
special cord is required.
■ In case of gas leak, ventilate the area by opening a
window, etc. Do not touch the refrigerator or the power
outlet.
■ Do not place objects containing liquid or unsteady
objects on top of refrigerator.
■ This refrigerator is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the refrigerator by a person
responsible for their safety. Young children should be
supervised to ensure that they do not play with the
refrigerator.
60mm
or more
Using the two front
2
adjustable feet, ensure that
the refrigerator is positioned
firmly and level on the floor.
When right and left doors are not properly aligned,
3
adjust using the adjustable feet.
Remove the 4 screws of
4
the cabinet lower part,
and then set the foot
cover (supplied inside
the refrigerator
compartment) with
removed 4 screws.
60mm
or more
Adjustable foot
Foot cover
1180 mm
1500 mm
NOTE
• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Provide suitable stand.
• To insert the power plug when the door is opened, door
alarm sounds but it is not abnormal. This sound stops when
closing the door.
ENGLISH
中文
3
When transporting
DESCRIPTION
Partition
Lever
Ice cube box
• Using the casters, it is possible to move back and forth.
• Carry the refrigerator by holding the handles located on the
rear and bottom.
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly with water.
Casters
rear bottom
25
25
10
13 12 14 13
1
2
3
4
5
6
7
8
9
SJ-F78SP
11
25
15
16
1
17
18
19
20
22
21
26
23
24
7
8
25
9
10
15
16
17
1
22
SJ-F73SP
1. Door pocket
2. Refrigerator shelf
3. Shelf
4. Bottle pocket (left)
5. Vegetable crisper
The cover of the Vegetable crisper
opens as the case is pulled.
6. Quick ice maker
The bottom of the tray contains refrigerant material
used in ice packs to speed up the ice making process.
The tray can also be used to freeze small food items
such as meat and fruits by removing the ice making
partition.
7. Freezer case (small)
8. Freezer case (large)
9. Casters
10. Adjustable feet
11. Foot cover
12. Aluminum panel
The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is
refrigerated gently, without exposing it to cold air flow.
13. Refrigerator LED light
14. Plasmacluster light
15. Utility pocket cover
4
16. Utility pocket
17. Egg holder
18. Egg pocket
19. Bottle rack
20. Fruit case
21. Fresh case
22. Bottle pocket (right)
To store large-size bottles,
move the partition all the
way back.
23. Ice cube maker
• Do not over fill the tray;
otherwise the ice cubes will be
joined together when frozen.
• When the ice cubes are made, turn
the lever clockwise to empty the ice
into the Ice cube box.
24. Ice cube box
To prevent damage to the Ice cube
box, do not make ice in the Ice cube
box or pour oil into it.
25. Magnetic door seal
26. Control panel

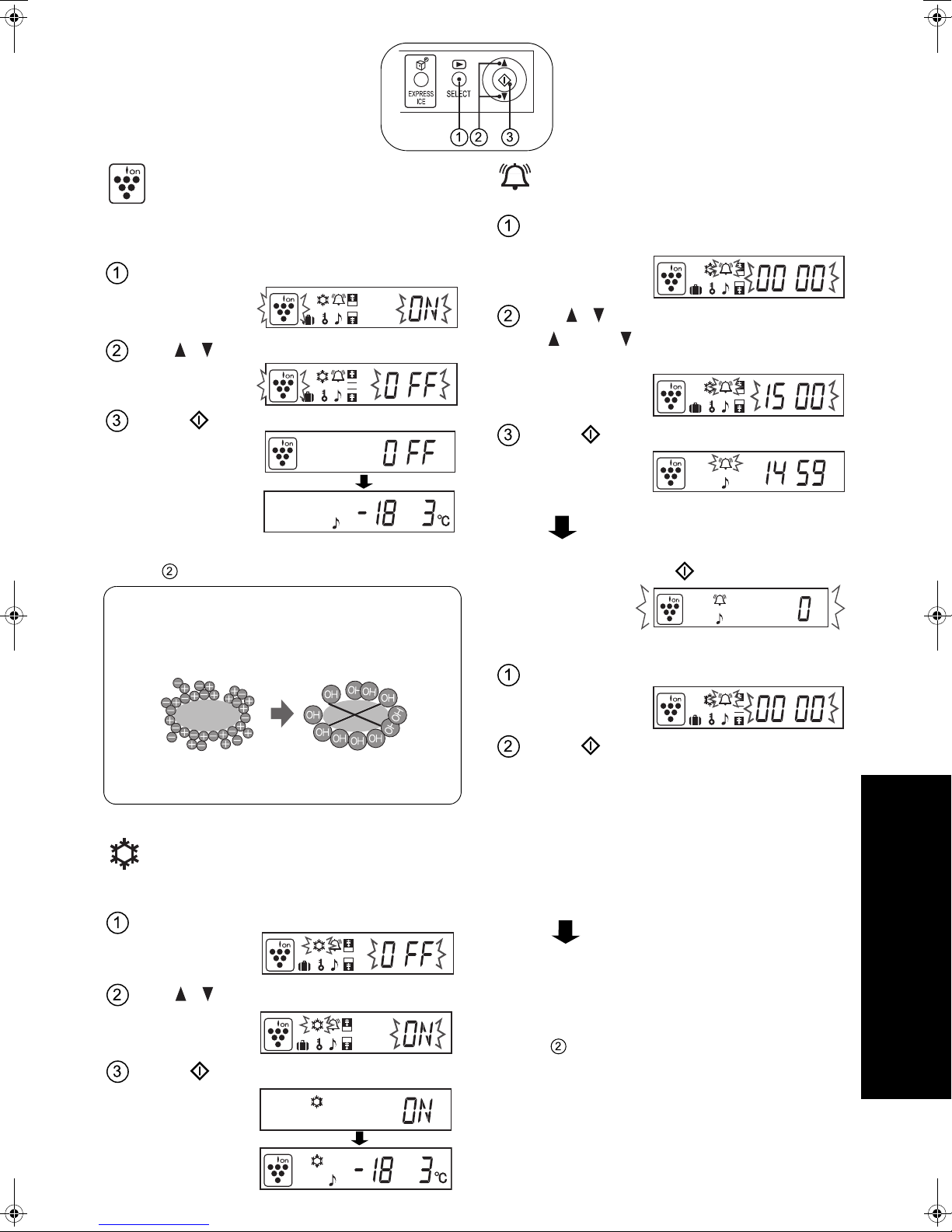

Control panel
LCD display
button
button
Finalizes the setting.
SELECT button
Press to select the Feature mark.
Plasmacluster
Express Ice Making
Express Freezing
Timer
• Features that start automatically
when inserting the power plug.
NOTE
• When no operation is made for 30 seconds,
the display will automatically return to the
initial content.
The backlight will become dark when there
is no operation for 3 minutes.
The backlight will turn off when there is no
operation for 6 minutes.
• Do not hit or apply sharp object on to the
LCD panel.
Refrigerator temperature setting
Freezer temperature setting
Each feature mark
Use to turn the select.
(Feature ON/OFF, or timer
setting, or temperature setting)
• Marks of features in operation are displayed.
EXPRESS ICE button
Press to start Express
Ice Making.
Refrigerator temp. control
Freezer temp. control
Door alarm
Child lock
Vacation mode
• When the refrigerator stops with power failure and the like,
display at the time of re-power distribution shows similarly as
before having a power failure. However, when it has a power
failure during operation of Express Ice Making, Express
Freezing, and Timer, operation is stopped at the time of re-power
distribution.
ḥ
EXPRESS
ICE
SELECT
ENGLISH
Deodorizing unit
Deodorizing catalyst is installed on the routes of cold air.
No operation and cleaning are required.
Defrosting
Defrosting is fully automatic due to a unique energy saving
system.
中文
5
Controlling Temperature
OPERATION
(USING THE CONTROL PANEL)
Refrigerator compartment
Press the "SELECT" button and select the
"Refrigerator temp." mark.
Press the / button and set the temperature.
[ : increase, : decrease ]
Press the " " button.
Adjustable between 0°C and 6°C in steps of 0.5°C.
When the refrigerator provides excessive
cooling.
For normal operation.
For keeping foods fresher tasting. When the
refrigerator does not provide sufficient cooling.
Freezer compartment
Press the "SELECT" button and select the
"Freezer temp." mark.
Press the / button and set
the temperature.
[ : increase, : decrease ]
Press the " " button.
Adjustable between -13°C and -21°C in steps of 0.5°C.
For normal freezing.
When frozen food or ice cream is not
stored.
For making ice rapidly or fast freezing.
Partition
Water level
The refrigerator controls its temperature automatically.
However, if needed, adjust the temperature as follows.
Express Ice Making
Ice cubes can be made quicker than normal.
• This feature cannot be used simultaneously with Express Freezing.
6
Press the "EXPRESS ICE" button.
The mark appears and operation starts.
When the ice is completed, remove the ice.
To cancel operation
Press the "EXPRESS ICE" button again.
NOTE
• Express Ice Making ends automatically in about 1 hour
regardless of ice condition. (The mark disappears.)
• Express Ice Making may require more than
case operation overlaps with defrosting as operation is
started after defrosting is completed.
• Avoid opening the door as much as possible during
operation of this feature.
1 hour
in the
How to use the Quick ice maker
• Cool the Quick ice maker beforehand in the freezer
(for at least 1 day).
• When the ice cubes are made, remove the partition from
the tray, after that twist the both ends of the partition and
drop the ice.
• Standard time until the ice is completed :
approx. 20 minutes
•
When using the water stored in the refrigerator
compartment, at a room temperature of 30°C and with
the refrigerator set to 3°C and the freezer to -18°C.
• Ice making time may become longer than above
description depending upon room temperature and
water temperature and the opening and closing
frequency of the door etc.
• Ice making cannot be completed
in approx. 20 minutes if pouring
the water exceeding the water
level line. Also it becomes difficult
to remove the ice.
Loading...
