Sharp SJ-F70PS, SJ-F70PE, SJ-F75PS, SJ-F75PE User Manual
SJ-F70PS
SJ-F70PE
SJ-F75PS
SJ-F75PE
REFRIGERATOR - FREEZER
Plasmacluster is a
trademark of SHARP
Corporation.
OPERATION MANUAL
NO-FROST BUZDOLABI
KULLANMA KILAVUZU
CONTENTS
• WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
• CAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
• INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
• OPERATION
• STORING FOOD . . . . . . . . . . . . . . . . . . . . . . . . . 9
• CARE AND CLEANING. . . . . . . . . . . . . . . . . . . . 9
• WHAT TO DO BEFORE YOU CALL FOR
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

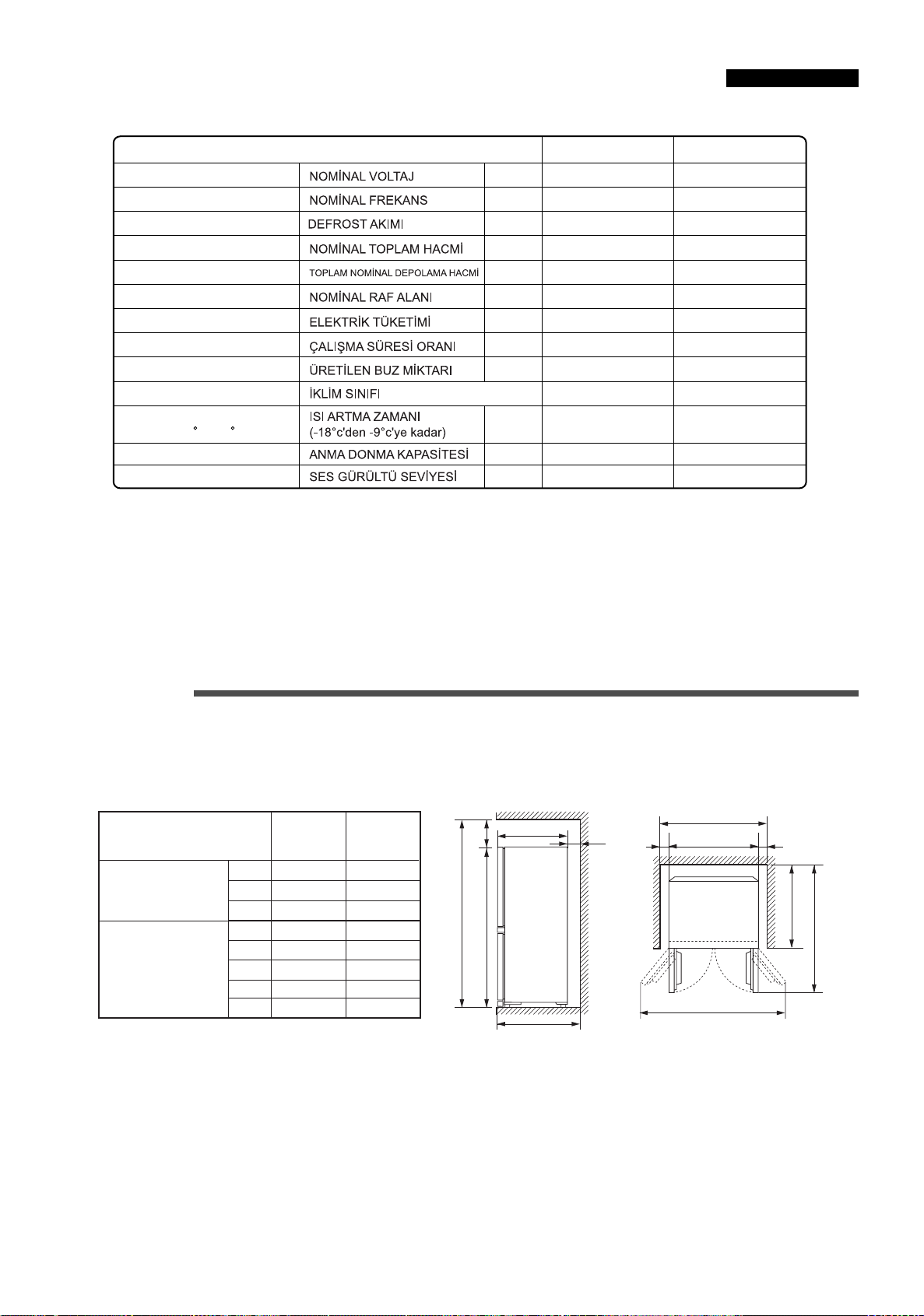

• SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . .18

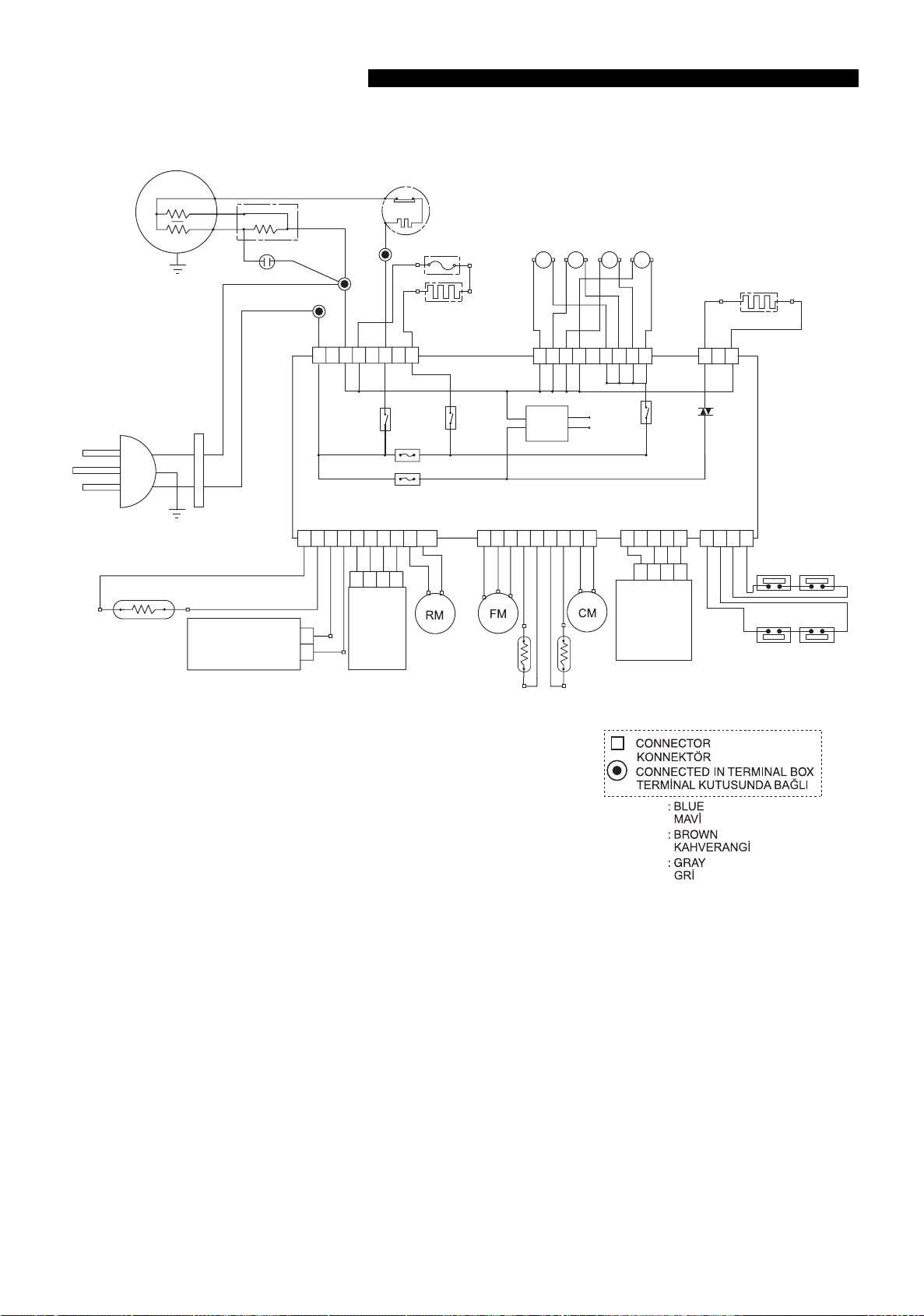

• WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . .19
(USING THE CONTROL PANEL) . . . . . . 6
Thank you very much for buying this SHARP product.
Before using your SHARP refrigerator, please read this
operation manual to ensure that you gain the maximum
benefit from it.
SHARP'ı tercih ettiğiniz için teşekkür ederiz. SHARP
buzdolabınızı kullanmadan önce, en yüksek faydayı
elde edebilmek için bu kullanma kılavuzunu iyice
okuyunuz ve verilen talimatlara uyunuz.
İÇİNDEKİLER
• UYARILAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
• DİKKAT EDİLMESİ GEREKEN HUSUSLAR . . .10
• MONTAJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
• TANITIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
• ÇALIŞTIRMA
• BUZDOLABINDA YİYECEKLERİN
SAKLANMASI . . . . . . . . . . . . . . . . . . . . . . . . . . .17
• TEMİZLİK VE BAKIM . . . . . . . . . . . . . . . . . . . . .17
• SERVİS ÇAĞIRMADAN ÖNCE NE
YAPILMALIDIR . . . . . . . . . . . . . . . . . . . . . . . . . .17
• TEKNİK ÖZELLİKLER. . . . . . . . . . . . . . . . . . . . .18
• BAĞLANTI ŞEMASI . . . . . . . . . . . . . . . . . . . . . .19
aa
(KUMANDA PANELİ İLE) . . . . . . . . . .14
WARNING
1.This refrigerator is airtight. TO PREVENT FATAL
ACCIDENTS TO CHILDREN, please completely
remove the door prior to discarding the refrigerator.
2.Highly volatile and inflammable materials such as
ether, petrol, propane gas, adhesive agents and pure
alcohol etc. are liable to explode. Do not store these
materials in the refrigerator.
3.To prevent damage to the outer cabinet, avoid
contact with lacquer, and paint, etc.
4.When cleaning your refrigerator, do not splash water
directly on the outer cabinet or the interior. This may
lead to rusting and deterioration of the electrical
insulation.
5.When cleaning any areas adjacent to electrical
components, unplug the refrigerator first to prevent
electric shock.
6.Should electrical components be accidentally
immersed in water, unplug the refrigerator, dry the
parts and contact your nearest service agent
approved by SHARP.
7.When disconnecting the power plug, do not touch the
pin of plug. This may cause electric shock.
8.This refrigerator is designed solely for the purpose of
storing foodstuff for domestic use in accordance with
the instructions given in this manual. Using the
refrigerator for other purposes might be harmful to
persons or property.
9.This refrigerator is not suitable for the storage of
materials requiring precise temperatures.
Deterioration of these materials will be dangerous.
10.Dust deposited on the power plug may cause fire.
Wipe it off carefully.
11.Do not attempt to change or modify this refrigerator.
This may result in fire, electric shock or injury.
12.Information regarding disposal of the appliance
Flammable insulation blowing gases should be
disposed appropriately. Take the cabinet and doors
to a recycling plant for flammable insulation blowing
gases.
CAUTION
1.If the power supply is accidentally disconnected,
please wait for at least 5 minutes before
re-connecting the power, as back pressure in the
compressor may trip the overload relay.
2.Do not touch foods or metal containers in the freezer
compartment with your wet hands. This may cause
frostbite.
3.To prevent accidental power disconnection, plug the
refrigerator directly to the source. Do not use a
double adaptor as loss of power could lead to the
spoiling of the stored food.
4.Do not place bottles in the freezer as they may crack
when frozen.
5.Keep the door securely closed. If the door is left ajar,
the controlled inner temperature will rise, resulting in
food spoilage and increase in electricity costs.
6.Do not install the refrigerator in a damp or wet
location as this may cause damage to the insulation
and a leak. Condensation may also build on the outer
cabinet and cause rust.
7.When installing or moving the refrigerator, make sure
that you do not nip or kink the power cord. Damage
of the power cord may cause electric shock or fire.
8.Do not use this refrigerator when the power cord or
plug is damaged, or the outlet attachment is loose,
as they may cause electric shock or fire.
9.Disconnect from the mains electricity supply by
removing the mains plug from the electricity supply
socket. Do not remove by pulling the mains lead.
This may cause electric shock or fire.
10.Make sure that you leave adequate ventilation space
around the refrigerator to prevent the compressor
from overheating and stopping. Please follow the
instructions given for installation.
11.The refrigeration system behind and inside the
refrigerator contains refrigerant. If this system is
punctured it could result in serious damage to your
refrigerator, therefore do not allow any sharp objects
to come into contact with the refrigeration system.
12.Should the flexible supply cord be damaged, it must
be replaced by service agent approved by SHARP as
a special cord is required.
13.In case of gas leak, ventilate the area by opening a
window, etc. Do not touch the refrigerator or the
power outlet.
14.Do not place heavy or easily broken objects on top of
the refrigerator. Objects may fall when opening or
closing the refrigerator, causing injury.
15.Do not place objects containing liquid on top of the
refrigerator. Spillage may cause electric shock or fire.
16.Do not drop objects inside the refrigerator or strike
the inner wall. This may cause the inner surface to
crack.
17.This refrigerator is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the refrigerator.
2

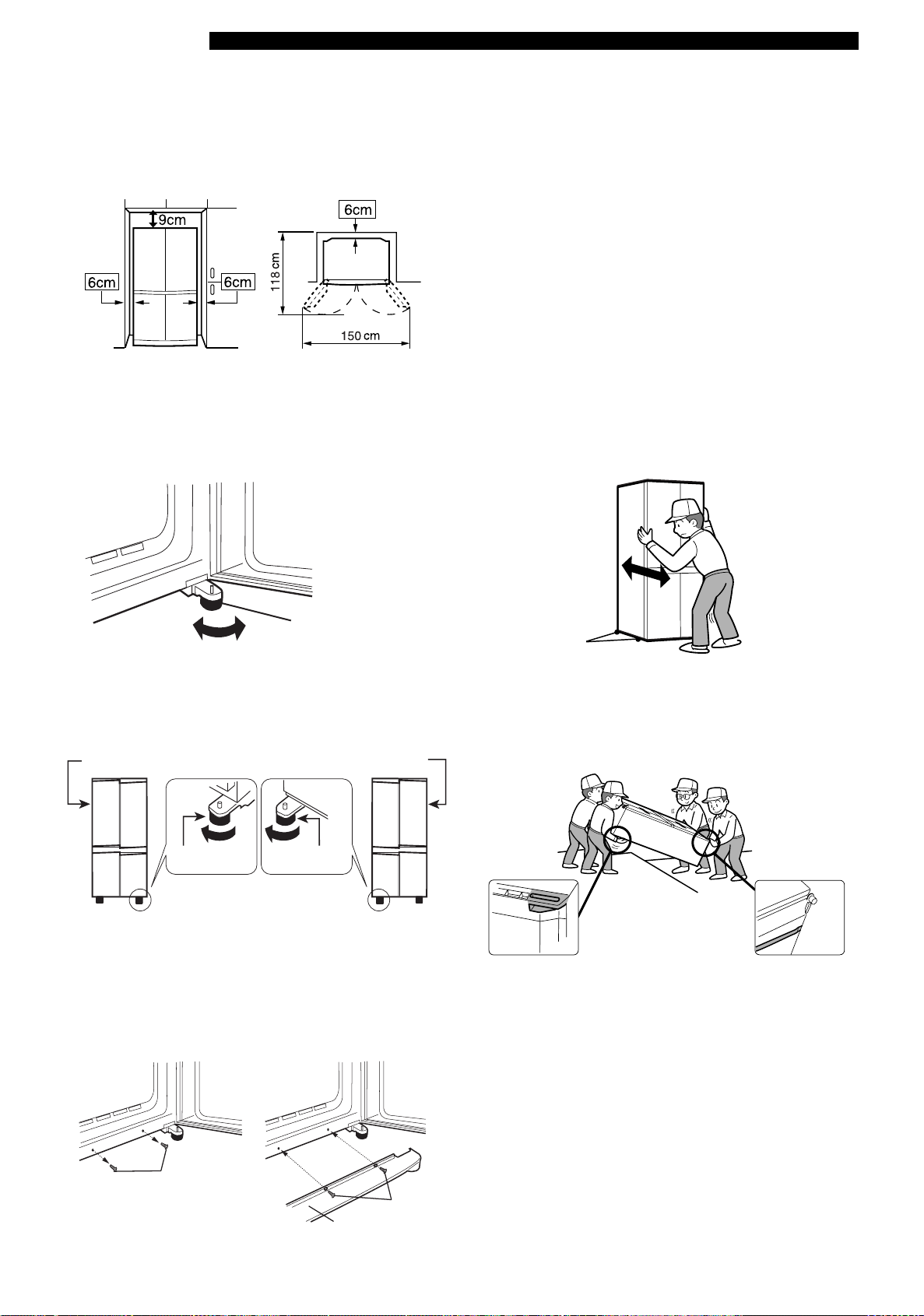

INSTALLATION
1.To ensure adequate ventilation for your refrigerator, it is
recommended to provide space of 6cm on both sides
and at the back, and space of 9cm above the refrigerator.
Insufficient spacing will decrease the cooling efficiency,
resulting in unnecessary consumption of electricity.
2.Using the two front Adjustable feet, ensure that the
refrigerator is positioned firmly and level on the floor.
NOTE:
• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground.
Provide suitable stand.
• To insert the power plug when the door is opened, door
alarm sounds but it is not abnormal. This sound stops
when closing the door.
When transporting
• Using the casters, it is possible to move back and forth.
POLSKI
Adjustable foot
3.When right and left doors are not properly aligned,
adjust using the adjustable feet.
When the left door is raised. When the right door is raised.
Lower the foot
at right side.
(Until the adjustable foot on the
other side is slightly off-ground.)
4.Remove the 4 screws of the cabinet lower part, and
then set the foot cover (supplied inside the refrigerator
compartment) with removed 4 screws.
Lower the foot
at left side.
MAGYAR
Casters
ROMÂNÃ
• Carry the refrigerator by holding the handles located on
the rear and bottom.
ČESKY
SLOVENSKY
LIETUVIŲ KALBA
Screw
(4 screws)
Screw
Foot cover
LATVIAN
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly.
EESTI KEEL
SLOVENSKO
3
DESCRIPTION
SJ-F75PS, SJ-F75PE
23
1
2
1
3
4
5
6 (
7
8
13 12 13
SJ-F70PS
SJ-F70PE
23
14
15 (*)
14
15 (*)
1
16
15 (
17
)
*
16
1
18
20
19
20
24
)
*
21 (
22
)
*
7
8
23
9
10
11
1. Door pocket
2. Refrigerator shelf
3. Shelf
4. Bottle pocket (left)
5. Vegetable crisper
The cover of the Vegetable
crisper opens as the case is
pulled.
6. Quick ice maker
The bottom of the tray contains refrigerant material used
in ice packs to speed up the ice making process. The
tray can also be used to freeze small food items such as
meat and fruits by removing the ice making partition.
7. Freezer case (small)
8. Freezer case (large)
9. Casters
10. Adjustable feet
11. Foot cover
12. Aluminum panel
The panel is cooled from the rear, thus indirectly
cooling the refrigerator compartment. In this way, food
is refrigerated gently, without exposing it to cold air
flow.
13. Light
14. Utility pocket cover
15. Utility pocket
16. Egg holder
23
9
10
17. Bottle rack
18. Fruit case
19. Fresh case
20. Bottle pocket (right)
To store large-size bottles,
move the partition all the
way back.
21. Ice cube maker
• Do not over fill the tray;
otherwise the ice cubes will be
joined together when frozen.
• When the ice cubes are made,
turn the lever clockwise to empty
the ice into the Ice cube box.
22. Ice cube box
To prevent damage to the Ice
cube box, do not make ice in the
Ice cube box or pour oil into it.
Partition
Lever
Ice cube box
23. Magnetic door seal
24. Control panel
*
6. Quick ice maker
15. Utility pocket
21. Ice cube maker 1 2 1 2
SJ-F70PS
101 0
112 2
SJ-F70PE SJ-F75PS SJ-F75PE
4

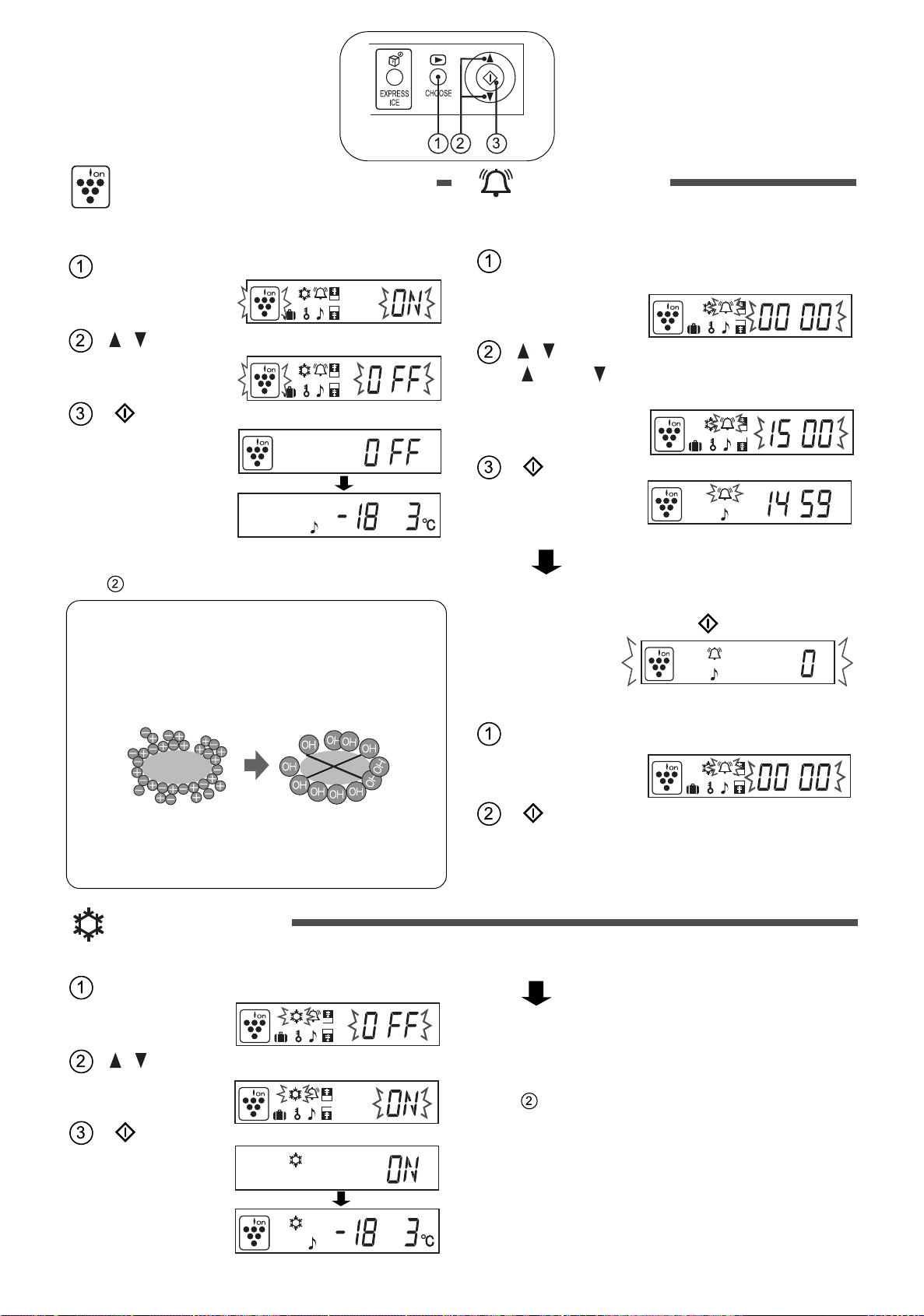

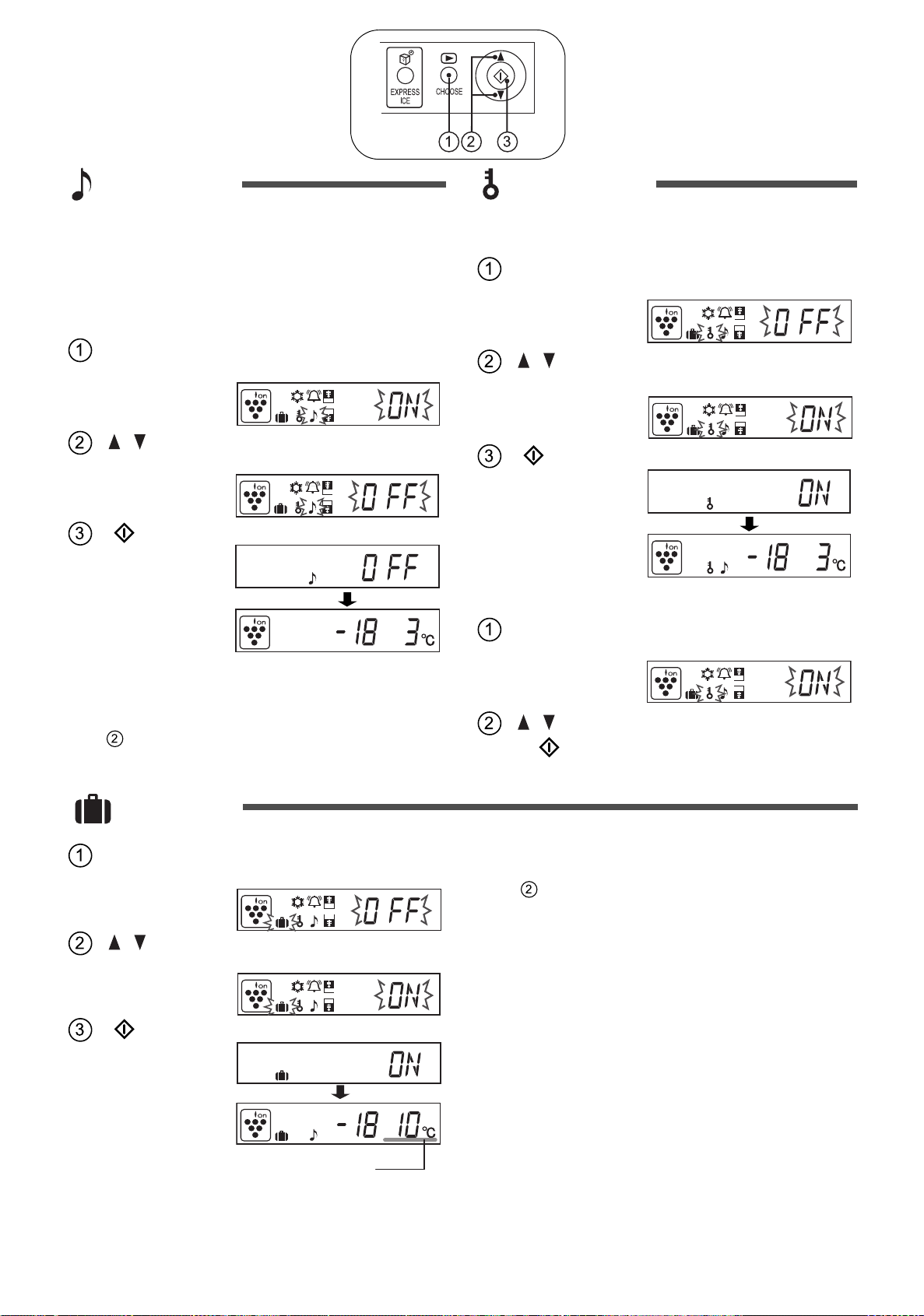

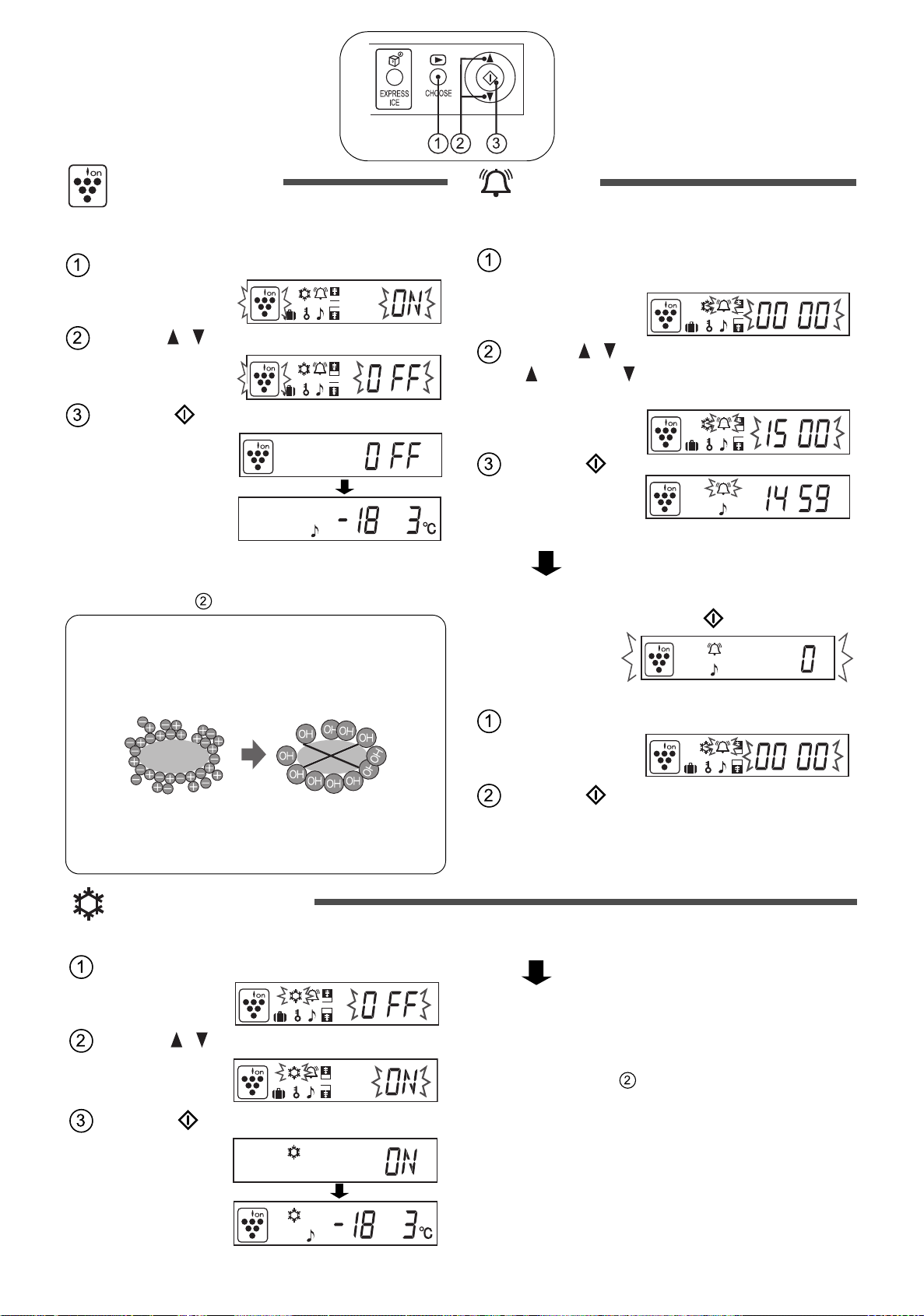

CONTROL PANEL
LCD display
Each feature mark
EXPRESS ICE button
Press to start Express
Ice Making.
ḥ
CHOOSE button
Press to select the Feature mark.
Use to turn the select.
(Feature ON/OFF, or timer
setting, or temperature setting)
EXPRESS
ICE
Refrigerator temperature setting
Freezer temperature setting
CHOOSE
button
button
Finalizes
the setting.
POLSKI
Plasmacluster
Express Ice Making
Express Freezing
Timer
• Marks of features in operation are displayed.
• Features that start automatically
when inserting the power plug.
• When the refrigerator stops with power failure and the like, display
at the time of re-power distribution shows similarly as before
having a power failure. However, when it has a power failure
during operation of Express Ice Making, Express Freezing, and
Timer, operation is stopped at the time of re-power distribution.
Refrigerator temp. control
Freezer temp. control
Door alarm
Child lock
Vacation mode
DEODORIZING UNIT
NOTE:
• When no operation is made for 30 seconds,
the display will automatically return to the
initial content.
The backlight will become dark when there is
no operation for 3 minutes.
The backlight will turn off when there is no
operation for 6 minutes.
• Do not hit or apply sharp object on to the
LCD panel.
DEFROSTING
MAGYAR
ROMÂNÃ
ČESKY
SLOVENSKY
LIETUVIŲ KALBA
A built-in unit which requires no manual operation because
it automatically starts operating when the refrigerator is
powered on.
•
Defrosting is fully automatic due to a unique energy saving
system. Whereby the defrost cycle start time is proportional to
the running time of your refrigerator compressor, i. e., the less
time the refrigerator compressor operates (during the winter
season or you're away on holidays), the longer the time
between each defrost cycle.
• The defrost water collects in the evaporating pan, where it is
evaporated by the heat of the compressor, etc.
• The evaporating pan does not require cleaning or
maintenance.
LATVIAN
EESTI KEEL
SLOVENSKO
5
OPERATION (USING THE CONTROL PANEL)
Controlling Temperature
The refrigerator controls its temperature automatically.
However, if needed, adjust the temperature as follows.
Refrigerator compartment
Press the "CHOOSE" button and select the
"Refrigerator temp." mark.
Press the / button and set the temperature.
[ : increase, : decrease ]
Press the " " button.
Adjustable between 0°C and 6°C in steps of 0.5°C.
When the refrigerator provides excessive
cooling.
For normal operation.
For keeping foods fresher tasting. When the
refrigerator does not provide sufficient cooling.
Freezer compartment
Press the "CHOOSE" button and select the
"Freezer temp." mark.
Press the / button and set
[ : increase, : decrease ]
Press the " " button.
Adjustable between -13°C and -21°C in steps of 0.5°C.
When frozen food or ice cream is not
stored.
For normal freezing.
For making ice rapidly or fast freezing.
the temperature.
NOTE:
• If the refrigerator is operated for a long time with
Refrigerator Temp. Control set at 0°C, foods stored in the
refrigerator compartment may also freeze.
• Low ambient temperature may cause placed foods to
freeze even if Refrigerator Temp. Control is set to 6°C.
Express Ice Making
Ice cubes can be made quicker than normal.
• This feature cannot be used simultaneously with Express Freezing.
Press the "EXPRESS ICE" button.
The mark appears and operation starts.
When the ice is completed, remove the ice.
To cancel operation
Press the "EXPRESS ICE" button again.
NOTE:
•
Express Ice Making ends automatically in about 1 hour
regardless of ice condition. (The mark disappears.)
• Express Ice Making may require more than
case operation overlaps with defrostingas operation is
started after defrosting is completed.
• Avoid opening the door as much as possible during
operation of this feature.
1 hour
in the
How to use the Quick ice maker
(Only for SJ-F70PS, SJ-F75PS )
• Cool the Quick ice maker beforehand in the freezer
(for at least 1 day).
• When the ice cubes are made, remove the partition from
the tray, after that twist the both ends of the partition and
drop the ice.
Partition
• Standard time until the ice is completed :
•
When using the water stored in the refrigerator
compartment, at a room temperature of 30°C and with
the refrigerator set to 3°C and the freezer to -18°C.
• Ice making time may become longer than above
description depending upon room temperature and
water temperature and the opening and closing
frequency of the door etc.
• Ice making cannot be completed
in approx. 20 minutes if pouring
the water exceeding the water
level line. Also it becomes difficult
to remove the ice.
approx.20 minutes
Water level
6
Loading...
