Plasmacluster
SJ-3056
SJ-3065
SERVICE MANUAL
S6321SE68CPNW
REFRIGERATOR-FREEZER
MODELS
SJ-3056
SJ-3065
In the interests of user-safety (Required by safety regulations in some
countries) the set should be restored to its original condition and only
parts identical to those specified should be used.
Refrigerant; HFC-134a
Refer to "HFC-134a COOLING UNIT" Service Manual for handling this refrigerant.
-BE/GL/GY/SL/WH
-BE/GL/GY/SL/WH
DESTINATION ......................... W
TABLE OF CONTENTS
page
CAUTIONS AND INFORMATIONS ...................................................................................................................2
SPECIFICATIONS .............................................................................................................................................3
DESIGNATION OF VARIOUS PARTS ..............................................................................................................4
LIST OF ELECTRICAL PARTS .........................................................................................................................5
DIMENSIONS ....................................................................................................................................................6
WIRING DIAGRAM............................................................................................................................................8
FUNCTIONS ....................................................................................................................................................11
ASSEMBLING PROCEDURES OF MAIN PARTS AND CAUTIONS ..............................................................15
COOLING UNIT ...............................................................................................................................................23
REPLACEMENT PARTS LIST ........................................................................................................................25
SHARP CORPORATION
1
SJ-3056
SJ-3065
CAUTIONS AND INFORMATIONS
In case of following troubles, the cause is not related with the failure of refrigerator.
Please mention the correct way to the customer for the use of refrigerator when the repairing.
1. Some foods freezed in the refrigerator compartment.
Do not place food directly in front of
cold air outlet.
This may lead to the food freezing.
cold air flow
IN
OUT
2. Some plastic parts were cracked or splitted.
Some household cleaning chemicals may affect the internal
food liner and plastic parts resulting in splitting or cracks
occurring.
When cleaning all plastic parts inside this refrigerator, only
use diluted dishwashing liquid(soapy water). Make sure that
all plastic parts are thoroughly rinsed with water after cleaning.
3. IT IS NORMAL for the refrigerator to produce the following sounds.
Cracking or crunching sound;
Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Squeaking sound;
Sound produced by expansion and contraction of internal parts.
Sound of flowing fluid (gurgling sound, fizzing sound);
Sound of refrigerant flowing in pipes (sound may become louder from time to time).
2
SPECIFICATIONS
Items SJ-3056 SJ-3065
Type 2-Door 2-Door
Outer dimensions Height 1720mm(67.7") 1820mm(71.6")
Width 760mm(29.9") 760mm(29.9")
Depth 740mm(29.1") 740mm(29.1")
Defrosting System Heater system
Start Automatic
Finish Automatic
Temperature control Automatic (Adjustable)
No-frost freezer Yes
Interior lamp 2
Caster 4
Evaporating pan 1
Refrigerator R glass shelf ass'y 2 3
Compartment V glass shelf ass'y 1
Vegetable case 1
V parting plate 1
R door pocket 1 2
Egg tray 2
Bottle pocket 2
Utility case pocket 1
Fresh case 1
Tube stand 2
Freezer Freezer shelf ass'y 1
Compartment Ice cube maker Twin ice cube maker
Ice storage box 1
F door pocket 2
Deodorizing unit No
Plasmacluster Yes
RATING
Items SJ-3056 SJ-3065
Rated voltage (V~) 230
Rated frequency (Hz) 50
Climate class T
Rated current (A) 0.85
Rated input of heating systems (W) 155
Refrigerant (Charging quantity) [Non-flammable]
Insulation Blowing Gas
[Flammable]
Net Weight (kg) 85 90
COLOR
Items -BE -GL -GY -SL -WH
Outside color Beige Gold Gray Silver White
Inside color White
HFC-134a(125g) HFC-134a(130g)
Cyclo pentane (HC)
SJ-3056
SJ-3065
3
SJ-3056
SJ-3065
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
DESIGNATION OF VARIOUS PAR TS
The names in parenthesis" [ ]" are the denominations
used in the REPLACEMENT PARTS LIST.
1. Freezer light [Lamp]
2. Freezer fan
3. Freezer shelf [F shelf ass'y]
4. Ice cube maker
5. Ice cube box [Ice storage box]
18
19
28
20
21
22
Plasmacluster
23
24
25
26
22
27
6. Freezer temp. control knob
7. Fresh case [Chilled case]
8. Refrigerator fan
9. Refrigerator temp. control knob
10. Refrigerator shelf [R glass shelf ass'y]
(SJ-3056; 2 shelves, SJ-3065; 3 shelves)
11. Refrigerator light [Lamp]
12. Shelf [V glass shelf ass'y]
13. Vegetable crispe r[Vegetable case]
14. Separator plate [V parting plate]
15. Evaporating pan & cover
16. Casters
17. Adjustable feet [Adjustable leg ass'y]
18. Fan & light switch for freezer
19. Fan & light switch for refrigerator
20. Freezer pocket [F door pocket]
21. Water supply cup [Water cup]
22. Magnetic door seal [Door packing]
23. Utility case [Utility case pocket]
24. Egg holder [Egg tray]
25. Free pocket[R door pocket]
(SJ-3056; 1 pocket, SJ-3065; 2 pockets)
26. Bottle pocket
27. Bottle guard [Tube stand]
28. Plasmacluster panel
Figure D-1. External Description
Upper hinge cover
Hot pipe
Panel P. W. B
Freezer temp. control knob
Hot pipe
Ventilating grille
Evaporating pan
Adjustable leg ass'y
Freezer
compartment
Refrigerator
compartment
Mark: Cold air flow
Freezer fan
Fan motor
Defrost thermostat
Evaporator
Defrost heater
Ionizer
Timer,R-fan thermo ass'y
Refrigerator fan
Damper thermostat
Refrigerator temp. control knob
Drain pipe
Vegetable case
Main P. W. B
Compressor
Starting relay, Overload relay(Protector)
Sub condenser
Caster
Figure D-2. Constructions
4
This figure shows SJ-3056
LIST OF ELECTRICAL PARTS
ITEMS TYPE NAME RATING SPECIFICATIONS
Thermostat MM1-8123 125V 6A (At normal notch)
250V 3A ON/OFF : -19/-24˚C
Defrost thermostat S101 250V 8A Open/Close : 10/1˚C
Thermo. fuse SF70E 250V 10A Working temp. : 70˚C
F-fan motor 3R00044B 220-240V 50/60Hz Working with ø100 fan
R-fan motor 3R00122A 220-240V 50/60Hz Working with ø80 fan
(R-fan fuse) 123 250V 2A Cut OFF 130˚C
Defrost heater MM6-4198 220-240V 353Ω 150W at 230V
Door switch DSD-5 250V 0.25A 4 terminals push-button type
Damper thermostat MM1-6176 — Open/Close : 2/-3˚C
Defrost timer ND1004M2 220-240V Integration type
50/60Hz Cycle time : 10.8/9.0 hours(50/60Hz)
Delay time : 4.3/3.6 min.(50/60Hz)
Lamp socket (F/R) — 250V 1A E-12(Hard plastic body type)
F-lamp — 240V 10W E-12
R-lamp — 240V 15W E-12
R-fan thermo. R-fan thermo.
ass'y
R-fan thermo.heater
Compressor FGS130HAW 220-240V/50Hz Cooling capacity : 316W(50Hz)
S101 250V 8A Open/ Close : 7/15˚C
RSS2 350V, 2W, 10kΩ 1.1W at 230V
Main coil : 7.9Ω
Aux. coil : 13.7Ω
(at 25˚C)
Common
SJ-3056
SJ-3065
Aux. coil
Starting relay PTH8M220MD2 — 15 Ω ( at 25˚C )
Overload relay(Protector) 4TM283RFBYY — Open/ Close : 130/61˚C
Running capacitor — 4µF,450V —
Capacitor — 5µF,250V —
Ionizer-K
(Plasmacluster unit)
FTRN-A014CBKZ DC 12V 3.5kV p-p
Main coil
5
SJ-3056
SJ-3065
OUTER DIMENSIONS AND CLEARANCE
760
more than
90
DIMENSIONS
more than
60
1
740
more than
60
760
more than
60
553
B
60.5
A
72.5
9.512
Fig. E-1
135
520
1340
( Unit : mm)
SJ-3056
A
B
1
Include the panel/badge. Not include the handle.
1720
1079
SJ-3065
1820
1179
1420
1480
6
INNER DIMENSIONS
SJ-3056
SJ-3065
615
615
615
600
603
450
630
355177
587
587
615
615
607
607
90
174
294
90
264
110
285
125
110
180
310
133
185
171
310
335
133
242
227
( Unit : mm)
The dimensions between shelves can be changed
by setting the shelves on the other rails.
566
615
615
615
603
450
630
355177
Fig. E-2 (SJ-3056)
587
587
615
615
615
607
90
90
110
110
110
133
174
264
180135135
294
125
310
310
310
285
666
615
600
607
The dimensions between shelves can be changed
by setting the shelves on the other rails.
Fig. E-3 (SJ-3065)
7
133
171
242
227
335
( Unit : mm)
SJ-3056
SJ-3065
WIRING DIAGRAM
Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set.
G
: GRAY
BR
: BROWN (Live)
OR
: ORANGE
Y
: YELLOW
R
3PIN
PLUG/
CORD
(G–Y)
(Br)
: RED
P
: PINK
B
: BLUE (Neutral)
BK
: BLACK
SB
: SKY-BLUE
G-Y
: GREEN-YELLOW (Earth)
W
: WHITE
MAIN
PWB
F-LAMP
L
PC
DOOR
PWB
RLAMP
L
CONNECTED IN TERMINAL BOX
CONNECTOR
R-FM
HEATER
FM
R
THERMOSTAT
F
FM
THERMO.
FUSE
R-FAN
THERMO
DOOR SWITCH
DEFROST HEATER
DEFROST THERMO
DEF. TIMER
TM
(G)
PROTECTOR
(B)
RUNNING CAPACITOR
PC
: PLASMACLUSTER UNIT (IONIZER-K)
Figure W-1. Wiring Diagram
CAPACITOR
STARTING RELAY
M
C
A
COMPRESSOR
8
SJ-3056
F LAMP BOX ASS’Y
LAMP(10W)
L
LAMP SOCKET
CABINET ASS’Y
E. V. COVER ASS’Y
LEAD EV-COVER ASS’Y
FAN MOTOR
F-THERMOSTAT
DEF. THERMO. ASS’Y
FUSE ASS’Y
FM
DEF. HEATER ASS’Y
DOOR SWITCH
3 (PUSH CLOSE)
1 (NEUTRAL)
4 (PUSH OPEN)
2 (PUSH OPEN)
TM
FM
R CONTROL COV. ASS’Y
DEFROST TIMER
(R-FAN
THERMO. HEATER)
R FAN THERMO.
R LAMP BOX ASS’Y
L
R-FAN MOTOR
R-LAMP (15W)
LAMP SOCKET
BROWN 1
BROWN 2
BLUE 1
GRAY 1
SKY-BLUE
SOURCE CORD
TERMINAL COVER
COMPRESSOR
STARTING RELAY
PROTECTOR
1
2
3
4
3
1
4
2
1
2
1
2
1
2
1
2
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
5
7
6
8
9
1
2
3
4
5
7
6
8
9
GY-1
OR-2
BL-2
SB-1
SB-2
SB-3
BR-3
BR-4
OR-3
OR-2
(OR-2)
(W-2)
OR-1
OR-4
BR-6
BL-3
GY-3
R-1
BR-2
Y-1
(R-1)
(BK-1)
GY-2
(Y-1)
(Y-2)
BL-1
BK-1
W-1
BR-1
W-2
(W-1)
Y-2
TERMINAL BOX
C
M
A
GY-3
BLUE 2
GRAY 2
ORANGE
PWB HARNESS
MAIN
PWB
RUNNING
CAPACITOR
LEAD WIRE RC
1
2
3
1
2
1
2
1
2
1
2
1
2
CLUSTER HARNESS PU
CLUSTER HARNESS
PLASMACLUSTER UNIT
(IONIZER-K)
1
2
3
1
2
3
CAB HARNESS
1
2
3
PANEL
PWB
F-DOOR
DOOR HARNESS
EARTH
G
BR
OR
Y
R
P
B
BK
SB
G-Y
W
: GRAY
: BROWN (Live)
: ORANGE
: YELLOW
: RED
: PINK
: BLUE (Neutral)
: BLACK
: SKY-BLUE
: GREEN-YELLOW (Earth)
: WHITE
CAPACITOR
SJ-3065
Figure W-2. Electric Accessories Layout
9
SJ-3056
1
2
3
4
5
6
7
8
9
10
11
12
13
1. Resistance which is not specified : 5% 1/8W
2. Rated voltage of
thecondenserwhich is not specified : 25V
[ NOTE ]
5
3
7
1
1
1
3
2
2
1
3
2
CN1
CN3
CN2
CN4
SW
2A
2A
F-FM
PC
(PANEL PWB)
(MAIN PWB)
(A/D)
D5
D4
R1 R2 R3
R5
2.2K
R21
(1/2W)
680
C7
0.1
µ
R4
10K
R7
1K
R12
2.2K
R10
2.2K
R8
10K
4.7K R20
1M R6
RS1
RS2
RS3
R18
10K
R14
1K
R16
10K
R17
(1/2W)
1.8
R11
1K
R9
1K
R13
4.7K
R15
4.7K
PC1
PC123
CF1 CST4.00MGW
TMP47C241N
INPUT VOLTAGE
D6
D3
VRS1
C13
0.1
µ
C15
100
µ
10V
C10
1
µ
50V
C9
0.1
µ
VRS2
Q7
KRA101M
Q5
KRA101M
Q4
KRC101M
Q3
KTA1046
Q6
KRA101M
Q1
KRA101M
Q2
KRC101M
C2
2200
µ
35V
R19
OPEN
C16
0.1
µ
C18
0.1
µ
C19
1000
µ
25V
C8
0.1
µ
C6
0.1
µ
C4
0.1
µ
C20
100
µ
10V
C17
100
µ
10V
12V
12V
12V
5V
G
IIOO
G
HS
IC2IC1
IC4
7812 7805
C3
0.1
µ
50V
TRNS IN4005E
PST993E
IC3
D1
IN4007E
D2
ISS270A
D7
ISS270A
ZD1
LED1
C1
0.1
µ
C11
0.1
µ
C12
0.1
µ
C5
1
µ
50V
13
2
VAREF
R40(AINO)
R41(AIN1)
R42(AIN2)
R43(AIN3)
R71(WT0)
R80(INT2)
R81(T2)
R82(INT1)
P10
P11
P12
P13
VSS
VDD
K03
K02
K01
K00
HOLD
RESET
XOU
XIN
TEST
R92
R91
R90
P20
220 240V
120V
110 120V
RS1,2,3=43K(1/2W), RS3=OPEN, VRS1,2=560V
RS1,2,3=18K(1/2W), RS3=10K(1/8W), VRS1,2=270V
RS1,2,3=18K(1/2W), RS3=SHORT,
VRS1,2=270V
250V
PC
:
PLASMACLUSTER UNIT
(IONIZER-K)
SJ-3065
Figure W-3. Circuit Diagram
10
1. ADJUSTABLE TEMPERATURE CONTROL
(1) Temperature control of freezer
Thermostat (senses freezer temperature) operates on ON/OFF switchover to control the compressor and
cool air circulating fan (F-fan motor) , and allows the freezer temperature to keep at a suitable temperature.
However adjust the freezer temp. control knob as follows depending upon the storing condition of foods.
MED
4
5
MIN
3
2
1
6
7
MAX
Coldest
KNOB
SETTING
MAX
(Coldest)
MED
FREEZER TEMP. CONTROL
Figure F-1.
MIN
(2) Temperature control of refrigerator
Damper-thermostat senses temperature of the refrigerator and changes the opening angle of the damper
automatically.
However, as the Damper-thermostat has no function to switch on or off the compressor and F-fan motor,
the freezer temperature control causes temperature in the refrigerator to vary to some extent.
However, adjust the refrigerator temp. control knob as follows depending upon the cooling condition.
SJ-3056
SJ-3065
FUNCTIONS
PURPOSE
For making ice rapidly or fast freezing.
When restocking with fresh food.
For normal freezing.
For storing frozen food for a short period (up to one month).
When frozen food or ice cream is not stored.
MED
4
5
6
Max
7
Coldest
MIN
3
2
1
REFRIGERATOR TEMP. CONTROL
Figure F-2.
KNOB
SETTING
MAX
(Coldest)
MED
MIN
For keeping freshness of food longer.
When the refrigerator does not provide sufficient cooling.
For normal operation.
When the refrigerator provides excessive cooling.
PURPOSE
When the temperature of the refrigerator is higher, R-fan thermo. senses the temperature and the
refrigerator is cooled efficiently by running of R-fan motor.
R-fan thermo. heater energizes when the door is opened intend to promote to running of R-fan motor.
NOTE: The refrigerator temperature is affected also by the freezer temperature. If the freezer temp. control
knob is set at the position "MAX", the temperature tends to be lower than the following values, and
if set at near the position "MIN", temperature tends to be higher.
If the refrigerator is operated for a long time with the freezer temperature control sets the "MAX"
position, foods stored in the refrigerator compartment may also freeze.
When refrigerator temperature control sets to the "MAX", some foods stored may freeze.
In this case adjust control set back to the "MED" position.
When refrigerator temperature control sets to the "MAX", some foods stored in Fresh case may
also become frozen.
(3) Reference value of temperature
SETTING OF
FREEZER TEMP.
CONTROL KNOB
Freezer
temperature
MAX
(Coldest)
Approx.
-21 C
MED MIN
Approx.
-18 C
Approx.
-15 C
SETTING OF
REFRIGERATOR TEMP.
CONTROL KNOB
Refrigerator
temperature
Fresh case
temperature
CHILLED
ZONE
(Coldest)
Approx.
0 C
Approx.
-3 C
MED MIN
Approx.
3 C
Approx.
1 C
Approx.
Approx.
6 C
4 C
The values shown above refer to the case where the
freezer temp. control knob is set at "MED".
The values shown above refer to the measurement carried out center area and 1/3 of overall height from the bottom
at each of the refrigerator and the freezer after machine has been operated at an ambient temperature of 30˚C with no
food stored and the door closed until the temperature is stabilized.
The values vary depending upon frequency of opening and closing the door, ambient temperature, amount of stored
foods and manner of storing foods.
11
SJ-3056
SJ-3065
2. DEFROSTING
(1) No defrosting operation is necessary
No defrosting operation is necessary.
As this machine is so designed that a built-in
evaporator cools air and a fan circulates cooled
air, neither the freezer nor the refrigerator is
frosted, though the evaporator is frosted.
(2) Where is melted frost brought
1. Melted frost is brought into the evaporating
pan at the bottom of the set and is evaporated
here by the heat of sub condenser.
2. Be sure that the evaporating pan is inserted
correctly and is level.
The frosted evaporator is defrosted automatically
due to the function of defrosting timer and heater,
requiring no defrosting operation.

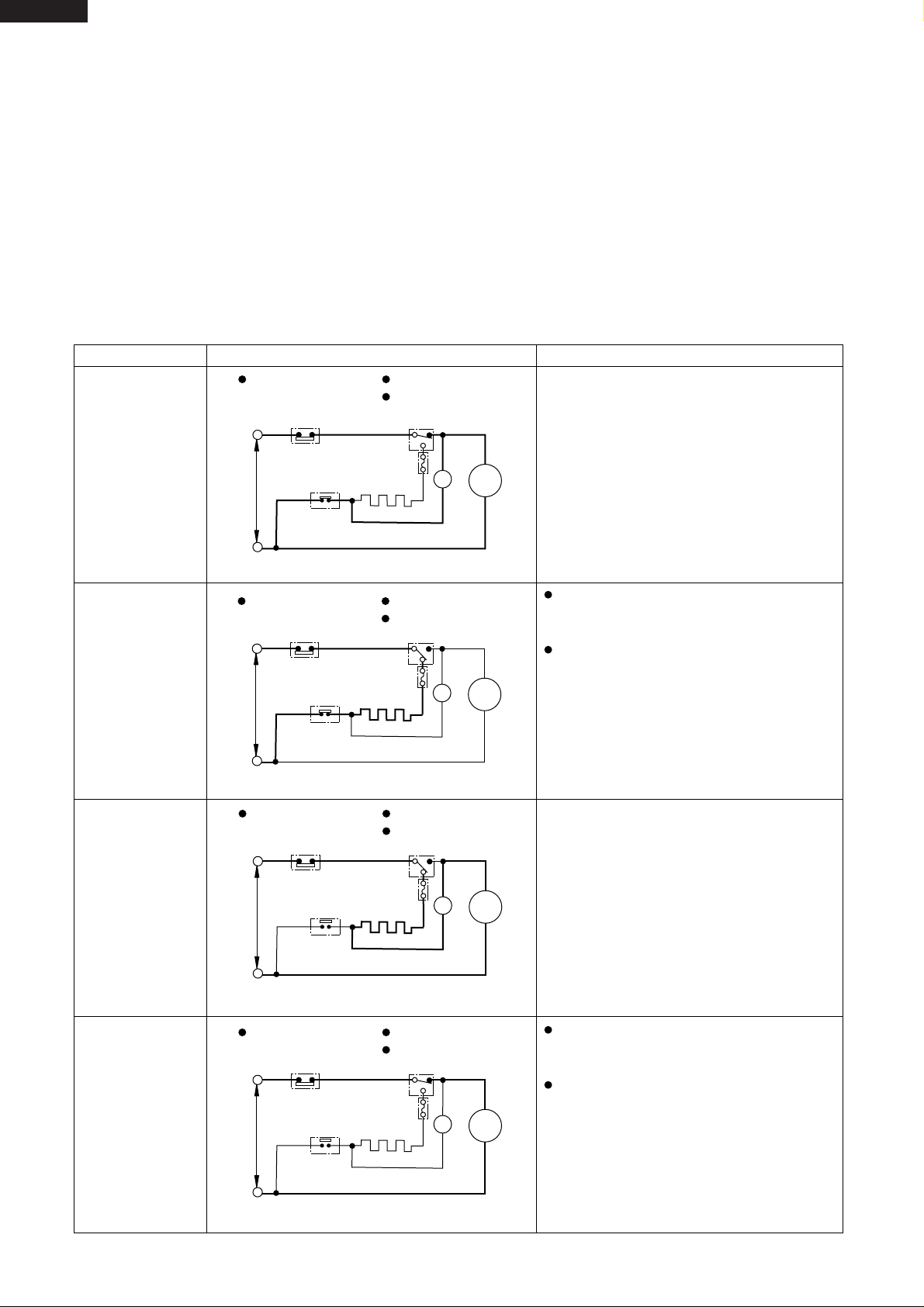

(3) The following circuit diagrams in the table show automatic defrosting function of the refrigerator with
timer and defrost thermostat.
Operation Electric diagram Description
1. Cooling
(Normal)
Defrost thermostat ON Compressor running
Timer motor running
Thermostat
Timer contact
The integration timer integrates running
time of the compressor. When it reaches
cycle time of defrost timer, the timer
contact is changed to start defrosting.
Thermo. fuse
Defrost heater
TM COMP
2. Defrosting
(Time 20 to 30 min.)
3. Drain
(Time approx. 5 min.)
SOURCE
Defrost
thermostat (ON)
Figure F-3.
Defrost thermostat ON Compressor stops
Timer motor stops
Thermostat Timer contact
Thermo. fuse
TM COMP
SOURCE
Defrost heater
Defrost
thermostat (ON)
Figure F-4 .
Defrost thermostat OFF Compressor stops
Timer motor running
Thermostat Timer contact
Thermo. fuse
TM COMP
SOURCE
Defrost heater
Defrost
thermostat (OFF)
Timer motor
Timer motor
Timer motor
Compressor
Compressor
Compressor
The timer contact is changed to start
defrosting, the timer motor stops, and
power is supplied to the defrost heater.
It takes about 20 to 30 min. to defrost.
When little frosted, the defrosting takes
little time. When much frosted, the defrosting takes much time.
When the defrost thermostat becomes
OFF, the timer motor starts running.
During the operation time (delay time
of defrost time)
defrosted water is
drained outside the refrigerator.
4. Restart
(Time approx. 5 min.)
Figure F-5.
Defrost thermostat OFF Compressor running
Timer motor stops
Thermostat Timer contact
Thermo. fuse
TM COMP
SOURCE
Defrost heater
Defrost
thermostat (OFF)
Figure F-6.
12
Timer motor
Compressor
Timer contact is changed to cooling
operation and the compressor starts
running and the timer motor stops.
Defrost thermostat contact becomes ON
when it’s cooled. And the timer motor
starts running. (Figure F-3.)
(4) As a reference to determine the causes of trouble, malfunction and phenomena are described below.
Refer to the following when repairing.
1. Disconnection of defrost heater
As off-cycle defrosting is performed, the defrosting time is extremely prolonged. Each time defrosting is
started, the freezer temperature rises and a portion of ice and stored foods are melted.
2. Melted thermo. fuse or opened-circuit due to the defect of defrost thermostat.
When the above mentioned trouble occurs in cooling operation, the timer motor does not run, defrosting
will not take place, and consequently freezing is caused. In the above mentioned condition, when the timer
shaft is turned by hand to defrost, the timer motor runs during the operation time. However, the motor stops
from the time when the contact is changed, and freezing causes.
NOTE:
As the thermo. fuse assembly is intended to prevent dangers, do not use it under shorted condition even
for a short period.

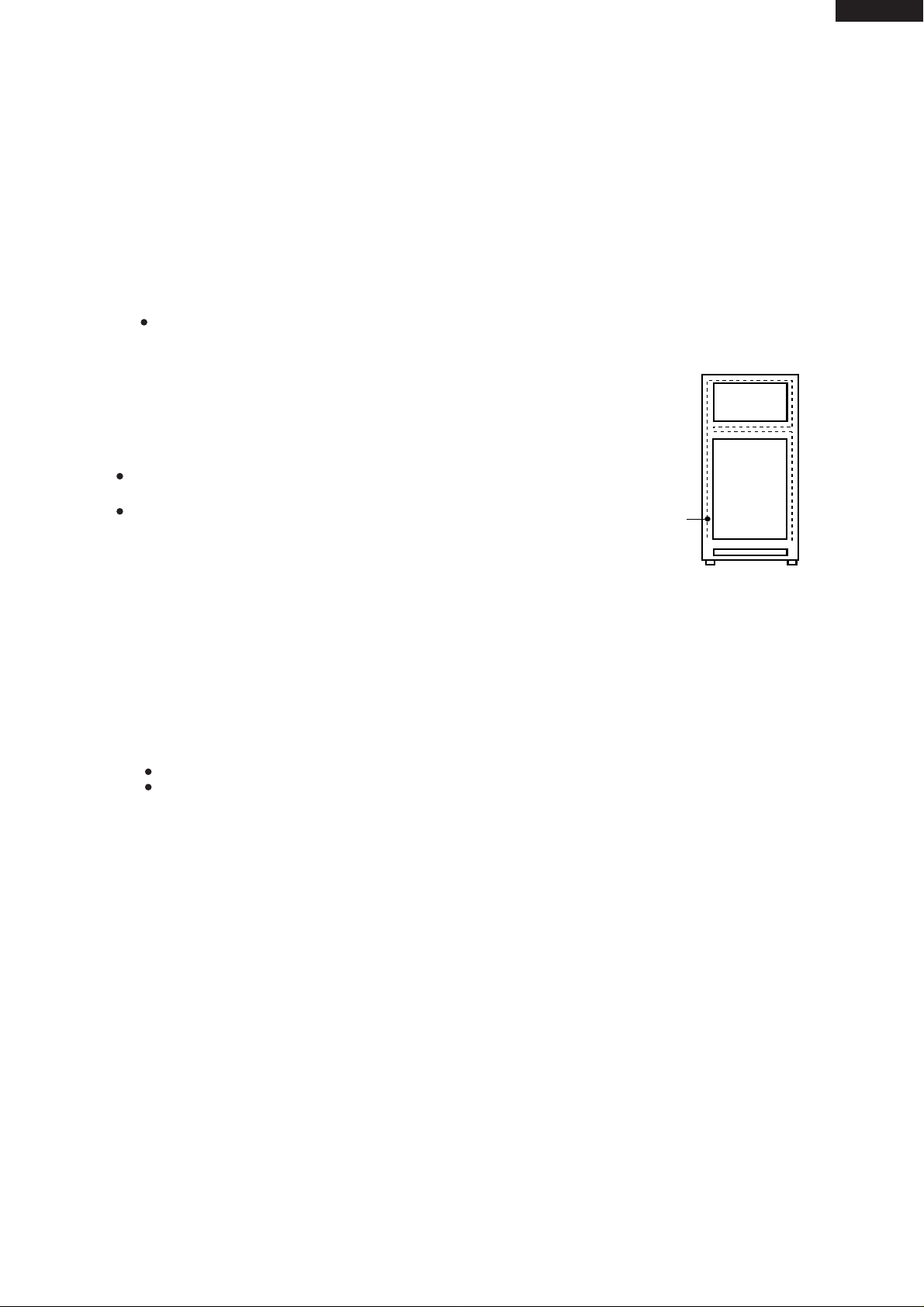

3. DEW PREVENTION
The hot pipe, namely D.P.-condenser, is arranged around the flange part of
cabinet and the C-partition plate, preventing dew from being generated on
the cabinet.
NOTE:
D.P.-condenser pipe may be felt hot if touched by hand while the
compressor is in operation.
If you are asked about this, please explain that the hot pipe serve to
prevent the dew generation.
Hot pipe
SJ-3056
SJ-3065
4. INSPECTION OF INITIAL STARTING
(1) Inspection of cooling unit
1. Set the temperature control knob to "MAX" and check that the compressor starts to operate.
2. Depress the door switch to run the fan and check that cool air is blown out of the cold air outlet of the
freezer and the refrigerator.
3. When the compressor does not work, check that the timer is not set to "defrost" position.
4 It takes about an hour and a half or two hours to put food in the refrigerator after starting operation.
NOTE:
After return the temperature control knob to "MED" position.
When the refrigerator is operated initially after installed, the compressor may vibrate excessively for 1 to 2
min. However, vibration becomes normal if it is continuously operated.
(2) Inspection of defrost device
Operate the refrigerator for 20 to 30 min. and then check the defrost device in the following procedures :
Allow 5 min. to restart the compressor since immediate starting after stopping will cause unsmooth operation.
1. Turn the timer shaft clockwise with a screw driver.
At this time, make certains the timer clinks and the compressor stops.
2. After more than 5 min., turn the shaft further to operate.
Make certain cooling operation is started again.
Figure F-7
13
SJ-3056
SJ-3065
5. PLASMACLUSTER
(1) Plasmacluster is what thing.
The ionizer inside the refrigerator will release cluster ions, which are collective mass of positive and negative
ions, into the the freezer and refrigertor compartments.
The cluster ions reduce airborne fungus.
(2) Plasmacluster Panel
1.When the refrigerator will be operated, the
Plasmacluster
lamp of the
panel will ight up.
2.By pushing the button, the lamp gose out or lights up.
3.Under the lamp is lighting, Plasmacluster operation is controlled as
follows.
(3) Plasmacluster Control
1.Plasmacluster operation will be performed when the following conditions
gather.
1) Lamp : Under lighting
2) Compressor : Under operation
3) Door : Closed
4) Within
"
The Plasmacluster operation time".
2.If the sum total of Plasmacluster operation time will reach at the set time (
Plasmacluster operation will stop.
3.
After an operation stop, the
compulsive stop time"
Time chart A
Compressor
F-fan motor
) .
ON
Plasmacluster
will be not operated during the set time ("The Plasmacluster operation
Plasmacluster panel
Lamp
Plasmacluster
Button
"The Plasmacluster operation Time"
) ,
Door
Plasmacluster
t1 t2 t3
Time chart B
Compressor
F-fan motor
Door
Plasmacluster
t1 t2 t3
The Plasmacluster operation time = t1 + t2 + t3
14
ASSEMBLING PROCEDURES OF MAIN PARTS AND CAUTIONS
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY REPAIRING.
SJ-3056
SJ-3065
1. R-CONTROL COV. ASSEMBLY
Defrost timer
R fan thermo. ass'y
Nylon band
Plasma harness
Plasma holder
Holder cover
Fan cover
R air guider A
Ionizer-K
RA sealer A
Damper thermo.
RA sealer C
RA sealer B
Dial sealer
R-temp. control knob

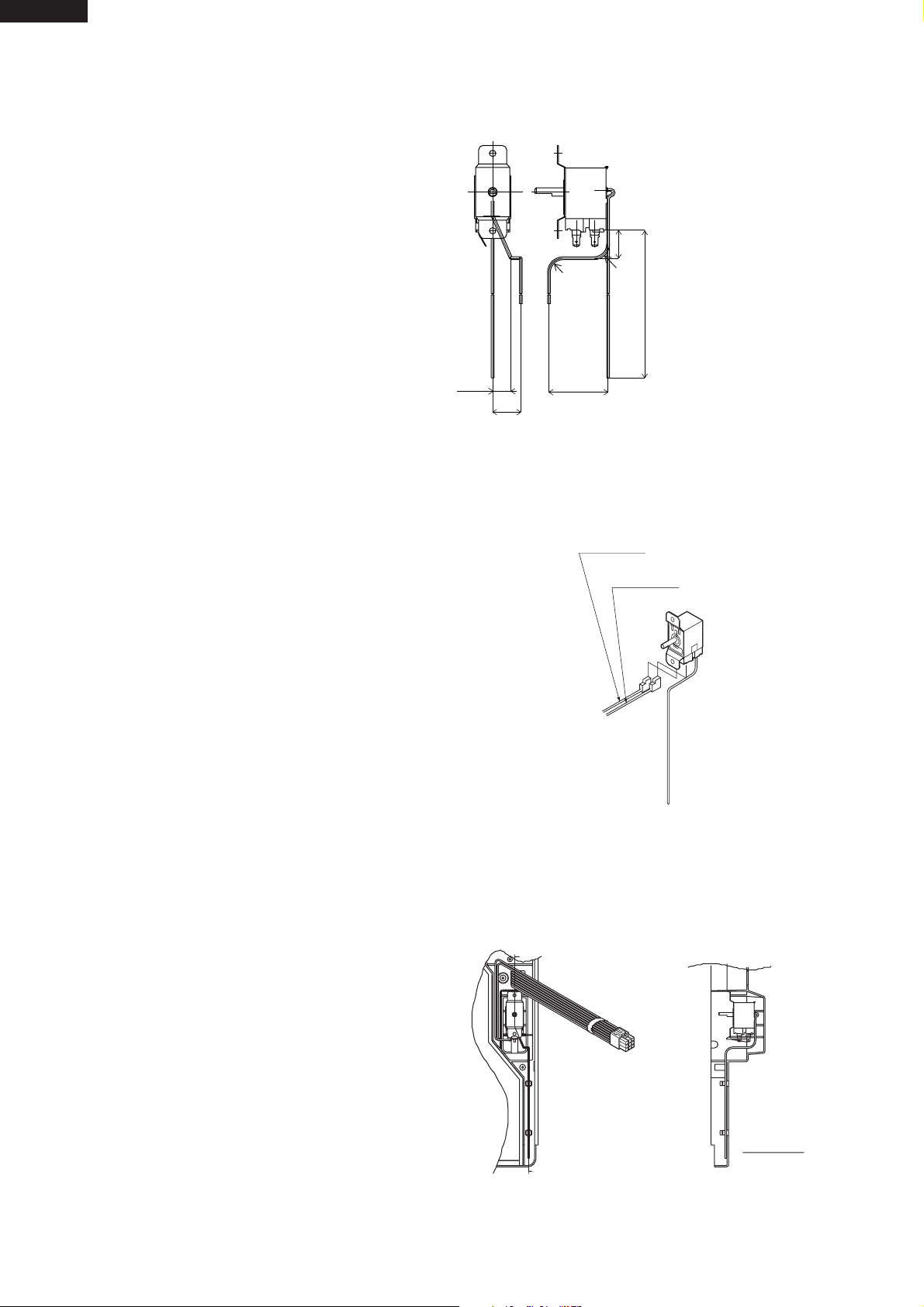

(1) Forming sensor of Damper thermo.
Damper
thermostat
mm
1
++
3
mm
1
5
Less than 12 mm
+
25 2 mm
R-C box cover
Figure A-1
Less than 130 mm
Stick thermo.
cap. sealer
NOTE
Minimum bending radius is R5mm.
There should be no gas leak by reforming of sensor tube.
Figure A-2
After forming, fix it to the refrigerator.
15
SJ-3056
SJ-3065
(2) Sticking of sealers to R air guider A.
[Front side]
RA sealer A
Dial sealer
RA sealer A
RA sealer A
[Bottom side]
RA sealer ARA sealer A
Figure A-3
(3) Fixing of the Ionizer-K.
(3)-1 Connect Ionizer-K and connector of the lead wire.
(3)-2 Insert Ionizer-K to Plasma holder.
(3)-3 Insert the (3)-2 assembly to R air guider A.
(3)-4 Insert Holder cover to (3)-3 assembly and fix by the paper tepe.
[Back side]
OVERLAP 15mm
OVERLAP 15mm
RA sealer CRA sealer B
RA sealer A
Plasma holder Ionizer-K
Plasma holder
Plasma holder
Ionizer-K
Ionizer-K
2P
Plasma
harness
R aire guider A
Plasma harness
2P
Connecter should insert surely.
2P
2P
2P
Plasma harness
Holder cover
5
10
Paper tape W30X40mm
5
25
Ionizer-K
Holder cover
2P
Plasma harness
R aire guider A
Paper tape W30X50mm
B
3
5
5
15
R aire guider A
SEC. B-B
B
Figure A-4
16
10 5mm
+
Cut
R-C box cover
Nylon band
R fan thermo ass’y
Fan cover
Defrost timer
R fan thermo.
ass’y
Nylon band
SEC. G-G
G
G
(4) Fixing of Defrost timer, R fan thermo. ass'y cover to R-C box cover.
SJ-3056
SJ-3065
2. R LAMP BOX ASSEMBLY
Propeller fan 80
Figure A-5
R fan motor holder B
R-fan motor
R fan motor holder A
Warning label
Fan clamp
Lamp socket (with lead wires for R-fan motor)
Lamp 15W
R lamp box
Figure A-6
17
SJ-3056
Lamp 15W
Warning label
SJ-3065
(1) Fixing of Lamp and Lamp socket.
(1)-1 Screw Lamp 15W into Lamp socket.
(1)-2 Fix Lamp socket on R lamp box by tapping
screws.
(2)-4 Set Fan clamp to Propeller fan 80 and insert it
to the shaft of R-fan motor.
Tapping screw
Lamp socket
Lamp 15W
R lamp box
ALUMINUM TAPE
Figure A-7
(1)-3 Insert the terminal of Lamp socket to R-fan motor.
DOUBLE CLAMPING WIRES
Lamp socket
F
Fan clamp
Propeller fan 80
+
2.3 0.5mm
Shaft
Detail of F
Fan clamp
Slit of each Fan clamp and Propeller fan
should not be at same position.
Slit
Figure A-10
(3) Sticking Warning label.
Fan motor
Figure A-8

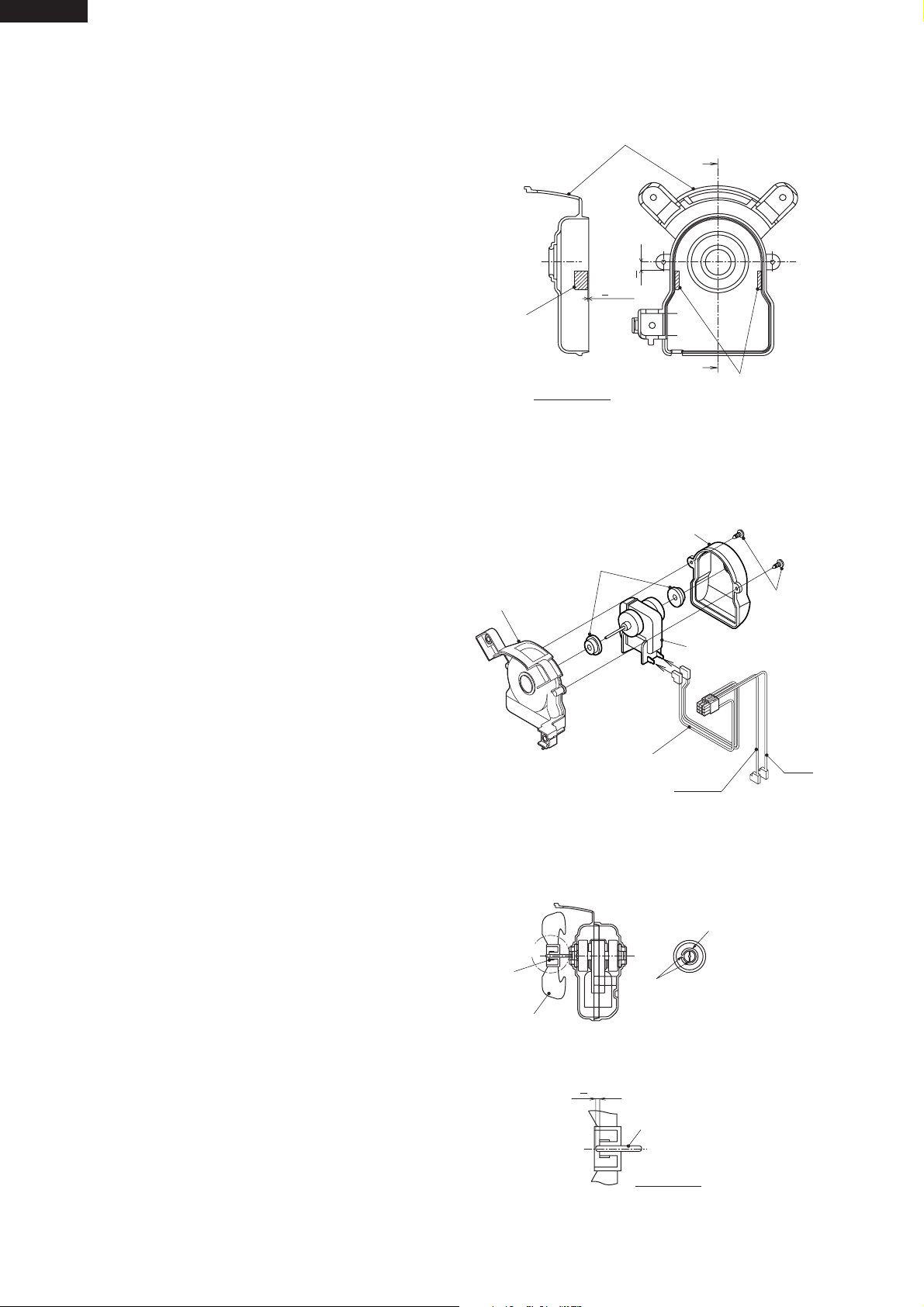

(2) Fixing of R-fan motor and Fan
(2)-1 Set R-fan motor holder A to R lamp box by
tapping screw.
(2)-2 Set R-fan motor to R fan motor holder A by
machine screw.
(2)-3 Set R fan motor holder B to A.
R fan motor holder B
R fan motor holder A
Propeller fan 80
R-fan motor
Figure A-11
Figure A-9
18
3. E.V COVER ASSEMBLY
Defrost thermo. ass’y
E.V cover sealer A
U-sealer
handle
Propeller Fan 100
Fan clamp
Motor
cushion
SJ-3056
SJ-3065
Fan motor
Fan motor
holder B
E.V cover
F-thermostat
E.V cover
sealer D
(2 pieces)
(1) Sticking of Sealers to E.V cover
L-band C
E.V cover sealer C
Fuse ass’y
Figure A-12
Fan motor
holder A
E.V cover sealer B
Lead E.V-cover
ass’y
E.V cover sealer D (b)
E.V cover sealer A
Sticking start (b)
E.V cover sealer B
Overlap 10mm(min)
Sticking start (a)
E.V cover sealer D (a)
Sticking start
[Front side] [Back side]
E.V cover
Sticking start
Figure A-13
19
SJ-3056
SJ-3065
(2) Fixing of Fan motor and Fan
(2)-1 Stick U-sealer handle to Fan motor holder A.
(2)-2 Insert the terminals of Lead EV-cover ass'y to
R-fan motor.
(2)-3 Fix two Motor cushions to R-fan motor, and set it
at Fan motor holder A and B.
Then fix with Tapping screw.
U-sealer handle
Fan motor
holder A
Fan motor holder A
0 1mm
SEC. C-C
Motor cushion
+
7 2mm
+
Figure A-14
Fan motor
holder B
C
C
U-sealer handle
Tapping
screw
(2)-4 Set Fan clamp to Propeller fan 100 and insert
it to the shaft of Fan motor.
Fan clamp
Propeller
fan 100
Fan motor
Lead EV-cover ass’y
BROWN
RED
Figure A-15
Fan clamp
D
Slit
Slit of each Fan clamp
and Propeller fan
should not be at same position.
+
4 0.5mm
20
Shaft
Detail of D
Figure A-16

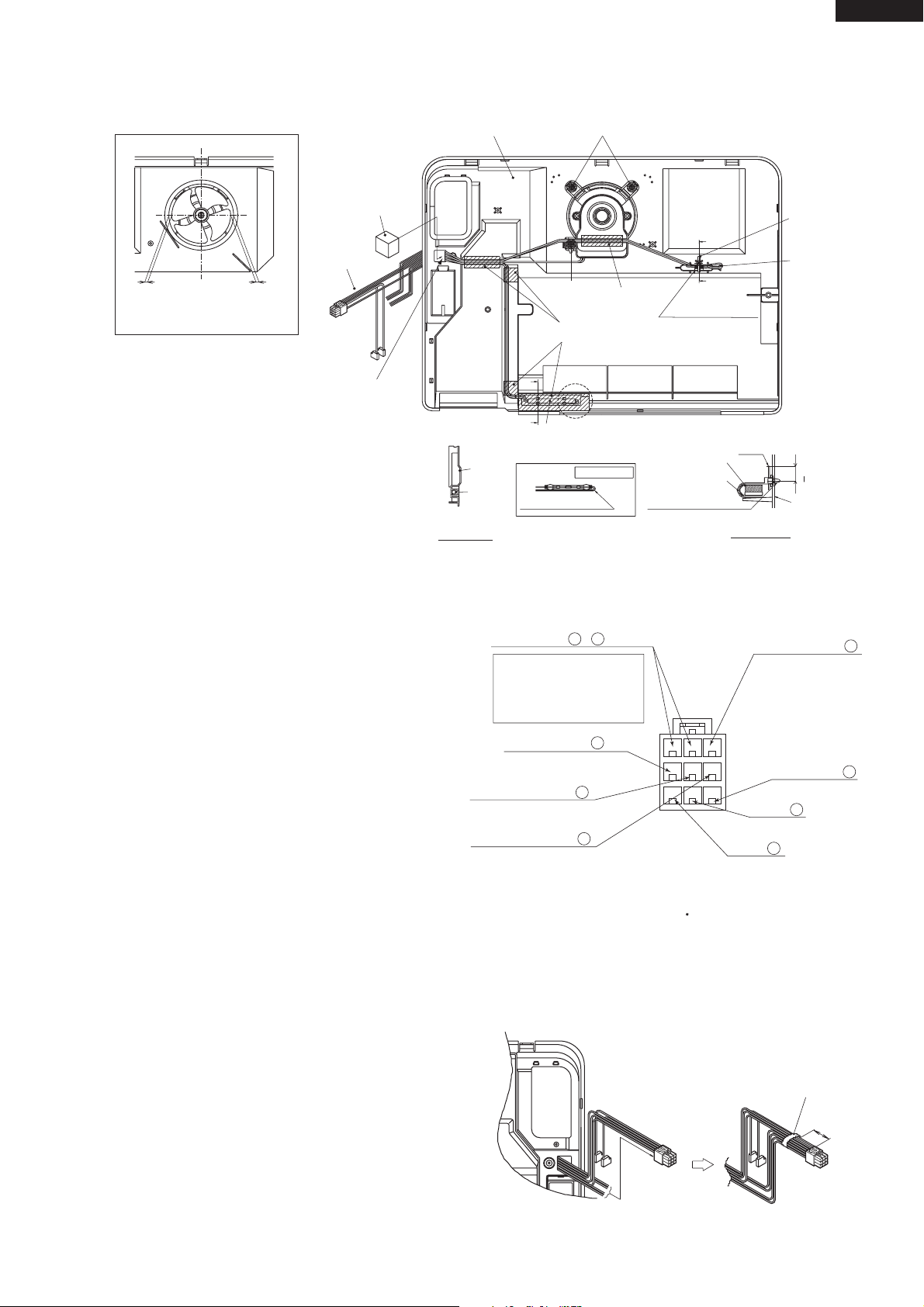

(3) Setting of Fan motor ass'y , Defrost thermo. ass'y and Fuse ass'y
60m
m
Vinyl tape
SJ-3056
SJ-3065
more than
3.5mm
[FRONT SIDE]
more than
3.5mm
E.V cover
sealer C
Lead E.Vcover ass’y
Take out lead wire from
square hole to front, and
seal with E.V cover sealer C.
E.V cover
E.V
cover
Fuse
ass’y
Sec. F-F
Tapping screw
Tapping
screw
Aluminum
tape
F
F
Fuse ass’y
ATTENTION
Turn up is lead wire
Aluminum
tape
Not come out of claw
E
E
Set metal side below
Defrost
thermo. ass’y
L-band C
cut
Sec. E-E
L-band C
Defrost
thermo. ass’y
+
10 5mm
(4) Inserting of pins
Figure A-17
Fan motor 1 , 2
WIRE COLOR FOR FAN MOTOR
F-thermostat 4
(BROWN, inserted)
Defrost thermo. 5
(PINK)
Defrost thermo. 6
(BLUE)
100-110V : WHITE
127V : YELLOW
220-240V : BLUE
F-thermostat 3
(RED, inserted)
123
456
789
Fan motor 9
Fuse 8
(WHITE)
Fuse 7
(BLACK)
Note Pins should be inserted surely,
and check by pulling it.
Figure A-18
After inserting, fix with vinyl tape.
Figure A-19
21
SJ-3056
SJ-3065
(5) Setting of F-thermostat
(5)-1 Form capillary tube of F-thermostat.
20mm
R10mm
42mm13mm
20mm
R10mm
Note
230mm
• Bending radius of
capillary tube should be
from R5mm to R10mm.
Figure A-20
(5)-2 Insert terminal of Lead EV-cover ass'y.
(5)-3 Set to E.V cover.
RED
(front side)
BROWN
(back side)
Figure A-21
F
22
SEC. F-F
F
Figure A-22
Mark: Refrigerant flow
Mark: Brazing portion
SJ-3056
SJ-3065

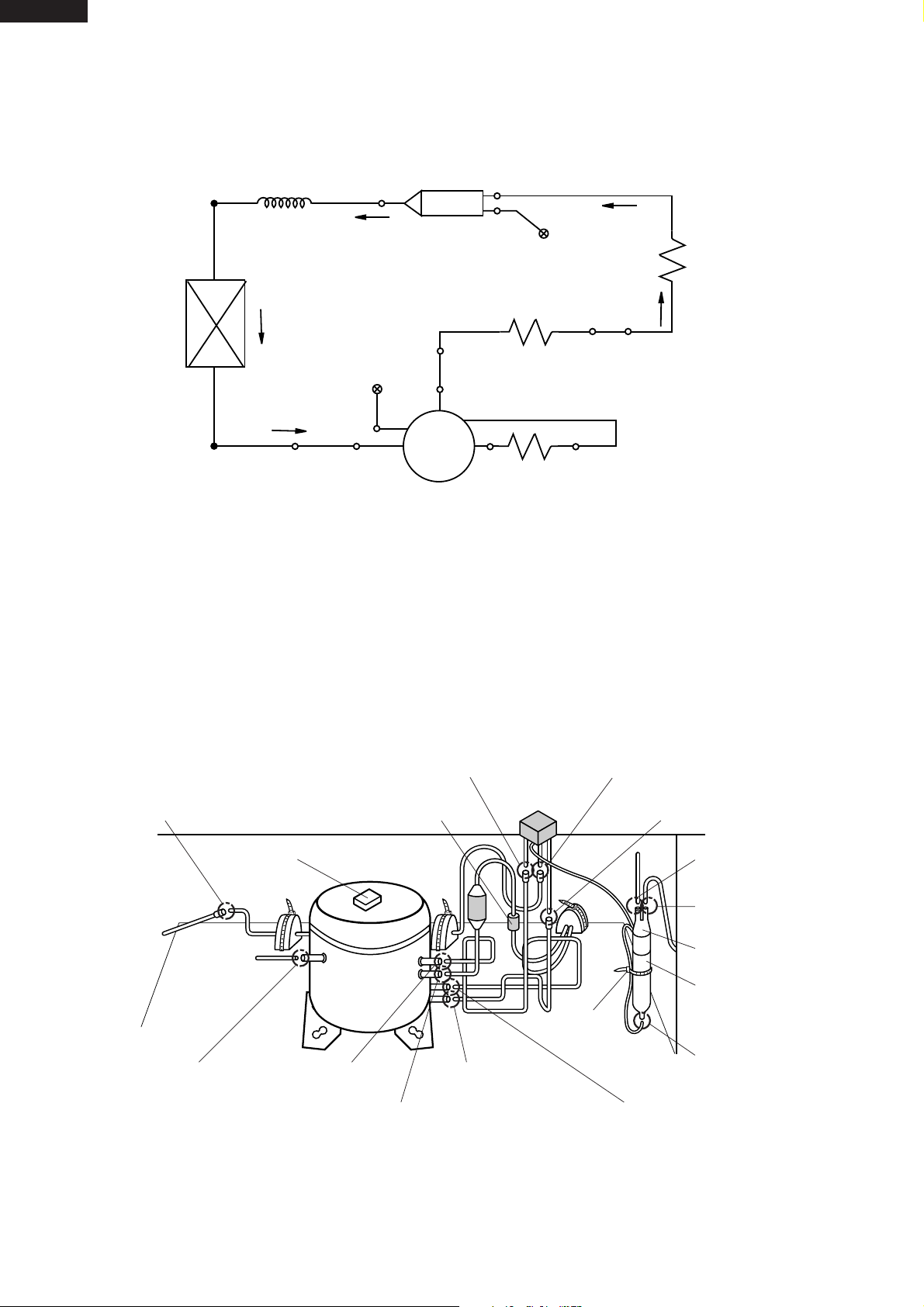

COOLING UNIT
Hot pipe L
(Side condenser)
Hot pipe
(DP-condenser)
Hot pipe R
(Side condenser)
Back condenser
Evaporator
Suction pipe
Sub. condenser
Compressor
Dryer
Figure C-1. Cooling unit
Capillary tube
23
SJ-3056
SJ-3065
Evaporator
Capillary tube
Suction pipe
Charge pipe
S.P. connector
Figure C-2. Location
Dryer
Charge pipe
Hot pipe
Back condenser
Backcon connector
Oil cooler
Compressor
Sub. condenser
Backcon connector to
Hot pipe
Compressor butyl
S.P Connector
Compressor suction tube
Charge pipe to
Compresser
S.P connector to
Suction pipe ass'y
Absorbent rubber A
Compressor oil cooler to
Oil cooler pipe
Compresser discharge pipe to
Sub condenser ass'y
Figure C-3. Location
Back condenser to
Backcon connector
Oil cooler pipe to
Back condenser
Charge pipe to
Dryer
Hot pipe to
Dryer
Dryer
Dryer support
L-band C
Capillary tube to
Dryer
Sub condenser ass'y to
Compresser oil cooler
24
SJ-3056
SJ-3065
,

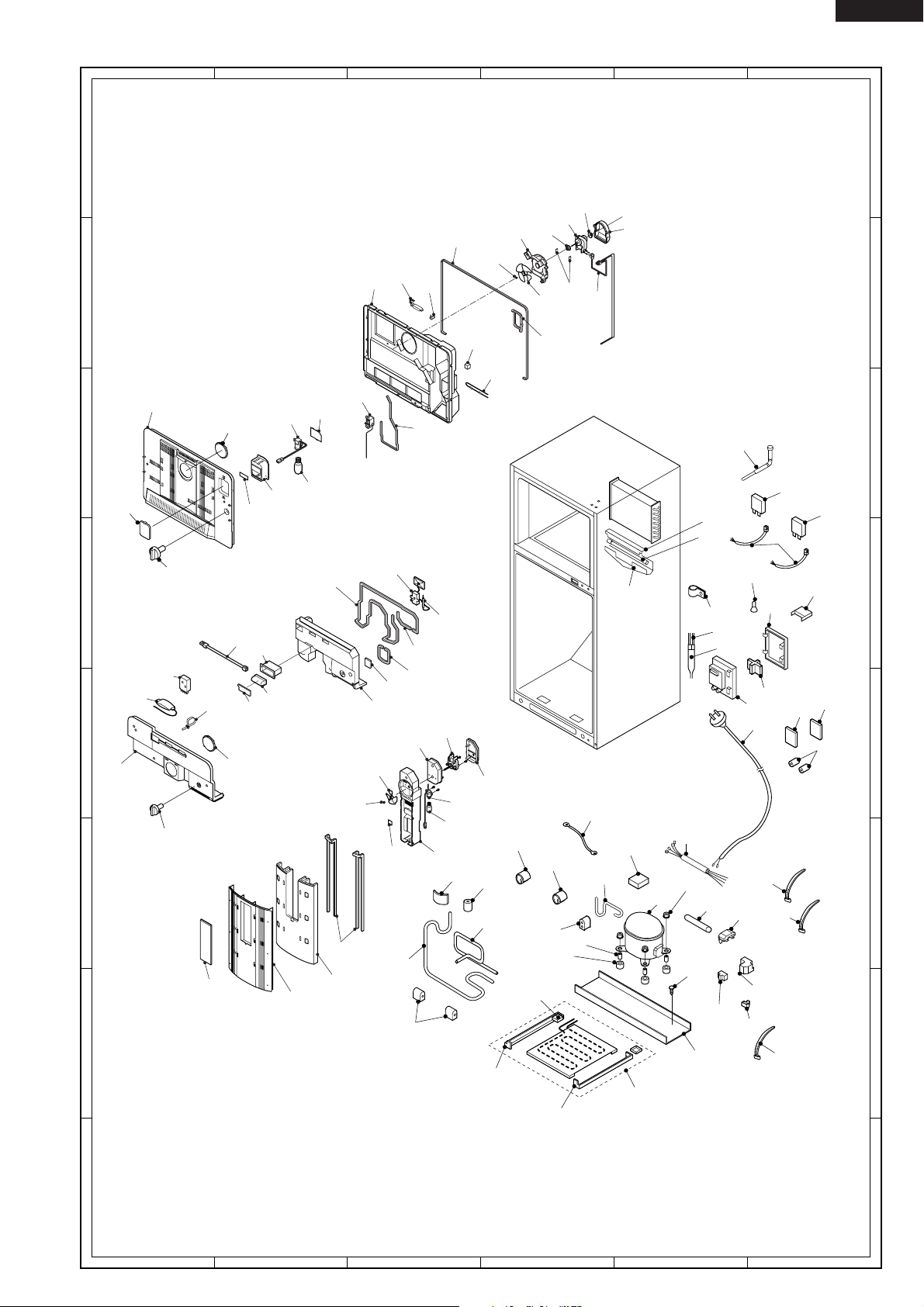

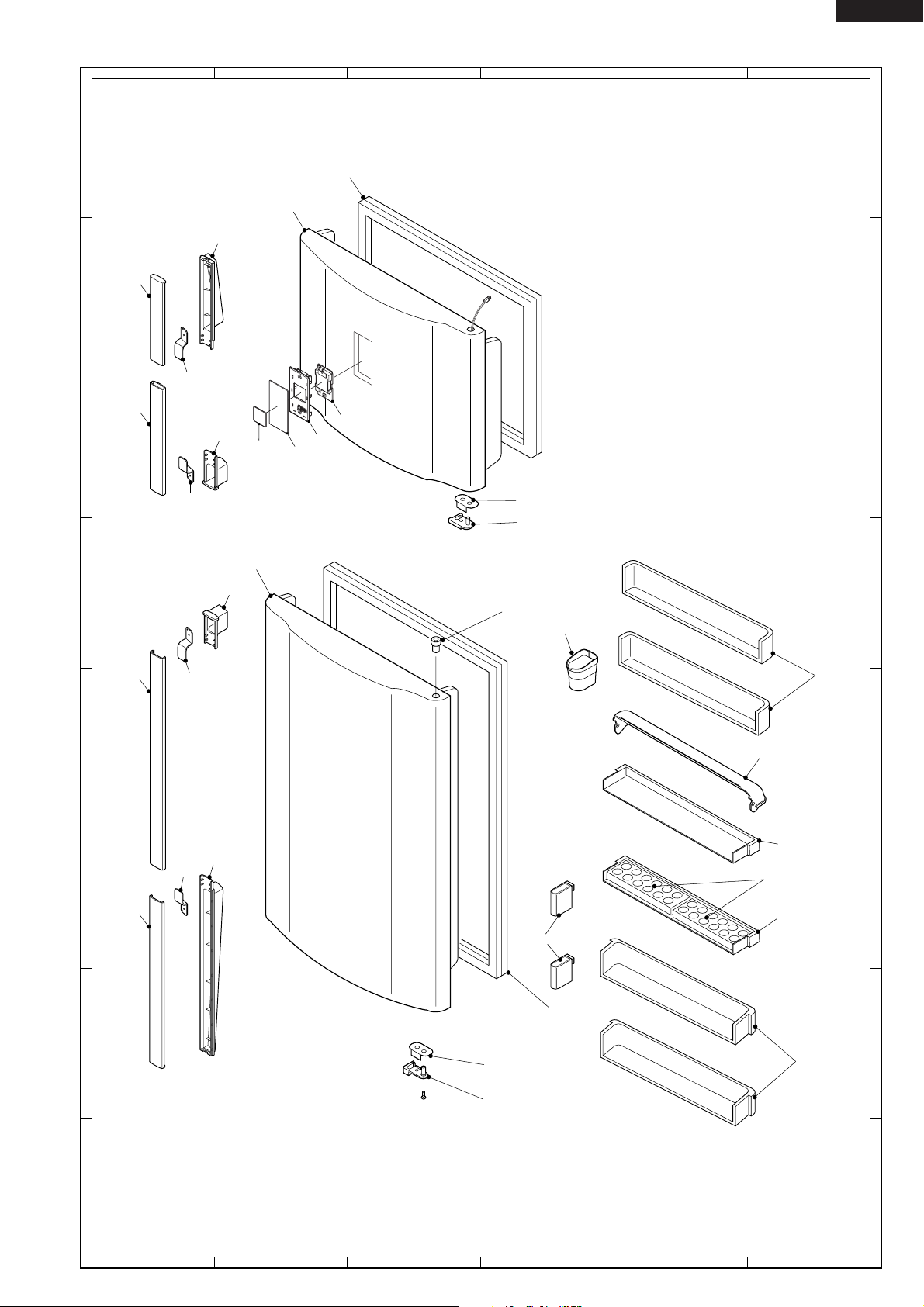

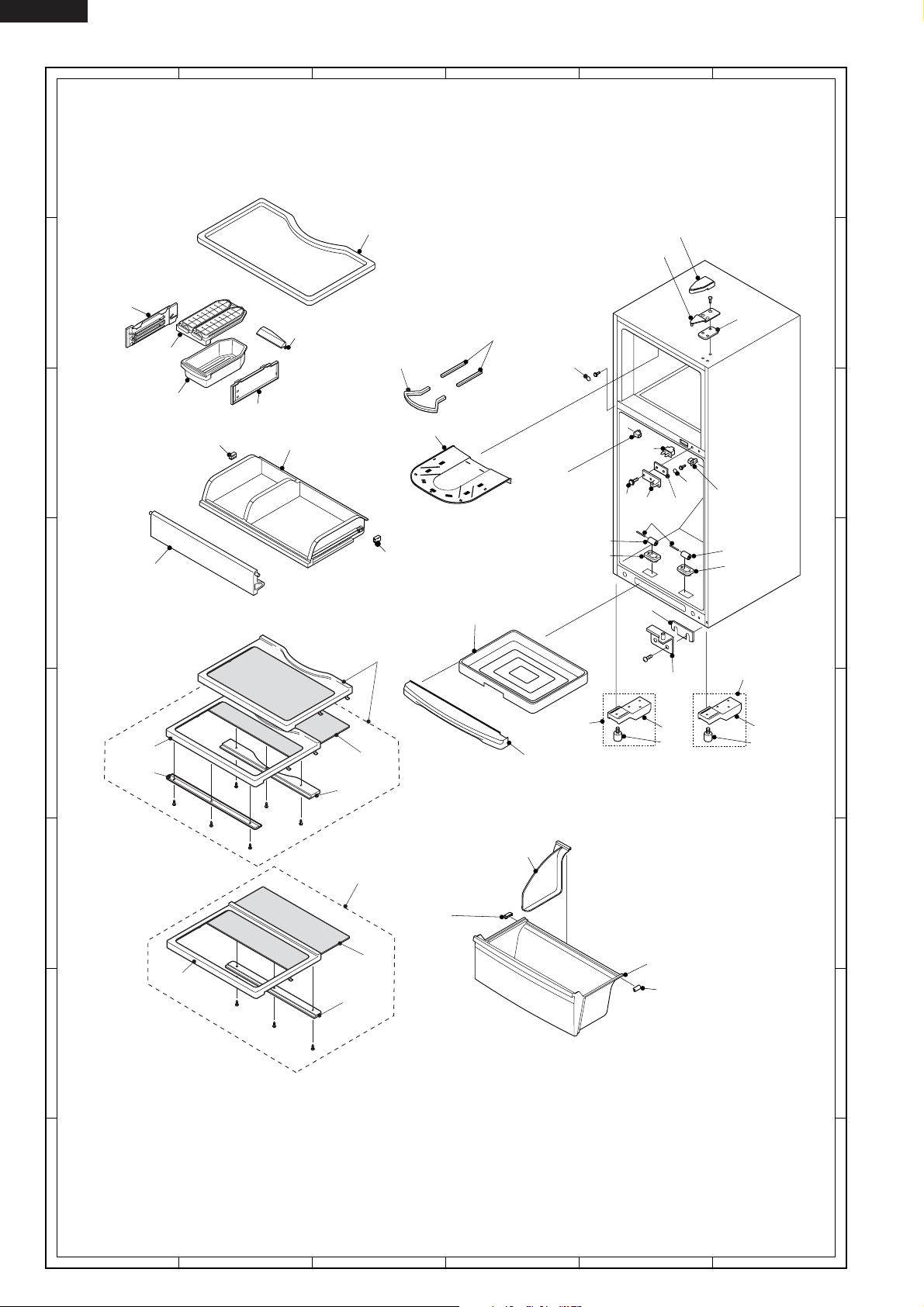

REPLACEMENT PARTS LIST (SJ-3056-BE/GL/GY/SL/WH)
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3056 SJ-3056 SJ-3056 SJ-3056 SJ-3056
-BE -GL -GY -SL -WH
ELECTRIC PARTS
1-1 RTHM-A097CBEZ F-thermostat 1 1 1 1 1 AX
1-2 RSTT-A179CBZZ Ptc relay 1 1 1 1 1 AR
1-3 QSWTDA047CBZZ Defrost timer 1 1 1 1 1 AZ
1-4 PDMP-A052CBEZ Damper thermo 1 1 1 1 1 AW
1-5 FTHM-A038CBKZ Defrost thermo.ass'y 1 1 1 1 1 AM
1-6 RMOTRA046CBE0 Fan motor 1 1 1 1 1 AZ
1-7 QSOCAA091CBZZ Lamp socket 1 1 1 1 1 AN
1-8 RLMP-A012CBE0 Lamp 1 1 1 1 1 AH
1-9 QACC-A159CBZZ Source cord 1 1 1 1 1 AW
1-10 QSW-PA090CBZA Door switch 1 1 1 1 1 AS
1-11 RHOG-A168CBZZ Protector 1 1 1 1 1 AX
1-17 FFS-TA055CBKZ Fuse ass'y 1 1 1 1 1 AL
1-20 FW-VZA150CBZZ Lead ev-cover ass'y 1 1 1 1 1 AK
1-21 FHETBA146CBEZ Def.heater ass'y 1 1 1 1 1 AZ
1-22 FCNW-A726CBKZ Relay cord s ass'y 1 1 1 1 1 AK
1-23 QCNW-A671CBE0 Reray wire rc 2 2 2 2 2 AD
1-25 LHLD-A465CBE0 Cord clip 1 1 1 1 1 AG
1-27 RMOTRA061CBEZ Fan motor 1 1 1 1 1 AW
1-28 RLMP-A029CBEZ Lamp15w 1 1 1 1 1 AH
1-29 QSOCAA072CBEZ Lamp socket 1 1 1 1 1 AN
1-30 FTHM-A029CBKZ R fan thermo ass'y 1 1 1 1 1 AQ
1-31 RC-EZA190CBEZ Running capacitor 1 1 1 1 1 AW
1-32 RC-EZA191CBZZ Capacitor 1 1 1 1 1 AY
1-34 QCNW-A968CBZZ Earth wire 1 1 1 1 1 AC
1-36 QCNW-A691CBE0 Lead wire gy ass'y 1 1 1 1 1 AD
1-45 FTRN-A014CBKZ Ionaizer-k 1 1 1 1 1 AZ
1-46 QCNW-A999CBZZ Plasma harness 1 1 1 1 1 AF
1-50 FPWB-A337CBKZ Main pwb 1 1 1 1 1 BC
1-55 FPWB-A336CBKZ Panel pwb ass'y 1 1 1 1 1 AT
MECHANICAL PARTS
2-2 JKNB-A036CBFC F-temp. control knob 1 1 1 1 1 AC
2-7 FLEGPA077CBKZ Leg holder l ass'y 1 1 1 1 1 AQ
2-7-1 FAJS-A013CBK0 Adjustable leg ass'y 2 2 2 2 2 AE
2-7-2 LHLD-A533CBPZ Leg holder l 1 1 1 1 1 AL
2-8 FLEGPA078CBKZ Leg holder r ass'y 1 1 1 1 1 AQ
2-8-2 LHLD-A534CBPZ Leg holder r 1 1 1 1 1 AP
2-10 PSPAVA083CBEA Upper hinge spacer 1 1 1 1 1 AD
2-11 PSPAVA085CBEA Bottom hinge spacer 1 1 1 1 1 AC
2-12 PSPAVA075CBEA Center hinge spacer 1 1 1 1 1 AD
2-13 DHNG-A437CBMZ Upper hinge ass'y 1 1 1 1 1 AE
2-14 DHNG-A442CBMZ Bottom hinge 1 1 1 1 1 AE
2-15 DHNG-A438CBMZ Center hinge r ass'y 1 1 1 1 1 AE
2-16 GCOV-A191CBFZ E.v cover 1 1 1 1 1 AS
2-17 LCRA-A010CBE0 Fan clamp 2 2 2 2 2 AD
2-19 LHLD-A389CBF0 Motor cushion 2 2 2 2 2 AF
2-20 NFANPA020CBFA Propeller fan 100 1 1 1 1 1 AE
2-21 PSEL-B845CBEZ E.v cover sealer a 1 1 1 1 1 AC
2-22 PSEL-B846CBEZ E.v cover sealer b 1 1 1 1 1 AC
2-23 PSEL-A415CBE0 E.v cover sealer c 1 1 1 1 1 AC
2-24 LPLTMA653CBPZ Terminal cover 1 1 1 1 1 AE
2-25 PCOV-A253CBFB F lamp cover 1 1 1 1 1 AD
2-26 PCOV-A254CBFB R lamp cover 1 1 1 1 1 AF
2-27 GCOVPA130CBRB R-cbox cover 1 1 1 1 1 AS
2-28 HGRL-A184CBRB Fan louver 1 1 1 1 1 AT
2-29 GCOV-A228CBFA Upper hinge cover - - - 1 - AE
2-29 GCOV-A228CBFB Upper hinge cover - - 1 - - AE
2-29 GCOV-A228CBFE Upper hinge cover - 1 - - - AE
2-29 GCOV-A228CBFF Upper hinge cover - - - - 1 AF
2-29 GCOV-A228CBFG Upper hinge cover 1 - - - - AE
2-30 PCOV-A255CBFC Fan cover 2 2 2 2 2 AE
2-31 JKNB-A033CBFC R-temp.control knob 1 1 1 1 1 AC
2-36 PCAP-A006CBFW Screw cover - - - - 2 AB
2-36 PCAP-A006CBFX Screw cover - - 2 - - AB
2-36 PCAP-A006CBFY Screw cover 2 - - - - AB
2-36 PCAP-A077CBFA Screw cover - - - 2 - AA
2-36 PCAP-A077CBFB Screw cover - 2 - - - AA
2-38 PGID-A163CBFZ R air guider a 1 1 1 1 1 AG
2-41 PSEL-B848CBEZ A-sealer thermo.cap 1 1 1 1 1 AC
2-45 LPLTPA323CBMA Panel base 1 1 1 1 1 AN
2-47 LHLD-A618CBFZ Plasma holder 1 1 1 1 1 AE
2-48 PCOV-A284CBFZ Holder cover 1 1 1 1 1 AB
2-49 LSTPPA108CBFA Chilled stopper 2 2 2 2 2 AC
25
SJ-3056
SJ-3065
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3056 SJ-3056 SJ-3056 SJ-3056 SJ-3056
-BE -GL -GY -SL -WH
2-50 NFANPA019CBFA Propeller fan 80 1 1 1 1 1 AM
2-51 PBOX-A121CBFA F lamp box 1 1 1 1 1 AF
2-52 PBOX-A122CBFA R lamp box 1 1 1 1 1 AM
2-53 LHLD-A536CBFA R fan motor holder a 1 1 1 1 1 AF
2-54 LHLD-A537CBFA R fan motor holder b 1 1 1 1 1 AE
2-55 HGRL-A186CBFA Multi louver m 1 1 1 1 1 AM
2-56 PFPFPB239CBFZ R-louver insu. m 1 1 1 1 1 AF
2-57 PSEL-B857CBEZ A-sealer r-louver 2 2 2 2 2 AC
2-59 PCOV-A264CBEZ F lamp box cover 1 1 1 1 1 AC
2-63 LHLD-A484CBFA Fan motor holder b 1 1 1 1 1 AH
2-64 LHLD-A485CBFA Fan motor holder a 1 1 1 1 1 AH
2-65 PSEL-B209CBE0 U-sealer handle 2 2 2 2 2 AB
2-66 PSHEMA132CBP0 Heater cover al 1 1 1 1 1 AD
2-67 LPLTMA570CBWZ Drain support al 1 1 1 1 1 AE
2-69 PSEL-B847CBEZ E.v cover sealer d 1 1 1 1 1 AC
2-70 LSTPPA078CBFA Back spacer 1 1 1 1 1 AD
2-71 PSEL-A552CBE0 Dial sealer 1 1 1 1 1 AC
2-72 PSEL-B841CBEZ Ra sealer a 2 2 2 2 2 AC
2-73 PSEL-B842CBEZ Ra sealer b 1 1 1 1 1 AC
2-77 LHLD-A359CBFA T-box holder 1 1 1 1 1 AE
2-78 LPLTMA399CBP0 Dryer support 1 1 1 1 1 AD
2-79 LBND-A019CBE0 Nylon band 1 1 1 1 1 AB
2-80 PBOX-A138CBFA Terminal box 1 1 1 1 1 AG
2-81 PPIPPA097CBEZ Drain pipe s 1 1 1 1 1 AE
2-83 PSEL-B849CBEZ Ra sealer c 1 1 1 1 1 AC
2-87 LBND-A018CBE0 Fastening band a 3 3 3 3 3 AP
2-90 HGRL-A179CBFA F shower duct 1 1 1 1 1 AM
2-93 PCAP-A068CBFA C sliding cap a 2 2 2 2 2 AC
2-95 NROL-A027CBEZ V roller 2 2 2 2 2 AC
2-96 LHLD-A535CBFA Shaft holder 2 2 2 2 2 AC
2-97 LPIN-A178CB1Z Shaft 2 2 2 2 2 AC
2-105 PSEL-B896CBEZ A-sealer fs-a 1 1 1 1 1 AC
2-106 PSEL-B897CBEZ A-sealer fs-b 2 2 2 2 2 AC
2-110 PSEL-C248CBEZ A-sealer t-cover 1 1 1 1 1 AD
2-111 PSEL-C250CBEZ A-sealer t-wire 2 2 2 2 2 AB
DOOR PARTS
3-5 FDORFB588CBKZ F-door ass'y - - - 1 - BP
3-5 FDORFB598CBKZ F-door ass'y - - 1 - - BQ
3-5 FDORFB600CBKZ F-door ass'y - 1 - - - BK
3-5 FDORFB601CBKZ F-door ass'y - - - - 1 BQ
3-5 FDORFB614CBKZ F-door ass'y 1 - - - - BP
3-5-1 LSTPMA008CBM0 F-door stopper r 1 1 1 1 1 AD
3-5-2 LSTPPA125CBFA Fd stopper spring 1 1 1 1 1 AC
3-6 FPACGA309CBKZ F-door packing 1 1 1 1 1 AX
3-7 HDECQA425CBMA Hd cover ft 1 1 1 1 1 AL
3-8 JHNDPA170CBTA F door handle 1 1 1 1 1 AZ
3-9 LPLTPA312CBPZ Hd support ft 1 1 1 1 1 AC
3-10 LPLTPA313CBPZ Hd support fb 1 1 1 1 1 AC
3-11 LPLTPA314CBFA Hd base ft - - - 1 - AE
3-11 LPLTPA314CBFB Hd base ft - - 1 - - AE
3-11 LPLTPA314CBFE Hd base ft - 1 - - - AE
3-11 LPLTPA314CBFF Hd base ft - - - - 1 AE
3-11 LPLTPA314CBFG Hd base ft 1 - - - - AE
3-12 LPLTPA315CBFA Hd base fb - - - 1 - AE
3-12 LPLTPA315CBFB Hd base fb - - 1 - - AE
3-12 LPLTPA315CBFE Hd base fb - 1 - - - AE
3-12 LPLTPA315CBFF Hd base fb - - - - 1 AE
3-12 LPLTPA315CBFG Hd base fb 1 - - - - AE
3-15 FDORRB388CBKZ R-door ass'y - - - 1 - BU
3-15 FDORRB390CBKZ R-door ass'y - - 1 - - BU
3-15 FDORRB392CBKZ R-door ass'y - 1 - - - BS
3-15 FDORRB396CBKZ R-door ass'y - - - - 1 BU
3-15 FDORRB414CBKZ R-door ass'y 1 - - - - BU
3-15-1 LSTP-A058CBM0 R-door stopper r 1 1 1 1 1 AF
3-15-2 LSTPPA084CBFA Rd-stopper spring r 1 1 1 1 1 AD
3-15-3 NBRGPA022CBFA Nylon bearing 3s 1 1 1 1 1 AC
3-17 FPACGA314CBKZ R-door packing 1 1 1 1 1 AY
3-18 HDECQA426CBMA Hd cover rb 1 1 1 1 1 AQ
3-19 JHNDPA171CBTA R door handle 1 1 1 1 1 BB
3-20 LPLTPA316CBPZ Hd support rt 1 1 1 1 1 AC
3-21 LPLTPA317CBPZ Hd support rb 1 1 1 1 1 AC
3-22 LPLTPA318CBFA Hd base rt - - - 1 - AE
3-22 LPLTPA318CBFB Hd base rt - - 1 - - AE
3-22 LPLTPA318CBFE Hd base rt - 1 - - - AE
26
SJ-3056
SJ-3065
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3056 SJ-3056 SJ-3056 SJ-3056 SJ-3056
-BE -GL -GY -SL -WH
3-22 LPLTPA318CBFF Hd base rt - - - - 1 AE
3-22 LPLTPA318CBFG Hd base rt 1 - - - - AE
3-23 LPLTPA319CBFA Hd base rb - - - 1 - AF
3-23 LPLTPA319CBFB Hd base rb - - 1 - - AF
3-23 LPLTPA319CBFE Hd base rb - 1 - - - AF
3-23 LPLTPA319CBFF Hd base rb - - - - 1 AF
3-23 LPLTPA319CBFG Hd base rb 1 - - - - AF
3-30 GCOVPA156CBRA Panel cover 1 1 1 1 1 AZ
3-31 HBDG-A004CBEA Pc badge 1 1 1 1 1 AG
OTHER PARTS
4-1 LBND-A023CBE0 L-band c 4 4 4 4 4 AC
4-3 LX-VZA003CBE0 Special screw 2 2 2 2 2 AB
4-10 QTAN-A013CBE0 Solderless term. a 8 8 8 8 8 AH
4-15 LX-BZA018CBE0 Special screw 3 3 3 3 3 AA
4-17 LX-WZA003CBE0 Washer 4 4 4 4 4 AA
ATTACHMENT PARTS
5-1 UPOK-A186CBRA Bottle pocket 2 2 2 2 2 AR
5-3 UPOK-A184CBRA F door pocket 2 2 2 2 2 AN
5-4 UPOK-A185CBRA R door pocket 1 1 1 1 1 AN
5-5 UTNA-A282CBFA Egg tray 2 2 2 2 2 AH
5-6 FSRA-A193CBYZ Ice cube maker 1 1 1 1 1 AS
5-9 FSRA-A213CBKZ F shelf ass'y 1 1 1 1 1 AY
5-14 USRA-A252CBFA Drain pan 1 1 1 1 1 AN
5-15 GGAD-A034CBFA V parting plate 1 1 1 1 1 AG
5-16 UYOK-A331CBFB Vegetable case 1 1 1 1 1 AY
5-17 UYOK-A328CBFB Ice storage box 1 1 1 1 1 AL
5-18 UYOK-A329CBFB Chilled case 1 1 1 1 1 AW
5-19 GDORPA074CBRA Chilled door 1 1 1 1 1 AN
5-24 FTNA-A366CBKZ R glass shelf ass'y 2 2 2 2 2 BD
5-24-1 FWAKPA019CBKZ G guard r ass'y 2 2 2 2 2 AR
5-24-2 UTNA-A299CBEZ Glass shelf 2 2 2 2 2 AX
5-24-3 UWAKPA008CBFA G guard r cover f 2 2 2 2 2 AM
5-24-4 UWAKPA009CBFA G guard r cover b 2 2 2 2 2 AM
5-25 FTNA-A367CBKZ V glass shelf ass'y 1 1 1 1 1 BD
5-25-1 FWAKPA020CBKZ G guard v ass'y 1 1 1 1 1 AR
5-25-2 UTNA-A300CBEZ Glass shelf 1 1 1 1 1 AX
5-25-3 UWAKPA011CBFA G guard v cover 1 1 1 1 1 AM
5-26 HGRL-A218CBFA Ventilating grille - - - 1 - AN
5-26 HGRL-A218CBFB Ventilating grille - - 1 - - AN
5-26 HGRL-A218CBFE Ventilating grille - 1 - - - AN
5-26 HGRL-A218CBFF Ventilating grille - - - - 1 AN
5-26 HGRL-A218CBFG Ventilating grille 1 - - - - AN
5-28 PCAP-A069CBFA V sliding cap l 1 1 1 1 1 AC
5-29 PCAP-A070CBFA V sliding cap r 1 1 1 1 1 AC
5-31 LRALPA132CBFB Ice tray holder l 1 1 1 1 1 AG
5-32 LRALPA133CBFB Ice tray holder r 1 1 1 1 1 AG
5-33 LRALPA134CBFA Ice tray holder b 1 1 1 1 1 AF
5-34 PCUP-A009CBFB Water cup 1 1 1 1 1 AF
5-35 UPOKPA251CBFB Tube stand 2 2 2 2 2 AF
5-36 PCOV-A259CBFB Case cover 1 1 1 1 1 AK
5-37 UPOK-A187CBRA Utility case pocket 1 1 1 1 1 AN
CYCLE PARTS
6-1 PCMPLA228CBZZ Compressor 1 1 1 1 1 BW
6-2 PSPAGA054CBEZ Rubber grommet 4 4 4 4 4 AH
6-3 FCONSA089CBKZ Sub. condenser ass'y 1 1 1 1 1 AU
6-3-1 PCOV-A256CBFA Pipe protector l 1 1 1 1 1 AF
6-3-2 PCOV-A257CBFA Pipe protector r 1 1 1 1 1 AF
6-4 FFRM-A113CBKZ Base frame ass'y 1 1 1 1 1 AW
6-5 FDRY-A006CBK0 Dryer ass'y 1 1 1 1 1 AX
6-9 PSPAFA047CBEZ Sleeve 4 4 4 4 4 AE
6-11 PPIPCA356CBEZ S.p connector 1 1 1 1 1 AG
6-14 PGUM-A004CBF0 Absorbent rubber a 1 1 1 1 1 AH
6-15 PGUM-A002CBF0 Absorbent rubber b 1 1 1 1 1 AH
6-16 PGUM-A003CBF0 Absorbent rubber b 2 2 2 2 2 AH
6-18 PPIPCA252CBE0 Charge pipe 2 2 2 2 2 AD
6-19 PPIPCA424CBZZ Oil cooler pipe a 1 1 1 1 1 AF
6-20 PPIPCA427CBEZ Backcon connector 1 1 1 1 1 AF
6-21 PCOVPA271CBEZ Terminal cover 1 1 1 1 1 AH
6-27 PSEL-B899CBEZ S-sealer 2 2 2 2 2 AC
6-28 PKYU-A143CBEZ S-butyl 1 1 1 1 1 AD
6-29 PKYU-A036CBE0 Sp-butyl d-poy 1 1 1 1 1 AP
27
SJ-3056
SJ-3065
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3056 SJ-3056 SJ-3056 SJ-3056 SJ-3056
-BE -GL -GY -SL -WH
6-30 PKYU-A098CBE0 Compressor butyl 1 1 1 1 1 AG
6-31 PKYU-A035CBE0 Sp-butyl h 1 1 1 1 1 AG
MISCELLANEOUS
90-2 TLAB-A092CBR0 Lamp label 1 1 1 1 1 AD
90-3 SPAKCJ312YDZZ Packing case 63m 1 1 1 1 1 BB
90-6 CPADBA765YDKZ Bottom pad ass'y 1 1 1 1 1 AY
90-7 CPADBA822YDKZ Top pad ass'y 1 1 1 1 1 AP
90-8 TLAB-A876CBRZ Warning label 1 1 1 1 1 AC
90-21 TLAB-A939CBRZ Caution label rof 1 1 1 1 1 AD
HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
28
SJ-3056
SJ-3065
,
REPLACEMENT PARTS LIST (SJ-3065-BE/GL/GY/SL/WH)
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3065 SJ-3065 SJ-3065 SJ-3065 SJ-3065
-BE -GL -GY -SL -WH
ELECTRIC PARTS
1-1 RTHM-A097CBEZ F-thermostat 1 1 1 1 1 AX
1-2 RSTT-A179CBZZ Ptc relay 1 1 1 1 1 AR
1-3 QSWTDA047CBZZ Defrost timer 1 1 1 1 1 AZ
1-4 PDMP-A052CBEZ Damper thermo 1 1 1 1 1 AW
1-5 FTHM-A038CBKZ Defrost thermo.ass'y 1 1 1 1 1 AM
1-6 RMOTRA046CBE0 Fan motor 1 1 1 1 1 AZ
1-7 QSOCAA091CBZZ Lamp socket 1 1 1 1 1 AN
1-8 RLMP-A012CBE0 Lamp 1 1 1 1 1 AH
1-9 QACC-A159CBZZ Source cord 1 1 1 1 1 AW
1-10 QSW-PA090CBZA Door switch 1 1 1 1 1 AS
1-11 RHOG-A168CBZZ Protector 1 1 1 1 1 AX
1-17 FFS-TA055CBKZ Fuse ass'y 1 1 1 1 1 AL
1-20 FW-VZA150CBZZ Lead ev-cover ass'y 1 1 1 1 1 AK
1-21 FHETBA146CBEZ Def.heater ass'y 1 1 1 1 1 AZ
1-22 FCNW-A726CBKZ Relay cord s ass'y 1 1 1 1 1 AK
1-23 QCNW-A671CBE0 Reray wire rc 2 2 2 2 2 AD
1-25 LHLD-A465CBE0 Cord clip 1 1 1 1 1 AG
1-27 RMOTRA061CBEZ Fan motor 1 1 1 1 1 AW
1-28 RLMP-A029CBEZ Lamp15w 1 1 1 1 1 AH
1-29 QSOCAA072CBEZ Lamp socket 1 1 1 1 1 AN
1-30 FTHM-A029CBKZ R fan thermo ass'y 1 1 1 1 1 AQ
1-31 RC-EZA190CBEZ Running capacitor 1 1 1 1 1 AW
1-32 RC-EZA191CBZZ Capacitor 1 1 1 1 1 AY
1-34 QCNW-A968CBZZ Earth wire 1 1 1 1 1 AC
1-36 QCNW-A691CBE0 Lead wire gy ass'y 1 1 1 1 1 AD
1-45 FTRN-A014CBKZ Ionaizer-k 1 1 1 1 1 AZ
1-46 QCNW-A999CBZZ Plasma harness 1 1 1 1 1 AF
1-50 FPWB-A337CBKZ Main pwb 1 1 1 1 1 BC
1-55 FPWB-A336CBKZ Panel pwb ass'y 1 1 1 1 1 AT
MECHANICAL PARTS
2-2 JKNB-A036CBFC F-temp. control knob 1 1 1 1 1 AC
2-7 FLEGPA077CBKZ Leg holder l ass'y 1 1 1 1 1 AQ
2-7-1 FAJS-A013CBK0 Adjustable leg ass'y 2 2 2 2 2 AE
2-7-2 LHLD-A533CBPZ Leg holder l 1 1 1 1 1 AL
2-8 FLEGPA078CBKZ Leg holder r ass'y 1 1 1 1 1 AQ
2-8-2 LHLD-A534CBPZ Leg holder r 1 1 1 1 1 AP
2-10 PSPAVA083CBEA Upper hinge spacer 1 1 1 1 1 AD
2-11 PSPAVA085CBEA Bottom hinge spacer 1 1 1 1 1 AC
2-12 PSPAVA075CBEA Center hinge spacer 1 1 1 1 1 AD
2-13 DHNG-A437CBMZ Upper hinge ass'y 1 1 1 1 1 AE
2-14 DHNG-A442CBMZ Bottom hinge 1 1 1 1 1 AE
2-15 DHNG-A438CBMZ Center hinge r ass'y 1 1 1 1 1 AE
2-16 GCOV-A191CBFZ E.v cover 1 1 1 1 1 AS
2-17 LCRA-A010CBE0 Fan clamp 2 2 2 2 2 AD
2-19 LHLD-A389CBF0 Motor cushion 2 2 2 2 2 AF
2-20 NFANPA020CBFA Propeller fan 100 1 1 1 1 1 AE
2-21 PSEL-B845CBEZ E.v cover sealer a 1 1 1 1 1 AC
2-22 PSEL-B846CBEZ E.v cover sealer b 1 1 1 1 1 AC
2-23 PSEL-A415CBE0 E.v cover sealer c 1 1 1 1 1 AC
2-24 LPLTMA653CBPZ Terminal cover 1 1 1 1 1 AE
2-25 PCOV-A253CBFB F lamp cover 1 1 1 1 1 AD
2-26 PCOV-A254CBFB R lamp cover 1 1 1 1 1 AF
2-27 GCOVPA130CBRB R-cbox cover 1 1 1 1 1 AS
2-28 HGRL-A184CBRB Fan louver 1 1 1 1 1 AT
2-29 GCOV-A228CBFA Upper hinge cover - - - 1 - AE
2-29 GCOV-A228CBFB Upper hinge cover - - 1 - - AE
2-29 GCOV-A228CBFE Upper hinge cover - 1 - - - AE
2-29 GCOV-A228CBFF Upper hinge cover - - - - 1 AF
2-29 GCOV-A228CBFG Upper hinge cover 1 - - - - AE
2-30 PCOV-A255CBFC Fan cover 2 2 2 2 2 AE
2-31 JKNB-A033CBFC R-temp.control knob 1 1 1 1 1 AC
2-36 PCAP-A006CBFW Screw cover - - - - 2 AB
2-36 PCAP-A006CBFX Screw cover - - 2 - - AB
2-36 PCAP-A006CBFY Screw cover 2 - - - - AB
2-36 PCAP-A077CBFA Screw cover - - - 2 - AA
2-36 PCAP-A077CBFB Screw cover - 2 - - - AA
2-38 PGID-A163CBFZ R air guider a 1 1 1 1 1 AG
2-41 PSEL-B848CBEZ A-sealer thermo.cap 1 1 1 1 1 AC
2-45 LPLTPA323CBMA Panel base 1 1 1 1 1 AN
2-47 LHLD-A618CBFZ Plasma holder 1 1 1 1 1 AE
2-48 PCOV-A284CBFZ Holder cover 1 1 1 1 1 AB
2-49 LSTPPA108CBFA Chilled stopper 2 2 2 2 2 AC
29
SJ-3056
SJ-3065
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3065 SJ-3065 SJ-3065 SJ-3065 SJ-3065
-BE -GL -GY -SL -WH
2-50 NFANPA019CBFA Propeller fan 80 1 1 1 1 1 AM
2-51 PBOX-A121CBFA F lamp box 1 1 1 1 1 AF
2-52 PBOX-A122CBFA R lamp box 1 1 1 1 1 AM
2-53 LHLD-A536CBFA R fan motor holder a 1 1 1 1 1 AF
2-54 LHLD-A537CBFA R fan motor holder b 1 1 1 1 1 AE
2-55 HGRL-A181CBFA Multi louver l 1 1 1 1 1 AN
2-56 PFPFPB233CBFZ R-louver insu. l 1 1 1 1 1 AG
2-57 PSEL-B843CBEZ A-sealer r-louver 2 2 2 2 2 AC
2-59 PCOV-A264CBEZ F lamp box cover 1 1 1 1 1 AC
2-63 LHLD-A484CBFA Fan motor holder b 1 1 1 1 1 AH
2-64 LHLD-A485CBFA Fan motor holder a 1 1 1 1 1 AH
2-65 PSEL-B209CBE0 U-sealer handle 2 2 2 2 2 AB
2-66 PSHEMA132CBP0 Heater cover al 1 1 1 1 1 AD
2-67 LPLTMA570CBWZ Drain support al 1 1 1 1 1 AE
2-69 PSEL-B847CBEZ E.v cover sealer d 1 1 1 1 1 AC
2-70 LSTPPA078CBFA Back spacer 1 1 1 1 1 AD
2-71 PSEL-A552CBE0 Dial sealer 1 1 1 1 1 AC
2-72 PSEL-B841CBEZ Ra sealer a 2 2 2 2 2 AC
2-73 PSEL-B842CBEZ Ra sealer b 1 1 1 1 1 AC
2-77 LHLD-A359CBFA T-box holder 1 1 1 1 1 AE
2-78 LPLTMA399CBP0 Dryer support 1 1 1 1 1 AD
2-79 LBND-A019CBE0 Nylon band 1 1 1 1 1 AB
2-80 PBOX-A138CBFA Terminal box 1 1 1 1 1 AG
2-81 PPIPPA097CBEZ Drain pipe s 1 1 1 1 1 AE
2-83 PSEL-B849CBEZ Ra sealer c 1 1 1 1 1 AC
2-87 LBND-A018CBE0 Fastening band a 3 3 3 3 3 AP
2-90 HGRL-A179CBFA F shower duct 1 1 1 1 1 AM
2-93 PCAP-A068CBFA C sliding cap a 2 2 2 2 2 AC
2-95 NROL-A027CBEZ V roller 2 2 2 2 2 AC
2-96 LHLD-A535CBFA Shaft holder 2 2 2 2 2 AC
2-97 LPIN-A178CB1Z Shaft 2 2 2 2 2 AC
2-105 PSEL-B896CBEZ A-sealer fs-a 1 1 1 1 1 AC
2-106 PSEL-B897CBEZ A-sealer fs-b 2 2 2 2 2 AC
2-110 PSEL-C248CBEZ A-sealer t-cover 1 1 1 1 1 AD
2-111 PSEL-C250CBEZ A-sealer t-wire 2 2 2 2 2 AB
DOOR PARTS
3-5 FDORFB588CBKZ F-door ass'y - - - 1 - BP
3-5 FDORFB598CBKZ F-door ass'y - - 1 - - BQ
3-5 FDORFB600CBKZ F-door ass'y - 1 - - - BK
3-5 FDORFB601CBKZ F-door ass'y - - - - 1 BQ
3-5 FDORFB614CBKZ F-door ass'y 1 - - - - BP
3-5-1 LSTPMA008CBM0 F-door stopper r 1 1 1 1 1 AD
3-5-2 LSTPPA125CBFA Fd stopper spring 1 1 1 1 1 AC
3-6 FPACGA309CBKZ F-door packing 1 1 1 1 1 AX
3-7 HDECQA425CBMA Hd cover ft 1 1 1 1 1 AL
3-8 JHNDPA170CBTA F door handle 1 1 1 1 1 AZ
3-9 LPLTPA312CBPZ Hd support ft 1 1 1 1 1 AC
3-10 LPLTPA313CBPZ Hd support fb 1 1 1 1 1 AC
3-11 LPLTPA314CBFA Hd base ft - - - 1 - AE
3-11 LPLTPA314CBFB Hd base ft - - 1 - - AE
3-11 LPLTPA314CBFE Hd base ft - 1 - - - AE
3-11 LPLTPA314CBFF Hd base ft - - - - 1 AE
3-11 LPLTPA314CBFG Hd base ft 1 - - - - AE
3-12 LPLTPA315CBFA Hd base fb - - - 1 - AE
3-12 LPLTPA315CBFB Hd base fb - - 1 - - AE
3-12 LPLTPA315CBFE Hd base fb - 1 - - - AE
3-12 LPLTPA315CBFF Hd base fb - - - - 1 AE
3-12 LPLTPA315CBFG Hd base fb 1 - - - - AE
3-15 FDORRB376CBKZ R-door ass'y - - - 1 - BT
3-15 FDORRB379CBKZ R-door ass'y - - 1 - - BU
3-15 FDORRB381CBKZ R-door ass'y - 1 - - - BT
3-15 FDORRB382CBKZ R-door ass'y - - - - 1 BU
3-15 FDORRB412CBKZ R-door ass'y 1 - - - - BU
3-15-1 LSTP-A058CBM0 R-door stopper r 1 1 1 1 1 AF
3-15-2 LSTPPA084CBFA Rd-stopper spring r 1 1 1 1 1 AD
3-15-3 NBRGPA022CBFA Nylon bearing 3s 1 1 1 1 1 AC
3-17 FPACGA310CBKZ R-door packing 1 1 1 1 1 AY
3-18 HDECQA426CBMA Hd cover rb 1 1 1 1 1 AQ
3-19 JHNDPA171CBTA R door handle 1 1 1 1 1 BB
3-20 LPLTPA316CBPZ Hd support rt 1 1 1 1 1 AC
3-21 LPLTPA317CBPZ Hd support rb 1 1 1 1 1 AC
3-22 LPLTPA318CBFA Hd base rt - - - 1 - AE
3-22 LPLTPA318CBFB Hd base rt - - 1 - - AE
3-22 LPLTPA318CBFE Hd base rt - 1 - - - AE
30
SJ-3056
SJ-3065
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3065 SJ-3065 SJ-3065 SJ-3065 SJ-3065
-BE -GL -GY -SL -WH
3-22 LPLTPA318CBFF Hd base rt - - - - 1 AE
3-22 LPLTPA318CBFG Hd base rt 1 - - - - AE
3-23 LPLTPA319CBFA Hd base rb - - - 1 - AF
3-23 LPLTPA319CBFB Hd base rb - - 1 - - AF
3-23 LPLTPA319CBFE Hd base rb - 1 - - - AF
3-23 LPLTPA319CBFF Hd base rb - - - - 1 AF
3-23 LPLTPA319CBFG Hd base rb 1 - - - - AF
3-30 GCOVPA156CBRA Panel cover 1 1 1 1 1 AZ
3-31 HBDG-A004CBEA Pc badge 1 1 1 1 1 AG
OTHER PARTS
4-1 LBND-A023CBE0 L-band c 4 4 4 4 4 AC
4-3 LX-VZA003CBE0 Special screw 2 2 2 2 2 AB
4-10 QTAN-A013CBE0 Solderless term. a 8 8 8 8 8 AH
4-15 LX-BZA018CBE0 Special screw 3 3 3 3 3 AA
4-17 LX-WZA003CBE0 Washer 4 4 4 4 4 AA
ATTACHMENT PARTS
5-1 UPOK-A186CBRA Bottle pocket 2 2 2 2 2 AR
5-3 UPOK-A184CBRA F door pocket 2 2 2 2 2 AN
5-4 UPOK-A185CBRA R door pocket 2 2 2 2 2 AN
5-5 UTNA-A282CBFA Egg tray 2 2 2 2 2 AH
5-6 FSRA-A193CBYZ Ice cube maker 1 1 1 1 1 AS
5-9 FSRA-A213CBKZ F shelf ass'y 1 1 1 1 1 AY
5-14 USRA-A252CBFA Drain pan 1 1 1 1 1 AN
5-15 GGAD-A034CBFA V parting plate 1 1 1 1 1 AG
5-16 UYOK-A331CBFB Vegetable case 1 1 1 1 1 AY
5-17 UYOK-A328CBFB Ice storage box 1 1 1 1 1 AL
5-18 UYOK-A329CBFB Chilled case 1 1 1 1 1 AW
5-19 GDORPA074CBRA Chilled door 1 1 1 1 1 AN
5-24 FTNA-A366CBKZ R glass shelf ass'y 3 3 3 3 3 BD
5-24-1 FWAKPA019CBKZ G guard r ass'y 3 3 3 3 3 AR
5-24-2 UTNA-A299CBEZ Glass shelf 3 3 3 3 3 AX
5-24-3 UWAKPA008CBFA G guard r cover f 3 3 3 3 3 AM
5-24-4 UWAKPA009CBFA G guard r cover b 3 3 3 3 3 AM
5-25 FTNA-A367CBKZ V glass shelf ass'y 1 1 1 1 1 BD
5-25-1 FWAKPA020CBKZ G guard v ass'y 1 1 1 1 1 AR
5-25-2 UTNA-A300CBEZ Glass shelf 1 1 1 1 1 AX
5-25-3 UWAKPA011CBFA G guard v cover 1 1 1 1 1 AM
5-26 HGRL-A218CBFA Ventilating grille - - - 1 - AN
5-26 HGRL-A218CBFB Ventilating grille - - 1 - - AN
5-26 HGRL-A218CBFE Ventilating grille - 1 - - - AN
5-26 HGRL-A218CBFF Ventilating grille - - - - 1 AN
5-26 HGRL-A218CBFG Ventilating grille 1 - - - - AN
5-28 PCAP-A069CBFA V sliding cap l 1 1 1 1 1 AC
5-29 PCAP-A070CBFA V sliding cap r 1 1 1 1 1 AC
5-31 LRALPA132CBFB Ice tray holder l 1 1 1 1 1 AG
5-32 LRALPA133CBFB Ice tray holder r 1 1 1 1 1 AG
5-33 LRALPA134CBFA Ice tray holder b 1 1 1 1 1 AF
5-34 PCUP-A009CBFB Water cup 1 1 1 1 1 AF
5-35 UPOKPA251CBFB Tube stand 2 2 2 2 2 AF
5-36 PCOV-A259CBFB Case cover 1 1 1 1 1 AK
5-37 UPOK-A187CBRA Utility case pocket 1 1 1 1 1 AN
CYCLE PARTS
6-1 PCMPLA228CBZZ Compressor 1 1 1 1 1 BW
6-2 PSPAGA054CBEZ Rubber grommet 4 4 4 4 4 AH
6-3 FCONSA089CBKZ Sub. condenser ass'y 1 1 1 1 1 AU
6-3-1 PCOV-A256CBFA Pipe protector l 1 1 1 1 1 AF
6-3-2 PCOV-A257CBFA Pipe protector r 1 1 1 1 1 AF
6-4 FFRM-A113CBKZ Base frame ass'y 1 1 1 1 1 AW
6-5 FDRY-A006CBK0 Dryer ass'y 1 1 1 1 1 AX
6-9 PSPAFA047CBEZ Sleeve 4 4 4 4 4 AE
6-11 PPIPCA356CBEZ S.p connector 1 1 1 1 1 AG
6-14 PGUM-A004CBF0 Absorbent rubber a 1 1 1 1 1 AH
6-15 PGUM-A002CBF0 Absorbent rubber b 1 1 1 1 1 AH
6-16 PGUM-A003CBF0 Absorbent rubber b 2 2 2 2 2 AH
6-18 PPIPCA252CBE0 Charge pipe 2 2 2 2 2 AD
6-19 PPIPCA424CBZZ Oil cooler pipe a 1 1 1 1 1 AF
6-20 PPIPCA427CBEZ Backcon connector 1 1 1 1 1 AF
6-21 PCOVPA271CBEZ Terminal cover 1 1 1 1 1 AH
6-27 PSEL-B899CBEZ S-sealer 2 2 2 2 2 AC
6-28 PKYU-A143CBEZ S-butyl 1 1 1 1 1 AD
6-29 PKYU-A036CBE0 Sp-butyl d-poy 1 1 1 1 1 AP
31
SJ-3056
SJ-3065
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SJ-3065 SJ-3065 SJ-3065 SJ-3065 SJ-3065
-BE -GL -GY -SL -WH
6-30 PKYU-A098CBE0 Compressor butyl 1 1 1 1 1 AG
6-31 PKYU-A035CBE0 Sp-butyl h 1 1 1 1 1 AG
MISCELLANEOUS
90-2 TLAB-A092CBR0 Lamp label 1 1 1 1 1 AD
90-3 SPAKCJ301YDZZ Packing case 68m 1 1 1 1 1 BB
90-6 CPADBA765YDKZ Bottom pad ass'y 1 1 1 1 1 AY
90-7 CPADBA822YDKZ Top pad ass'y 1 1 1 1 1 AP
90-8 TLAB-A876CBRZ Warning label 1 1 1 1 1 AC
90-21 TLAB-A939CBRZ Caution label rof 1 1 1 1 1 AD
HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
32
SJ-3056
SJ-3065
123456
DOOR PARTS
A
3-6
3-5
3-11
3-7
B
3-9
3-8
3-10
3-12
3-22
3-31
3-15
3-30
C
D
1-55
2-45
3-5-1
3-5-2
3-15-3
5-34
A
B
C
D
3-19
E
3-21
3-20
5-36
3-23
5-5
F
3-18
5-35
3-17
G
3-15-1
3-15-2
5-3
E
5-37
F
5-4
G
5-1
H
SJ-3056
H
SJ-3065
123456
33
SJ-3056
SJ-3065
123456
CABINET PARTS
A
5-9
2-29
2-13
B
5-31
5-33
5-6
5-17
C
5-19
2-93
5-32
5-18
2-105
2-90
2-93
2-106
2-49
2-36
2-95
2-96
4-3
1-10
2-15
2-97
2-36
2-12
2-10
2-49
2-95
2-96
D
5-14
2-11
A
B
C
D
5-24
2-14
2-7
E
F
5-24-1
5-24-3
5-25-1
5-24-2
5-24-4
5-25
5-25-2
5-25-3
5-26
5-15
5-28
2-7-2
2-7-1
5-16
5-29
G
2-8
2-8-2
2-7-1
E
F
G
H
SJ-3056
H
SJ-3065
123456
34
SJ-3056
SJ-3065
123456
CABINET PARTS
A
2-19
2-21
1-5
B
2-28
2-30
1-29
2-59
2-16
1-1
4-1
2-23
2-69
2-64
2-17
2-65
2-20
2-22
1-17
1-6
2-19
C
1-8
1-46
2-30
90-2
2-48
2-47
1-45
2-51
2-55
2-72
2-57
2-56
2-17
2-38
2-50
2-71
90-8
1-4
6-20
2-83
2-73
2-53
6-16
2-41
1-27
2-52
1-7
1-28
6-31
2-54
6-14
6-19
6-29
6-27
6-28
6-15
6-2
6-9
2-25
2-2
D
1-3
1-30
2-79
E
2-27
2-31
F
2-26
G
6-3-1
6-3-2
1-20
1-34
6-11
2-63
2-67
6-30
6-3
6-1
1-22
4-17
4-15
6-4
2-66
1-21
2-78
6-18
6-18
1-2
6-5
2-81
1-11
1-25
4-10
2-80
1-9
2-77
4-1
6-21
1-23
2-24
2-87
1-31
2-87
1-50
1-32
2-70
2-110
2-111
A
B
C
D
E
F
G
H
SJ-3056
H
SJ-3065
123456
35
SJ-3056
SJ-3065
36
2003 SHARP CORP. (06S0.01E) Printed in Japan63CPBW / KW / RW / NW / WW , 68CPBW / KW / RW / NW / WW
Loading...
